3000WFR series
Single, Dual, Triple Output
DC/DC Converter
F
EATURES
•
•
•
•
•
6 sided Continuous Shielding
Remote On/Off Control
Wide 2:1 Input Voltage Range
Efficiency to 85%
Output Voltage Trim up to ±10%
D
ESCRIPTIONS
The 3000WFR series is a family of compact 25W to 30W, high
performance DC/DC converters. These converters are
specifically designed to provide the flexibility, power density,
and reliability required to fulfill local power needs in
applications ranging from telecom switch systems to
portable instrumentation. 27 models operate over 2:1 input
ranges of 9 to 18, 18 to 36 or 36 to 72 VDC; providing single,
dual or triple output combinations of 3.3, 5, 12, 15, ±5, ±12,
±15, 5±12 and 5±15 VDC. All models are packaged in
compact, low profile 2.0” X 2.0” X 0.4” metal cases.
I
NPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Input Voltage Range
12 VDC Input Models
9
12
24 VDC Input Models
18 24
48 VDC Input Models
36 48
Remote ON / OFF Control
Supply ON
Supply OFF
Logic Referenced to Negative Input
Input Filter
18
36
72
VDC
VDC
VDC
5.5 VDC or Open Circuit
0 VDC to 0.8 VDC
Pi Filter
O
UTPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Output Voltage Accuracy
Single & Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Output Voltage Trim
Voltage Balance:
Dual Outputs
Triple Outputs (Auxiliaries)
Minimum Load
Line Regulation
Single Outputs
Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Load Regulation
Single Outputs
Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Ripple/Noise
5V Outputs
12V and 15V Outputs
Short Circuit Protection
Transient Recovery Time
Temperature Coefficient
Over Voltage Protection
±2
±2
±5
±10
%
1
%
1
%
1
%
1
G
ENERAL
C
HARACTERISTICS
Switching Frequency
Isolation Voltage
Isolation Resistance
Min Typ Max Unit/Comments
kHz
300
VDC, 1 minute
500
Mohm, 500VDC
1000
±2 %; Equal Output Loads
±100 mV; Equal Output Loads
10% Full Load
±0.5
±0.5
±1
±5
±1
±1
±1
±5
%
2
%
2
%
2
%
2
%
3
%
3
; Equal Loads
%
3
%
3
; Equal Loads
75 mV; p-p, Nom.Line FL,
20Mhz B.W. using
1
μf
bypass capacitor
1 % of Vout
Continuous, Auto-
matic Recovery
100
μS
to within1% error
band for 50% step
load change
±0.01 % per
o
C
See Model Selection Guide
1
2
3
= Output voltage at nominal line & FL
= % Output voltage measured from min. input line to maximum
= Output voltage measured from FL to 10% Load
Martek Power reserves the right to change specifications without notice.
>> 1
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
E
NVIRONMENTAL
S
PECIFICATIONS
Operating Temp. Range
Storage Temp. Range
Relative Humidity
Cooling
Min
-25
-55
Typ Max
+71
+105
95
Unit/Comments
o
C; Ambient
o
C
% Humidity; non-
condensing
Free-Air Convection
P
HYSICAL
C
HARACTERISTICS
Case Size
Case Material
Shield Connection
12V and 24V Input Models
48V Input Models
Flammability
Unit/Comments
2.0 X 2.0 X 0.4 inches
(50.8 X 50.8 X 10.2 mm)
Coated Metal with Non-
Conductive Base
Negative Input
Positive Input
UL94V-0
O

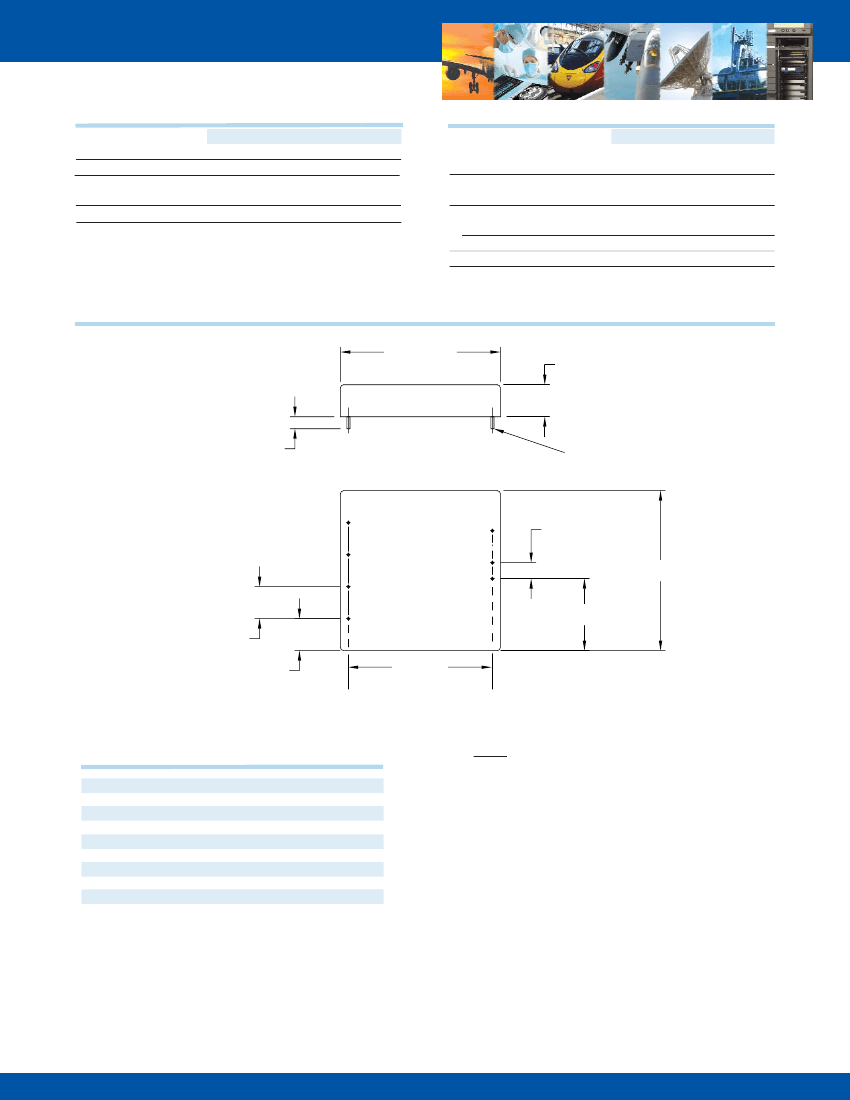

UTLINE
D
RAWING
2.00 [50.8]
.40 [10.2]
SIDE VIEW
.22 [5.6]
.040
(1.0)
TYP. PIN DIA.
5
6
7
8
.40 [10.2]
TYP.
.40 [10.2]
1.80 [45.72]
1
.20 [5.1]
TYP.
2.00 [50.8]
BOTTOM
VIEW
3
4
.90 [22.9]
P
IN
O
UT
C
HART
Pin
1
2
3
4
5
6
7
8
Single
Dual
Remote On/Off Remote On/Off
No Pin
No Pin
- Vin
- Vin
+ Vin
+ Vin
Trim
Trim
- Vout
- Vout
+ Vout
Common
No Pin
+ Vout
Triple
Remote On/Off
No Pin
- Vin
+Vin
- Aux. Out
Common
+5V out
+ Aux. Out
Notes:
1. Unless otherwise specified dimensions are in inches (mm).
Tolerances
Inches
mm
X.XX = ±0.02
X.X = ±0.5
X.XXX= ±0.010
X.XX = ±0.25
2. Mounting inserts: 4-40 X .10 (2.5) Deep
All specifications are typical at nominal input, nominal load and 25
°
C unless otherwise specified.
External, low ESR, 10 microfarad (minimum) capacitor across output is recommended for operation.
