LTC1050M datasheet, PDF - EEWORLD Datasheet

LTC1050M: DescriptionOP-AMP, 5 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDIP8; Categorysemiconductor Analog mixed-signal IC; File Size790KB，16 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

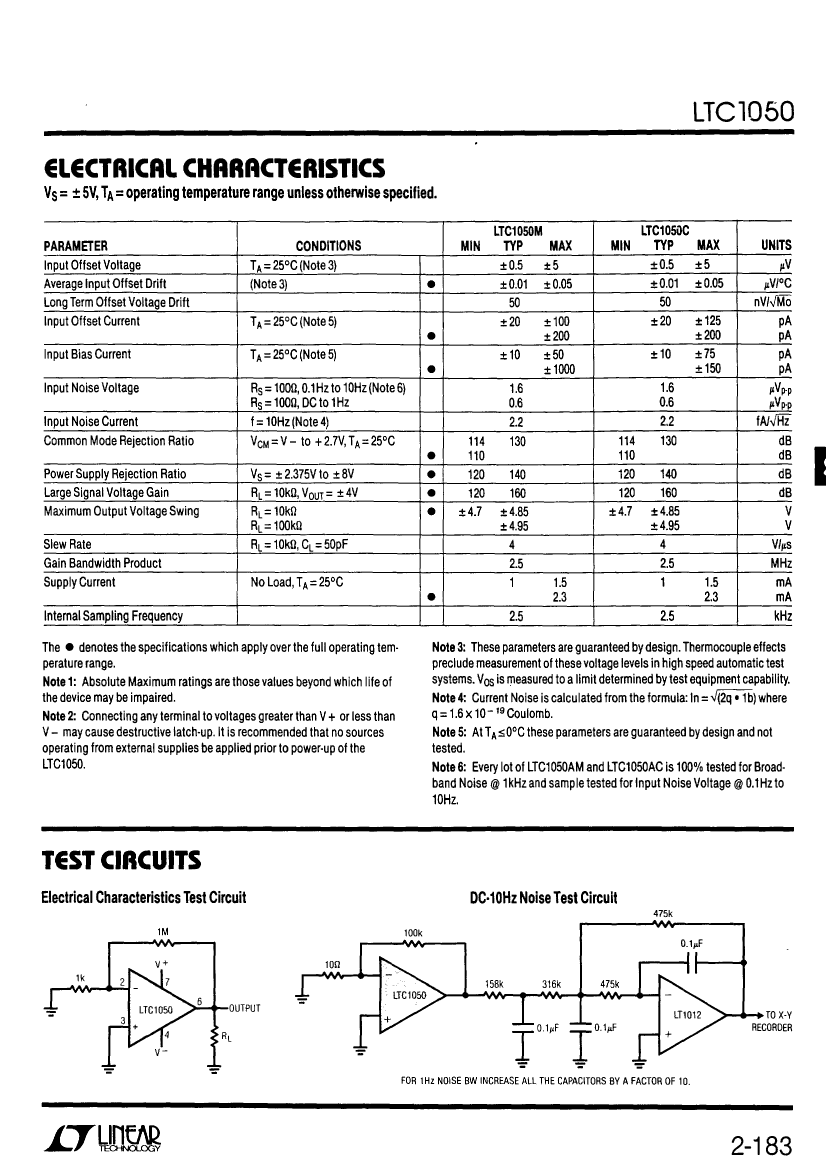

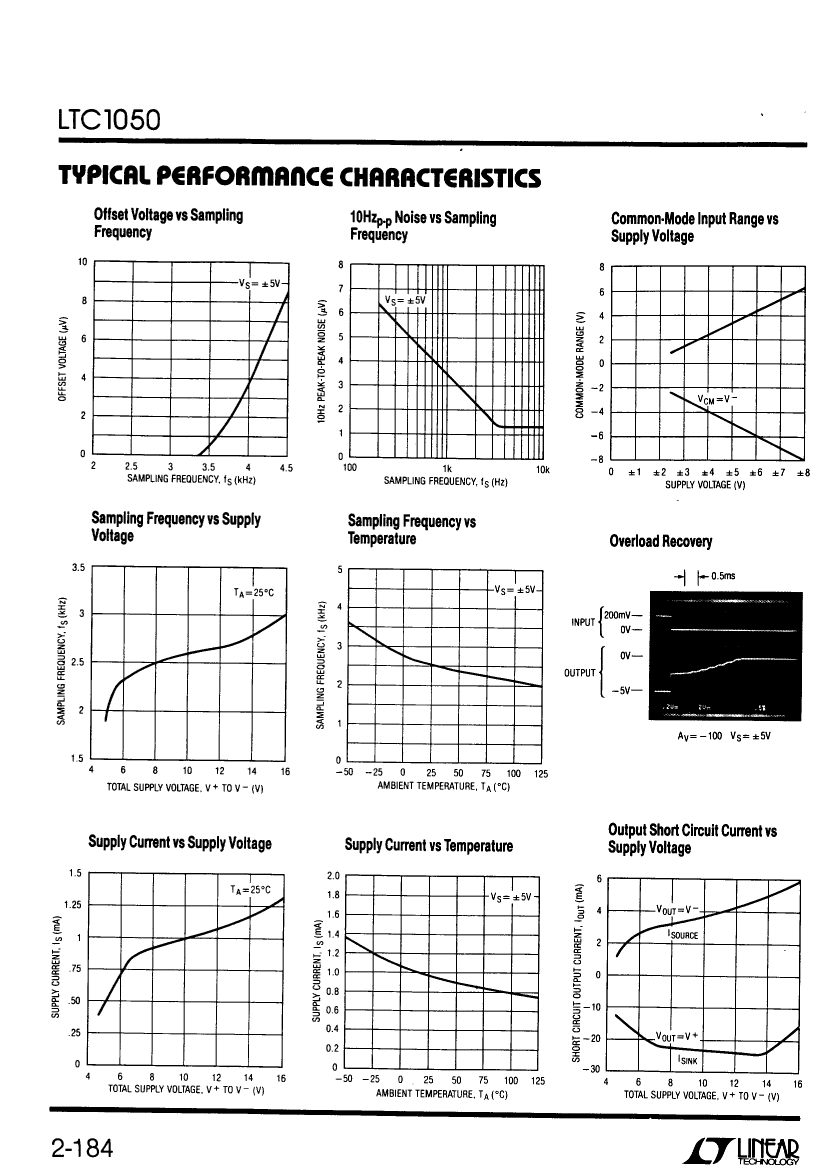

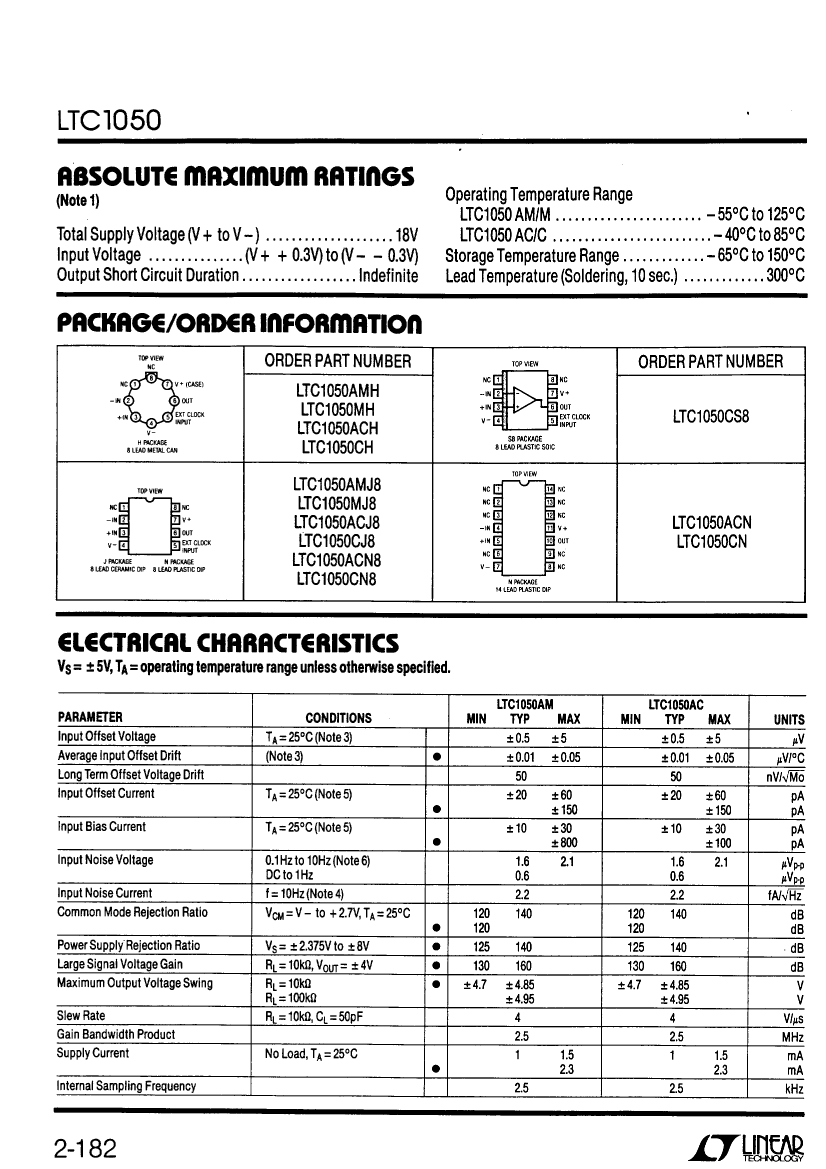

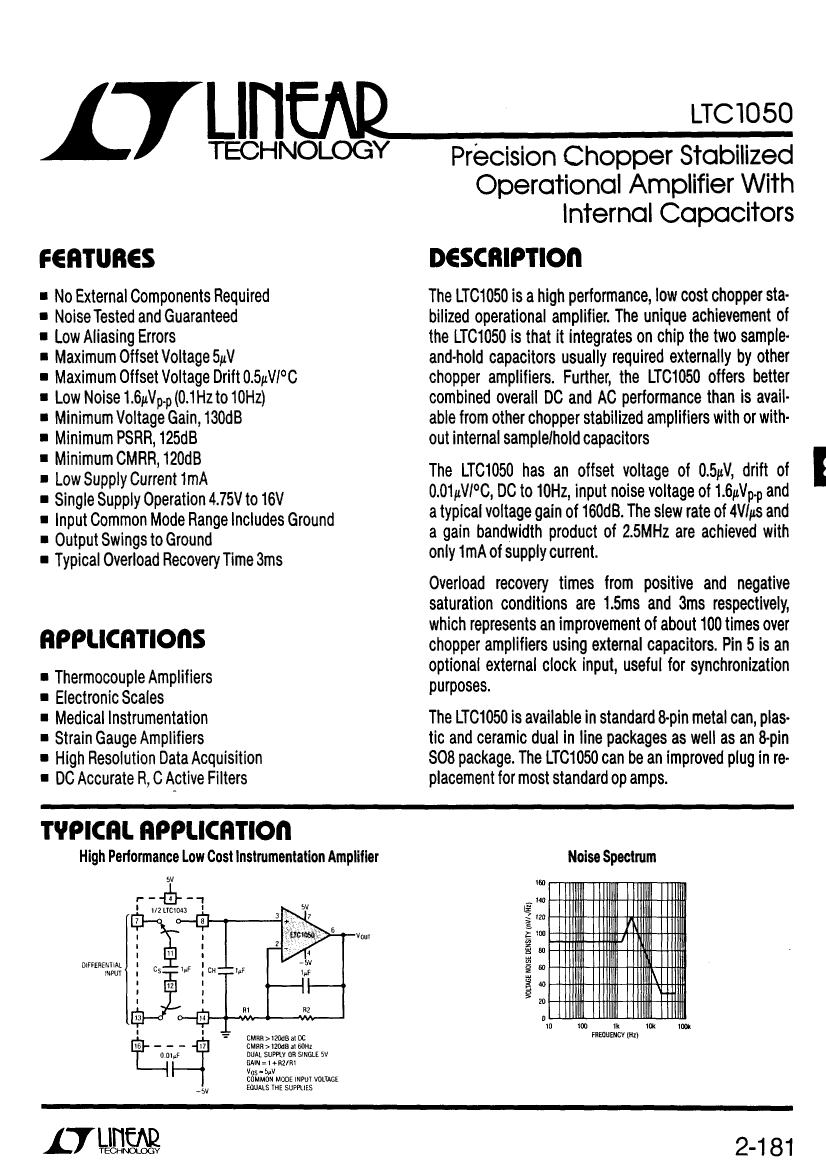

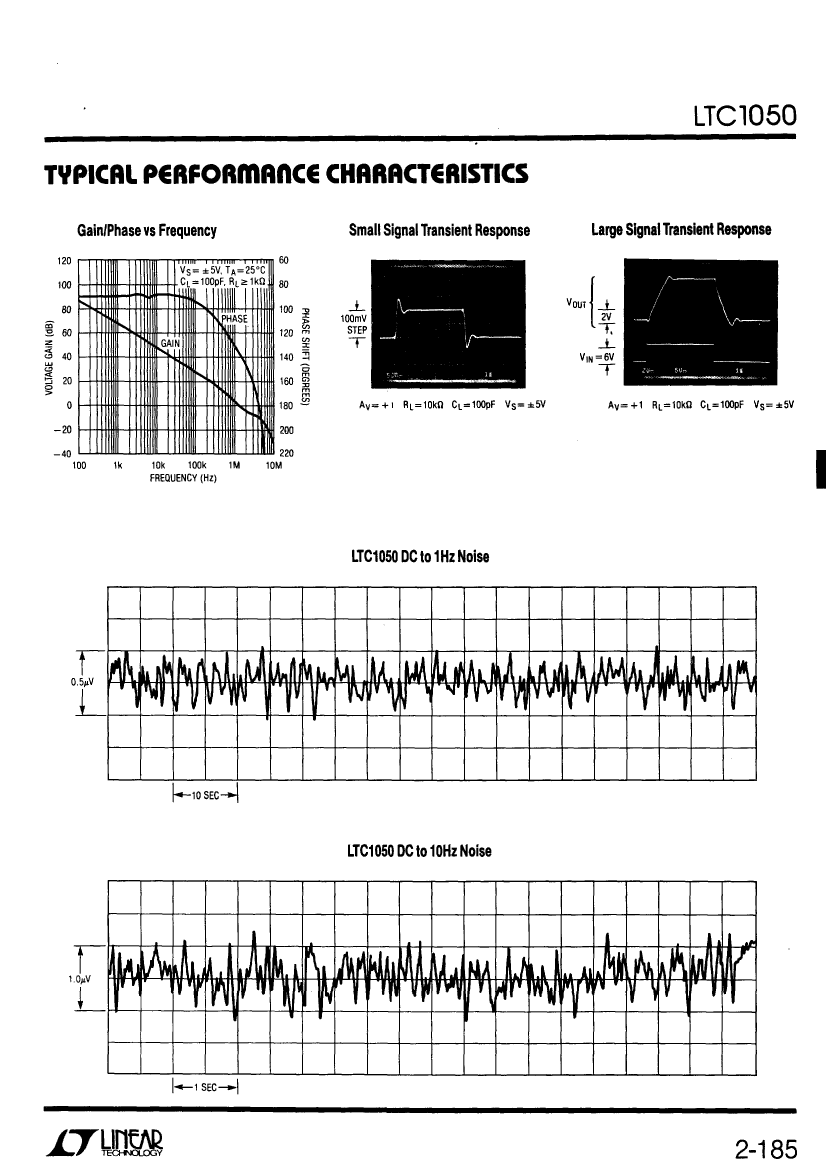

LTC1050M Overview

OP-AMP, 5 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDIP8

Parameter Name	Attribute value
Maximum input offset voltage	5 µV
Maximum negative supply voltage	-9 V
Rated negative supply voltage	-5 V
Number of functions	1
Number of terminals	8
Minimum operating temperature	-40 Cel
Maximum operating temperature	85 Cel
Rated rotation rate	4 V/us
Maximum supply/operating voltage	9 V
Rated supply voltage	5 V
Processing package description	PLASTIC, DIP-8
each_compli	Yes
state	Active
Amplifier type	OPERATIONAL AMPLIFIER
chitecture	CHOPPER-STAB
Maximum input bias current IIB	1.50E-4 µA
bias_current_max__iib___25c	7.50E-5 µA
Rated common mode rejection ratio	130 dB
frequency_compensati	YES
jesd_30_code	R-PDIP-T8
jesd_609_code	e0
low_bias	YES
low_offse	YES
moisture_sensitivity_level	1
Packaging Materials	PLASTIC/EPOXY
ckage_code	DIP
ckage_equivalence_code	DIP8,.3
packaging shape	RECTANGULAR
Package Size	IN-LINE
eak_reflow_temperature__cel_	NOT SPECIFIED
wer_supplies__v_	+-5
qualification_status	COMMERCIAL
seated_height_max	3.94 mm
sub_category	Operational Amplifiers
Maximum supply voltage	2.3 mA
surface mount	NO
Craftsmanship	CMOS
Temperature level	INDUSTRIAL
terminal coating	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
Terminal location	DUAL
ime_peak_reflow_temperature_max__s_	NOT SPECIFIED
unity_gain_bw_nom	2500 kHz
Minimum voltage gain	1.00E6
width	7.62 mm
