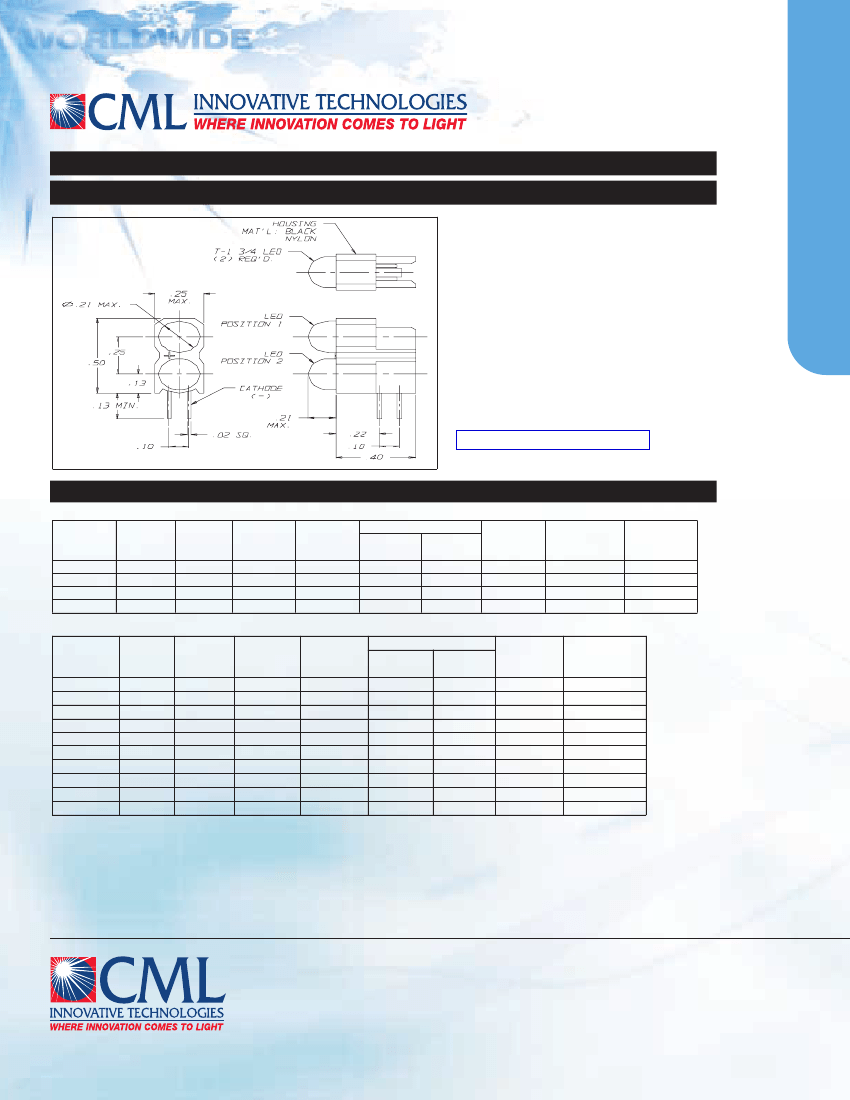

5670 Series T-1 3/4 Right Angle 2 High LED Assembly

DESCRIPTION AND FEATURES

All dimensions in inches.

Features:

• Dual block mounting allows 2 LEDs in same

board area.

• Single block mounting-height and spacing

alignment, saves assembly cost.

• Super Brite LEDs, high light output, diffused lens.

• Low current, only 2 mA needed.

• Built-in resistor chip operates off 5 volt supply

without external resistor.

• Standoffs prevent flux entrapment.

Housing: Black Nylon, UL94V-O

Alternate LEDs are also available in this package

as a standard variation.

Mounting hole pattern on page 1-X6.

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

Emitted

Color

Red/Red

Amber/Amber

Green/Green

Yellow/Yellow

Typical

Intensity

(mcd)

6.3

10.0

6.3

Rated

Current

(mA)

10

Continuous

Forward

Current Max.

(mA)

Forward Voltage

Typ.

(V)

60

Max.

(V)

3.0

Part Number

5670H1;1

5670H3;3

5670H5;5

5670H7;7

Reverse

Breakdown

Voltage Min.(V)

5

Peak

Wavelength

(nm)

650

608

563

585

Peak Forward

Current @

1ms-300pps (A)

1.0

.09

1.0

35

LED Color

Red

Green

Yellow

Red

Amber

Green

Red

Amber

Green

Yellow

LED

Code

1LC

5LC

7LC

1-5V

3-5V

5-5V

1

3

5

7

Typical

Intensity

(mcd)

2.3

2.1

8.0

6.3

10

6.3

Rated

Current

(mA)

2.0

10.0

12.0

10.0

Forward

Current Max.

(mA)

Forward Voltage

Typ.

(V)

1.8

1.9

5.0

2.0

2.2

2.1

Max.

(V)

2.2

2.7

7.5

3.0

Reverse

Breakdown

Voltage Min.

(V)

Peak

Wavelength

(nm)

635

565

583

635

583

565

650

608

563

585

7

15

60

5

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5670 Series T-1 3/4 Right Angle 2 High LED Assembly
