Solid State Relay
OCMOS FET
PS7141-1C,PS7141L-1C
8-PIN DIP, 400 V BREAK DOWN VOLTAGE, TRANSFER TYPE
2-ch Optical Coupled MOS FET
DESCRIPTION
The PS7141-1C and PS7141L-1C are transfer type solid state relays containing normally open (N.O.) contact and
normally close (N.C.) contact on output side.
They are suitable for analog signal control because of their low offset and high linearity.
The PS7141L-1C has a surface mount type lead.
FEATURES
• 2 channel type (1 a + 1 b output)
• Low LED operating current (I
F
= 2 mA)
• Designed for AC/DC switching line changer

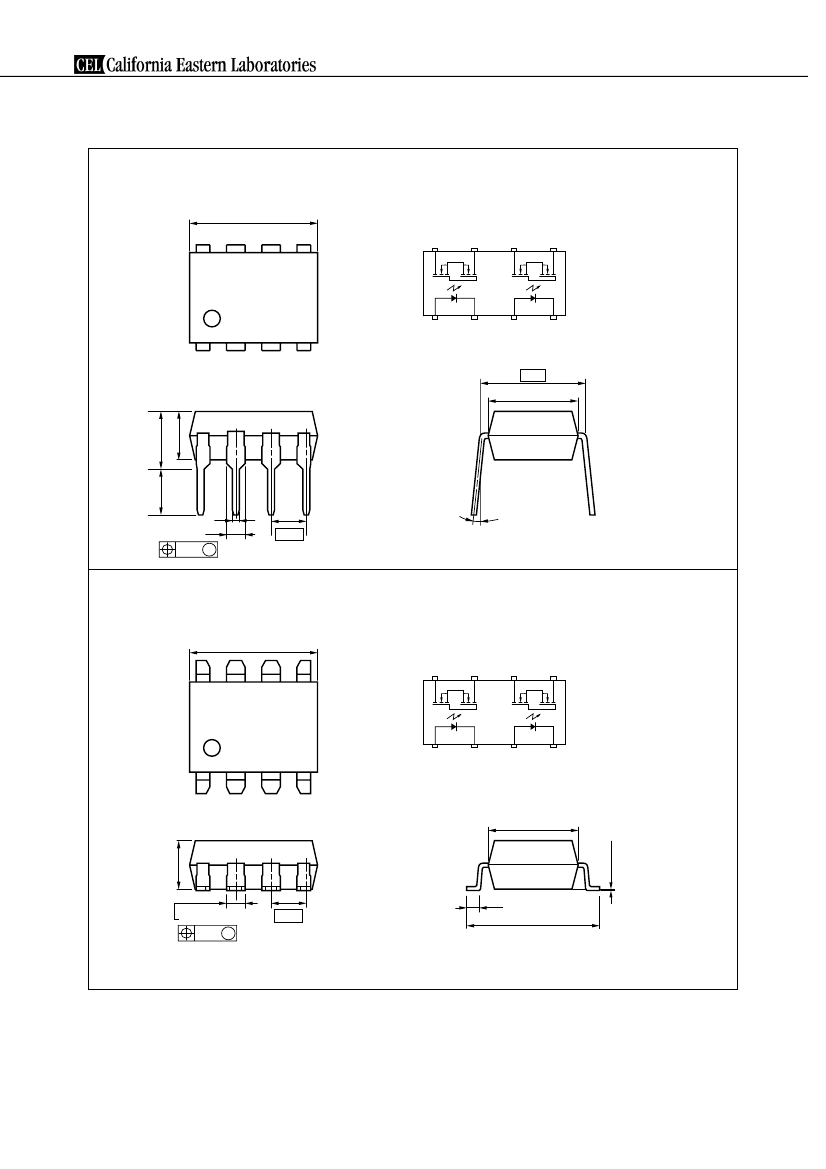

• Small package (8-pin DIP)
• Low offset voltage
• PS7141L-1C: Surface mount type
• UL approved: File No. E72422 (S)
• BSI approved: No. 8245/8246
• CSA approved: No. CA 101391
APPLICATIONS
• Exchange equipment
• Measurement equipment
• FA/OA equipment
Document No. PN10280EJ01V1DS (1st edition)
(Previous No. P12274EJ7V0DS00)
Date Published February 2003 CP(K)
The mark
shows major revised points.
PS7141-1C,PS7141L-1C
ORDERING INFORMATION (Solder Contains Lead)
Part Number
PS7141-1C
PS7141L-1C
PS7141L-1C-E3
PS7141L-1C-E4
Embossed Tape 1 000 pcs/reel
Package
8-pin DIP
Packing Style
Magazine case 50 pcs
Application Part Number
PS7141-1C
PS7141L-1C
*1
*1
For the application of the Safety Standard, following part number should be used.
ORDERING INFORMATION (Pb-Free)
Part Number
PS7141-1C-A
PS7141L-1C-A
PS7141L-1C-E3-A
PS7141L-1C-E4-A
Embossed Tape 1 000 pcs/reel
Package
8-pin DIP
Packing Style
Magazine case 50 pcs
Application Part Number
PS7141-1C
PS7141L-1C
*1
*1
For the application of the Safety Standard, following part number should be used.
ABSOLUTE MAXIMUM RATINGS (T
A
= 25
°C,
unless otherwise specified)
Parameter
Diode
Forward Current (DC)
Reverse Voltage
Power Dissipation
Peak Forward Current
MOS FET
Break Down Voltage
Continuous Load Current
Pulse Load Current
*2
*1
Symbol
I
F
V
R
P
D
I
FP
V
L
I
L
I
LP
Ratings
50
5.0
50
1
400
150
300
Unit
mA
V
mW/ch
A
V
mA
mA
(AC/DC Connection)
Power Dissipation
Isolation Voltage
*3
P
D
BV
P
T
T
A
T
stg
375
1 500
850
−40
to +85
−40
to +100
mW/ch
Vr.m.s.
mW
°C
°C
Total Power Dissipation
Operating Ambient Temperature
Storage Temperature
*1
PW = 100
µ
s, Duty Cycle = 1 %
*2
PW = 100 ms, 1 shot
*3
AC voltage for 1 minute at T
A
= 25
°C,
RH = 60 % between input and output
Data Sheet PN10280EJ01V1DS
3
