5V2305NRI: DescriptionClock Driver, 5V Series, 5 True Output(s), 0 Inverted Output(s), PQCC16, PLASTIC, VFQFPN-16; Categorylogic logic; File Size111KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5V2305NRI Overview

Clock Driver, 5V Series, 5 True Output(s), 0 Inverted Output(s), PQCC16, PLASTIC, VFQFPN-16

5V2305NRI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	QFN
package instruction	HQCCN, LCC16/20,.14X.16,20
Contacts	16
Manufacturer packaging code	VFQFPN
Reach Compliance Code	not_compliant
ECCN code	EAR99
series	5V
Input adjustment	STANDARD
JESD-30 code	R-PQCC-N16
JESD-609 code	e0
Logic integrated circuit type	CLOCK DRIVER
MaximumI(ol)	0.012 A
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	16
Actual output times	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	SERIES-RESISTOR
Package body material	PLASTIC/EPOXY
encapsulated code	HQCCN
Encapsulate equivalent code	LCC16/20,.14X.16,20
Package shape	RECTANGULAR
Package form	CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	240
power supply	2.5/3.3 V
Prop。Delay @ Nom-Sup	3 ns
propagation delay (tpd)	3 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.075 ns
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	20
minfmax	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

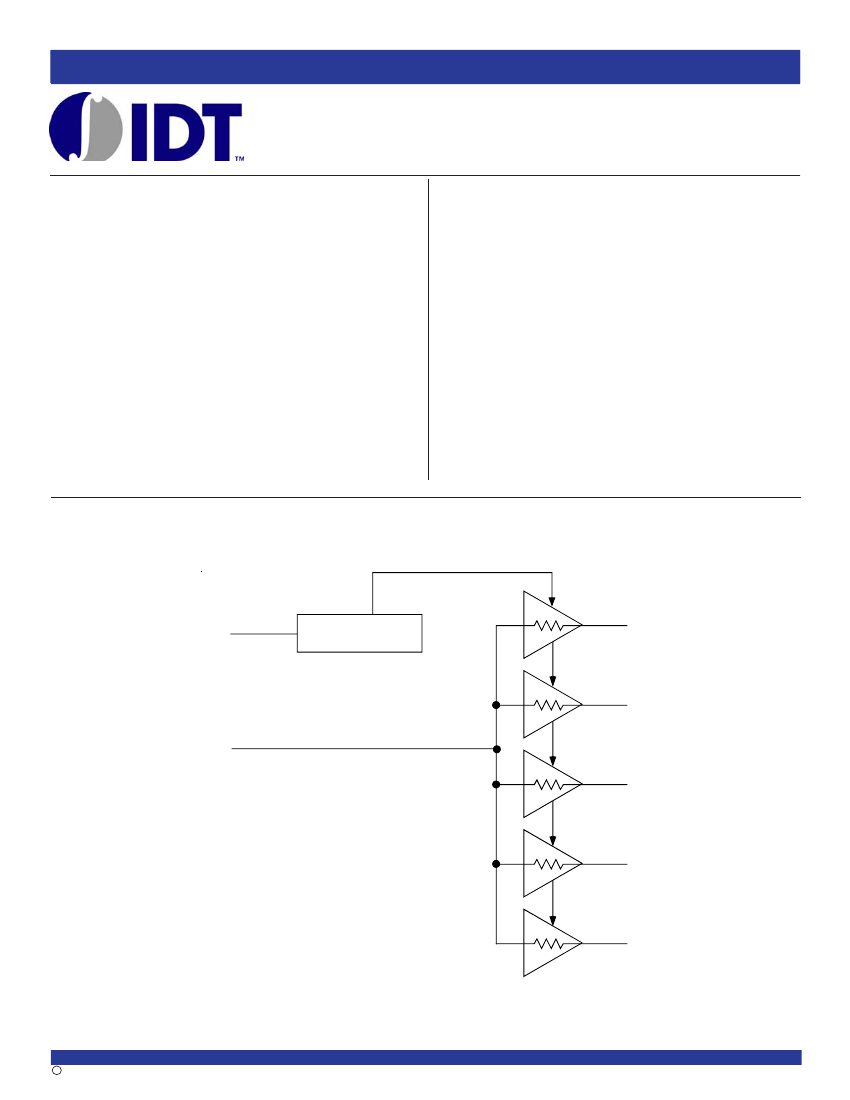

IDT5V2305

2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER

INDUSTRIAL TEMPERATURE RANGE

2.5V TO 3.3V HIGH

PERFORMANCE CLOCK

BUFFER

FEATURES:

• High performance 1:5 clock driver for general purpose applica-

tions

• Operates up to 170MHz at V

= 2.5V

• Operates up to 200MHz at V

= 3.3V

• Pin-to-pin skew < 75ps at 3.3V operation

• V

range: 2.3V to 3.6V

• Output enable glitch suppression

• 25Ω on-chip series dampening resistors

• Available in TSSOP and VFQFPN packages

IDT5V2305

DESCRIPTION:

The IDT5V2305 is a high performance, low skew clock buffer that

operates up to 200MHz. One bank of five outputs provides low skew copies

of CLK. Through the use of control pin G, the outputs of bank Y(0:4) can

be placed in a low state regardless of CLK input. The device operates in

2.5V and 3.3V environments. The built-in output enable glitch suppression

ensures a synchronized output enable sequence to distribute full period

clock signals.

The IDT5V2305 is characterized for operation from -40°C to +85°C.

FUNCTIONAL BLOCK DIAGRAM

CONTROL LOGIC

25Ω

CLK

25Ω

The IDT logo is a registered trademark of Integrated Device Technology, Inc.

INDUSTRIAL TEMPERATURE RANGE

2004

Integrated Device Technology, Inc.

NOVEMBER 2004

DSC 6177/20

5V2305NRI Related Products

	5V2305NRI	5V2305PGI
Description	Clock Driver, 5V Series, 5 True Output(s), 0 Inverted Output(s), PQCC16, PLASTIC, VFQFPN-16	Low Skew Clock Driver, 5V Series, 5 True Output(s), 0 Inverted Output(s), PDSO16, TSSOP-16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	QFN	TSSOP
package instruction	HQCCN, LCC16/20,.14X.16,20	TSSOP-16
Contacts	16	16
Reach Compliance Code	not_compliant	not_compliant
series	5V	5V
Input adjustment	STANDARD	STANDARD
JESD-30 code	R-PQCC-N16	R-PDSO-G16
JESD-609 code	e0	e0
Logic integrated circuit type	CLOCK DRIVER	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.012 A	0.012 A
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	16	16
Actual output times	5	5
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	SERIES-RESISTOR	SERIES-RESISTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HQCCN	TSSOP
Encapsulate equivalent code	LCC16/20,.14X.16,20	TSSOP16,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER, HEAT SINK/SLUG	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	2.5/3.3 V	2.5/3.3 V
Prop。Delay @ Nom-Sup	3 ns	3 ns
propagation delay (tpd)	3 ns	3 ns
Certification status	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.075 ns	0.075 ns
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)
Terminal form	NO LEAD	GULL WING
Terminal pitch	0.5 mm	0.65 mm
Terminal location	QUAD	DUAL
minfmax	200 MHz	200 MHz
Base Number Matches	1	1
