3.0x1.5mm SMD CHIP LED LAMP
APL3015F3C
Features
3.0mmx1.5mm SMT LED, 1.4mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
Description
F3 Made with Gallium Arsenide Infrared Emitting
diodes.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.0079")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD1360
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE:MAR/31/2003
DRAWN: D.L.HUANG
PAGE: 1 OF 4
Selection Guide
P ar t N o .
Dic e
L en s Ty p e
Po (m W/s r )
@ 20 m A
Min .
A P L3015F 3C
GaAs
WATER CLEAR
0.4
Ty p .
1.2
V i ew i n g
An g l e
2θ1/ 2
70°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
It em
Forward Voltage
Reverse Current
Capacitance
Peak Wavelength
Spectral Line Half-width
F3
F3
F3
F3
F3
P/N
Sy m b o l
V
F
I
R
C
λ
P
∆λ
1/2
Ty p .
1.2
-
90
940
50
Max .
1.6
10
-
-
-
Un it
V
uA
pF
nm
nm
Co n d itio n
I
F
=20mA
V
R
=5V
V
F
=0V; f=1MHz
I
F
=20mA
I
F
=20mA
Absolute Maximum Ratings at T
A
=25°C
°
It em
Power Dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating /Storage Temperature
Note:
1. 1/100 Duty Cycle, 10us Pluse Width.
Sy m b o l
P
T
IF
F3
F3
100
50
1.2
5
-40
°
C To +85
°C
Un its
mW
mA
A
V
i
FS
V
R
SPEC NO: DSAD1360
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE:MAR/31/2003
DRAWN: D.L.HUANG
PAGE: 2 OF 4

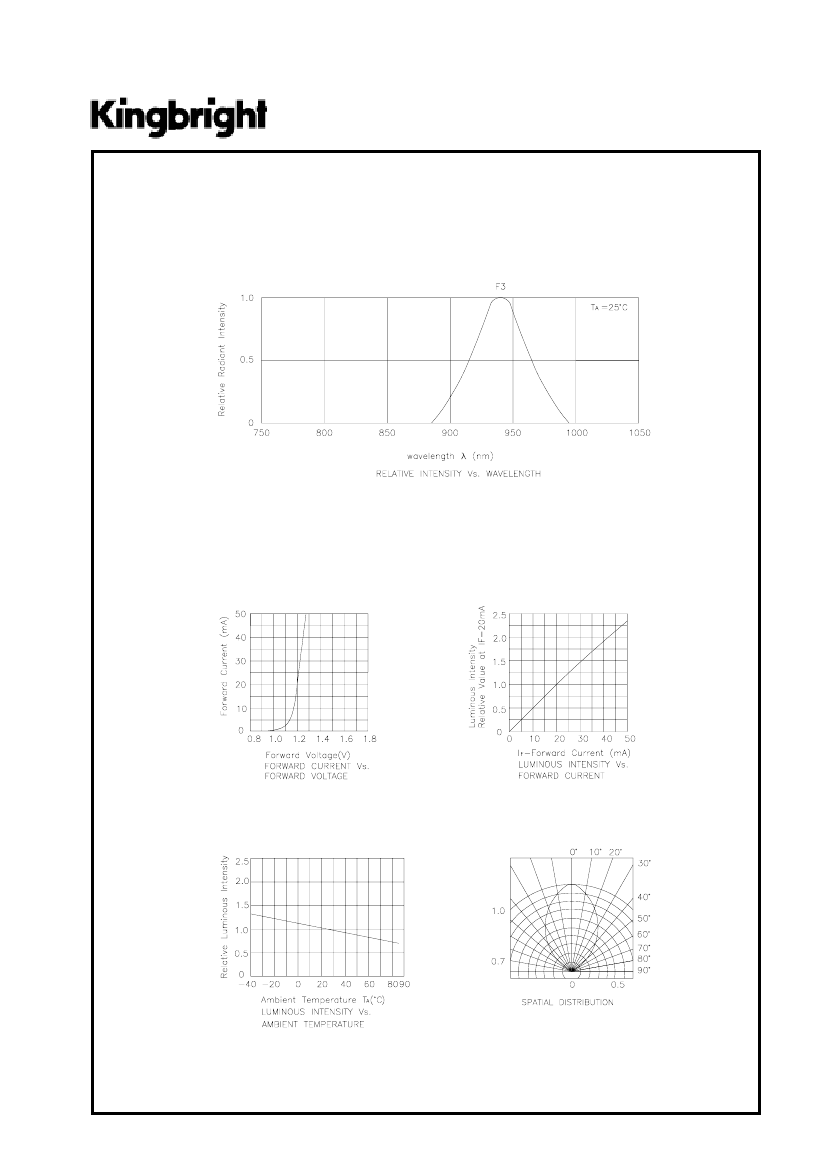

APL3015F3C
SPEC NO: DSAD1360
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE:MAR/31/2003
DRAWN: D.L.HUANG
PAGE: 3 OF 4
APL3015F3C

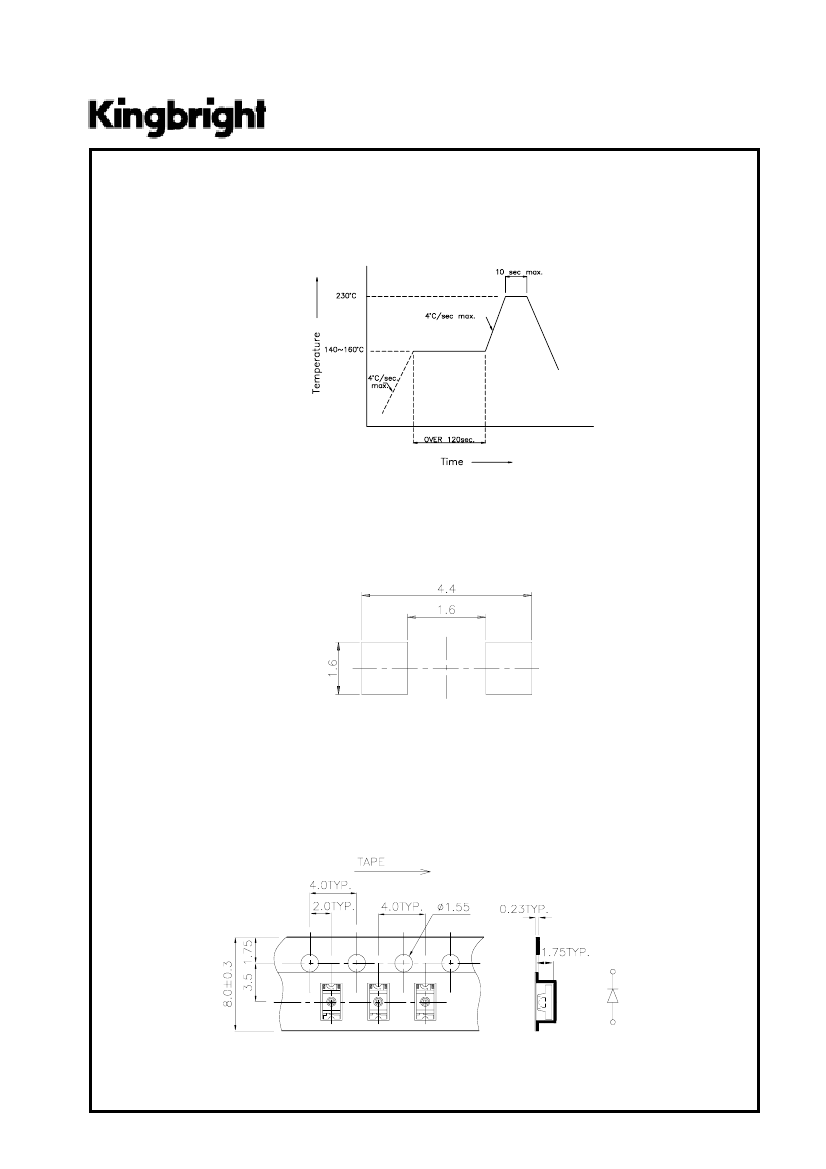

SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAD1360
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE:MAR/31/2003
DRAWN: D.L.HUANG
PAGE: 4 OF 4
