LT1712: Description4ns, 150MHz Dual Comparator with Independent Input/Output Supplies; File Size246KB，16 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Compare View All

LT1712 Overview

4ns, 150MHz Dual Comparator with Independent Input/Output Supplies

Preview

Download Datasheet

View All

LT1715

4ns, 150MHz

Dual Comparator with

Independent Input/Output Supplies

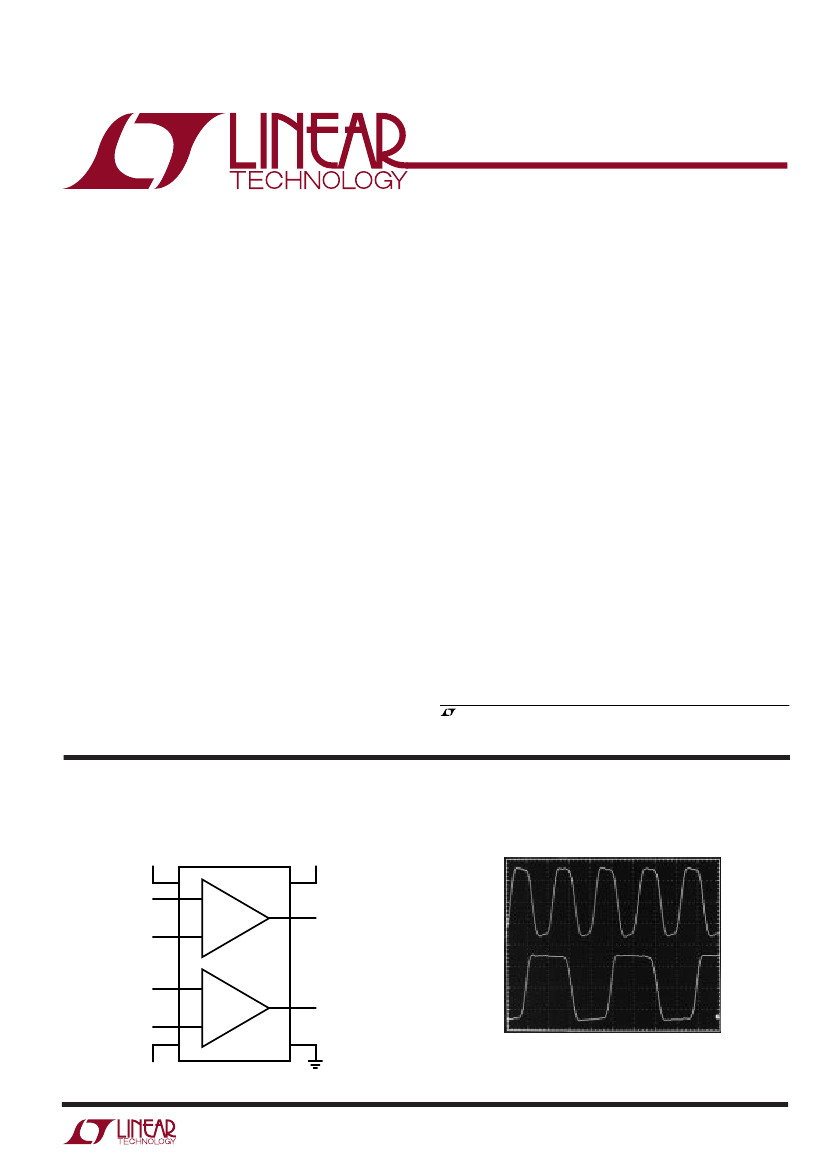

FEATURES

DESCRIPTIO

UltraFast: 4ns at 20mV Overdrive

150MHz Toggle Frequency

Separate Input and Output Power Supplies

Low Power: 4.6mA per Comparator at 3V

Pinout Optimized for High Speed Use

Output Optimized for 3V and 5V Supplies

TTL/CMOS Compatible Rail-to-Rail Output

Input Voltage Range Extends 100mV

Below Negative Rail

Internal Hysteresis with Specified Limits

The LT

1715 is an UltraFast

dual comparator optimized

for low voltage operation. Separate supplies allow inde-

pendent analog input ranges and output logic levels with

no loss of performance. The input voltage range extends

from 100mV below V

to 1.2V below V

. Internal hyster-

esis makes the LT1715 easy to use even with slow moving

input signals. The rail-to-rail outputs directly interface to

TTL and CMOS. The symmetric output drive results in

similar rise and fall times that can be harnessed for analog

applications or for easy translation to other single supply

logic levels.

The LT1715 is available in the 10-pin MSOP package. The

pinout of the LT1715 minimizes parasitic effects by plac-

ing the most sensitive inputs away from the outputs,

shielded by the power rails.

For a dual/quad single supply comparator with similar

propagation delay, see the LT1720/LT1721. For a single

comparator with similar propagation delay, see the LT1719.

, LTC and LT are registered trademarks of Linear Technology Corporation.

UltraFast is a trademark of Linear Technology Corporation.

APPLICATIO S

High Speed Differential Line Receivers

Level Translators

Window Comparators

Crystal Oscillator Circuits

Threshold Detectors/Discriminators

High Speed Sampling Circuits

Delay Lines

TYPICAL APPLICATIO

100MHz Dual Differential Line Receiver

Line Receiver Response to 100MHz Clock,

50MHz Data Both with 25mV

P-P

Inputs

IN A

OUT A

CLOCK OUT

–

IN B

OUT B

DATA OUT

FET PROBES

5ns/DIV

1715 TA02

–

–5V

1715 TA01

1V/DIV
