VC40-Series Specifications
14.00L x 9.10W x 4.70H (mm)
PDI

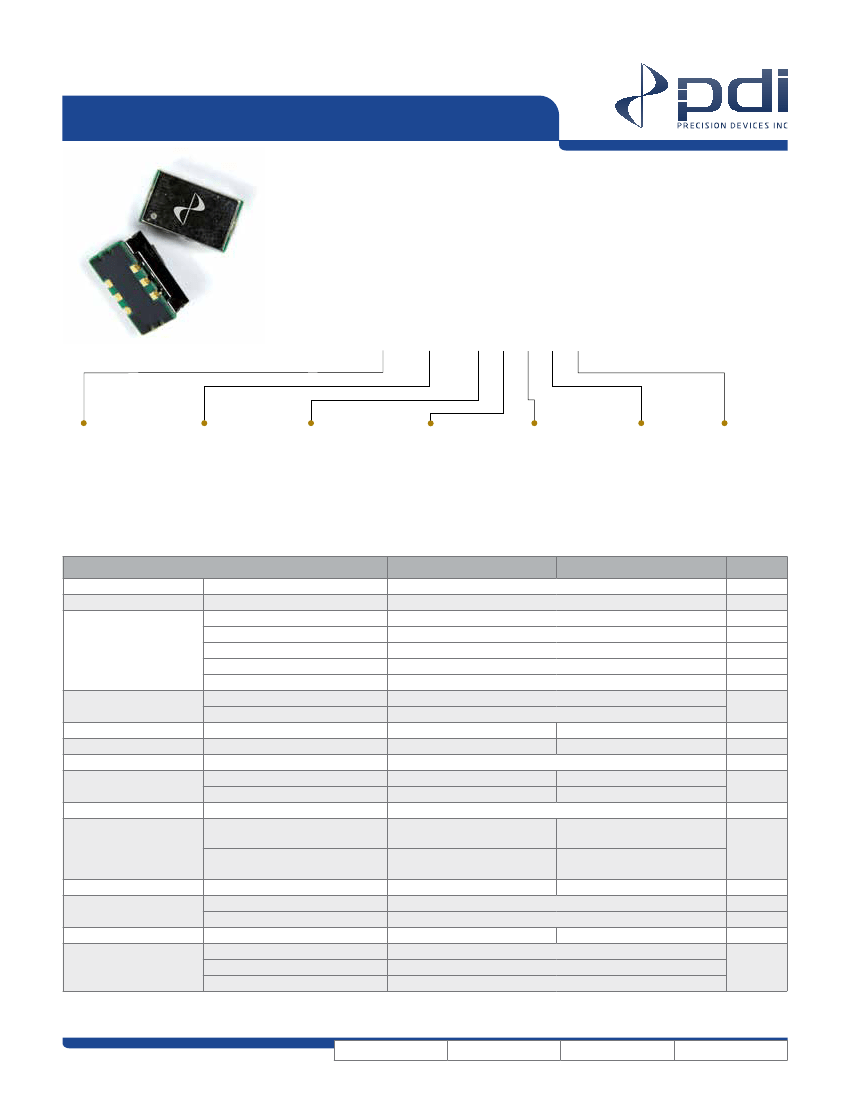

VC40-Series
Voltage Controlled Crystal Oscillator (VCXO) ensure a precise
frequency under demanding circumstances. With ultra-low phase noise, low
jitter, and excellent performance in high vibration environments, this VCXO
is offered in both standard and custom frequencies. PDI provides quick-turn
sampling for your proto-typing needs, mass production capability,
and competitive pricing.
ex)
V40—T—50000X—C—B—B—3—R—X
*
ENABLE
T
= Tri-State
0
= No/Connect
FREQUENCY
40000X-99999X
=
40.000 MHz –
99.000 MHz
C10000-C80000
=
100.00 MHz –
800.00 MHz
Parameter
OUTPUT
M
= LVDS
P
= LVPECL
FREQUENCY
STABILITY
B
= ±25
C
= ±50
D
= ±100
S
= Special
LVDS
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
SUPPLY
VOLTAGE
3
= 3.3
PACKAGE
R
= Tape & Reel
* - for standard or assigned for customization.
LVPECL
40.000000-800.000000
Per Option
10 to 90
±50
10
50K
10
Per Option
-55 to +125
Units
MHz
ppm
%Vcc
ppm
%
Ω
KHz
°C
mA
Frequency Range
Frequency Stability
*1
*1
Frequency Adjustment
Temperature Range
*1
Supply Current (Max)
Load
Duty Cycle
Rise/Fall Times (Max)
Start up Time (Max)
All Causes (Max)
Control Voltage Range
Absolute Pull Range (APR) (Min)
Linearity (Max)
Input Impedance (Min)
Modulation Bandwidth (Min)
Operating
Storage
No Load
@ 50% Level
Rise Time (20% to 80% Vcc)
Fall Time (80% to 20% Vcc)
High
*2
Output Voltage Levels
Differential Voltage
Pin 2 (Tri-State)
Integrated Phase Jitter
Phase Noise
(Typical For 155.52 MHz)
Low
Enable (High Voltage) (Min)
Disable (Low Voltage) (Max)
12KHz to 20MHz
@ 100Hz Offset
@ 1KHz Offset
@ 10KHz Offset
40
65
100Ω Between Outputs
50Ω Into Vcc-2V
40 to 60% (45 to 55% option)
0.4
0.5
0.4
0.5
10
Vcc-1.025 Min, Vcc-0.95 Typ
1.43 Typ , 1.60 Max
Vcc-0.88 Max
Vcc-1.81 Min, Vcc-1.70 Typ
0.90 Min , 1.10 Typ
Vcc-1.62 Max
250 Min, 350 Typ, 450 Max
595 Min, 750 Typ, 930 Max
70
30
0.3 Typical , 1.0 Maximum
0.2 Typical , 1.0 Maximum
-110
-130
-140
nS
mS
V
mV
% Vcc
% Vcc
pS
dBc/Hz
*1 - Not all Frequency/Temperature/Voltage combinations are available.
*2 - Inclusive of Tolerance @25°C, Operating Temperature, Supply Voltage, Load, Aging, Shock and Vibration.
REV:
NA
SIZE:
A
CAGE:
0S4G1
1
of
3
VC40-Series
14.00 x 9.10 x 4.70
(mm)

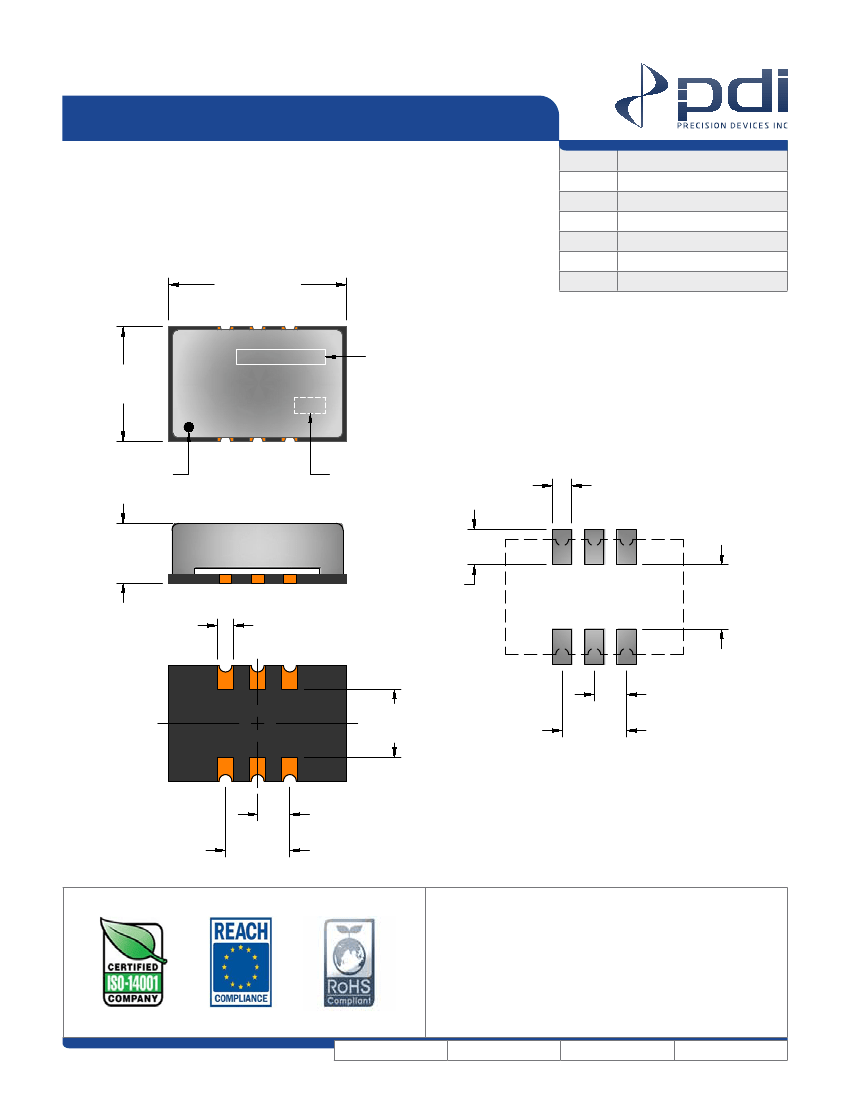

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
PIN
1
2
3
4
5
6
CONNECTION
Voltage Control
Tri-State or NC
Ground/Case
Output
Complementary Output
Supply Voltage
.551 ±.016
[14.00 ±.40]
.358
[9.10]
PDI
Frequency
Date Code
FKA Number
Pin 1
Traceability Code
.060
[1.53]
.185 Max
[4.70 Max]
.050
[1.27]
6
4
.110
[2.79]
1
3
.200
[5.08]
1
6
2
5
3
4
.213
[5.40]
.200
[5.08]
.100
[2.54]
.200
[5.08]
.100
[2.54]
Recommended Pad Layout
(Top View)
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
0S4G1
2
of
3
VC40-Series
14.00 x 9.10 x 4.70
(mm)

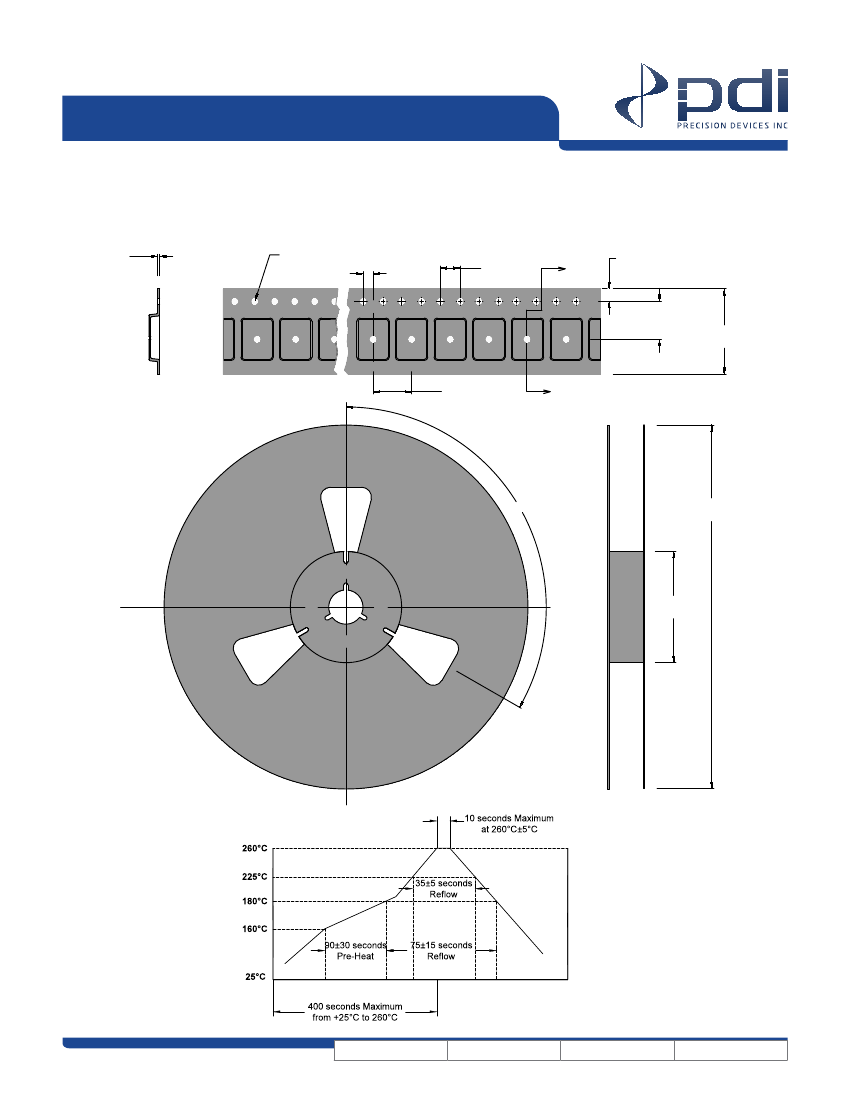

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008.
3.
Camber in compliance with EIA 481.
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.157 Typ.
[4.00 Typ.]
.079
[2.00]
A
.069
[1.75]
.453
[11.50]
.945 ±.012
[24.00 ±.30]
Section A-A
.630 Typ.
[16.00 Typ.]
A
120°
Ø13.000
[Ø330.00]
3.94
[100.00]
REV:
NA
SIZE:
A
CAGE:
0S4G1
3
of
3
