3EME834-4096 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 3EME834-4096

3EME834-4096: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size396KB，5 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric Compare View All

3EME834-4096 Overview

CMOS Output Clock Oscillator,

3EME834-4096 Parametric

Parameter Name	Attribute value
Maker	Euroquartz
Reach Compliance Code	compliant
Oscillator type	CMOS
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

Low Power (nA Current Consumption)

FEATURES

EME83 SERIES TCXO

32.768kHz

EME83x is a 32.768kHz CMOS output TCXO with a maximum frequency stability of ±5ppm (±2.62

minutes / year) over the operating temperature range -40° to +85°C. This time-keeping accuracy is

outstanding in the industry.

A proprietary temperature compensation technique is applied to the built-in X-Cut 32.768kHz

tuning fork crystal and temperature sensor.

A 400nA current compensation (average f

OUT

≤128Hz, 4 min TMP.) makes it ideal for battery

operated devices.

The TCXO is packaged in a 7 x 5 x 1.8mm package, ideal for miniaturized applications.

Designed for long-term frequency reference applications.

APPLICATIONS

Frequency Reference for real time clocks (RTC).

Portable instrumentation.

Timing synchronization for networks, servers, hubs, routers and switches.

Timing Reference input for various energy metering ICs.

Smart metering, data loggers.

GPS receivers, telematics.

RELATED EUROQUARTZ PRODUCTS

If temperature compensation is not required please consider using Euroquartz HA series 32.768kHz (AT-CUT crystal, µA current

consumption, ±25/±50/±200ppm over commercial or industrial temperature ranges).

If tighter than ±5ppm frequency stability is required, i.e. ±1~±2.5ppm over -40° to +85°C, please consider use of EM572T

32.768kHz TCXO or VEM572T 32.768kHz VCTCO series. (All use AT-Cut crystals, mA current consumption.)

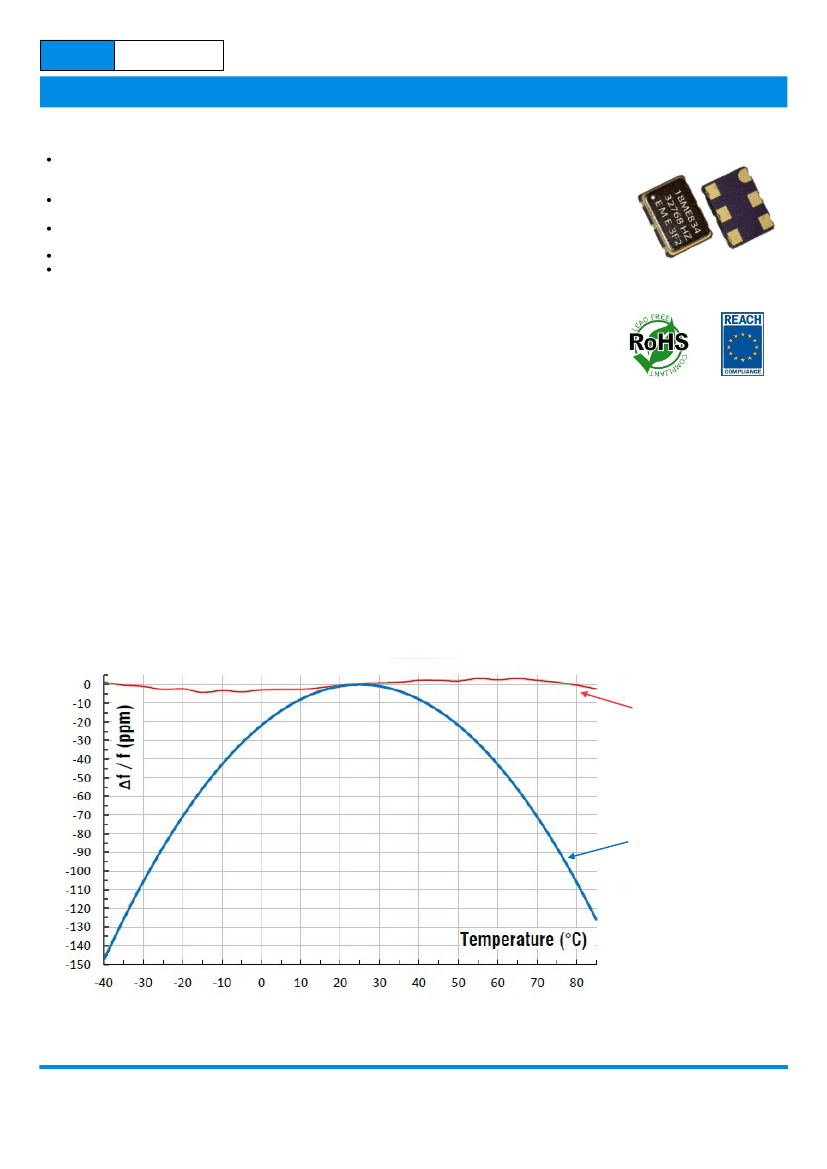

FREQUENCY-TEMPERATURE CHARACTERISTICS

EME83x, Temperature

Compensated.

∆f/f = ±5ppm max.

Not Temperature

Compensated.

∆f/f = -0.035(T

-25)

Page 1 of 5

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk

3EME834-4096 Related Products

	3EME834-4096	25EME834-4096	5EME834-4096	33EME834-4096	25EME831-1024	5EME831-1024	3EME831-1024
Description	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,
Maker	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Base Number Matches	1	1	1	1	1	1	1
