B40C1500G thru B380C1500G
Vishay Semiconductors
formerly General Semiconductor
Glass Passivated Single-Phase
Bridge Rectifiers
Case Style WOG
0.388 (9.86)
0.348 (8.84)
Reverse Voltage
65 and 600V
Forward Current
1.5A
Features
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Glass passivated chip junction
• High case dielectric strength
• Typical I
R
less than 0.1µA
• High surge current capability
• Ideal for printed circuit boards
• High temperature soldering guaranteed:
260°C/10 seconds, 0.375 (9.5mm) lead length,
5 lbs. (2.3kg) tension
0.220 (5.6)
0.160 (4.1)
1.0
(25.4)
MIN.
Dimensions in inches
and (millimeters)
0.032 (0.81)
0.028 (0.71)
0.060 (1.52)
0.020 (0.51)
Mechanical Data
Case:
Molded plastic body over passivated junctions
Terminals:
Plated leads solderable per MIL-STD-750,
Method 2026
Mounting Position:
Any
Weight:
0.04 oz., 1.1 g
Packaging codes/options:
1/100 ea. per Bulk Bag
Ratings at 25°C ambient temperature unless otherwise specified.
0.220 (5.6)
0.348 (8.84)
0.308 (7.82)
0.180 (4.6)
0.220 (5.6)
0.180 (4.6)
Maximum Ratings & Thermal Characteristics
Symbol
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS input voltage R + C-load
Maximum DC blocking voltage
Maximum peak working voltage
Maximum non-repetitive peak voltage
Maximum repetitive peak forward surge current
Maximum average forward output current for
free air operation at T
A
=45°C R + L-load
C-Load
Peak forward surge current
single sine wave on rated load at T
J
=125°C
Rating for fusing at T
J
=125°C (t<100ms)
Minimum series resistor C-load at V
RMS
= ±10%
Maximum load capacitance +50%
-10%
Typical thermal resistance per leg
(Note 1)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
V
RWM
V
RSM
I
FRM
I
F(AV)
I
FSM
I
2
t
R
t
C
L
R
θJA
R
θJL
T
J
T
STG
B40
B80
B125
B250
B380
C1500G C1500G C1500G C1500G C1500G
65
125
200
400
600
40
80
125
250
380
65
125
200
400
600
90
180
300
600
800
100
200
350
600
1000
10
1.6
1.5
50
1.0
5000
2.0
2500
12.5
4.0
1000
36
11
–40 to +125
–40 to +150
8.0
500
12
200
Unit
V
V
V
V
V
A
A
A
A
2
sec
Ω
µF
°C/W
°C
°C
Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Maximum instantaneous forward voltage drop
per leg at 1.5A
Maximum reverse current at rated repetitive
peak voltage per leg T
A
= 25°C
V
F
I
R
1.0
10
V
µA
Note:
(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. at 0.375" (9.5mm) lead lengths with 0.2 x 0.2"
Document Number 88501
11-Feb-02
www.vishay.com
1
B40C1500G thru B380C1500G
Vishay Semiconductors
formerly General Semiconductor
Ratings and Characteristic Curves
(T
A
= 25°C unless otherwise noted)

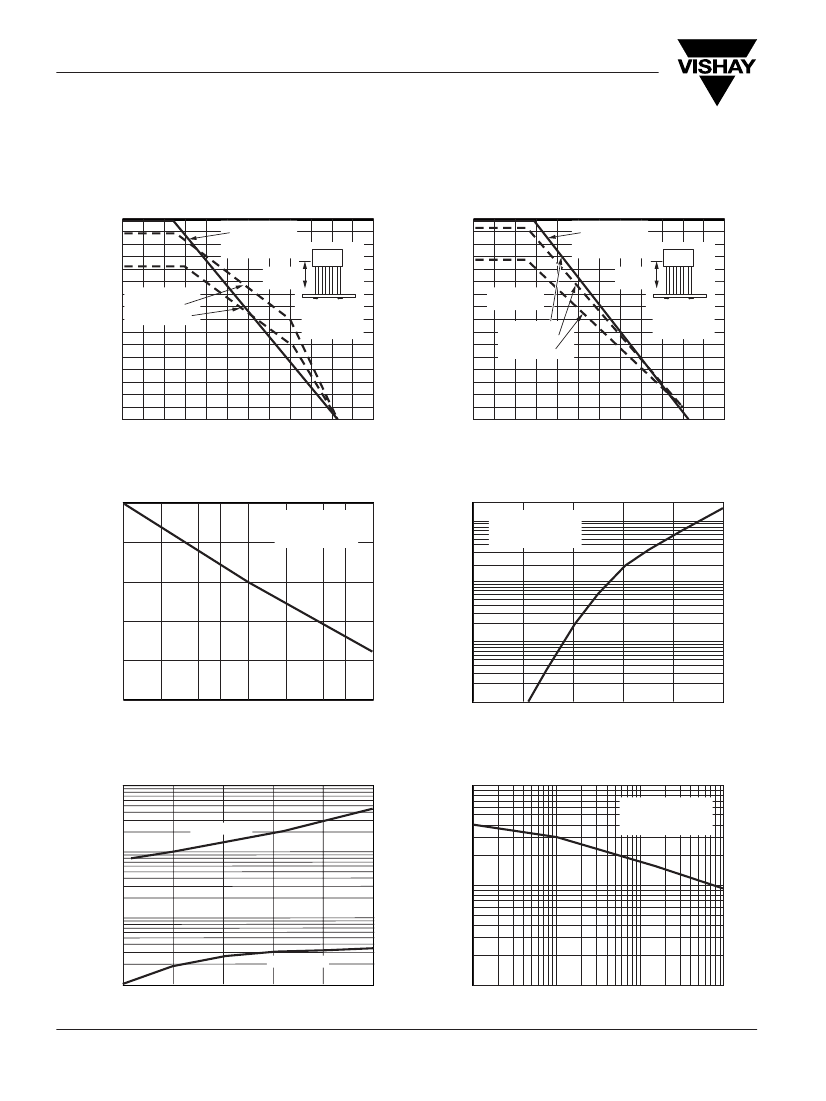

Fig. 1 – Derating Curves
Output Rectified Current
for B40C1500G...B125C150-0G
1.6
1.4
50 to 60H
Z
Resistive or
Inductive Load
1.6
1.4
Fig. 2 – Derating Curves
Output Rectified Current
for B250C1500G...B380C1500G
50 to 60H
Z
Resistive or
Inductive Load
0.375"
(9.5mm)
P.C.B.
Copper Pads
0.22 x 0.22"
(5.5 x 5.5mm)
Bridge Output
Full Wave Rectified Current
Average Amperes
1.2
1.0
0.8
0.6
0.4
0.2
0
Capacitive Load
< 500µF
500-5000µF
Bridge Output
Full Wave Rectified Current
Average Amperes
0.375"
(9.5mm)
P.C.B.
Copper Pads
0.22 x 0.22"
(5.5 x 5.5mm)
1.2
1.0
0.8
0.6
0.4
0.2
0
Capacitive
Load
0-10µF
10-100µF
>100µF
20
40
60
80
100
120
140
20
40
60
80
100
120
140
Ambient Temperature (°C)
Ambient Temperature (°C)
Fig. 3 – Maximum Non-Repetitive
Peak Forward Surge Current Per Leg
50
20
Fig. 4 – Typical Forward
Characteristics Per Leg
Instantaneous Forward Current (A)
10
T
J
= 25°C
Pulse Width = 300µs
1% Duty Cycle
Peak Forward Surge Current (A)
40
T
A
= 25°C
Single Sine-Wave
(JEDEC Method)
30
1
20
0.1
10
0
1
2
4
6
10
20
40
60
100
0.01
0.4
0.6
0.8
1.0
1.2
1.4
Number of Cycles at 60H
Z
Instantaneous Forward Voltage (V)
Fig. 5 – Typical Reverse
Characteristics Per Leg
10
100
Fig. 6 – Typical Junction Capacitance
Per Leg
T
J
= 25°C
f = 1.0MH
Z
Vsig = 50mVp-p
Instantaneous Reverse Current (µA)
1
Junction Capacitance (pF)
T
J
= 25°C
60
80
100
T
J
= 100°C
10
0.1
0
0
20
40
1
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
Reverse Voltage (V)
www.vishay.com
2
Document Number 88501
11-Feb-02
