MX7572C datasheet, PDF - EEWORLD Datasheet

MX7572C: Description1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24; Categorysemiconductor logic; File Size618KB，16 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

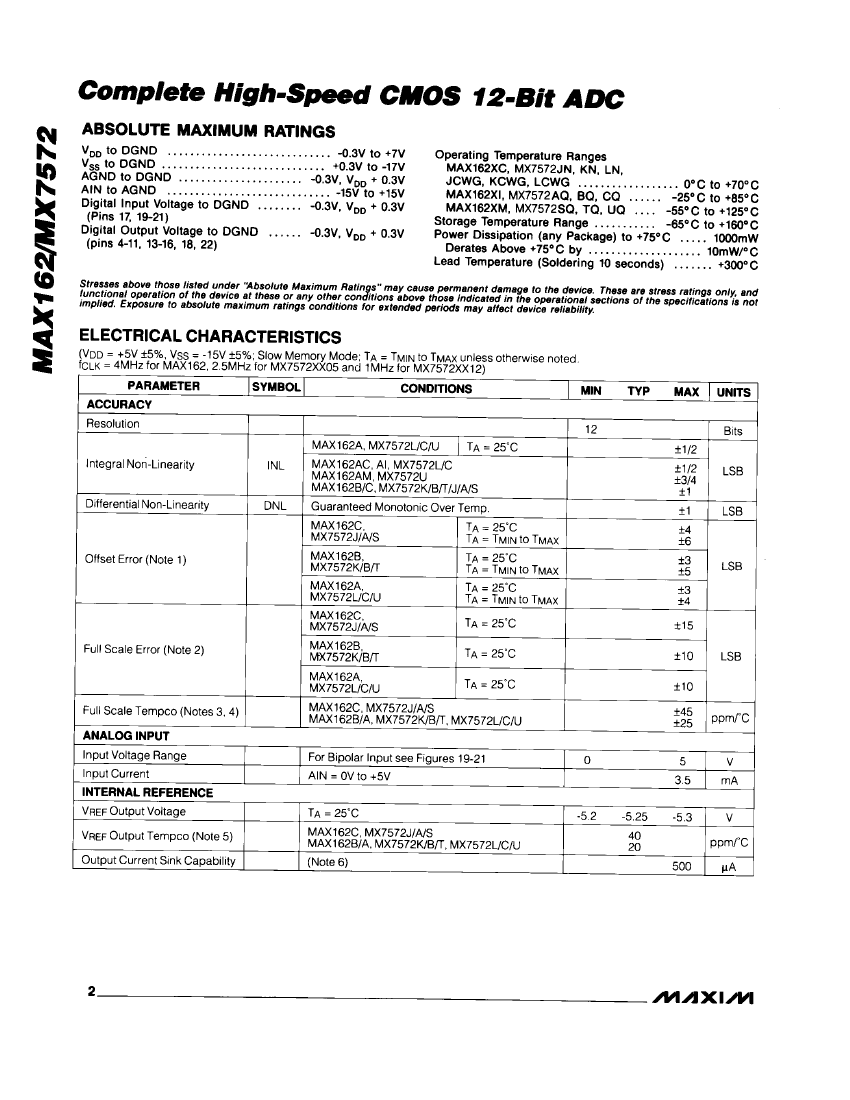

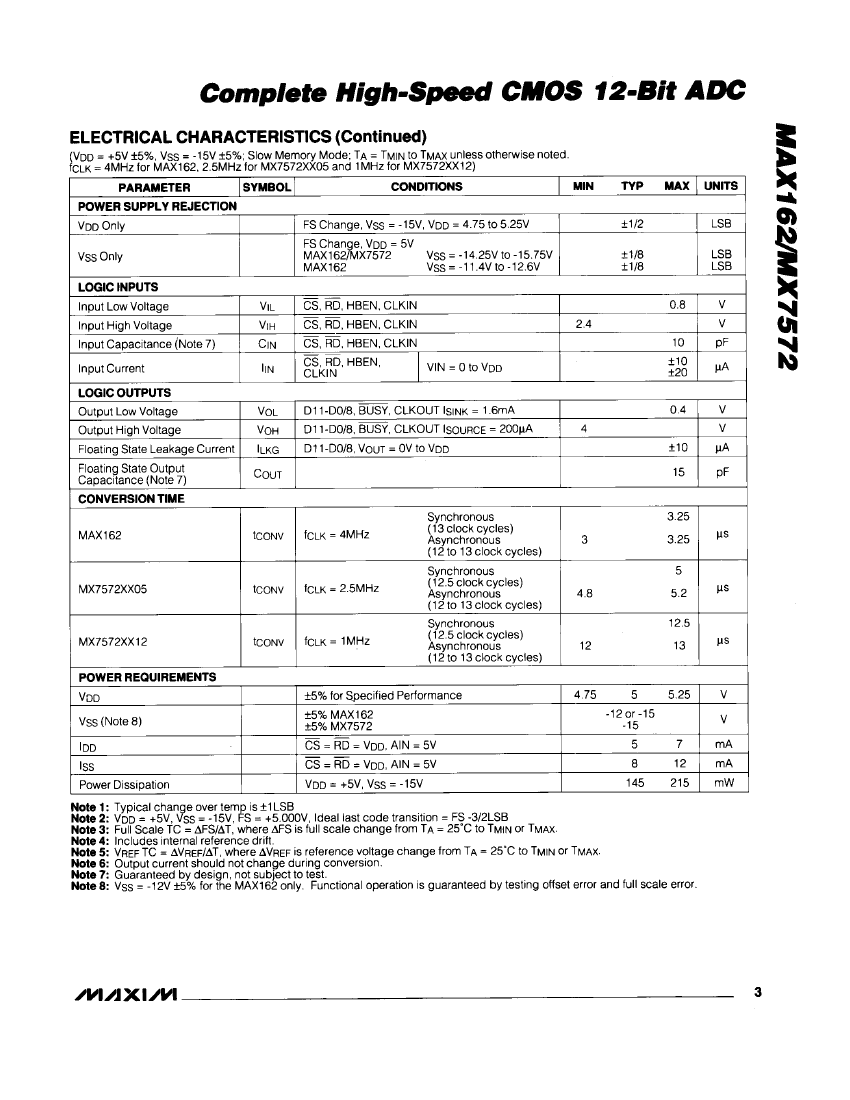

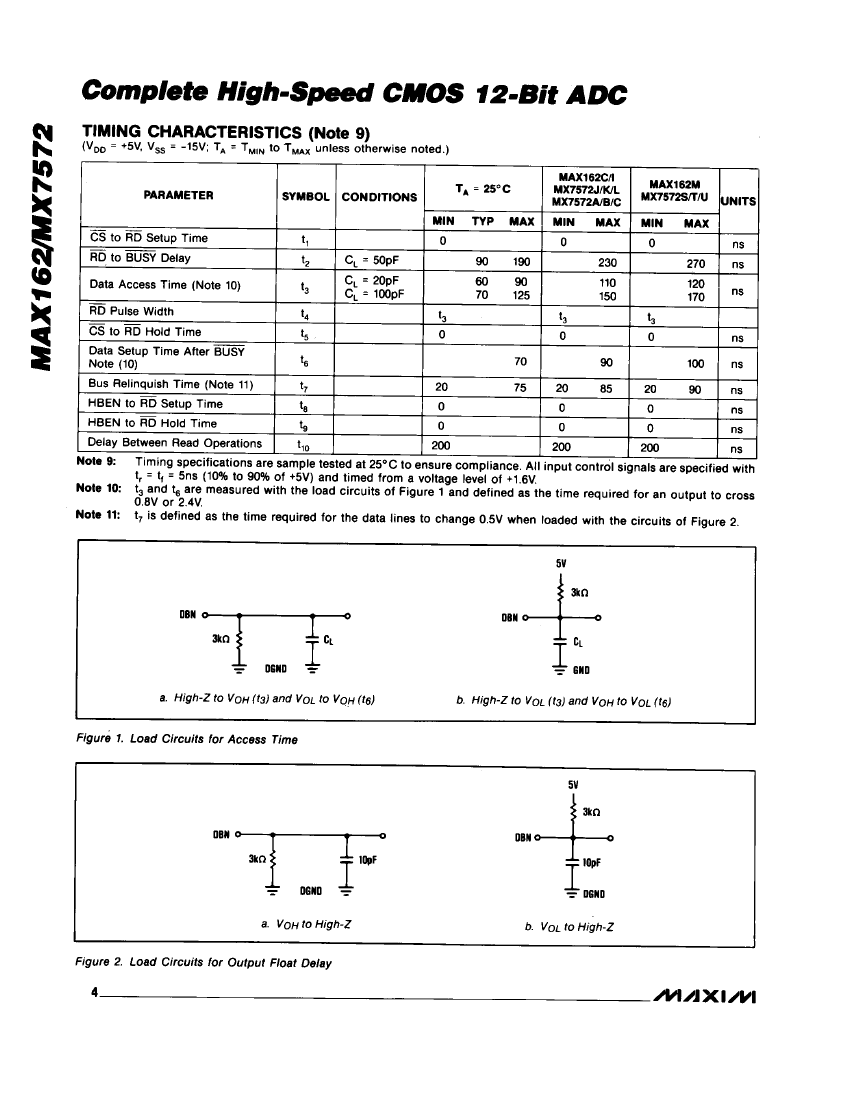

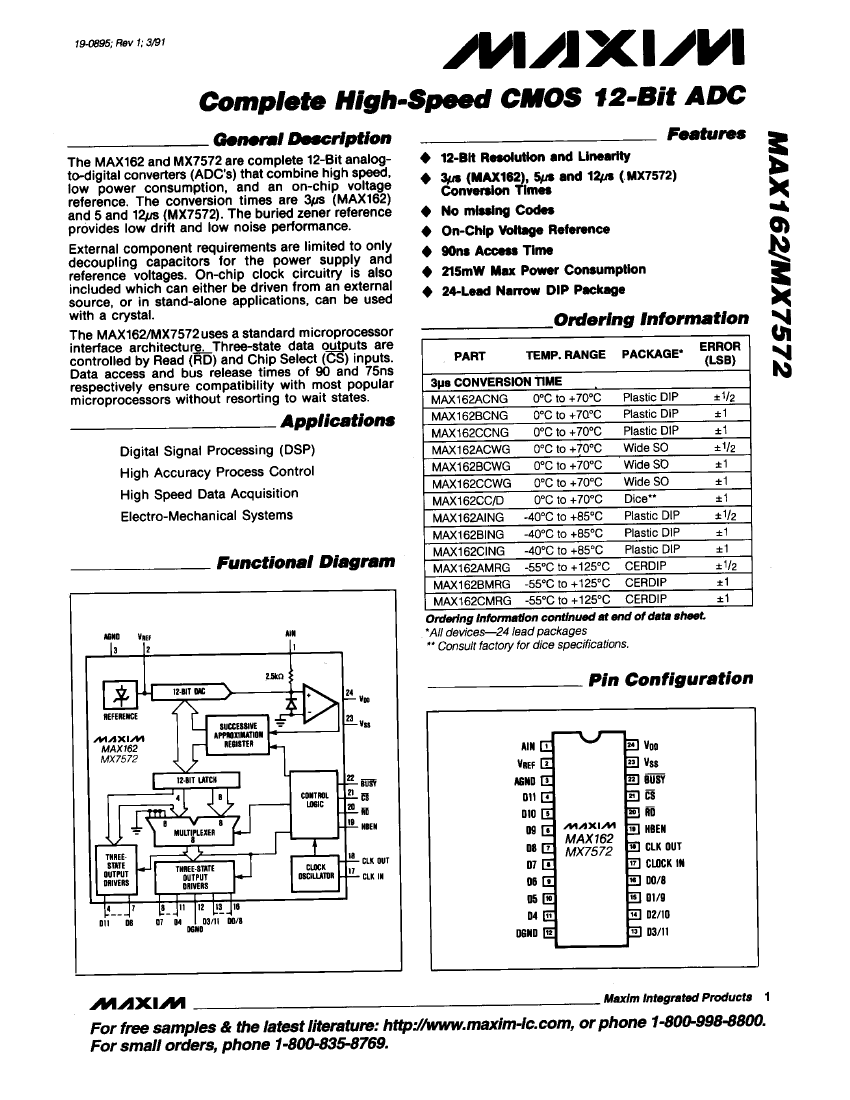

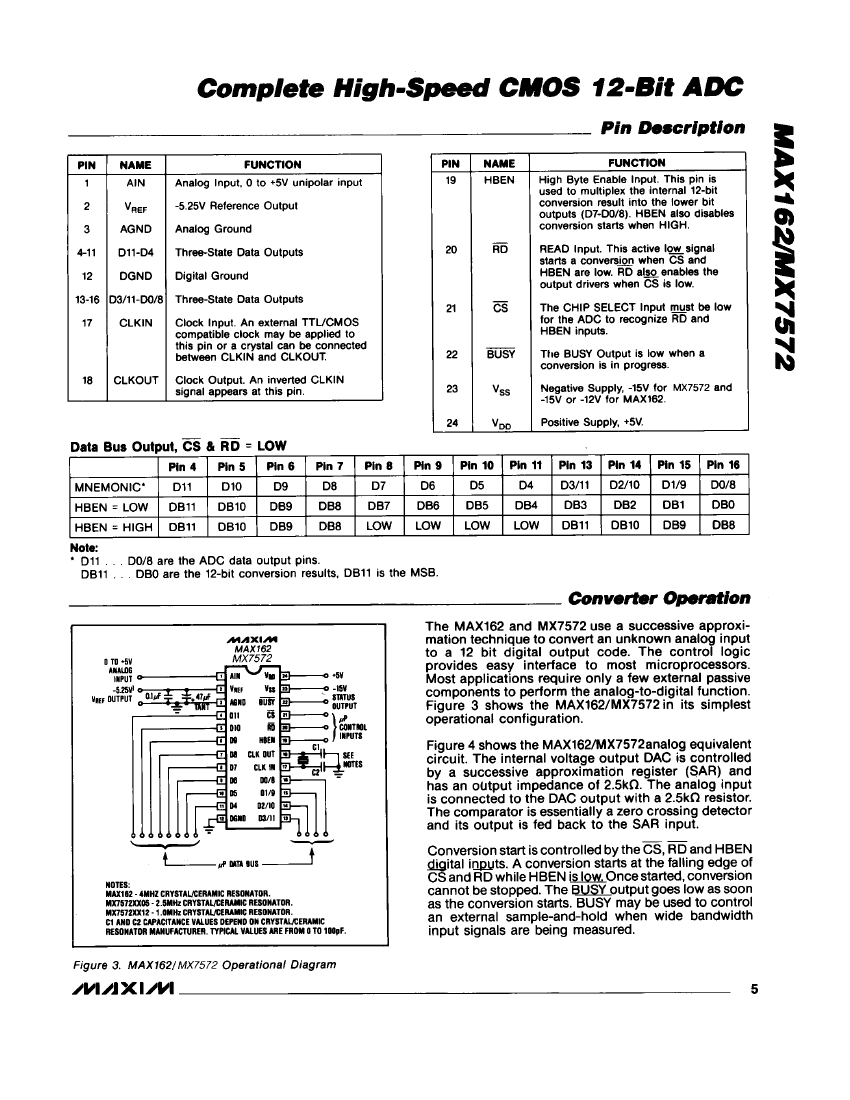

MX7572C Overview

1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24

Parameter Name	Attribute value
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Rated supply voltage	5 V
Maximum conversion time	3.25E6 uS
Maximum linear error	0.0120 %
Maximum limit analog input voltage	5 V
Minimum limit analog input voltage	0.0 V
Processing package description	PLASTIC, DIP-24
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	COMMERCIAL
Rated negative supply voltage	-15 V
Output format	PARALLEL, 8 BITS
Type of converter	SUCCESSIVE APPROXIMATION
Number of digits	12
Output bit encoding	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Number of analog channels	1
