BU2616FE1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> BU2616FE1

BU2616FE1: DescriptionPLL FREQUENCY SYNTHESIZER, 130MHz, PDSO18, SOP-18; CategoryAnalog mixed-signal IC The signal circuit; File Size244KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BU2616FE1 Overview

PLL FREQUENCY SYNTHESIZER, 130MHz, PDSO18, SOP-18

BU2616FE1 Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP-18
Contacts	18
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G18
length	11.2 mm
Number of functions	1
Number of terminals	18
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.01 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	4 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.4 mm
Base Number Matches	1

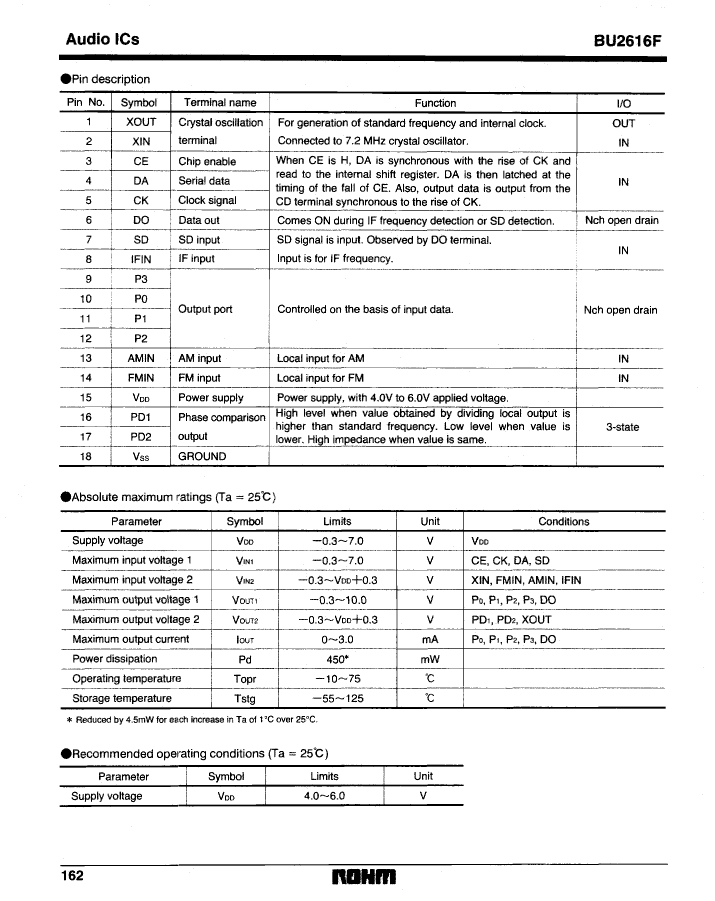

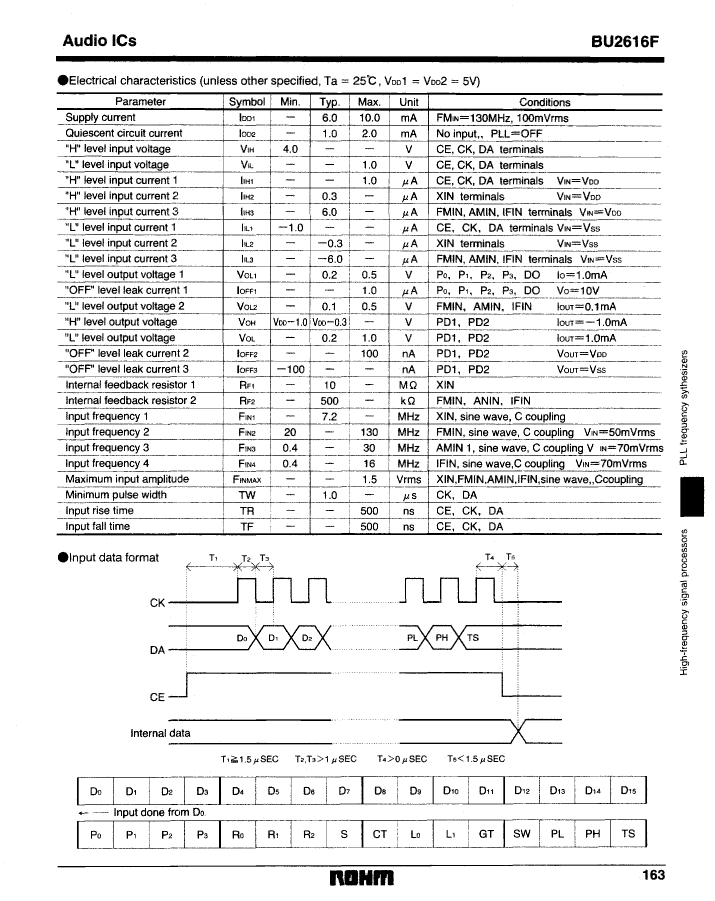

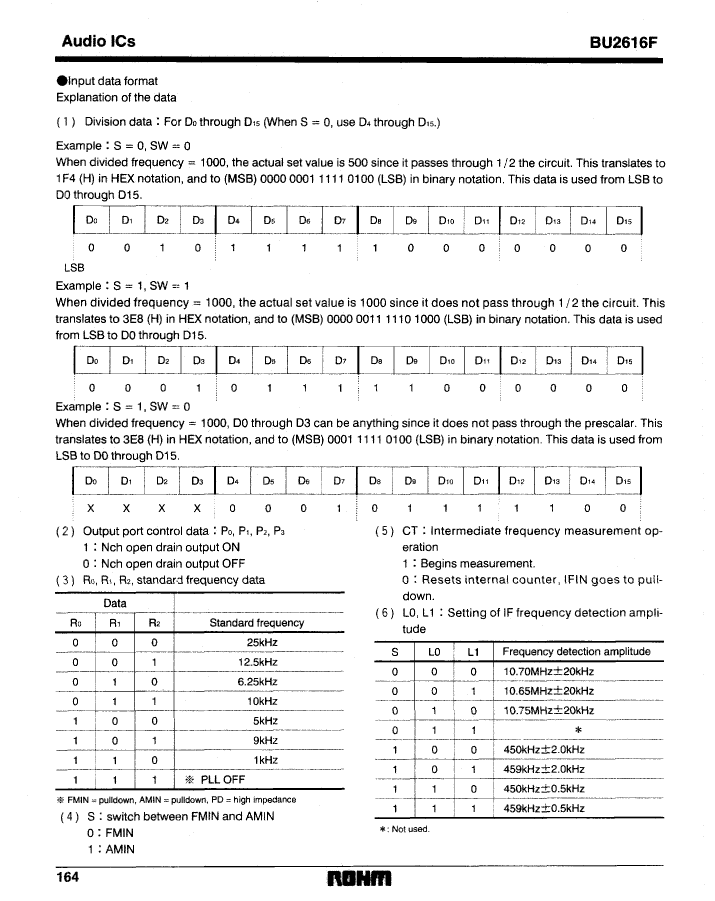

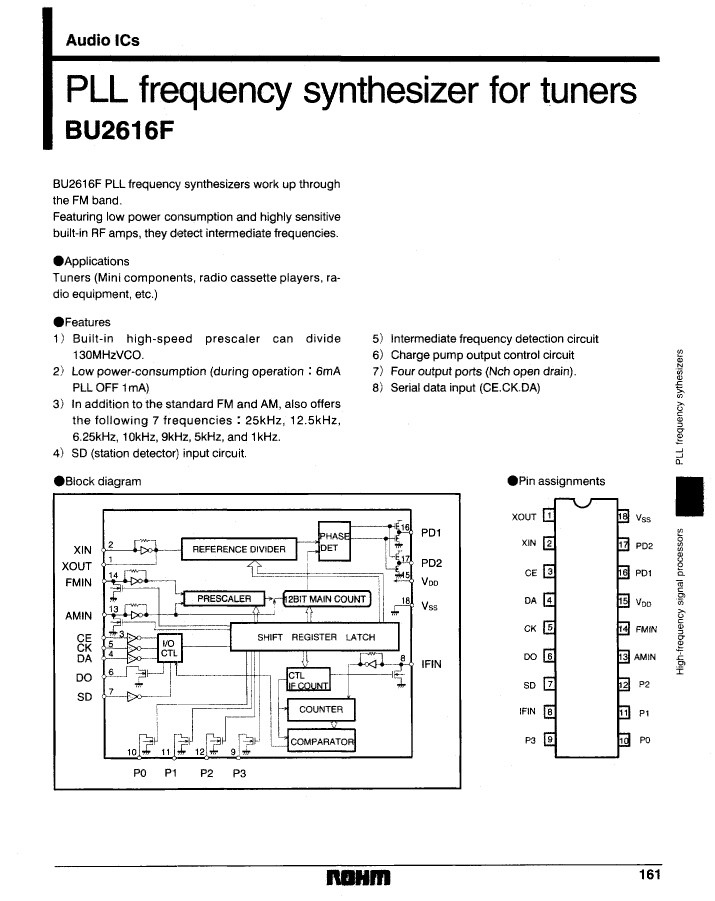

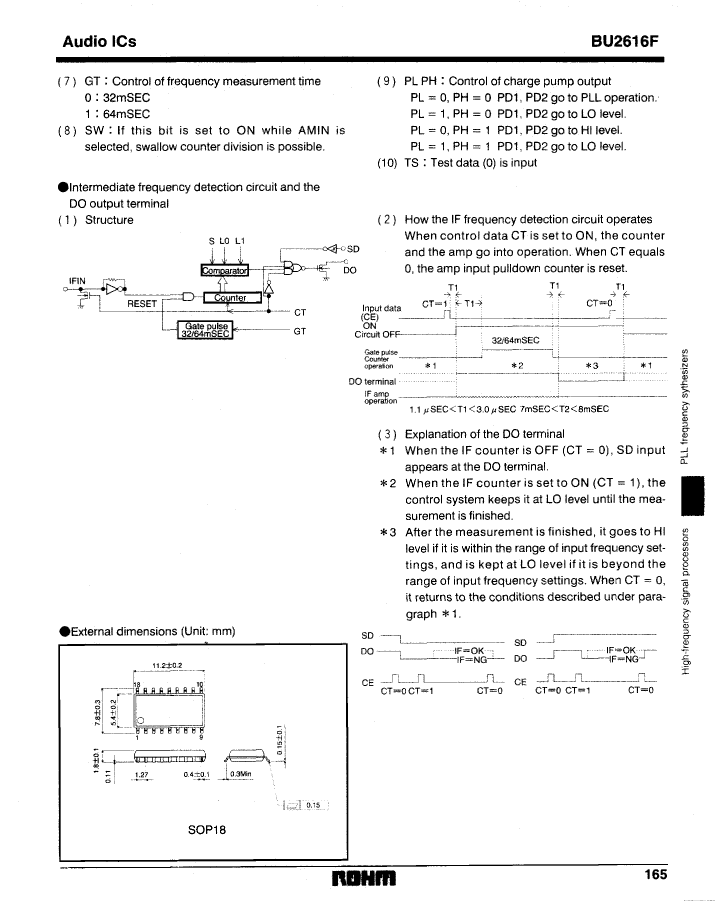

Preview

Download Datasheet

View All

BU2616FE1 Related Products

	BU2616FE1	BU2616F-E1	BU2616F-E2	BU2616FT1	BU2616F-T1	BU2616FE2
Description	PLL FREQUENCY SYNTHESIZER, 130MHz, PDSO18, SOP-18	PLL Frequency Synthesizer, PDSO18, SOP-18	PLL Frequency Synthesizer, PDSO18, SOP-18	PLL FREQUENCY SYNTHESIZER, 130MHz, PDSO18, SOP-18	PLL Frequency Synthesizer, PDSO18, SOP-18	PLL FREQUENCY SYNTHESIZER, 130MHz, PDSO18, SOP-18
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP-18	SOP,	SOP,	SOP-18	SOP,	SOP,
Contacts	18	18	18	18	18	18
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G18	R-PDSO-G18	R-PDSO-G18	R-PDSO-G18	R-PDSO-G18	R-PDSO-G18
length	11.2 mm	11.2 mm	11.2 mm	11.2 mm	11.2 mm	11.2 mm
Number of functions	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.01 mm	1.9 mm	1.9 mm	2.01 mm	1.9 mm	2.01 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	4 V	4 V	4 V	4 V	4 V	4 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm
Maker	-	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
