IEC Inlet Filters
FN 9280
Ultra Compact and Versatile Filtered
Power Entry Module
Single stage filter
Approvals
Ultra compact design
dual-fuse holder
Fuses Ø5x20mm
Rated currents up to 10 A
(CQC except HI-types)
2-pole rocker switch
Good attenuation performance
Faston or spring cage terminals
Technical specifications
Mechanical life:
High potential test voltage:
50,000 cycles
P –> PE 2000 VAC for 2 sec (standard
types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 760 VAC for 2 sec
> 1,000,000 hours
– 25 °C to +85 °C (25/85/21)

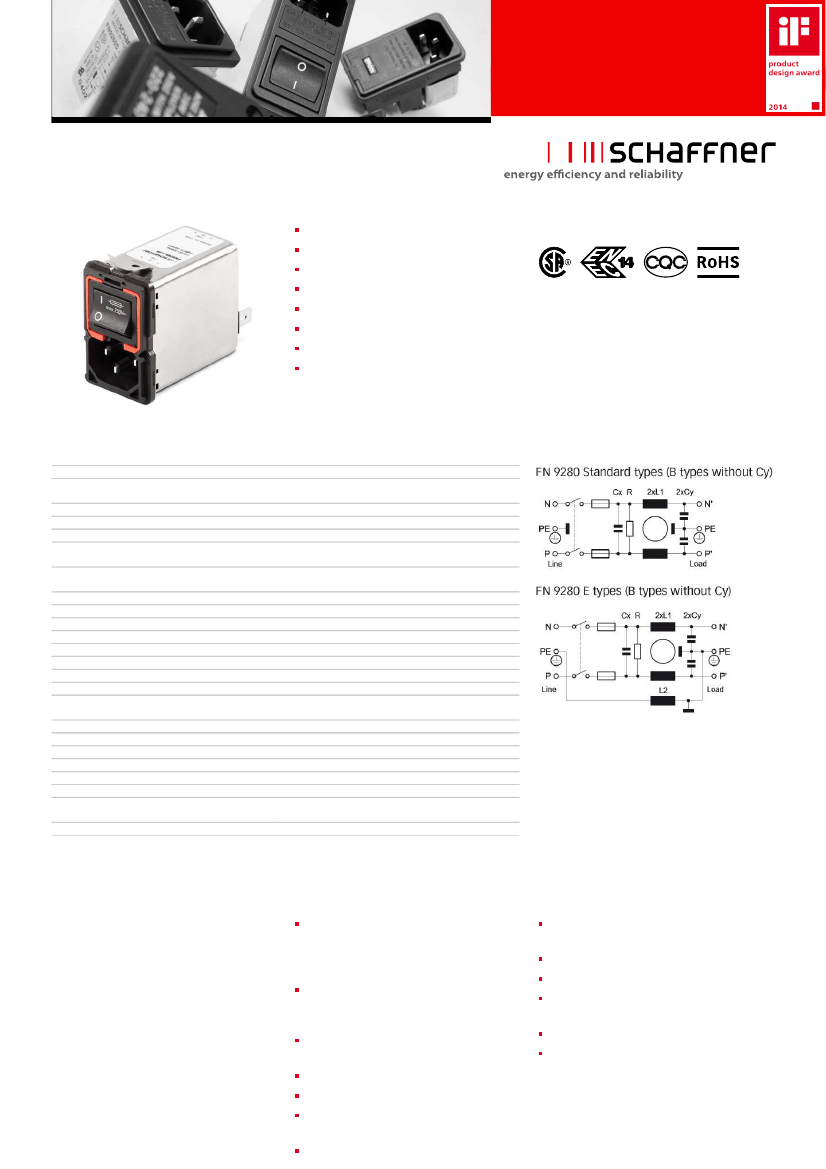

Typical electrical schematic
UL 1283, CSA 22.2 No. 8 1986, EN60939,
EN60950, EN60601-1, UL544, EN60320
Flammability corresponding to:
UL 94 V-2 or better
Maximum continuous operating voltage: 250 VAC, 50/60 Hz
Rated currents:
1 to 10 A* @ 40 °C max.
Operating frequency:
50 to 400Hz
Switch ratings:
USA (UL) and Canada (C-UL):
10 A, 125 VAC; 10 A, 250 VAC; 1/3HP
Europe (ENEC):
10 A (4 A), 250 VAC**
Electrical specifications:
Inrush current 82 A
6,000 on-off operations according to UL
1054
10,000 on-off operations according to ENEC
Leakage current:
Standard: <500uA at 250 VAC/50 Hz
Medical: <5uA at 250 VAC/50 Hz
Protection category:
IP40 according to IEC 60529 (front side)
Fuse holder:
2fuses (Ø5 x 20 mm) max. 250 V
Terminals:
IP20 spring cage safe against finger touch
Spring cage wire range:
0.2 –1.5 mm2 / 24 –16 AWG single or flexible
wire
Rocker switch:
2-pole, dark not illuminated, Marking I - 0
* 10A version is 8A UL approved
** Value in () relates to the induc tive c urrent c harge: c os γ = 0.65
MTBF @ 40°C/230V (Mil-HB-217F):
Temperature range (operation and
storage):
Design corresponding to:
Features and benefits
The FN 9280 power entry module
combines an IEC inlet, a mains filter and a
dual fuse holder with a 2-pole rocker
switch in an ultra compact housing.
Good conducted attenuation
performance, based on chokes with
high saturation resistance and
excellent thermal behavior
Typical applications
Portable electrical and electronic
equipment
Consumer goods
Choosing FN 9280/90 product line brings
you the rapid availability of a standard
filter associated with the necessary
safety acceptances and a high
Deep-drawn iron-sheet housing for best
possible shielding against magnetic
fields
Rear/front flange mounting or snap-in
versions
Dual fuse holder
EDP and office equipment
mode power supplies
Single-phase power supplies, switch-
Test and measurement equipment
Vitro-Diagnostics
(IVD) equipment
attenuation performance. For higher
attenuation performance the FN 9290
Medical electrical devices (MD) and
In-
family with a dual stage filter and identical
panel cut-out can be used. Standard IEC
connector filters are a practical solution
to pass EMI system approval in a short
time. A wide selection of amperage
2-pole rocker switch
Faston or spring cage terminals for
more flexible assembly
Medical version (B Type) according IEC /
ratings, mounting possibilities and also
IEC Inlet Filters > FN 9280
Product selector
All FN 9280/FN 9290 are equipped with a dual fuse holder with a spare fuse holder.
Note: All FN 9280/FN 9280B/FN 9289/FN 9289B/FN 9290/FN 9290B/FN 9299/FN 9299B are stock types from our distribution
partners.

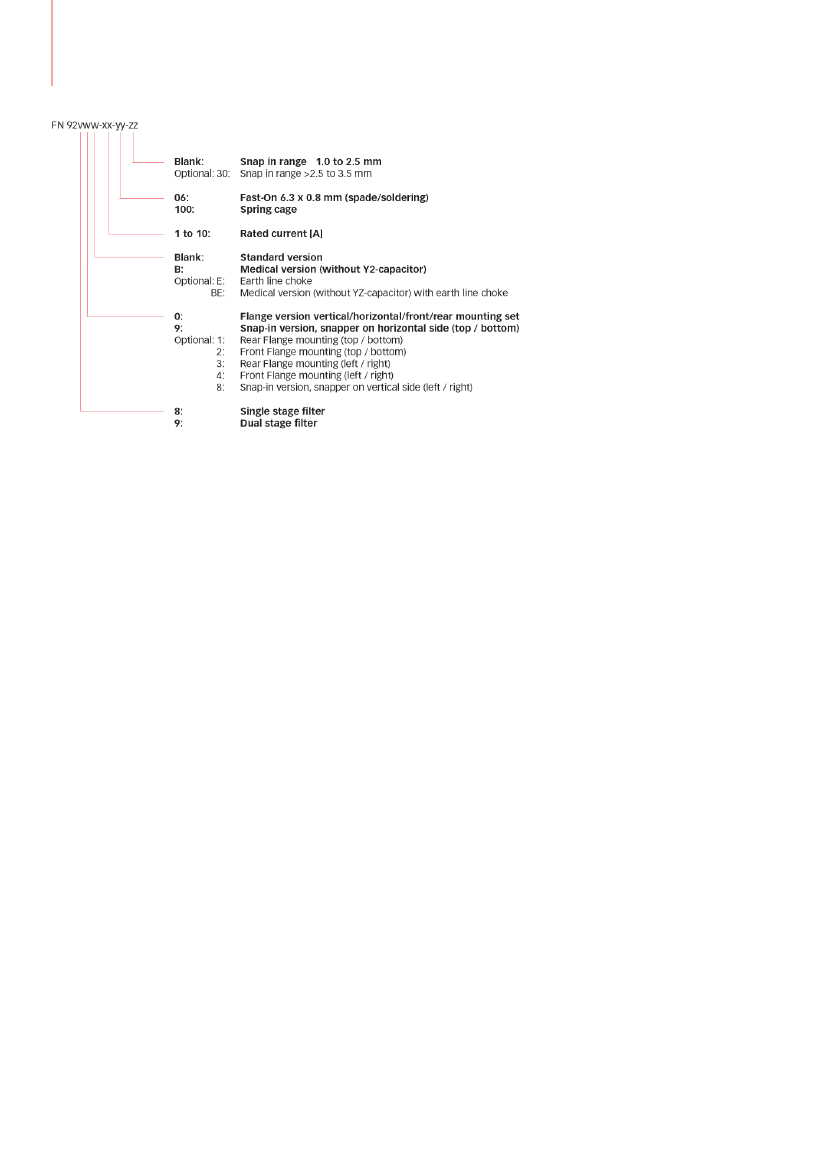

Order Examples:
FN 9280B-6-100: Medical version of single stage, dual fuse EMC/EMI filter, flange set for vertical/horizontal/front/rear mounting, 6A,
spring cage terminals, from stock available.
FN 9298-6-06-30: Dual stage, dual fuse EMC/EMI filter, snap-in version, snappers for snap-in panel thickness range >2.5 to 3.5 mm,
snapper on vertical side, 6A, fast-on terminals, non-stock order type
