BZG05C-Series
Vishay Semiconductors
Zener Diodes
Features
•
•
•
•
•
•
High reliability
Voltage range 3.3 V to 100 V
Fits onto 5 mm SMD footpads
Wave and reflow solderable
AEC-101 qualified
Compliant to RoHS directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
15811
Applications
• Voltage stabilization
Mechanical Data
Case:
DO-214AC
Weight:
approx. 77 mg
Packaging codes/options:
TR/1.5K 7" reel
TR3/6K 13" reel 6K/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Power dissipation
Non repetitive peak surge
power dissipation
Junction temperature
Storage temperature range
Test condition
R
thJA
< 30 K/W, T
amb
= 60 °C
R
thJA
< 100 K/W, T
amb
= 25 °C
t
p
= 100 µs sq.pulse, T
j
= 25 °C
prior to surge
Symbol
P
diss
P
diss
P
ZSM
T
j
T
stg
Value
3
1.25
60
150
- 65 to + 150
Unit
W
W
W
°C
°C
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Junction lead
Mounted on epoxy-glass hard
tissue, fig. 1a
Junction ambient
Mounted on epoxy-glass hard
tissue, fig. 1b
Mounted on Al-oxid-ceramic
(Al
2
O
3
), fig. 1b
Test condition
Symbol
R
thJL
R
thJA
R
thJA
R
thJA
Value
30
150
125
100
Unit
K/W
K/W
K/W
K/W
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
Test condition
I
F
= 0.2 A
Symbol
V
F
Min.
Typ.
Max.
1.2
Unit
V
Document Number
85595
Rev. 2.0, 24-Aug-10
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
1
BZG05C-Series
Vishay Semiconductors

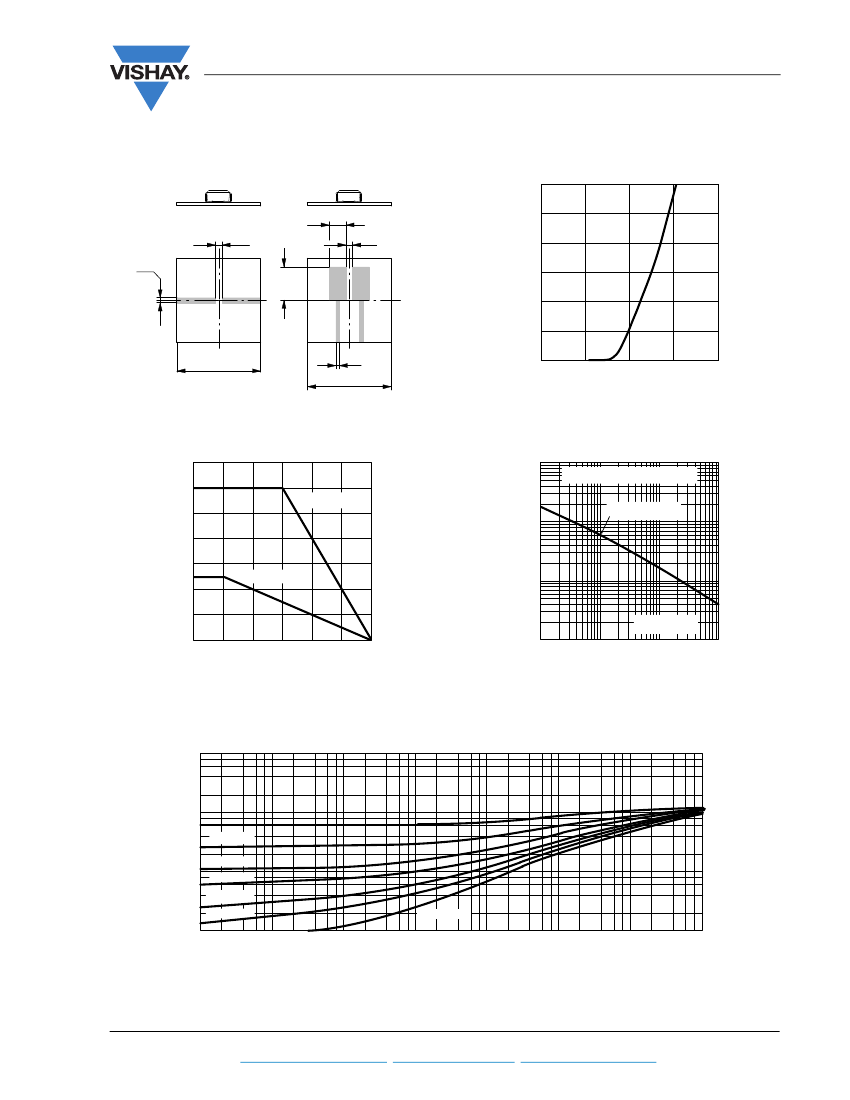

Typical Characteristics
T
amb
= 25 °C, unless otherwise specified
3.0
a)
b)
5
2
1.5
10
2
I
F
- Forward Current (A)
2.5
2.0
1.5
1.0
0.5
0.0
25
94 9313
1
25
0.0
0.5
1.0
1.5
2.0
22294
V
F
- Forward
Voltage
(V)
Figure 1. Boards for R
thJA
Definition (Copper Overlay 35 µ)
Figure 3. Forward Current vs. Forward Voltage
P
ZSM
-
Non-Repetitive
Surge Power
Dissipation (W)
3.5
1000
Single half square wave pulse
P
tot
- Total Power Dissipation (W)
3
R
thJA
= 25 K/W
2.5
2
1.5
R
thJA
= 100 K/W
1
0.5
0
0
25
50
75
100
125
150
Databook Limit
100
10
T
amb
= 25 °C
1
0.01
0.1
1
10
94 9580
T
amb
- Ambient Temperature (°C)
22295
t
p
- Pulse Length (ms)
Figure 2. Typ. Total Power Dissipation vs. Ambient Temperature
Figure 4. Non Repetitive Surge Power Dissipation vs.
Pulse Length
Z
thp
- Thermal Resistance for Pulse Cond. (K/W)
1000
100
t
p
/T = 0.5
t
p
/T = 0.2
t
p
/T = 0.1
t
p
/T = 0.05
t
p
/T = 0.02
t
p
/T = 0.01
10
1
10
-5
94 9583
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
t
p
- Pulse Length (s)
Figure 5. Thermal Response
Document Number
85595
Rev. 2.0, 24-Aug-10
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
3
