Frequency Synthesizer
50Ω
924 to 2036 MHz
Features
• Fractional N synthesizer
• Integrated VCO + PLL
• Low phase noise and spurious
• Robust design and construction
• Operating voltage (VCC VCO=+8V, VCC PLL=+18V)
• Wide bandwidth
Surface Mount
DSN-2036A-119+
CASE STYLE: KL1294
PRICE: $45.95 ea. QTY (1-9)
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Applications
• Digial TV distribution
General Description
The DSN-2036A-119+ is a Frequency Synthesizer, designed to operate from 924 to 2036 MHz for
Digial TV distribution application. The DSN-2036A-119+ is packaged in a metal case (size of 1.250"
x 1.000" x 0.232") to shield against unwanted signals and noise. To enhance the robustness of DSN-
2036A-119+, each internal component is secured to the substrate with chip bonder, thereby eliminating
the risk of tombstoning during subsequent solder reflow operations by the customer.

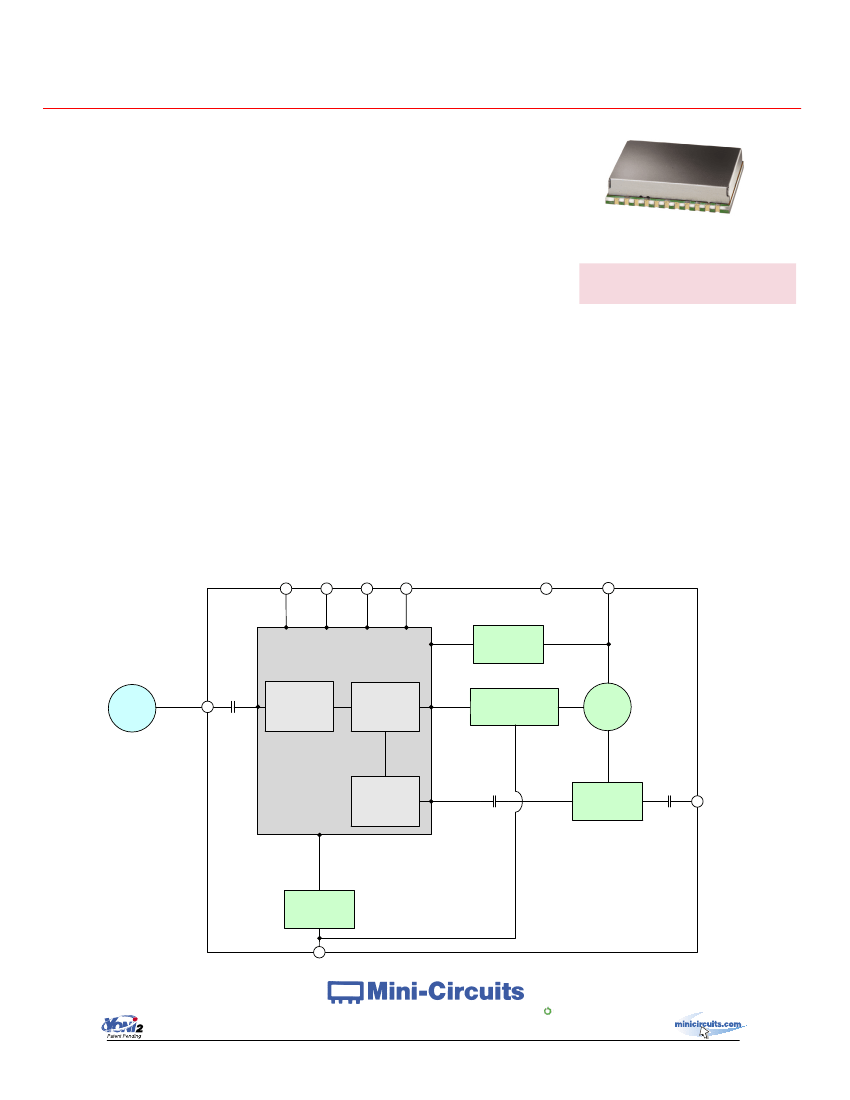

Simplified Schematic
LE
DATA CLOCK LOCK DET
GND
VCC VCO
VP
VOLTAGE
DIVIDER
F
REF
XTAL
REF In
R COUNTER
1/R
Phase
Detector /
Charge Pump
K½
CP
LOOP FILTER
Vt
VCO
(External)
RF Out
PLL
N COUNTER
1/N
RFinA
SPLITTER
VOLTAGE
DIVIDER
VCC PLL
®
RoHS compliant
IF/RF MICROWAVE COMPONENTS
½½½½½½ 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
o
TM
The Design Engineers Search Engine
finds the model you need, Instantly •
For detailed performance specs & shopping online see
Notes: 1. Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet. 2. Electrical specifications and
performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. 3. The parts covered by this specification sheet are subject to Mini-Circuits
standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the
exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. OR
M128329
EDR-10165F1
DSN-2036A-119+
Category-F8
RAV
100803
Page 2 of 13
Frequency Synthesizer
Electrical Specifications
(over operating temperature -20°C to +70°C)
Parameters
Frequency Range
Step Size
Comparison Frequency
Settling Time
Output Power
DSN-2036A-119+
Test Conditions
-
-
-
Within ± 1 kHz
-
@ 100 Hz offset
@ 1 kHz offset
@ 10 kHz offset
@ 100 kHz offset
@ 1 MHz offset
Step Size 250 kHz
0.5 Step Size 125 kHz
Ref. Freq. 10 MHz
Comp. Freq. 20 MHz
-
-
+8.0
+18.0
-
-
10 (square wave)
1
-
-
-
-
-
-
-
-
-
-
-
-
-
Min.
Typ.
Max.
Units
MHz
kHz
MHz
mSec
dBm
SSB Phase Noise
Step Size Spurious Suppression
0.5 Step Size Spurious Suppression
Reference Spurious Suppression
Comparison Spurious Suppression
Non - Harmonic Spurious Suppression
Harmonic Suppression
VCO
Supply Voltage
PLL
Supply Voltage
VCO Supply Current
PLL Supply Current
Frequency
Reference Input
Amplitude
Input impedance
(External)
Phase Noise @ 1 kHz offset
RF Output port Impedance
Input high voltage
Input Logic Level
Input low voltage
Locked
Digital Lock Detect
Unlocked
Frequency Synthesizer PLL
PLL Programming
R0_Register
R1_Register *
Register Map @ 2036 MHz
R2_Register *
R3_Register
924
-
2036
-
250
-
-
20
-
-
10
-
-1.5
+1.5
+4.5
-
-80
-
-
-100
-92
-
-97
-91
-
-115
-109
-
-138
-132
-
-70
-50
-
-70
-50
-
-85
-70
-
-85
-70
-
-90
-
-
-25
-8
+7.6
+8.0
+8.4
+17.5
+18.0
+18.5
-
51
57
-
23
32
-
10
-
-
1
-
-
100
-
-
-145
-
-
50
-
2.65
-
-
-
-
0.65
2.00
-
2.85
-
-
0.40
ADF4153
3-wire serial 3.3V CMOS
(MSB) 110010100000100000000 (LSB)
(MSB) 10X000100000101000001 (LSB)
(MSB) 10YZW0100010 (LSB)
(MSB) 1111000111 (LSB)
dBc/Hz
dBc
V
mA
MHz
V
P-P
KΩ
dBc/Hz
Ω
V
V
V
V
* Refer to Charge Pump Settings
FREQ.LOCK [MHz]
925.00 - 1070.00
1070.25 - 1680.00
1680.25 - 1850.00
1850.25 - 1966.00
1966.25 - 2036.00
X
0
0
0
1
1
Charge Pump Settings
Y
Z
0
0
0
1
0
1
1
0
1
0
W
1
0
1
0
1
Absolute Maximum Ratings
Parameters
Ratings
VCO Supply Voltage
9V
PLL Supply Voltage
19V
VCO Supply Voltage to PLL Supply Voltage
N.A
Reference Frequency Voltage
-0.3Vmin, +3.6Vmax
Data, Clock, LE Levels
-0.3Vmin, +3.6Vmax
Operating Temperature
-40°C to +85°C
Storage Temperature
-55°C to +100°C
Permanent damage may occur if any of these limits are exceeded
®
