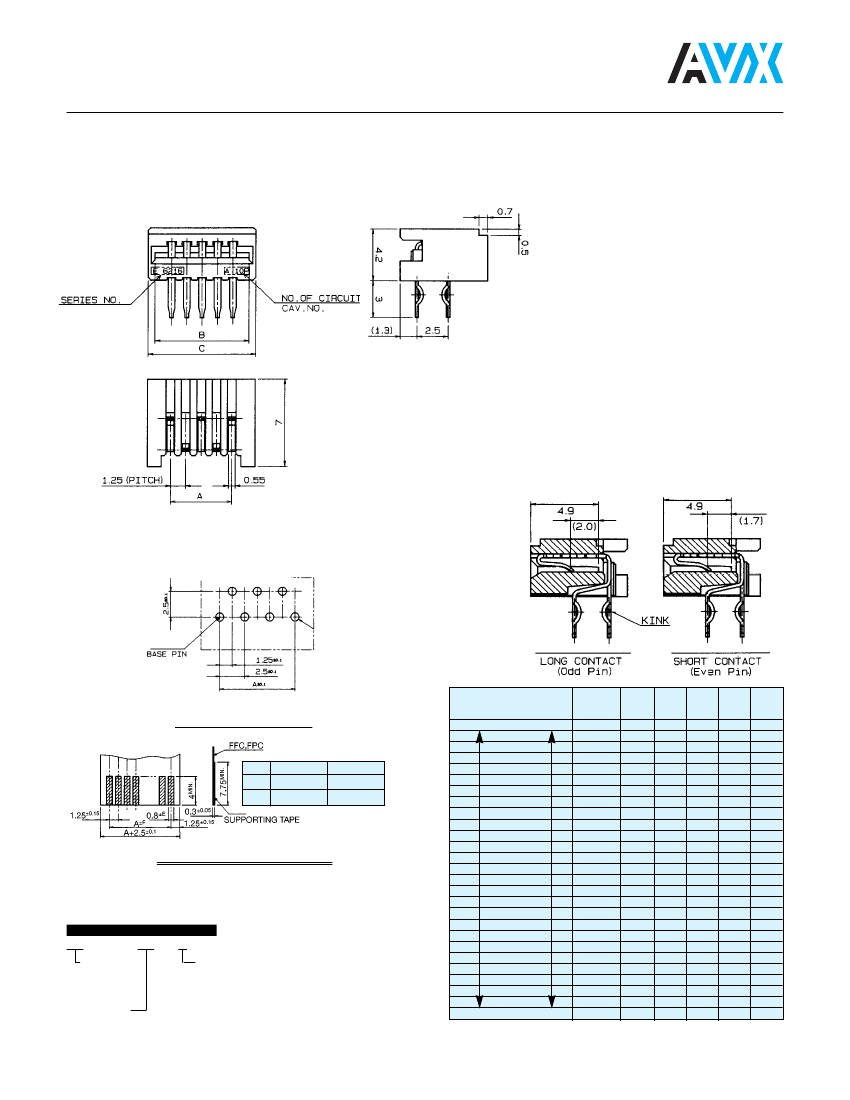

1.25mm Pitch
Series 6216
LIF Right Angle Through-Hole
(Top Contact)
Specifications
•
Number of Contacts – 4-40
•
Tube Packaged or Tray Packaged
•
Voltage – 200 V
•
Current Rating – 1.0 amp max.
•
Dielectric Withstanding Voltage –
500V RMS min.
•
Operating Temperature – (-20°C - 85°C)
•
Contact Material – phosphor bronze
(tin-lead plated)
•
Insulator Material – glass-filled PBT,
(UL 94 V-O) black color
•
FFC/FPC Thickness – 0.3 ±0.05 mm
(0.012 ±0.002")
•
PCB Thickness - 1.0-1.6mm (0.039-0.633")
•
Profile Height – Straight – 7.0mm (0.276")
Right Angle – 4.2mm (0.165")
•
Reverse footprint for straight type also
available – contact sales office for details
PART NUMBER
MOUNTING LAYOUT
NO. OF
CONTACTS
A
B
C
QTY.
PER
TUBE
QTY.
PER
TRAY
E
F
FFC
±0.03
±0.1
FPC
±0.1
±0.05
FFC, FPC SPECIFICATION
ORDERING CODE
XX 6216 0XX 11X 808
00:TRAY
PACKAGE
28:TUBE
PACKAGE
NUMBER OF
CONTACTS (04-30)
VARIATION CODE
0:WITH KINKED LEGS
(EACH TWO PINS AT BOTH ENDS)
1:WITHOUT KINKED LEGS
XX 6216 004 11X 808
005
006
007
008
009
010
011
012
013
014
015
016
017
018
019
020
021
022
023
024
025
026
027
028
029
XX 6216 030 11X 808
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3.75
5.00
6.25
7.50
8.75
10.00
11.25
12.50
13.75
15.00
16.25
17.50
18.75
20.00
21.25
22.50
23.75
25.00
26.25
27.50
28.75
30.00
31.25
32.50
33.75
35.00
36.25
6.41
7.66
8.91
10.16
11.41
12.66
13.91
15.16
16.41
17.66
18.91
20.16
21.41
22.66
23.91
25.16
26.41
27.66
28.91
30.16
31.41
32.66
33.91
35.16
36.41
37.66
38.91
7.50
8.75
10.00
11.25
12.50
13.75
15.00
16.25
17.50
18.75
20.00
21.25
22.50
23.75
25.00
26.25
27.50
28.75
30.00
31.25
32.50
33.75
35.00
36.25
37.50
38.75
40.00
61
53
46
41
37
34
31
29
27
25
23
22
21
20
19
18
17
16
15
15
14
14
13
13
12
12
11
480
410
360
320
280
260
240
220
200
190
180
160
160
150
140
130
130
120
120
110
110
100
100
90
90
90
90
(Dimensions: mm)
