54F37/BDA datasheet, PDF - EEWORLD Datasheet

54F37/BDA: DescriptionNAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14; Categorylogic logic; File Size104KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

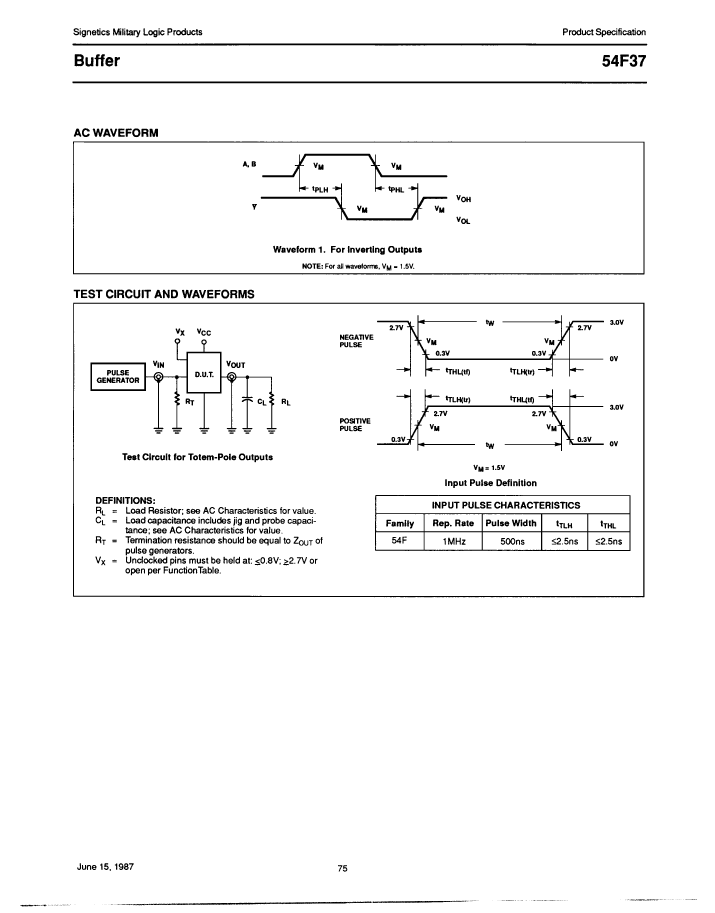

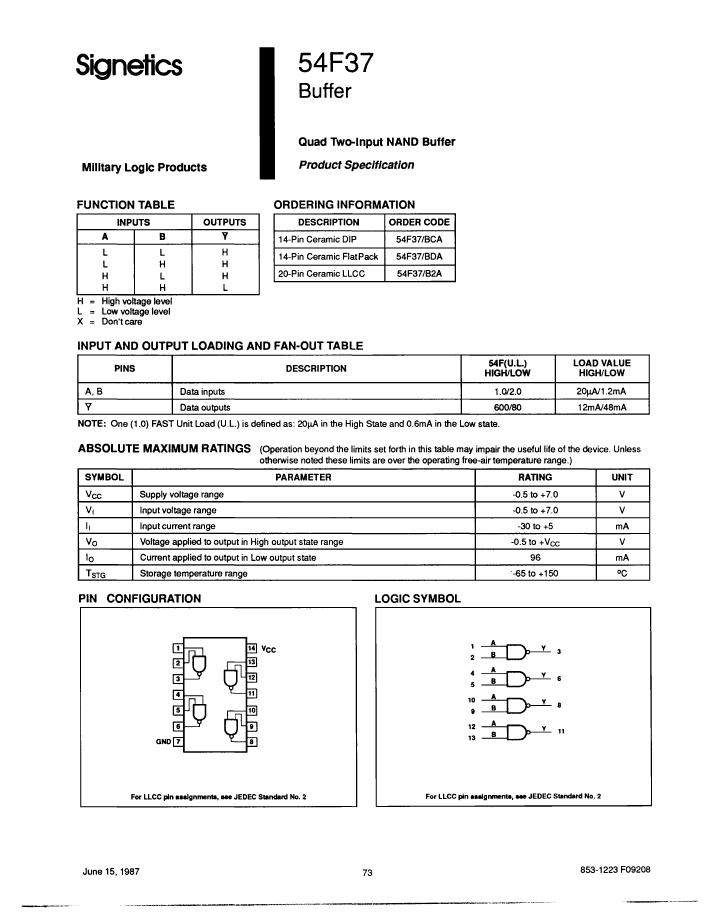

54F37/BDA Overview

NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14

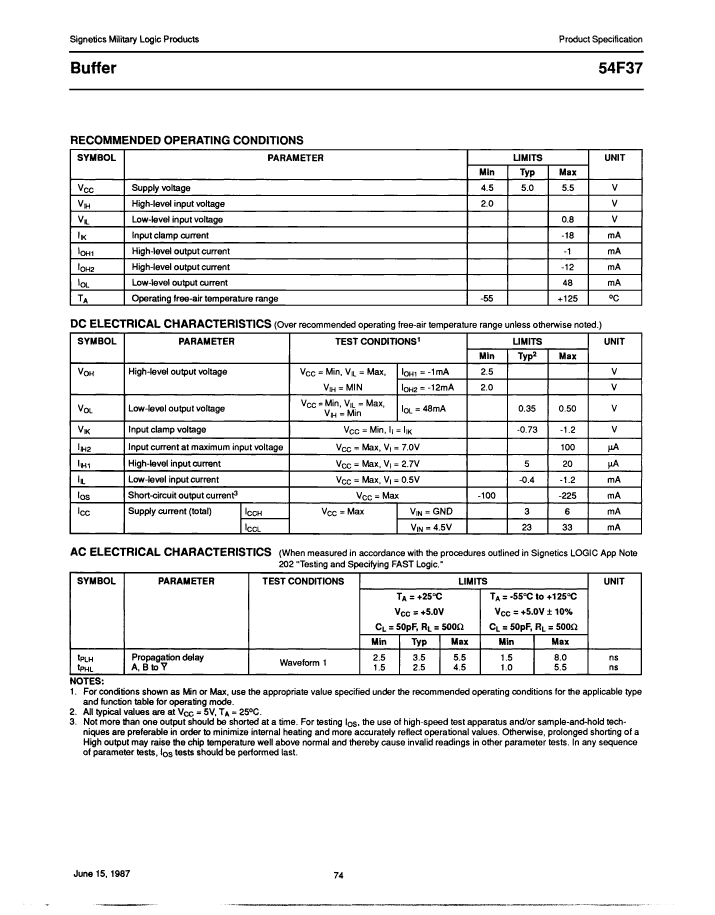

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-CDFP-F14
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	33 mA
propagation delay (tpd)	5.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

	54F37/BDA	54F37/BCA	54F37/B2A
Description	NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14	NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20
Reach Compliance Code	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F14	R-CDIP-T14	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Maximum supply current (ICC)	33 mA	33 mA	33 mA
propagation delay (tpd)	5.5 ns	5.5 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
