626P20004I3T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 626P20004I3T

626P20004I3T: DescriptionLVPECL Output Clock Oscillator,; CategoryPassive components oscillator; File Size814KB，10 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

626P20004I3T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	626P20004I3T	-	-	View	Buy Now

626P20004I3T Overview

LVPECL Output Clock Oscillator,

626P20004I3T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Other features	ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT; TR, 7 INCH
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	30%
Installation features	SURFACE MOUNT
Nominal operating frequency	200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	2.5mm x 2.0mm x 1.1mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold Flash (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

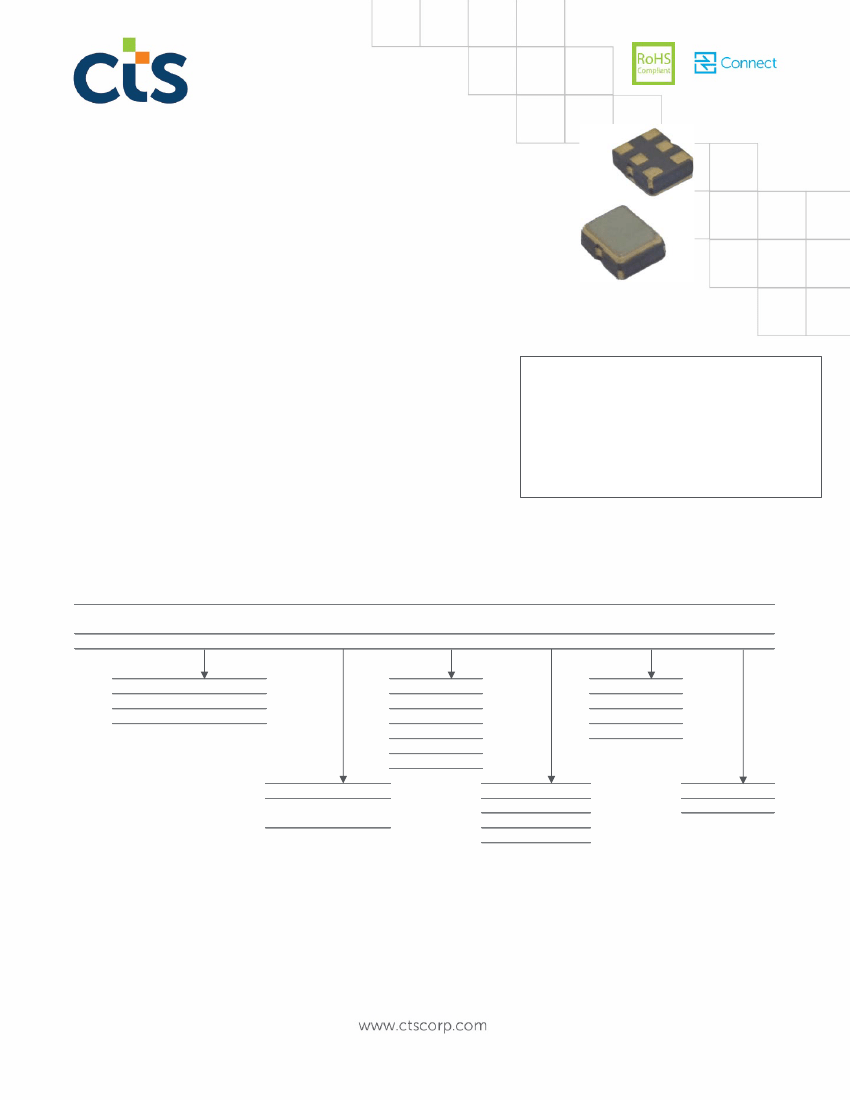

Model 626

Features



Very Low Jitter LVPECL or LVDS Clock

Ceramic Surface Mount Package

Very Low Phase Jitter Performance, 500fs Maximum

Fundamental or 3

Overtone Crystal Design

Frequency Range 6 – 220MHz *

+2.5V or +3.3V Operation [+1.8V LVDS only]

Output Enable Standard

Tape and Reel Packaging, EIA-418

SerDes

Storage Area Networking

Broadband Access

SONET/SDH/DWDM

PON

Ethernet/GbE/SyncE

Fiber Channel

Test and Measurement

Part Dimensions:

2.5 × 2.0 × 1.1mm

•

14.25852mg

Applications



Standard Frequencies

- 25.00MHz

- 100.00MHz

- 27.00MHz

- 125.00MHz

- 50.00MHz

- 155.52MHz

- 74.1758MHz

- 156.25MHz

- 74.25MHz

- 161.1328MHz

* See Page 9 for additional developed frequencies.

Check with factory for availability of frequencies not listed.

Description

CTS Model 626 is a low cost, high performance clock oscillator supporting differential LVPECL or LVDS outputs.

Employing the latest IC technology, M626 has excellent stability and very low jitter/phase noise performance.

Ordering Information

Model

626

Output

Type

Frequency Code

[MHz]

XXX or XXXX

Frequency

Stability

Temperature

Range

Supply

Voltage

Packaging

Code

Output

LVPECL - Pin 1 Enable

LVDS - Pin 1 Enable

Code

Frequency

Stability

±20ppm

±25ppm

±30ppm

±50ppm

±100ppm

Code Temp. Range

-20°C to +70°C

-40°C to +85°C

G -40°C to +105°C

Code

Voltage

+1.8Vdc

+2.5Vdc

+3.3Vdc

Product Frequency Code

Notes:

Packing

Code

1k pcs./reel

Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz, 4-digits for frequencies 100MHz or greater.

Check factory for availability. Temperature code C only.

Check factory for availability. Stability codes 2 and 3 only.

LVDS output only. Consult factory for availability.

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this

product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.

DOC# 008-0586-0 Rev. C

Page 1 of 10

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
