54722-0343 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54722-0343

54722-0343: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size741KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54722-0343 Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

54722-0343 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.047 inch
body length	0.437 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (16) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	9.8u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

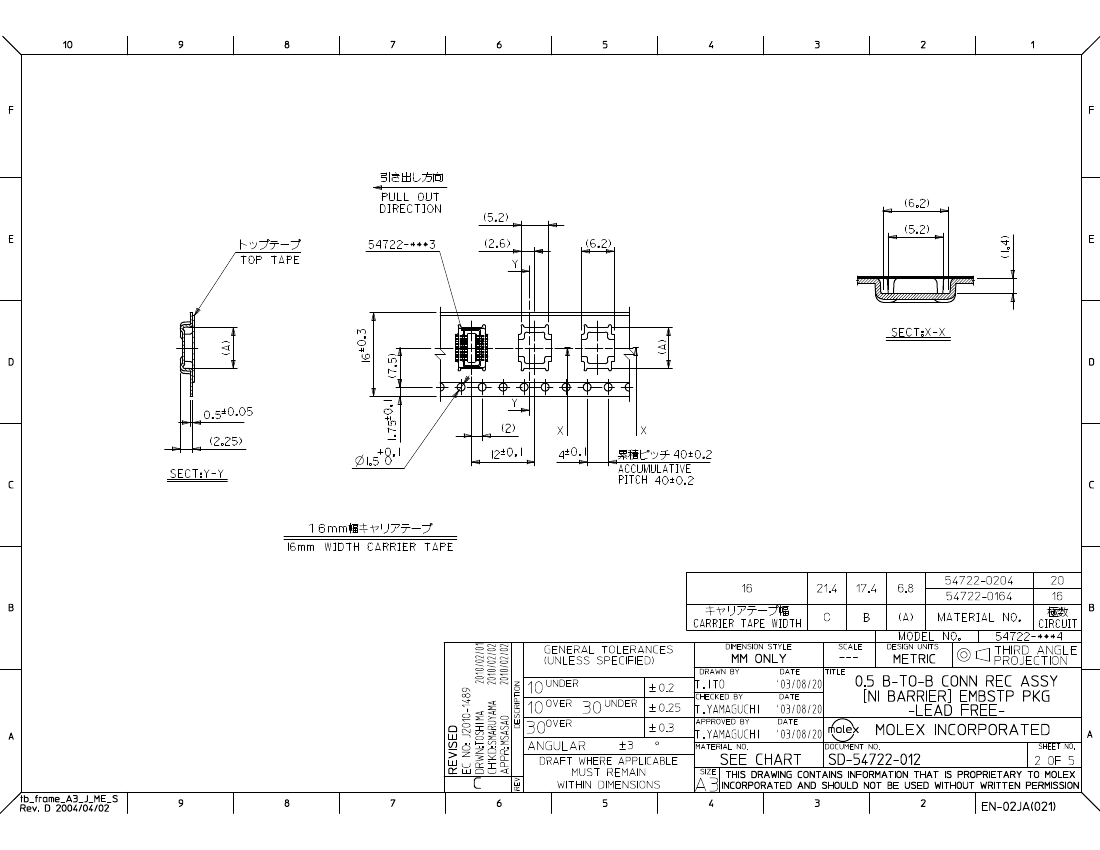

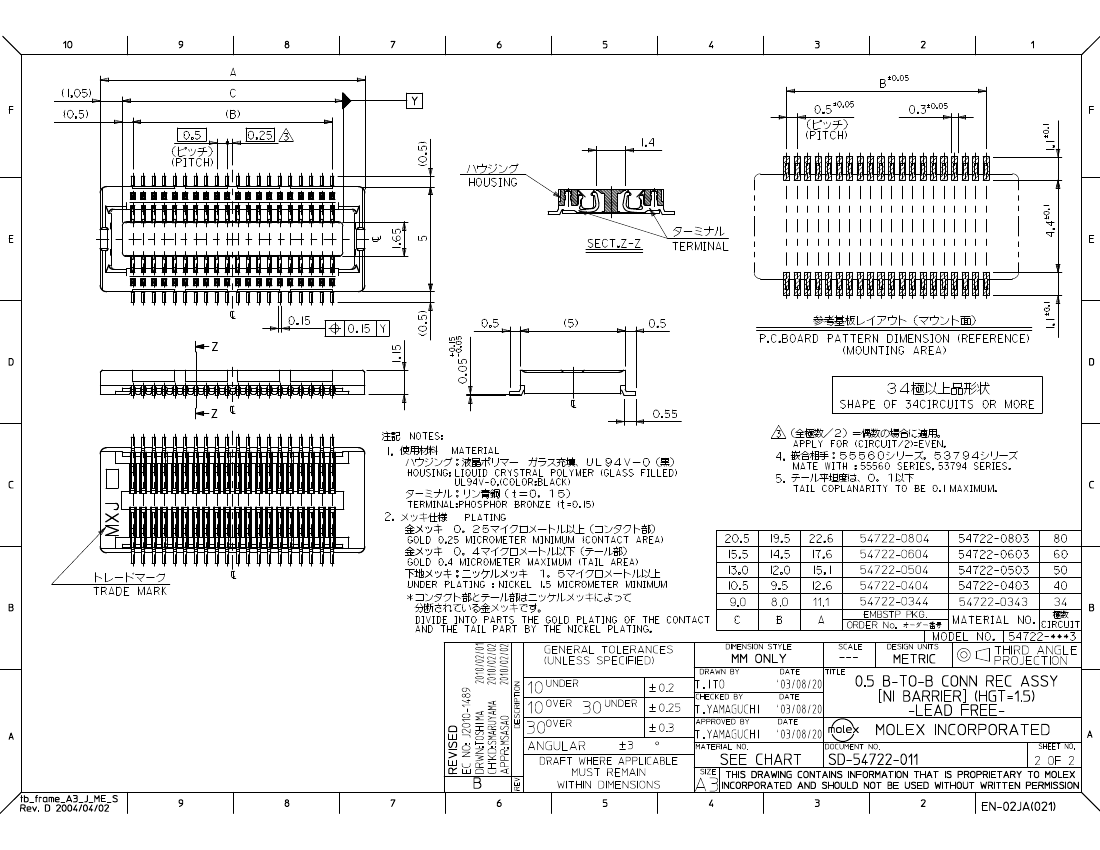

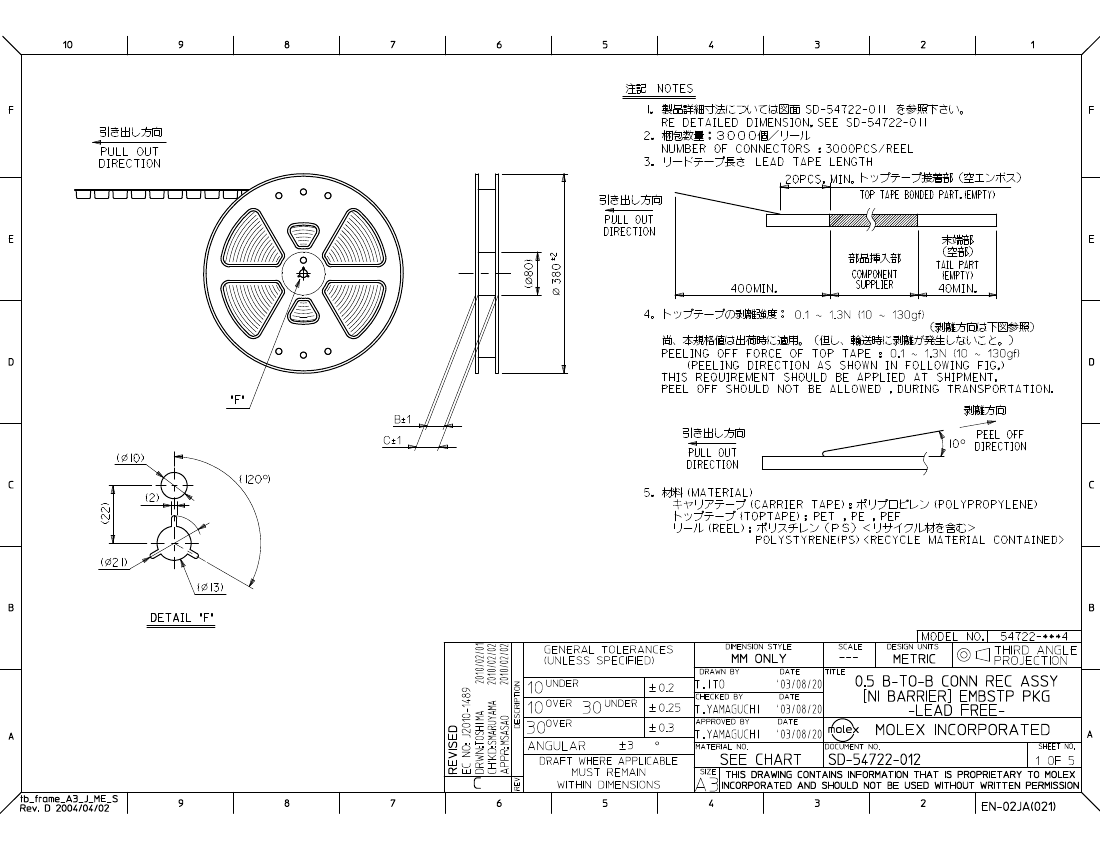

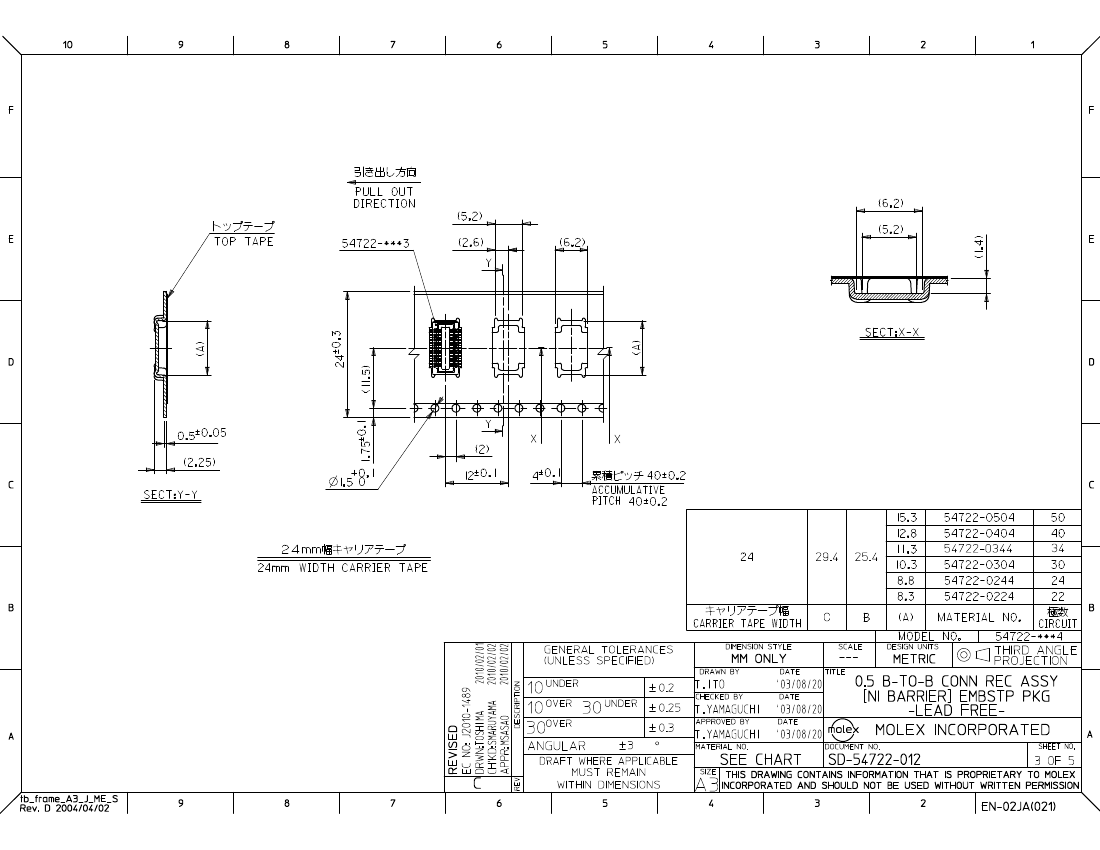

Preview

Download Datasheet

View All

54722-0343 Related Products

	54722-0343	1812F0160333JRR	54722-0403	54722-0463	54722-0503	54722-0603	54722-0803
Description	Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, BZ, 15% TC, 0.033uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE
package instruction	LEAD FREE	, 1812	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
body width	0.197 inch	-	0.197 inch	-	0.197 inch	0.197 inch	0.197 inch
subject depth	0.047 inch	-	0.047 inch	-	0.047 inch	0.047 inch	0.047 inch
body length	0.437 inch	-	0.496 inch	-	0.594 inch	0.693 inch	0.89 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	-	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (16) OVER NICKEL	-	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	-	40 mΩ	-	40 mΩ	40 mΩ	40 mΩ
DIN compliance	NO	-	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	-	500VAC V	-	500VAC V	500VAC V	500VAC V
Filter function	NO	-	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	-	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	BLACK	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	-	NO	NO	NO	NO	NO
Plug contact pitch	0.02 inch	-	0.02 inch	-	0.02 inch	0.02 inch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	NO	NO	NO	NO
Installation option 1	LOCKING	-	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	-	ONE	ONE	ONE
PCB row number	2	-	2	-	2	2	2
Number of rows loaded	2	-	2	2	2	2	2
Maximum operating temperature	105 °C	125 °C	105 °C	-	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	9.8u inch	-	9.8u inch	-	9.8u inch	9.8u inch	9.8u inch
Rated current (signal)	0.5 A	-	0.5 A	-	0.5 A	0.5 A	0.5 A
Guideline	UL	IECQ-CECC	UL	-	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	34	-	40	46	50	60	80
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0
