5962F9669601QYC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962F9669601QYC

5962F9669601QYC: Description1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDFP28; CategoryAnalog mixed-signal IC converter; File Size193KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9669601QYC Overview

1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDFP28

5962F9669601QYC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL28,.5
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	5 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDFP-F28
JESD-609 code	e0
Maximum linear error (EL)	0.39%
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL28,.5
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Sampling rate	20 MHz
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	2.92 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V
width	12.445 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HS-9008RH

Data Sheet

August 1999

File Number

3279.3

Radiation Hardened CMOS 8-Bit Flash

Analog-to-Digital Converter

The Intersil HS-9008RH is a CMOS 8-Bit Flash Converter

designed for space applications where relatively low power,

exceptional accuracy and very fast conversion speeds are a

necessity.

The HS-9008RH design differs substantially from most other

available Flash Converters as it employs fully differential

analog input sampling networks and ampliﬁers, as well as

regenerative, offset nulled (error correcting) comparators.

These circuit techniques improve noise performance and

render the circuit much less sensitive to process and

radiation induced device parametric shifts. Outstanding

integral and differential linearity error is achieved through the

use of a metal ﬁlm resistor network which exhibits >10-bit

linearity without trim. As a result of these innovations, the

device operates with a single ﬁxed reference supply as

opposed to the multiple, adjustable references used in

similar devices.

This combination of features makes the HS-9008RH one of

the best 8-Bit Flash Converters available in the Commercial,

Military or Rad Hard markets.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-96696. A “hot-link” is provided

on our homepage for downloading.

http://www.intersil.com/spacedefense/space.htm

Features

• Electrically Screened to SMD # 5962-96696

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• Excellent Noise Rejection - Fully Differential Design

• Superior Linearity . . . . . . . . . . . . . . . . . . . . . . 0.5 LSB Typ

• Single Reference Supply

• Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 330mW Typ

• Sampling Rate (50ns Conversion Time). . . . . . . . . 20MHz

• Total Dose Hardness . . . . . . . . . . . . . . . . . . . . . 300kRAD

• Available with QML Class V or Class Q Screening

Pinouts

HS-9008RH (SBDIP) CDIP2-T28

TOP VIEW

/ R 1

28 V

SSD

27 V

26 V

SSD

25 V

SSA

24 V

REF

23 V

DDA

22 OF

21 B8 (MSB)

20 B7

19 B6

18 B5

17 V

SSA

16 V

SSD

15 V

DDD

CLK 3

DDD

SSA

REF

- 6

DDA

(LSB) B1 8

B2 9

B3 10

B4 11

CE1 12

CE2 13

Ordering Information

ORDERING NUMBER

5962F9669601QXC

5962F9669601QYC

5962F9669601VXC

5962F9669601VYC

HS1-9008RH/Proto

HS9-9008RH/Proto

HS0-9008RH-Q

INTERNAL

MKT. NUMBER

HS1-9008RH-8

HS9-9008RH-8

HS1-9008RH-Q

HS9-9008RH-Q

HS1-9008RH/Proto

HS9-9008RH/Proto

HS0-9008RH-Q

TEMP. RANGE

(

-55 to 125

/ R

DDA

HS-900RH (FLATPACK) CDFP3-F28

TOP VIEW

SSD

SSA

REF

DDA

B8 (MSB)

SSA

SSD

DDD

CLK

DDD

SSA

REF

DDA

(LSB) B1

CE1

CE2

DDA

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

http://www.intersil.com or 407-727-9207

Intersil Corporation 1999

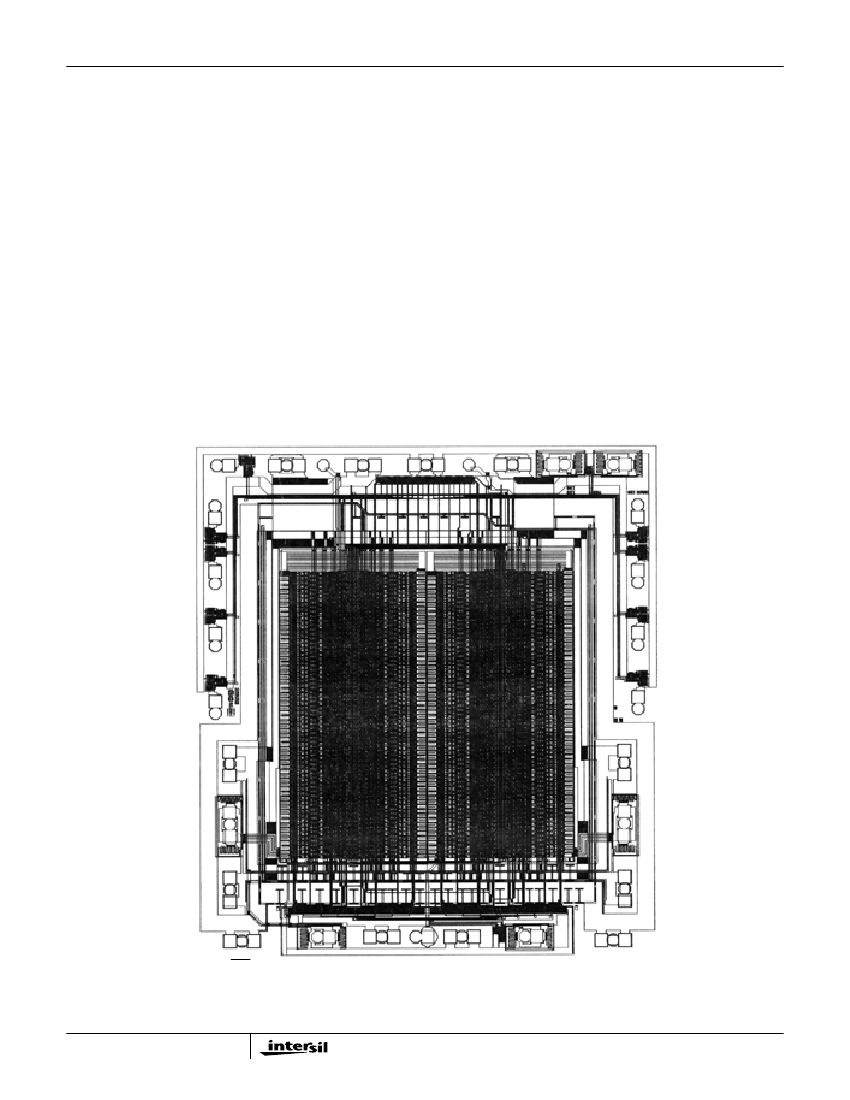

5962F9669601QYC Related Products

	5962F9669601QYC	5962F9669601VXC	HS0-9008RH-Q	HS1-9008RH-8
Description	1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDFP28	1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP28	1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, UUC28, DIE-28	1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP28
Parts packaging code	DFP	DIP	DIE	DIP
package instruction	DFP, FL28,.5	DIP, DIP28,.6	DIE,	DIP, DIP28,.6
Contacts	28	28	28	28
Reach Compliance Code	not_compliant	not_compliant	unknown	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-CDFP-F28	R-CDIP-T28	R-XUUC-N28	R-CDIP-T28
Number of analog input channels	1	1	1	1
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Output bit code	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIE	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	UNCASED CHIP	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	20 MHz	20 MHz	20 MHz	20 MHz
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	DUAL	UPPER	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Is it Rohs certified?	incompatible	incompatible	-	incompatible
Maximum analog input voltage	5 V	5 V	-	5 V
JESD-609 code	e0	e0	-	e0
Maximum linear error (EL)	0.39%	0.39%	-	0.39%
Maximum operating temperature	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
Encapsulate equivalent code	FL28,.5	DIP28,.6	-	DIP28,.6
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	5 V	-	5 V
Maximum seat height	2.92 mm	5.92 mm	-	5.92 mm
Nominal supply voltage	5 V	5 V	-	5 V
Temperature level	MILITARY	MILITARY	-	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	2.54 mm	-	2.54 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
width	12.445 mm	15.24 mm	-	15.24 mm
Base Number Matches	1	1	1	-
