HLMP-3301, HLMP-3401, HLMP-3507, HLMP-3762,
HLMP-3862, HLMP-3962, HLMP-D401
T-1
3
/
4
(5 mm) Diffused LED Lamps
Data Sheet
Description
This family of T-1
3
/
4
tinted, diffused LED lamps is
widely used in general purpose indicator applications.
Diffusants, tints, and optical design are balanced to yield
superior light output and wide viewing angles. Several
intensity choices are available in each color for increased
design flexibility.
Features
•
High intensity
•
Choice of 4 bright colors
– High Efficiency Red
– Orange
– Yellow
– High Performance Green
•
Popular T-1
3
/
4
diameter package
•
•
•
•
•
Selected minimum intensities
Wide viewing angle
General purpose leads
Reliable and rugged
Available on tape and reel
Selection Guide
Material/
Color
Part Number
HLMP-3301
HLMP-3301-D00xx
GaP HER
HLMP-3301-F00xx
HLMP-3301-FG0xx
HLMP-3762
HLMP-3762-G00xx
HLMP-3401
HLMP-3401-E00xx
HLMP-3401-EF0xx
GaP Yellow
HLMP-3401-EFBxx
HLMP-3862
HLMP-3862-F00xx
HLMP-3862-FGBxx
HLMP-D401
GaP Orange
HLMP-D401-D00xx
HLMP-D401-EF0xx
HLMP-D401-F00xx
HLMP-3507
HLMP-3507-D00xx
GaP Green
HLMP-3507-EF0xx
HLMP-3962
HLMP-3962-F00xx
Luminous Intensity
Iv (mcd) at 10 mA
Min.
Max.
5.4
2.1
5.4
5.4
8.6
8.6
5.7
5.7
5.7
5.7
9.2
9.2
9.2
5.4
2.1
3.4
5.4
4.2
4.2
6.7
10.6
10.6
–
–
–
17.2
–
–
–
–
18.4
18.4
–
–
29.4
–
–
10.8
–
–
–
21.2
–
–
Part Numbering System
HLMP - x x xx - x x x xx
Mechanical Option
00: Bulk
01: Tape & Reel, Crimped Leads
02: Tape & Reel, Straight Leads
B1: Right Angle Housing, Uneven Leads
B2: Right Angle Housing, Even Leads
DD: Ammo Pack
R4: Tape & Reel, Counter Clockwise
Color Bin Options
0: Full Color Bin Distribution
B: Color Bins 2 & 3 only
Maximum Iv Bin Options
0: Open (no max. limit)
Others: Please refer to the Iv Bin Table
Minimum Iv Bin Options
Please refer to the Iv Bin Table
Brightness Level
0x: Less Brightness
62: Higher Brightness
Color Options
3,7: GaP HER
4,8: GaP Yellow (except D4xx)
5,9: GaP Green
Package Options
3: T-1 3/4 (5 mm)
D: T-1 3/4 (5 mm) GaP Orange
Package Dimensions
2
Optical/Electrical Characteristics at T
A
= 25°C
Symbol
2q
1
/
2
Parameter
Included Angle
Between Half
Luminous Intensity
Points
Peak Wavelength
Color
High Efficiency Red
Orange
Yellow
Green
High Efficiency Red
Orange
Yellow
Green
HER/Orange
Yellow
Green
High Efficiency Red
Orange
Yellow
Green
High Efficiency Red
Orange
Yellow
Green
High Efficiency Red
Orange
Yellow
Green
All
HER/Orange
Yellow
Green
All
High Efficiency Red
Orange
Yellow
Green
Min.
Typ.
60
60
60
60
635
600
583
565
40
36
28
626
602
585
569
90
280
90
500
11
4
15
18
260
1.9
2.0
2.1
Max.
Units
Deg.
Test
Condition
I
F
= 10 mA
See Note 1
l
PEAK
nm
Measurement
at Peak
Dl
1/2
Spectral Line Halfwidth
nm
l
d
Dominant Wavelength
nm
See Note 2
t
s
Speed of Response
ns
C
Capacitance
pF
V
F
= 0;
f = 1 MHz
Rq
J-PIN
V
F
Thermal Resistance
Forward Voltage
°C/W
2.4
2.4
2.7
V
Junction to
Cathode Lead
I
F
= 10 mA
V
R
h
V
Reverse Breakdown
Voltage
Luminous Efficacy
5.0
–
–
145
380
500
595
V
lumens
Watt
I
R
= 100 µA
See Note 3
Notes:
1.
q
1
/
2
is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
2. The dominant wavelength,
l
d
, is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of
the device.
3. Radiant intensity, I
e
, in Watts/steradian, may be found from the equation I
e
= I
v
/h
v
, where I
v
is the luminous intensity in candelas and
h
v
is the
luminous efficacy in lumens/Watt.
3
Absolute Maximum Ratings at T
A
= 25°C
Parameter
Peak Forward Current
Average Forward Current
[1]
DC Current
[2]
Power Dissipation
[3]
Reverse Voltage (I
R
= 100 µA)
Transient Forward Current
[4]
(10 µsec Pulse)
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
HER/Orange
90
25
30
135
5
500
110
-40 to +100
-40 to +100
Yellow
60
20
20
85
5
500
110
-40 to +100
-40 to +100
Green/
Emerald Green
90
25
30
135
5
500
110
-20 to +100
-40 to +100
Units
mA
mA
mA
mW
V
mA
°C
°C
°C
Notes:
1. See Figure 5 (Red/Orange), 10 (Yellow), or 15 (Green) to establish pulsed operating conditions.
2. For Red, Orange and Green series derate linearly from 50°C at 0.5 mA/°C. For Yellow series derate linearly from 50°C at 0.2 mA/°C.
3. 1.8 mW/°C. For Yellow series derate power linearly from 50°C at 1.6 mW/°C.
4. The transient peak current is the maximum non-recurring peak current that can be applied to the device without damaging the LED die and
wirebond. It is not recommended that the device be operated at peak currents beyond the peak forward current listed in the Absolute Maxi-
mum Ratings.
1.0
EMERALD GREEN
ORANGE
T
A
= 25° C
RELATIVE INTENSITY
GREEN
HIGH EFFICIENCY RED
0.5
YELLOW
0
500
550
600
650
700
750
WAVELENGTH – nm
Figure 1. Relative intensity vs. wavelength
4
T-1
3
/
4
High Efficiency Red, Orange Diffused Lamps

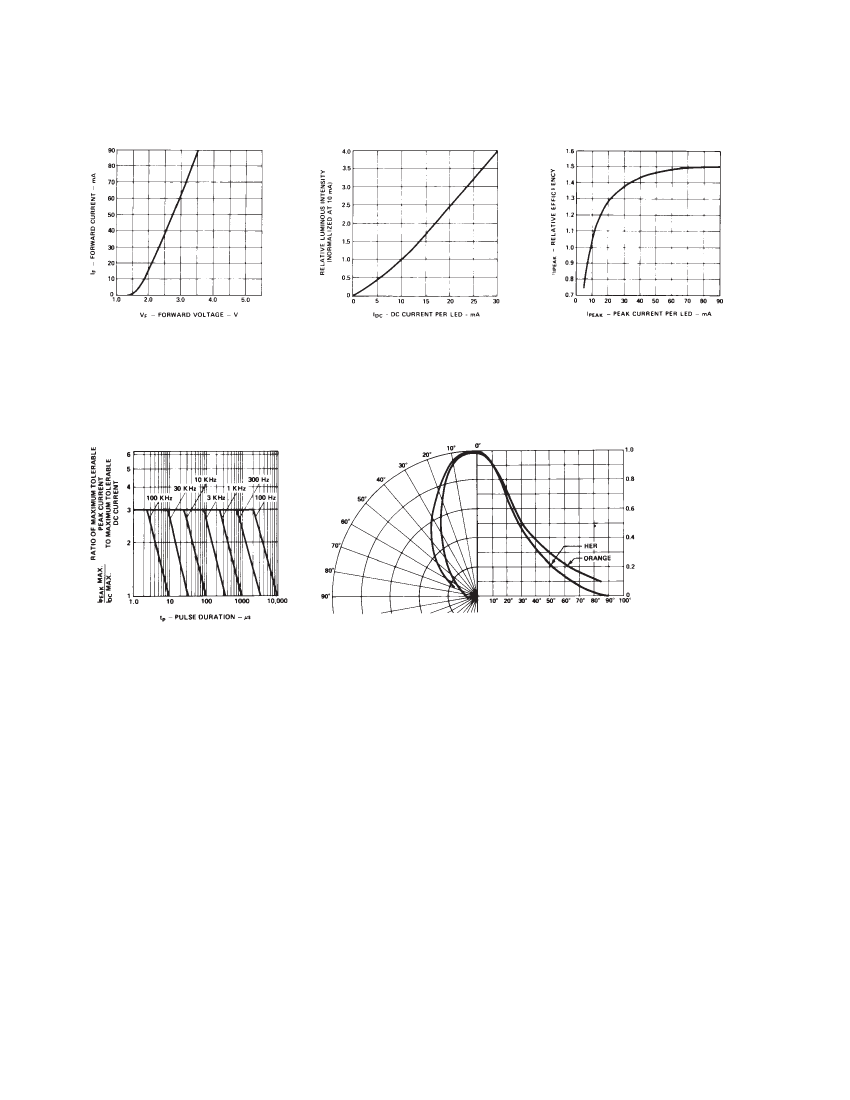

Figure 2. Forward current vs. forward voltage
characteristics
Figure 3. Relative luminous intensity vs.
DC forward current
Figure 4. Relative efficiency (luminous intensity per
unit current) vs. peak LED current
Figure 5. Maximum tolerable peak current vs.
pulse duration. (I
DC
MAX as per MAX ratings)
Figure 6. Relative luminous intensity vs. angular displacement
5
