LT1100: DescriptionINSTRUMENTATION AMPLIFIER, 10 uV OFFSET-MAX, 0.018 MHz BAND WIDTH, PDIP8; Categorysemiconductor Analog mixed-signal IC; File Size216KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

LT1100 Overview

INSTRUMENTATION AMPLIFIER, 10 uV OFFSET-MAX, 0.018 MHz BAND WIDTH, PDIP8

LT1100 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Maximum supply/operating voltage	9 V
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Rated supply voltage	5 V
Maximum negative supply voltage	-9 V
Rated negative supply voltage	-5 V
Rated bandwidth	0.0180 kHz
Maximum input offset voltage	10 mV
Processing package description	0.300 INCH, Plastic, DIP-8
state	ACTIVE
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	IN-line
Terminal form	THROUGH-hole
Terminal spacing	2.54 mm
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
Amplifier type	instrumentation amplifier
maximum alpha vios	0.1000 uV/Cel
Maximum voltage gain	100
Minimum voltage gain	10
maximum nonlinearity	0.0060 %
Minimum Common Mode Rejection Ratio	90 dB
Maximum input bias current IIB	1.35E-4 uA
Maximum input offset current IIO	6.50E-5 uA

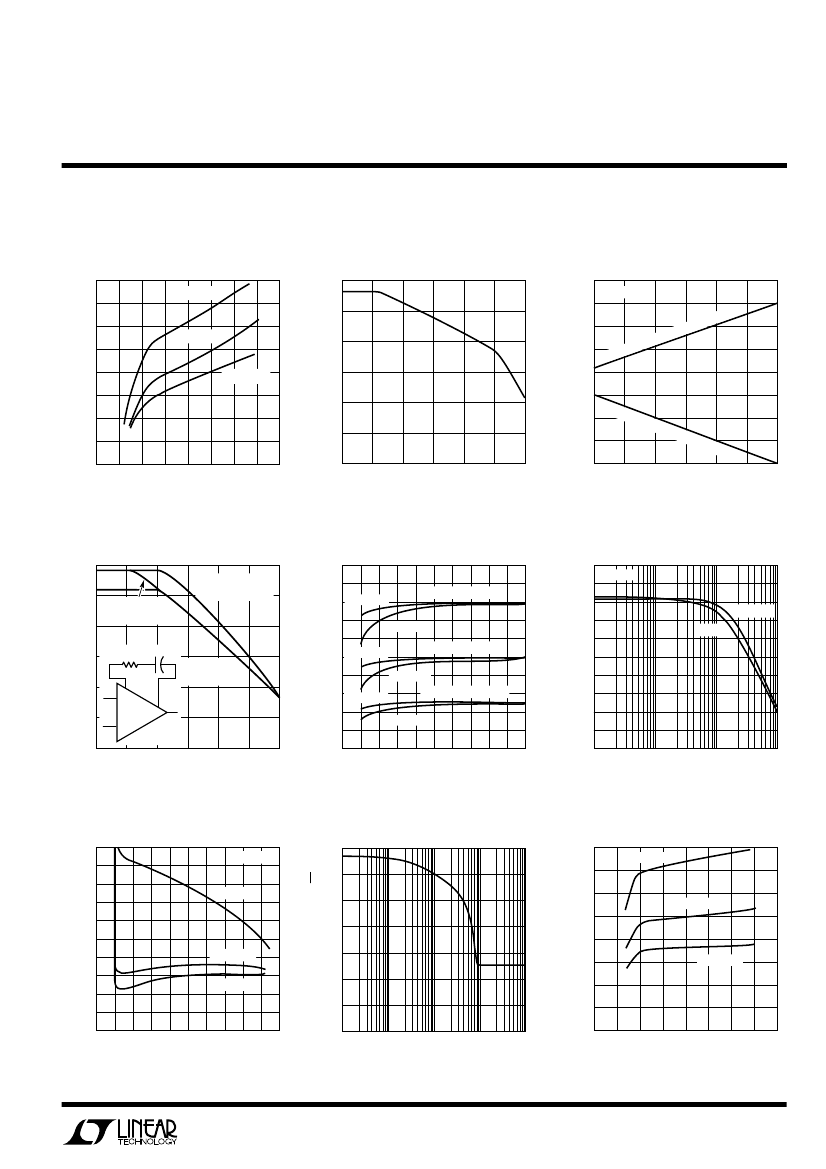

Preview

Download Datasheet

View All

LTC1100

Precision, Chopper-Stabilized

Instrumentation Amplifier

FEATURES

DESCRIPTIO

Offset Voltage: 10µV Max

Offset Voltage Drift: 50nV/°C Max

Bias Current: 50pA Max

Offset Current: 50pA Max

Gain Nonlinearity: 8ppm Max

Gain Error:

±0.05%

Max

CMRR: 104dB

0.1Hz to 10Hz Noise: 2µV

P-P

Single 5V Supply Operation

8-Pin MiniDIP

The LTC1100 is a high precision instrumentation ampli-

fier using chopper-stabilization techniques to achieve

outstanding DC performance. The input DC offset is

typically 1µV while the DC offset drift is typically 10nV/°C;

a very low bias current of 50pA is also achieved.

The LTC1100 is self-contained; that is, it achieves a differ-

ential gain of 100 without any external gain setting resistor

or trim pot. The gain linearity is 8ppm and the gain drift is

4ppm/°C. The LTC1100 operates from a single 5V supply

up to

±8V.

The output typically swings 300mV from its

power supply rails with a 10k load.

An optional external capacitor can be added from pin 7 to

pin 8 to tailor the device’s 18kHz bandwidth and to

eliminate any unwanted noise pickup.

The LTC1100 is also offered in a 16-pin surface mount

package with selectable gains of 10 or 100.

The LTC1100 is manufactured using Linear Technology’s

enhanced LTCMOS

silicon gate process.

LTCMOS is a trademark of Linear Technology Corporation

APPLICATI

Thermocouple Amplifiers

Strain Gauge Amplifiers

Differential to Single-Ended Converters

TYPICAL APPLICATI

Single 5V Supply, DC Instrumentation Amplifier

–V

LTC1100

0.01µF

OUT

= 5V

0.1µF

OUT

= 100 [V

– (–V

)]

LTC1100 • TA01
