CDRH10D48/ANP-100MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH10D48/ANP-100MB

CDRH10D48/ANP-100MB: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size128KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH10D48/ANP-100MB Overview

General Purpose Inductor, 10uH, 20%, 1 Element, SMD, ROHS COMPLIANT

CDRH10D48/ANP-100MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.04 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH10D48/A
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Maximum rated current	2.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

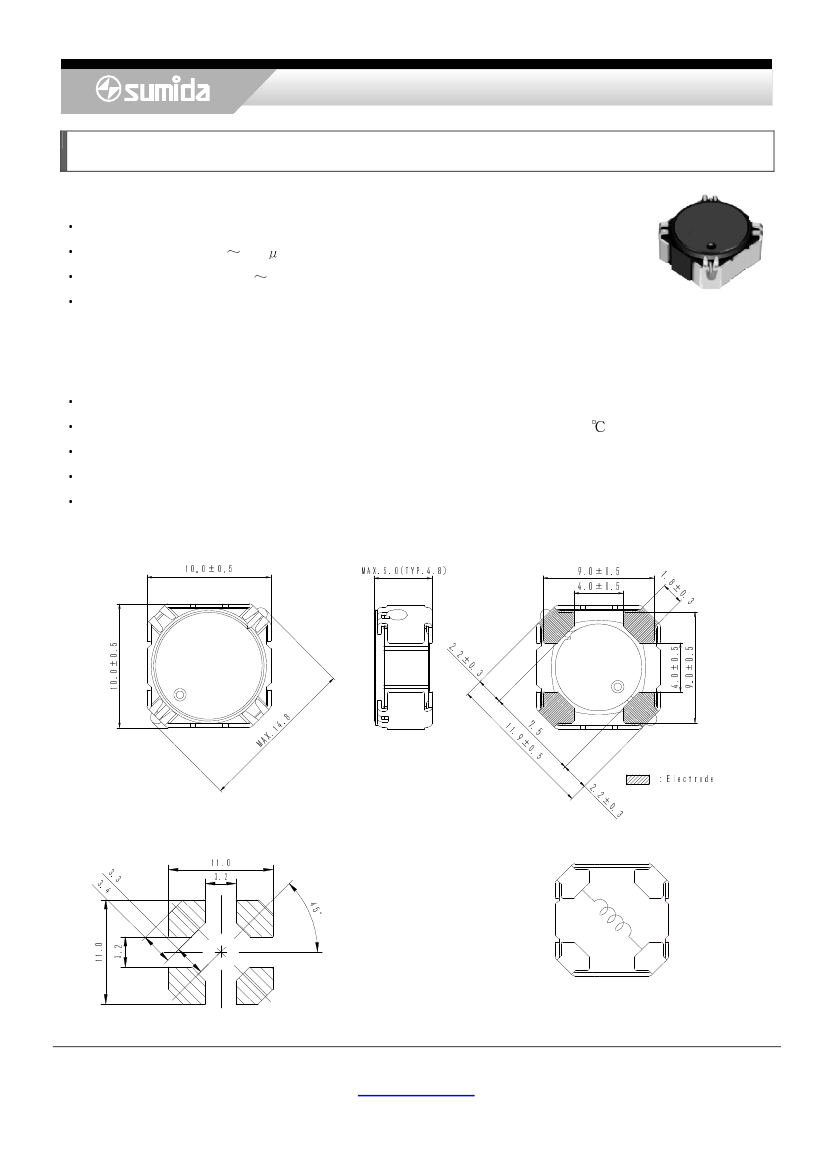

POWER INDUCTORS <SMD Type: CDRH**/A Series>

Type: CDRH10D48/A

◆

Product Description

10.5×10.5mm Max.(L×W ),5.0 mm Max. Height.

Inductance range: 2.4 330

Rated current range: 0.49 5.2A.

In addition to the standards versions shown here,

custom inductors are also available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Ideally for automotive applications as DC-DC converter inductors.

Qualification to AEC-Q200.

RoHS Compliance.

◆

Dimensions (mm)

±8

◆

Land Pattern (mm)

2.3

0.11

◆

Schematics(Bottom)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

edortcelE：

±2

5.0±0.4

5.0±0.9

℃

High reliable inductors, suitable to use in high temperature environment(125

5. 9.1

±2

)8.4.PYT(0.5.XAM

5.0±0.01

3. 3

・

1/2
