BNC8146-0122

Description
RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Guide Pin, Jack
CategoryThe connector    The connector
File Size310KB,2 Pages
ManufacturerJYEBAO Co., Ltd.
Download Datasheet Parametric View All

BNC8146-0122 Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Guide Pin, Jack

BNC8146-0122 Parametric

Parameter NameAttribute value
MakerJYEBAO Co., Ltd.
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
subject depth0.63 inch
Body diameter0.413 inch
Body/casing typeJACK
Cable typeRG-122
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact point genderFEMALE
Contact resistance1.5 mΩ
Contact styleCOAX
Dielectric withstand voltage2100VAC V
Durability500 Cycles
Insulation resistance5000000000 Ω
insulator materialTEFLON
Installation option 1GUIDE PIN
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency4 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
Panel mountingYES
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeCRIMP
Total number of contacts1
Base Number Matches1

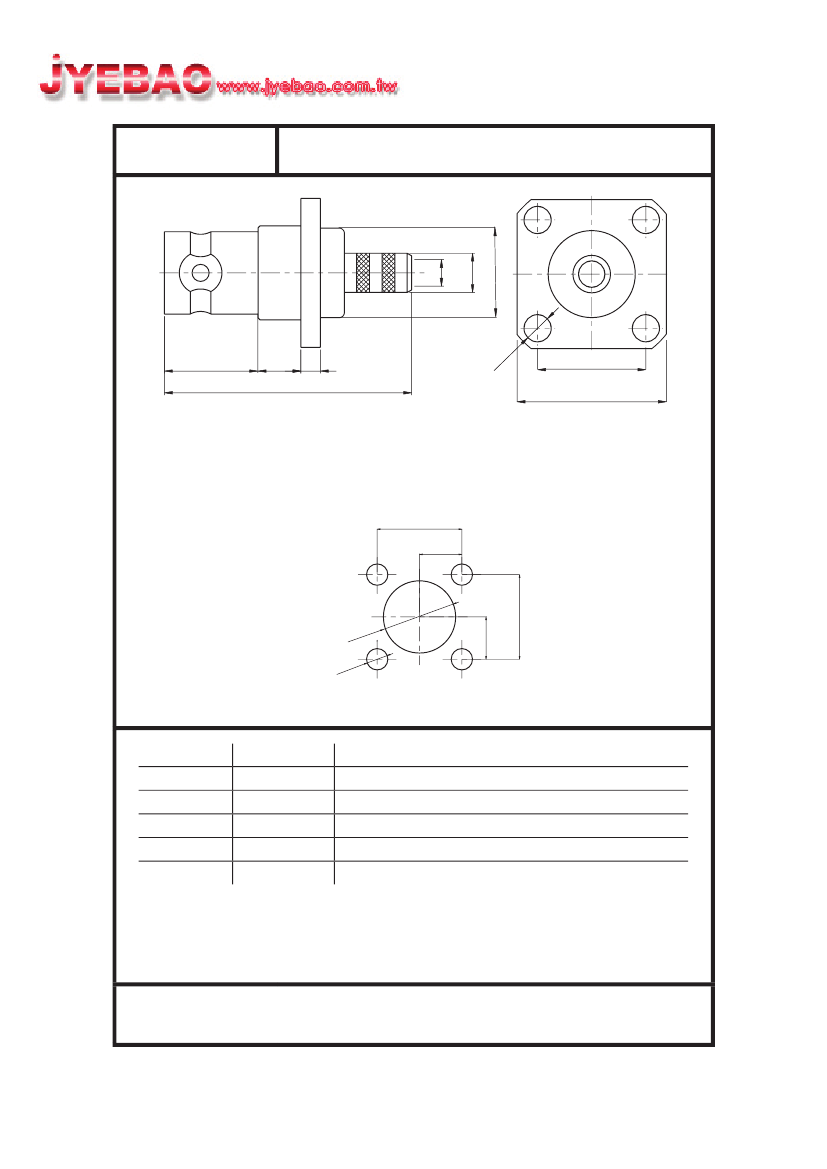

BNC8146-0122
BNC Jack Crimp For Panel Receptacle 50Ω
ø3.8
(ø.150)
ø10.5
(ø.413)
ø2.7
(ø.106)
11
(.433)
5
2.3
(.197) (.091)
27.5
(1.083)
.2 )
ø3 126
.
12.7
(.500)
17.5 S.Q.
(.689 S.Q.)
MOUNTING HOLE :
12.7
(.500)
6.35
(.250)
.3
ø11 )
45
(ø.4
*4
ø3.2 *4)
126
(ø.
Parts
Ferrule
Center Pin
Barrel
Insulator
Body
Material
Brass
Phosphor Bronze
Brass
Teflon
Brass
Plating (Micro-inch)
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Gold 3 Over Nickel 50 Over Copper 50
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Weight:
Suitable Cables: RG122
This part number complies with RoHS.
Notice: JYEBAO reserves the right to make modifications deemed appropriate.

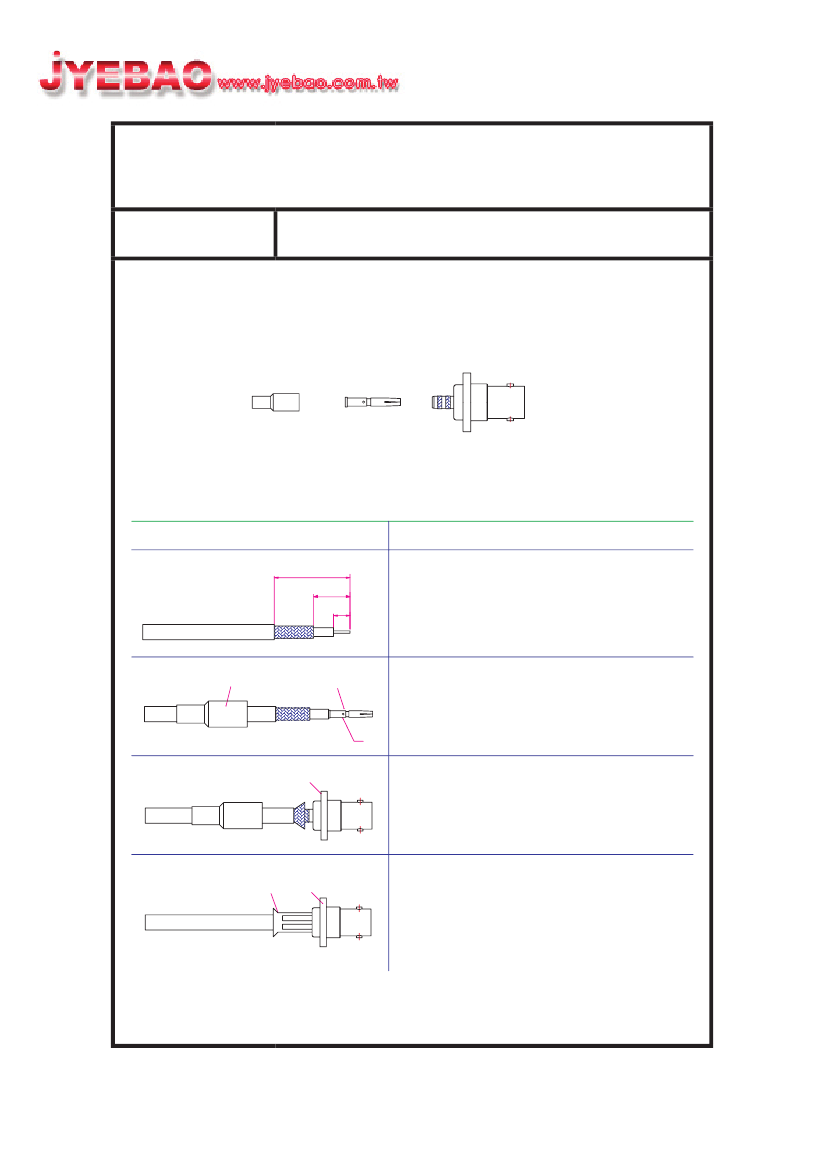

6.35
(.250)
12.7
(.500)
