R128.484.001 Overview

Blindmate Connector, Male, Panel Mount, Solder Terminal, Receptacle

R128.484.001 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact point gender	MALE
Coupling type	SLIDE ON
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.33 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Installation method	STRAIGHT
Maximum operating frequency	22 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

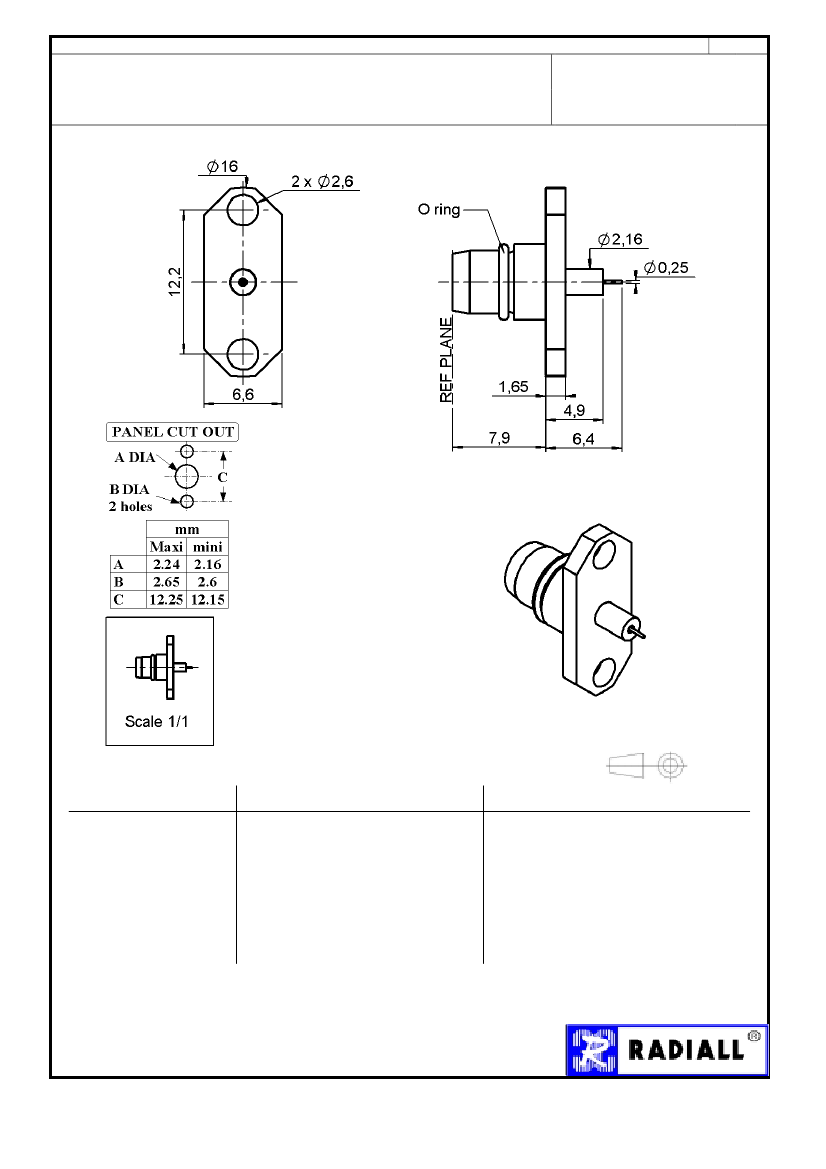

TECHNICAL DATA SHEET

1/2

2 HOLES FLANGE PLUG RECEPTACLE.

WITH CYLINDRICAL CONTACT

R128.484.001

Series :

BMA

All dimensions are in mm.

.

pn

.

ao

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

-

MATERIALS

STAINLESS STEEL

BERYLLIUM COPPER

-

PTFE

SILICONE RUBBER

-

PLATINGS (

µm

)

PASSIVATED .

GOLD 1.3 OVER NICKEL 2

-

Issue :

9926 A

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.
