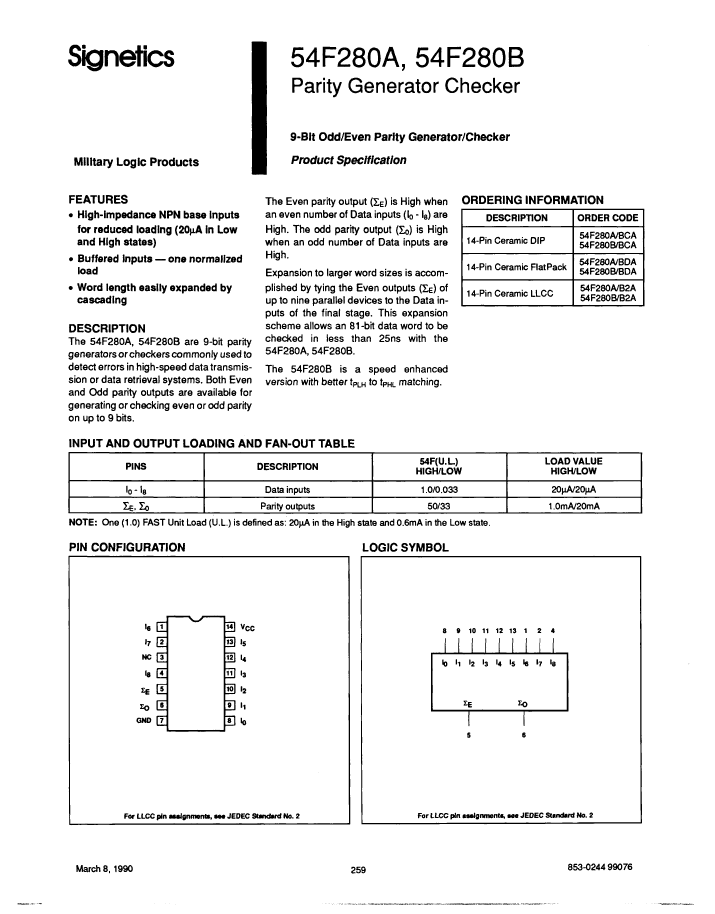

Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CDFP14,

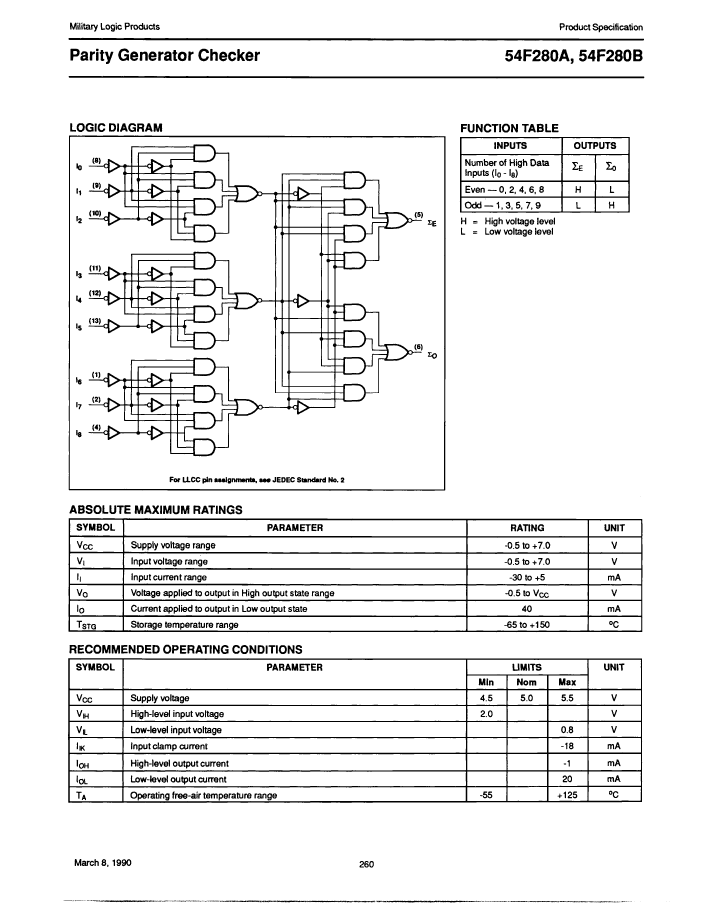

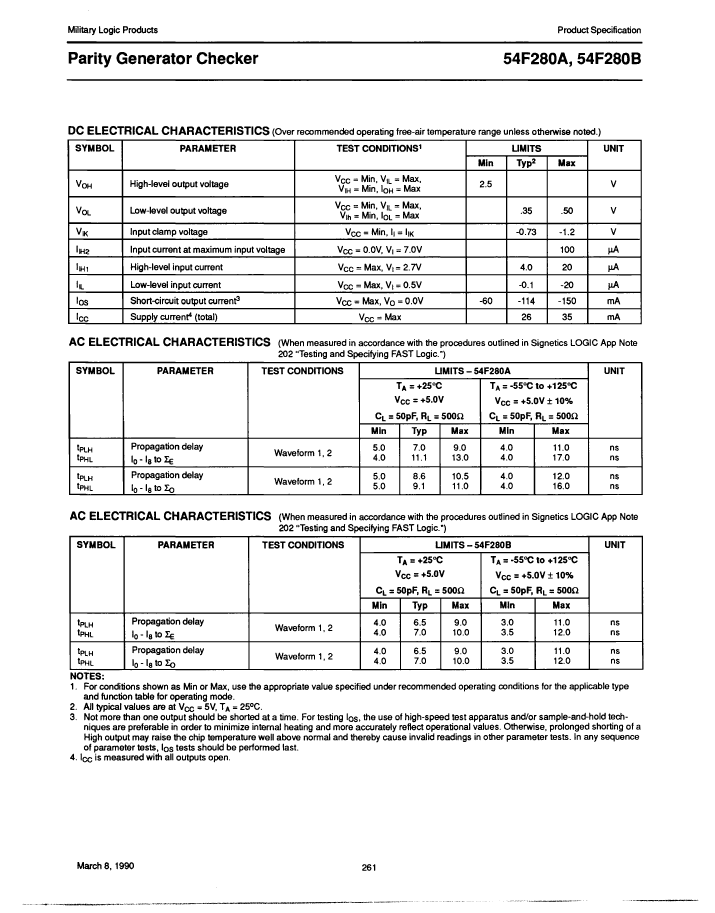

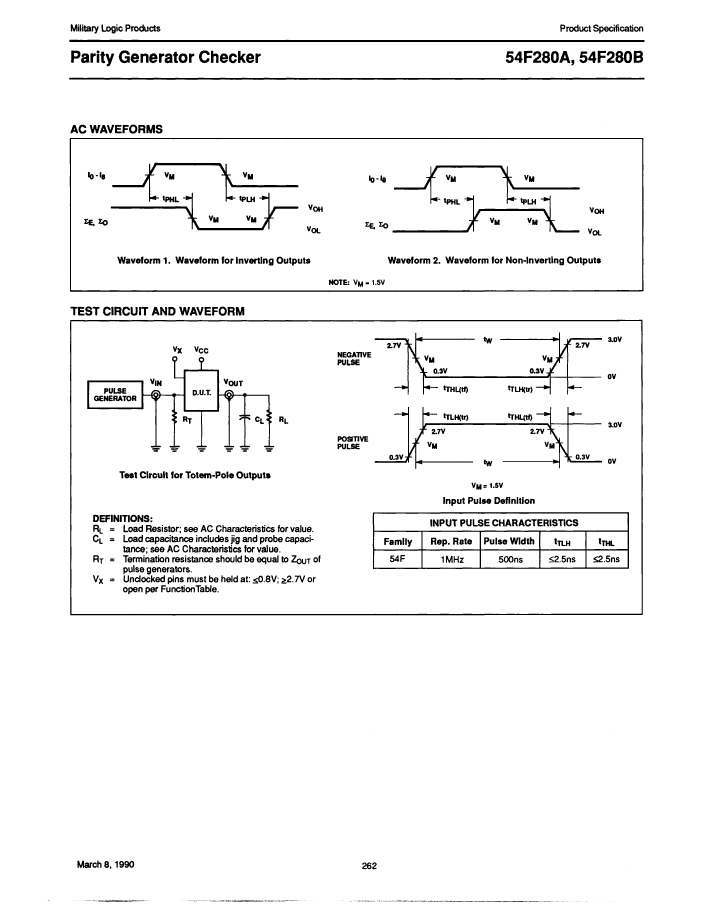

| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | ODD/EVEN PARITY GENERATOR |
| series | F/FAST |
| JESD-30 code | R-CDFP-F14 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | PARITY GENERATOR/CHECKER |
| Number of digits | 9 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Maximum supply current (ICC) | 35 mA |
| propagation delay (tpd) | 12 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54F280B/BDA | 54F280A/BDA | OSTVA032180 | 54F280B/B2A | 54F280A/B2A | 54F280B/BCA | |
|---|---|---|---|---|---|---|
| Description | Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CDFP14, | Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CDFP14, | Barrier Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s) | Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CQCC20, | Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CQCC20, | Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CDIP14 |
| Reach Compliance Code | unknown | unknown | compliant | unknown | unknown | unknown |
| Other features | ODD/EVEN PARITY GENERATOR | ODD/EVEN PARITY GENERATOR | STANDARD: UL 94V-0, THERMOPLASTIC | ODD/EVEN PARITY GENERATOR | ODD/EVEN PARITY GENERATOR | ODD/EVEN PARITY GENERATOR |
| series | F/FAST | F/FAST | - | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-CDFP-F14 | R-CDFP-F14 | - | S-CQCC-N20 | S-CQCC-N20 | R-CDIP-T14 |
| Load capacitance (CL) | 50 pF | 50 pF | - | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | PARITY GENERATOR/CHECKER | PARITY GENERATOR/CHECKER | - | PARITY GENERATOR/CHECKER | PARITY GENERATOR/CHECKER | PARITY GENERATOR/CHECKER |
| Number of digits | 9 | 9 | - | 9 | 9 | 9 |
| Number of functions | 1 | 1 | - | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | - | 20 | 20 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | -55 °C | -55 °C | -55 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | - | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | - | SQUARE | SQUARE | RECTANGULAR |
| Package form | FLATPACK | FLATPACK | - | CHIP CARRIER | CHIP CARRIER | IN-LINE |
| Maximum supply current (ICC) | 35 mA | 35 mA | - | 35 mA | 35 mA | 35 mA |
| propagation delay (tpd) | 12 ns | 17 ns | - | 12 ns | 17 ns | 12 ns |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | - | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | - | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | - | 5 V | 5 V | 5 V |
| surface mount | YES | YES | - | YES | YES | NO |
| technology | TTL | TTL | - | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | - | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | FLAT | - | NO LEAD | NO LEAD | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | - | QUAD | QUAD | DUAL |
| Base Number Matches | 1 | 1 | - | 1 | 1 | 1 |
