1054312305 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1054312305

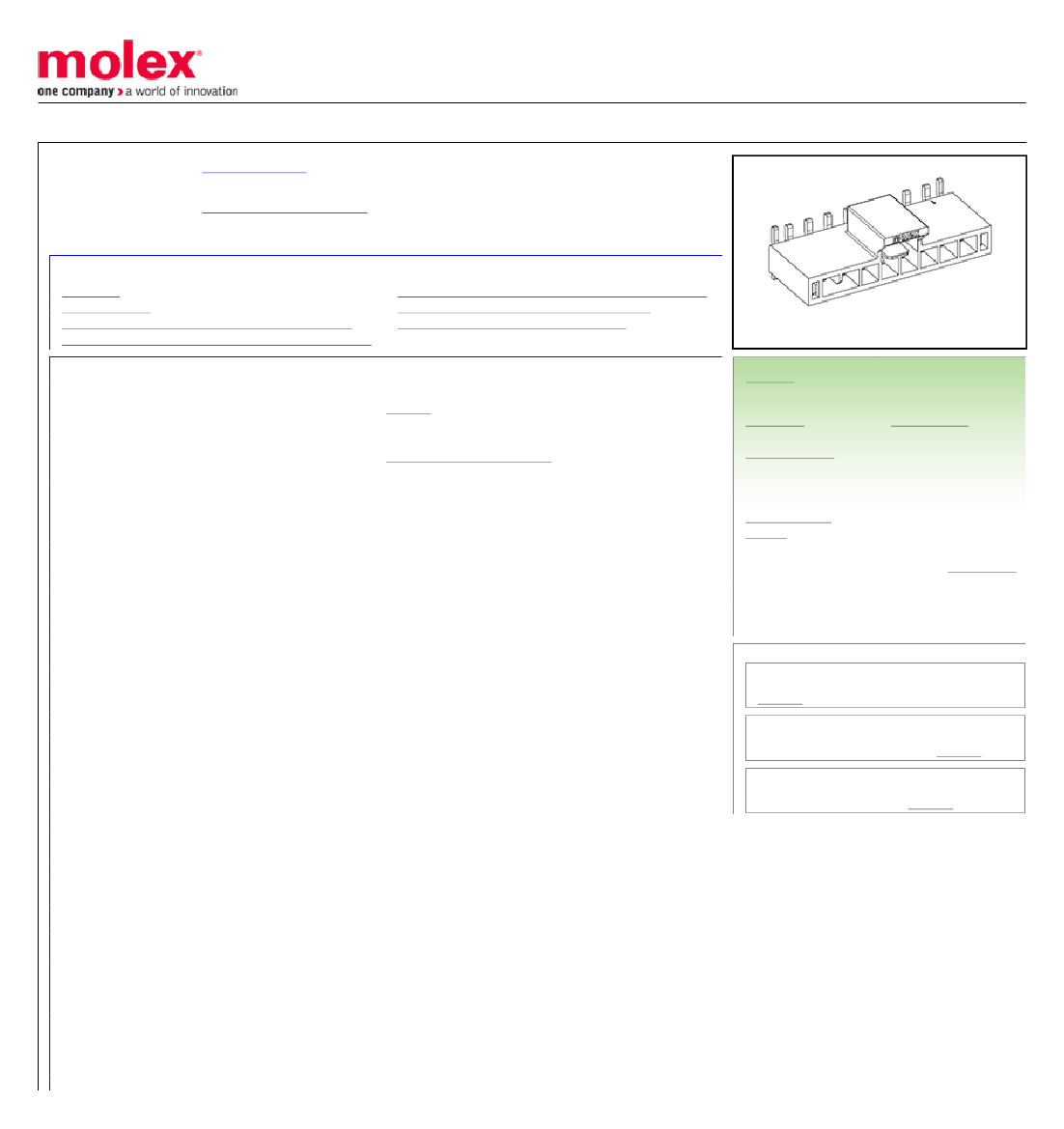

1054312305: DescriptionRectangular Power Connector, 5 Contact(s), Male, Surface Mount Terminal, ROHS AND LOW HALOGEN FREE; CategoryThe connector The connector; File Size38KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

1054312305 Overview

Rectangular Power Connector, 5 Contact(s), Male, Surface Mount Terminal, ROHS AND LOW HALOGEN FREE

1054312305 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND LOW HALOGEN FREE
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/06/2019

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1054312305

Active

Nano-Fit Power Connectors

Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Single Row, 5 Circuits,

0.76µm Gold (Au) Plating, Natural, Glow-Wire Capable

Documents:

3D Model

Drawing (PDF)

Product Specification PS-105405-001-001 (PDF)

Application Specification AS-105405-001-001 (PDF)

General

Product Family

Series

Application

CURRENT-MAX-NUMERIC

Overview

PITCH-MATING-NUMERIC

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification 1054311000-PK-000 (PDF)

Test Summary 1054050000-TS-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/88/2018 (15

January 2019)

Halogen-Free

Status

Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PCB Headers

105431

Power, Wire-to-Board

6.5

Nano-Fit Power Connectors

2.50

Nano-Fit

191130001996

Natural

Yes

Brass

Gold

Tin

Liquid Crystal Polymer

0.920/g

Vertical

1.60mm

Embossed Tape on Reel

2.50mm

0.762µm

Yes

-40° to +115°C

Surface Mount

6.5A

250V AC (RMS)

Search Parts in this Series

105431 Series

Mates With

Nano-Fit Receptacle Housing 105307

Use With

Nano-Fit Crimp Terminal 105300

AS-105405-001-001
