.032

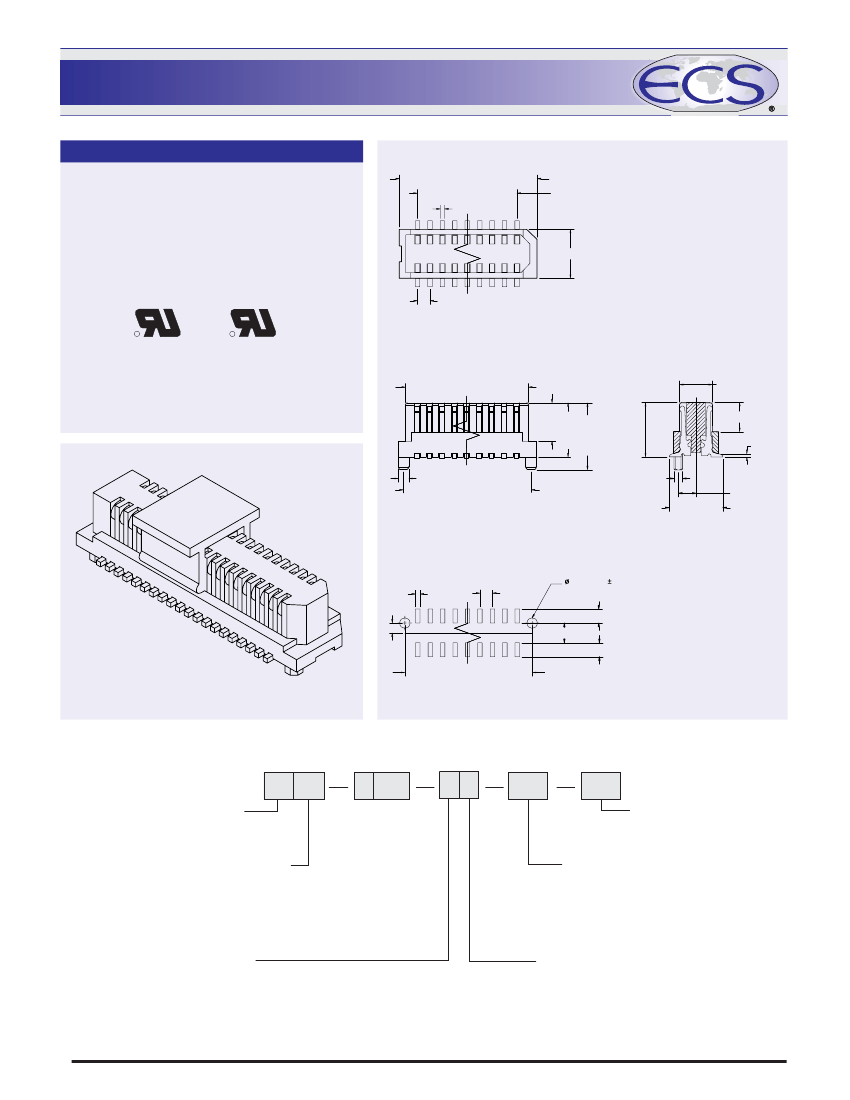

[0.80] BOARD TO BOARD SMT PLUG
Specifications
Current Rating:
0.3 Amps
Insulator Resistance: 100 Megohms min
Contact Resistance:
40m ohm max
Dielectric Withstanding: AC 250V
Operating Temperature: -40° ~± 85° C
Contact Material:
Phosphor Bronze
Insulator Material:
High Temperature
Thermoplastic. UL 94V-0
Actuator:
LCP, UL 94V-0
.063 [1.6]+.032 [.80] X (No of Positions-1)
.032 [.80] X (No of Contacts/2-1)
.0118 [.30]
.128 [3.25]
.032 [.80]
R
C
R
Recognized under the recognized component
Program of Underwriters Laboratories, Inc.
Products specifications are subject to be changed
without notice.
.030 [.75]+.032 [.80] X (No of Positions-1)
.091 [2.3]
.102 [2.6]
.014 [.355]
.138 [3.5]
.165 [4.2]
.081 [2.05]
.0098
[.25]
.024 [.600]
.071 [.18]+.032 [.80] X (No of Contacts/2-1)
.030 [.75]
.049 [1.25]
.165 [4.2]
.034 [.850] .004
.049
[1.25]
.020 [.50]
.032 [.80]
.059 [1.5]
.090 [2.3]
.059 [1.5]
.071 [1.8] + .032 [.80] X (No fo Positions-1)
P.C.B Recommended Layout
Dimensions are in inches [mm]
PART NUMBERING
99 XX
SERIES CODE
NO. OF CONTACTS
10
to
98
A0
= 100 Contacts
Y 01
XX
XX
XX
PACKAGING
MT
= Metal Pad + Tube
MR
= Metal Pad + Reel
CONTACT PLATING
Lead Free & RoHS Compliant
.000050” Nickel underplate
CONTACT
03
= Gold Flash
LOCATING PEG
0
= w/o locating peg
1
= with locating peg
INSULATOR MATERIAL
1
= Nylon-6T
2
= L.C.P.
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN
WWW.ECSCONN.COM
