Printview: Plug; Snap-in version; 5-pole; 100% protected against mismating - Item No.: 770-755/062-000
.
Plug; Snap-in version; 5-pole; 100% protected against mismating
Item No.: 770-755/062-000
.
Plug; Snap-in version; 5-pole; 100% protected against mismating
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
770-755/062-000
4050821553724
1
100
Note:All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and
distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked.
Additional locking levers are only required for “flying leads” (plug/socket).All WINSTA® components are 100%
protected against mismating in terms of:a.) plugging different number of polesb.) plugging when turned by 180°c.)
plugging when laterally staggeredd.) plugging one poleNote on Continuous Service Temperature:-35 °C … +85
°CPVC cable for temperatures 70 °C (including halogen-free)Insulating parts for temperatures 105 °CMating cycles:
100, with resistive load IN = 25 A, tested (4 mm2/AWG 12)
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Potential marking
5
10 mm / 0.394 in %
10
5
N PE 3 2 1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Plug; Snap-in version; 5-pole; 100% protected against mismating - Item No.: 770-755/062-000
Technical data
Color
Coding
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Mating cycles
Connection technology
Number of connection points
Actuation type
Nominal cross section
Solid sizes
solid, directly pluggable
stranded, connectable
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
gray
B
400 [V]
6 [kV]
25 [A]
200, without resistive load
Push-in CAGE CLAMP®
2
Betätigungswerkzeug
4 mm² / 12 AWG
0.5 … 4 mm² / 20 … 12 AWG
1.5 … 4 mm² / 16 … 12 AWG
0.5 … 2.5 mm² / 20 … 14 AWG
0.5 … 4 mm² / 20 … 12 AWG
0.25 … 1.5 mm² / 20 … 16 AWG
0.25 … 2.5 mm² / 20 … 14 AWG
min. fine-stranded with insulated ferrule, push-in terminati 1.5 mm² / 16 AWG
Strip length
Mating force of a plug-in connection
Unmating force of a plug-in connection
Retention force of a plug-in connection
Insulating material
Flammability rating per UL 94
Clamping spring material
Contact material
Processing temperature
Fire load [MJ]
Weight [g]

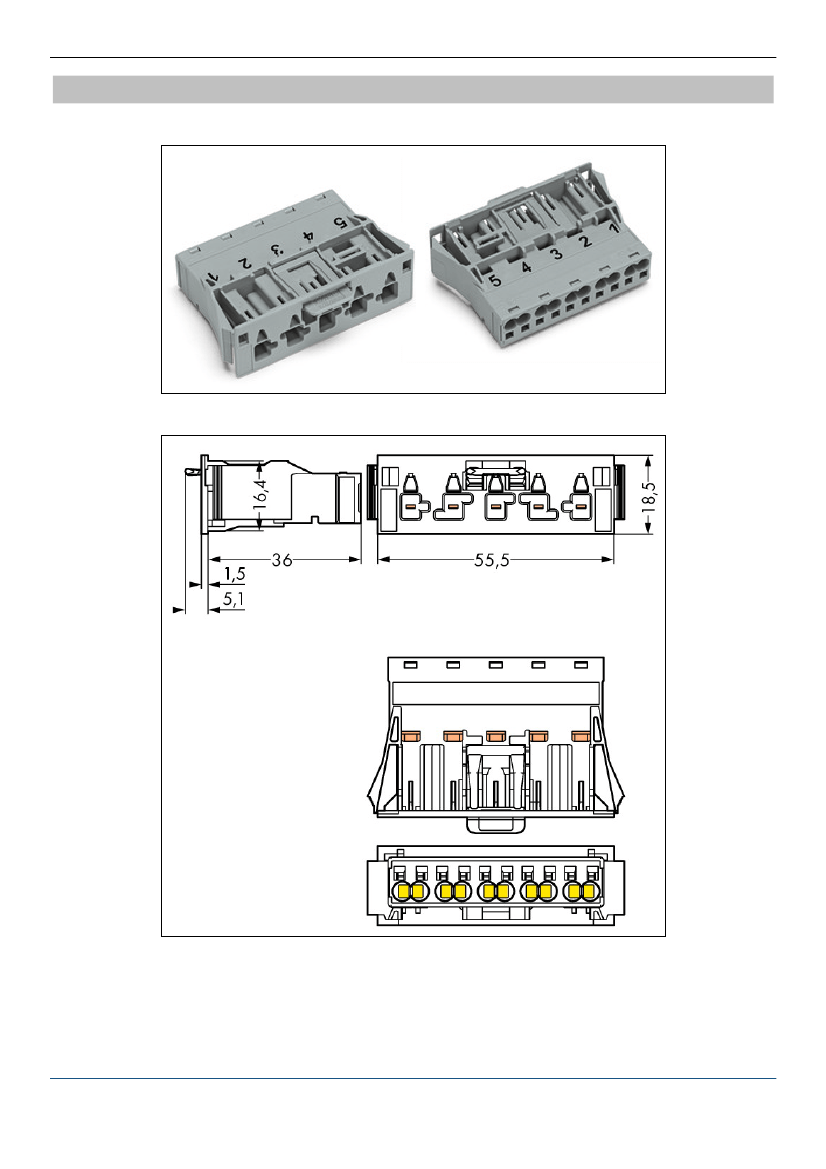

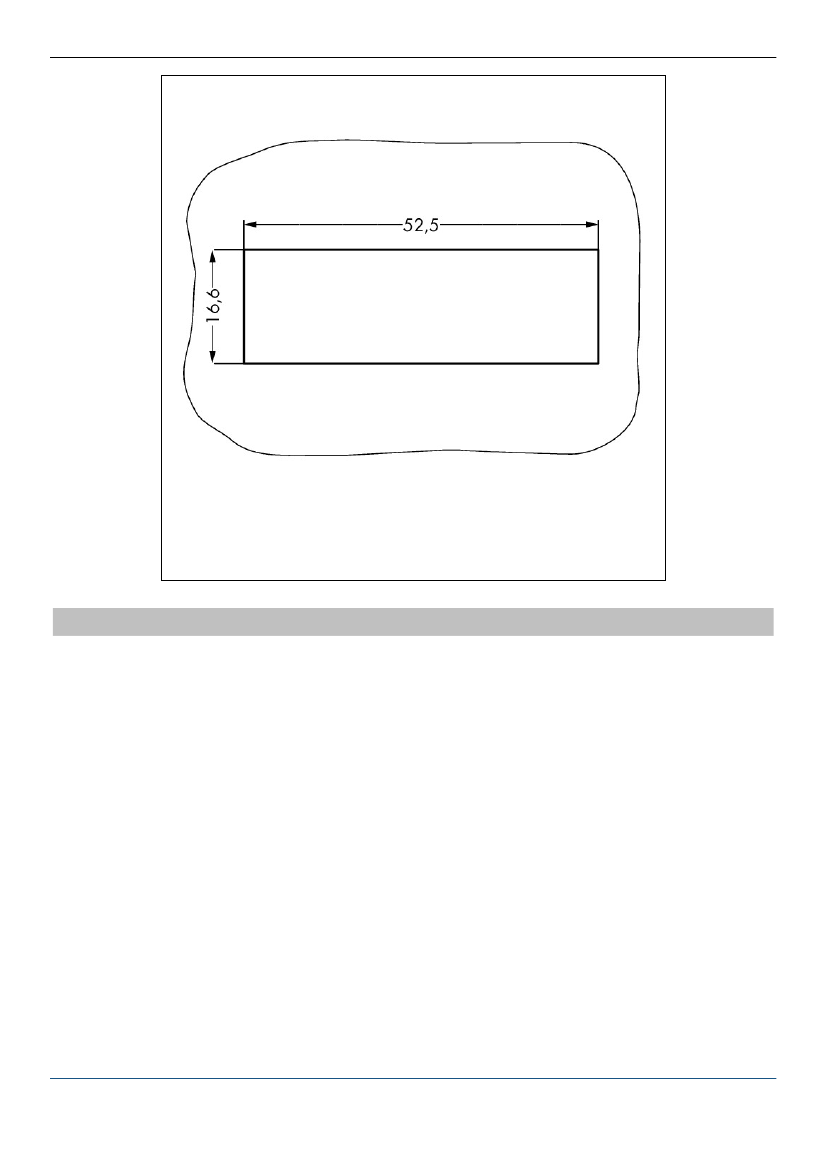

Width
Height
Length
Marking
9 mm / 0.35 in
approx. 20 … 70 N (depending on pole number)
when unlocked: approx. 20 … 70 N (depending on pole
number)
when locked: > 80N
Polyamide 66 (PA 66)
V0
Chrome nickel spring steel (CrNi)
Copper or copper alloy, surface-treated
-5°C ... +40°C
0.364 [MJ]
17.906 [g]
55.5 mm / 2.185 in
18.5 mm / 0.728 in
36 mm / 1.417 in
N PE 3 2 1
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Plug; Snap-in version; 5-pole; 100% protected against mismating - Item No.: 770-755/062-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
