LT1004CS8-1.2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LT1004CS8-1.2

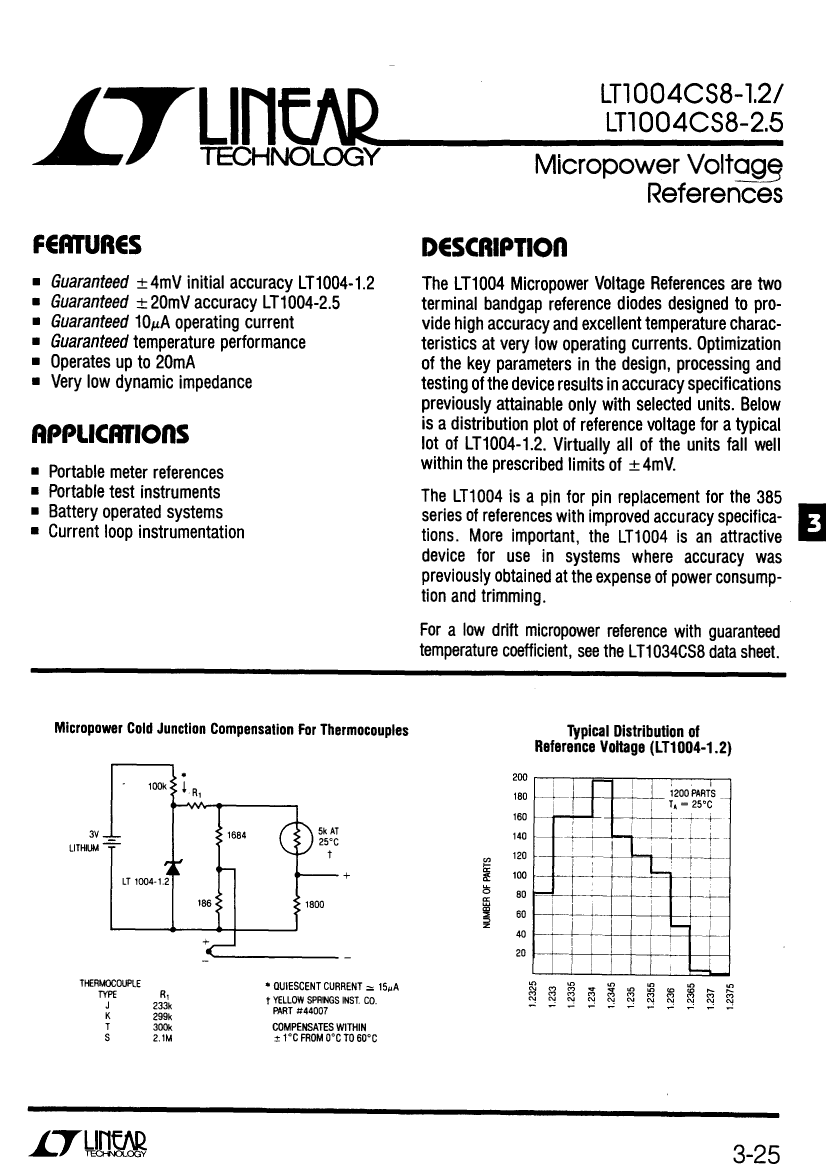

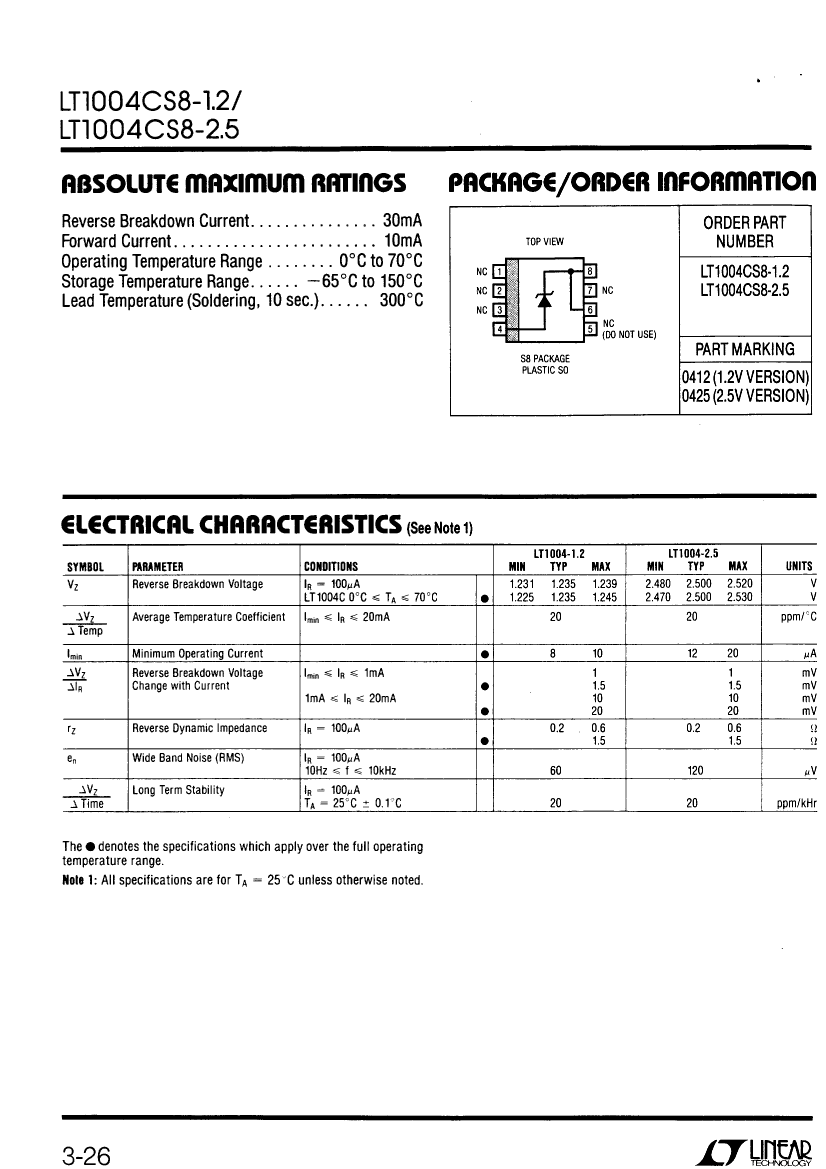

LT1004CS8-1.2: Description1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, PDSO8; CategoryPower/power management The power supply circuit; File Size106KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Related ProductsFound12parts with similar functions to LT1004CS8-1.2

Download Datasheet Parametric Compare View All

LT1004CS8-1.2 Overview

1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, PDSO8

LT1004CS8-1.2 Parametric

Parameter Name	Attribute value
Brand Name	Linear Technology
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOIC
package instruction	0.150 INCH, PLASTIC, SO-8
Contacts	8
Manufacturer packaging code	S8
Reach Compliance Code	_compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	1.245 V
Minimum output voltage	1.225 V
Nominal output voltage	1.235 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.01 mA
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	0.3%
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

LT1004CS8-1.2 Related Products

	LT1004CS8-1.2	LT1004CS8-2.5
Description	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, PDSO8	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, PDSO8
Brand Name	Linear Technology	Linear Technology
Is it Rohs certified?	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )
Parts packaging code	SOIC	SOIC
package instruction	0.150 INCH, PLASTIC, SO-8	0.150 INCH, PLASTIC, SO-8
Contacts	8	8
Manufacturer packaging code	S8	S8
Reach Compliance Code	_compli	_compli
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0
length	4.9 mm	4.9 mm
Humidity sensitivity level	1	1
Number of functions	1	1
Output times	1	1
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Maximum output voltage	1.245 V	2.53 V
Minimum output voltage	1.225 V	2.47 V
Nominal output voltage	1.235 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235	235
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply current (Isup)	0.01 mA	0.02 mA
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	20	20
Fine-tuning/adjustable output	NO	NO
Maximum voltage tolerance	0.3%	0.8%
width	3.9 mm	3.9 mm
