CBB-SBC20-07-25-GD15-SM-TP datasheet, PDF

Datasheet> All Categories > The connector> The connector> CBB-SBC20-07-25-GD15-SM-TP

CBB-SBC20-07-25-GD15-SM-TP: DescriptionBoard Connector; CategoryThe connector The connector; File Size318KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CBB-SBC20-07-25-GD15-SM-TP Overview

Board Connector

CBB-SBC20-07-25-GD15-SM-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	Gold (Au)
Contact material	PHOSPHOR BRONZE
JESD-609 code	e4
Base Number Matches	1

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulation material:

Insulation resistance:

Withstanding:

Operating temp.:

0.5 amps

Phosphor bronze

Selective gold, gold flash, tin

20 milliohms max.

Nylon 9T polyester, UL 94V-0

1000 megohms min.

300 VAC 1 min.

-40°C to +105°C

Stacked Profile Dim.

(mm)

3.65

3.15

5.15

Series

Type

CBB

SBC20

Board to board Plug

connector

Profile

Contacts

(See chart) 10 to 100

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Plating

GD=Gold flash

GD15=15µ” gold

SG=Selective gold

SG15=15µ” SG

TN=Tin

Mounting

Package

SM=Surface mount Blank=None

TP=Acetate tape

TR=Reel

TPR=A. Tape &

reel

Date

4/23/08

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Part No.:

CBB-SBC20-X-XX-XX-SM-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

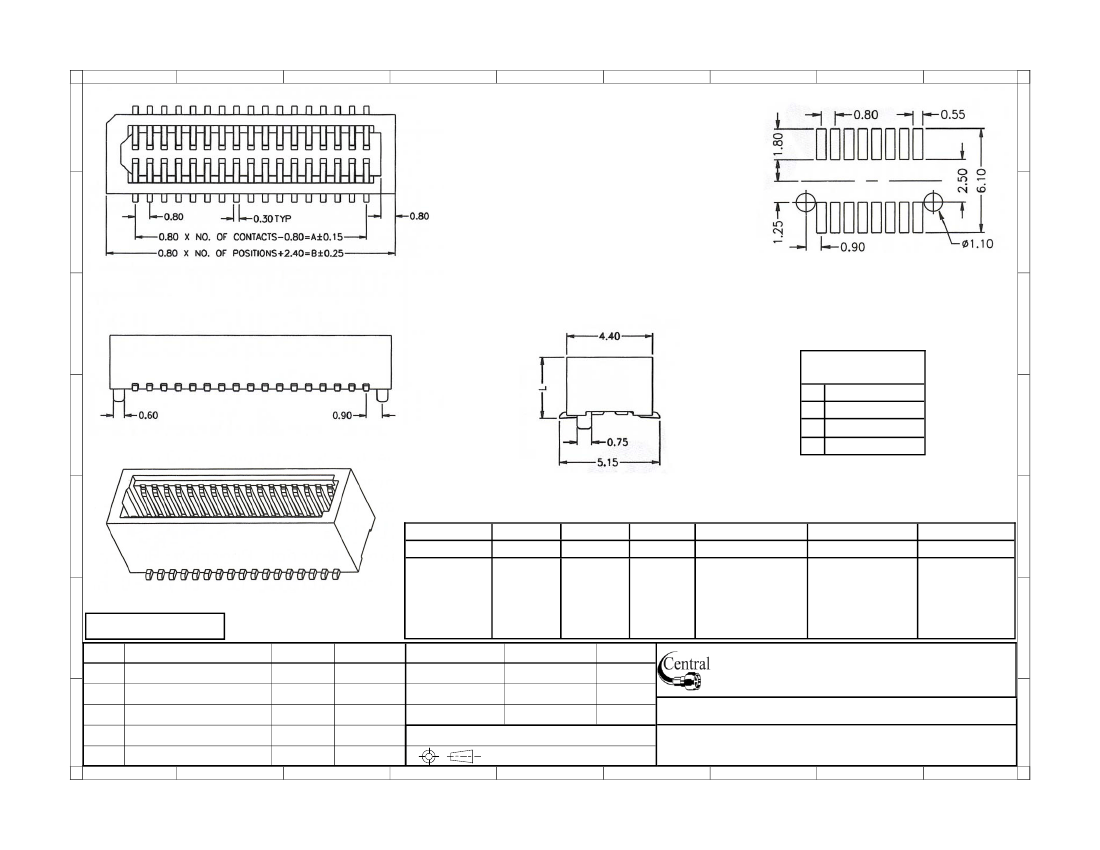

Description: 0.80mm female board-to-board SMD connector
