Hyper Multi SIDELED
®
Hyper-Bright LED
LSY A676
Besondere Merkmale
q
Gehäusefarbe: weiß
q
als optischer Indikator einsetzbar
q
zur Hintergrundbeleuchtung, Lichtleiter- und Linsenein-
q
q
q
q
Features
color of package: white
for use as optical indicator
for backlighting, optical coupling into light pipes and lenses
high signal efficiency possible by color change of the LED
with appropriate controlling it is possible to change color
from green to yellow and orange to super-red
q
suitable for all SMT assembly and soldering methods
q
available taped on reel (12 mm tape)
q
q
q
q
q
Typ
Emissions-
farbe
Color of
Emission
Type
Farbe der
Lichtaus-
trittsfläche
Color of the
Light
Emitting
Area
colorless
clear
Lichtstärke
Bestellnummer
Luminous Intensity
I
F
= 20 mA
I
V
(mcd)
super-red
≥
40
40... 80
40... 80
40... 80
63...125
63...125
yellow
≥
40
40... 80
63... 125
100...200
63... 125
100...200
Ordering Code
LSY A676
LSY A676-P+P
LSY A676-P+Q
LSY A676-P+R
LSY A676-Q+Q
LSY A676-Q+R
super-red /
yellow
Q62703-Q3374
Semiconductor Group
1
11.96
vpl06880
kopplung
hohe Signalwirkung durch Farbwechsel der LED möglich
bei geeigneter Ansteuerung, Farbwechsel von grün über
gelb und orange bis super-rot möglich
für alle SMT-Bestück- und Löttechniken geeignet
gegurtet (12-mm-Filmgurt)
LSY A676
Grenzwerte
Maximum Ratings
Bezeichnung
Parameter
Betriebstemperatur
Operating temperature range
Lagertemperatur
Storage temperature range
Sperrschichttemperatur
Junction temperature
Durchlaßstrom
Forward current
Stoßstrom
Surge current
t
≤
10
µs,
D
= 0.005
Verlustleistung
Power dissipation
Symbol
Symbol
S
Wert
Value
Y
– 55 ... + 100
– 55 ... + 100
+ 100
30
20
to be defined
˚C
˚C
˚C
mA
A
Einheit
Unit
T
op
T
stg
T
j
I
F
I
FM
P
tot
80
55
mW
Wärmewiderstand
Thermal resistance
Sperrschicht / Umgebung
Junction / air
Montage auf PC-Board* (Padgröße
≥
16 mm
2
)
R
th JA
mounted on PC board* (pad size
≥
16 mm
2
)
*
PC-board: FR4
530
K/W
Notes
Die angegebenen Grenzdaten gelten für den Chip, für den sie angegeben sind, unabhängig vom
Betriebszustand des anderen.
The stated maximum ratings refer to the specified chip, regardless of the other one’s operating
status.
Semiconductor Group
2
LSY A676
Kennwerte
(
T
A
= 25 ˚C)
Characteristics
Bezeichnung
Parameter
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
I
F
= 10 mA
Dominantwellenlänge
Dominant wavelength
I
F
= 10 mA
Spektrale Bandbreite bei 50 %
I
rel max
Spectral bandwidth at 50 %
I
rel max
I
F
= 10 mA
Abstrahlwinkel bei 50 %
I
V
(Vollwinkel)
Viewing angle at 50 %
I
V
Durchlaßspannung
Forward voltage
I
F
= 20 mA
Symbol
Symbol
S
(typ.)
λ
peak
(typ.)
(typ.)
λ
dom
(typ.)
(typ.)
∆λ
(typ.)
2ϕ
645
Wert
Value
Y
591
Ein-
heit
Unit
nm
632
587
nm
16
15
nm
120
2.0
2.6
0.014
0.14
120
2.0
2.6
0.096
0.13
Grad
deg.
V
V
nm/K
nm/K
(typ.)
V
F
(max.)
V
F
Temperaturkoeffizient von
λ
dom
(
I
F
= 20 mA)
TC
λ
Temperature coefficient of
λ
dom
(
I
F
= 20 mA)
Temperaturkoeffizient von
λ
peak
,
I
F
= 20 mA
Temperature coefficient of
λ
peak
,
I
F
= 20 mA
Temperaturkoeffizient von
V
F
,
I
F
= 20 mA
Temperature coefficient of
V
F
,
I
F
= 20 mA
TC
λ
(typ.)
(typ.)
TC
V
(typ.)
(typ.)
– 1.95
–2.51
mV/K
Semiconductor Group
3
LSY A676

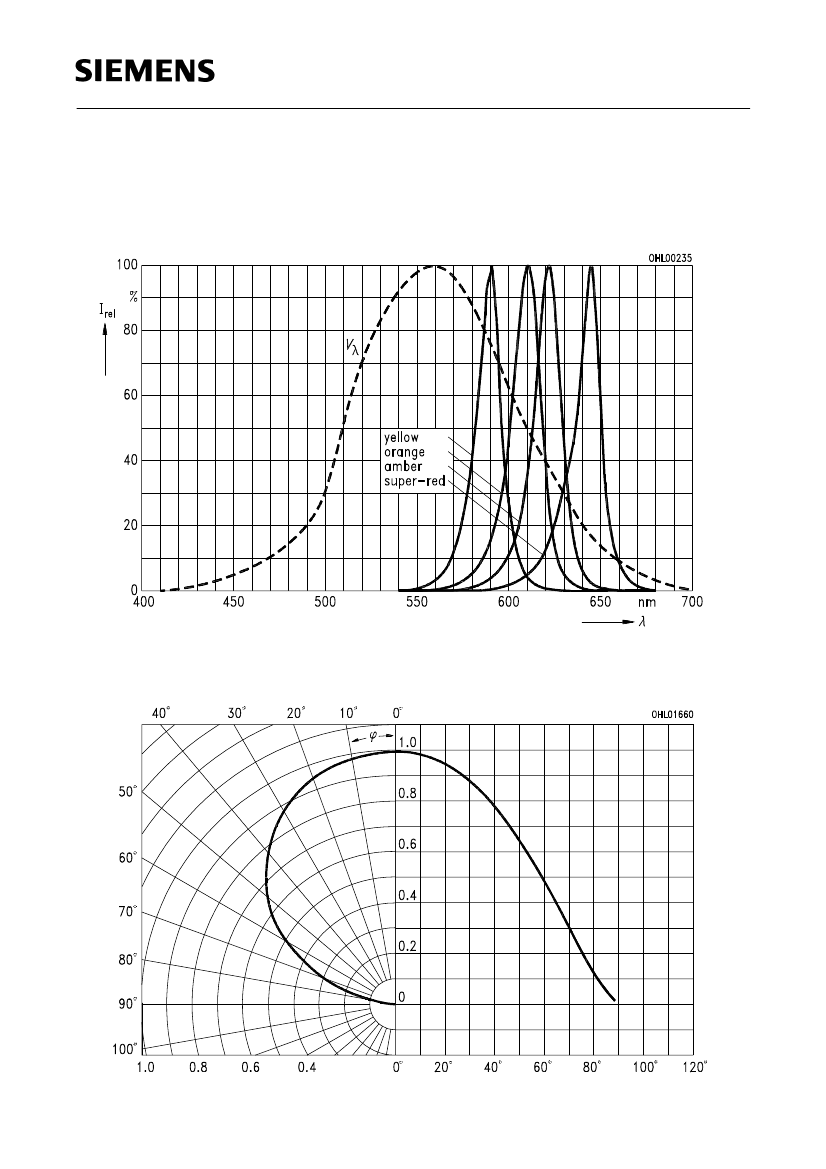

Relative spektrale Emission
I
rel
=
f
(λ),
T
A
= 25 ˚C,
I
F
= 10 mA
Relative spectral emission
V (λ) = spektrale Augenempfindlichkeit
Standard eye response curve
Abstrahlcharakteristik
I
rel
=
f
(ϕ)
Radiation characteristic
Semiconductor Group
4
LSY A676

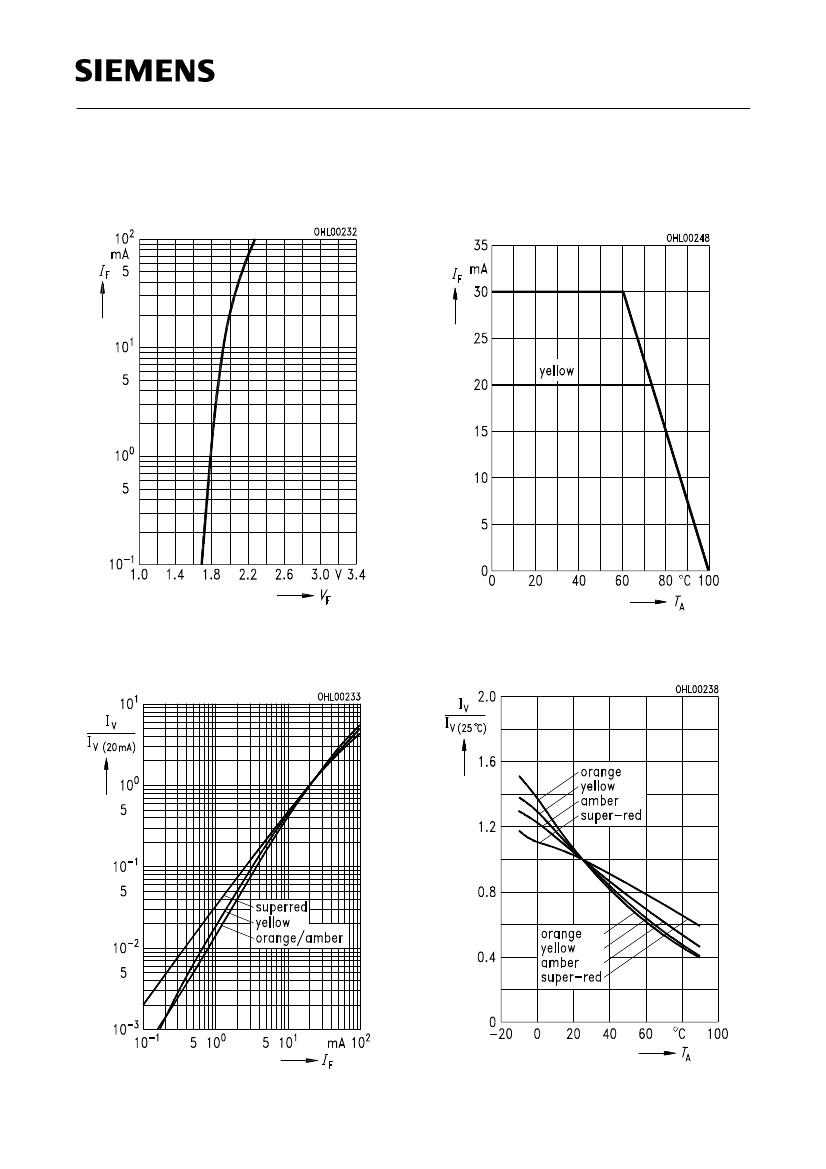

Durchlaßstrom
I
F
=
f
(
V
F
)
Forward current
T
A
= 25 ˚C
Maximal zulässiger Durchlaßstrom
I
F
=
f
(
T
A
)
Max. permissible forward current
Relative Lichtstärke
I
V
/
I
V(20 mA)
=
f
(
I
F
)
Relative luminous intensity
T
A
= 25 ˚C
Relative Lichtstärke
I
V
/
I
V(25 ˚C)
=
f
(
T
A
)
Relative luminous intensity
I
F
= 10 mA
Semiconductor Group
5
