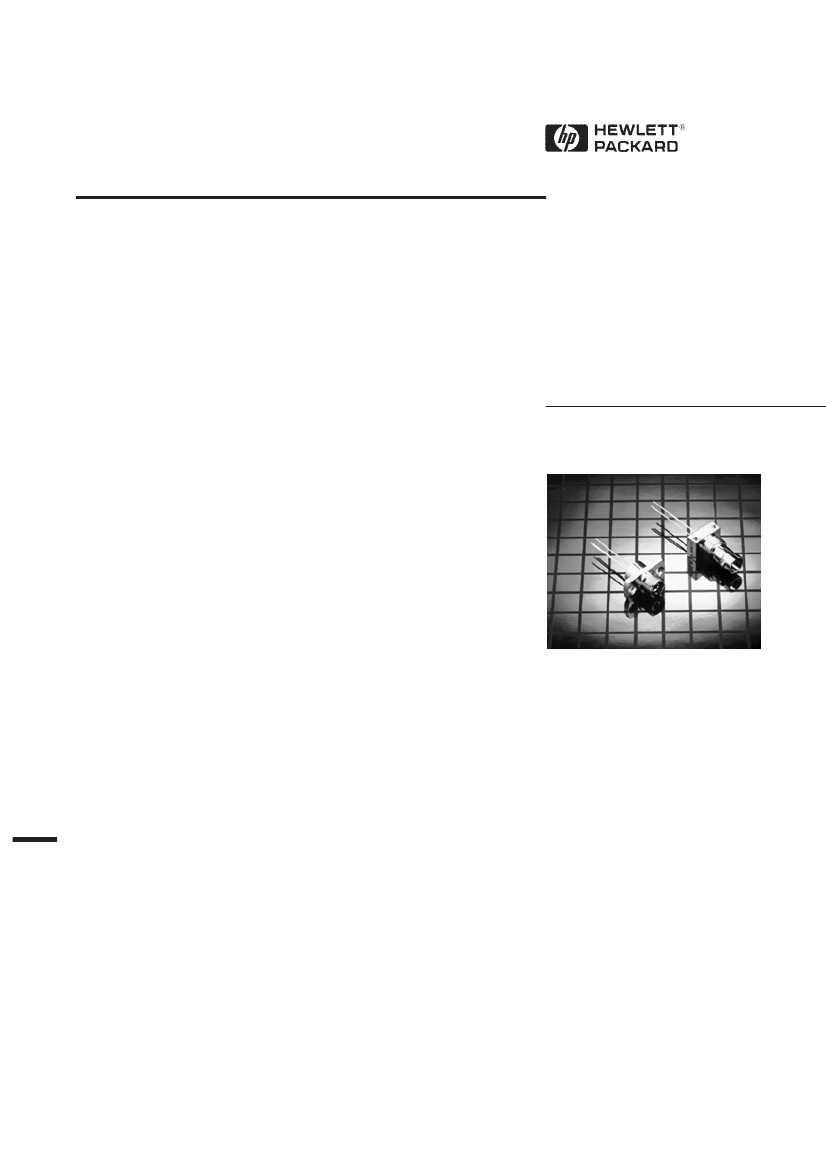

Connectorized ELEDS
Technical Data
LST0X00
Features
• Industry Standard FC and
ST
®
Connectors
• 1300 nm Wavelength
• Linewidth <110 nm
• High Reliability
• Range of Flange Options
• -40
°
C to +80
°
C Operation
Description
The LST range of products
includes a wide variety of
connectorized ELED emitters for
both single mode and multimode
operation. The products have
been developed for low cost and
wide operating temperature
applications such as telecom FITL
and datacom FDDI LANS. Vari-
ants are available in industry
standard connector types with a
selection of mounting flange
options.
The product range features a high
reliability ridge waveguide ELED
manufactured using our MOVPE
process. The construction of the
products includes a hermetically
sealed ELED and is designed to be
compatible with the environmen-
tal requirements of the Bellcore
TA-TSY-000983 document.
Applications
• Optical Data Communication
Transmitters
• E-O Convertors
• LANS
• FDDI Networks
• FITL
• Single Mode: LST0400
Multimode: LST0500
5963-5305E (12/94)
487
Absolute Maximum Ratings
Absolute maximum limits mean that no catastrophic damage will occur if the product is subjected to these ratings for short periods, provided each
limiting parameter is in isolation and all other parameters have values within the performance specification. It should not be assumed that limiting
values of more than one parameter can be applied to the product at the same time.
Limits
Parameter
Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering
Symbol
If
Vr
Tc
Ts
Conditions
DC
DC
Min
-
-
-40
-40
-
Max
175
2
+80
+85
260
Units
mA
V
°C
°C
°C
10 seconds
Performance Specification
Parameter
Symbol
Test Conditions
CW, Tc = 25°C, If = 100mA
unless otherwise stated
Launched Optical Power
Optical Power Over Temp.
Central Wavelength
Spectral Width
Wavelength Temp Coefficient
Rise/Fall Times
Forward Voltage
Reverse Leakage
Po
dPo/dT
λ
∆λ
dλ/dT
τr/τf
Vf
Vr
LST0400: into 9/125 fiber
LST0500: into 50/125 fiber
Tc = -40°C to +80°C
Tc = -40°C to +80°C
Tc = -40°C to +80°C
10% to 90% points
Bias = -2 V
5
50
-
1285
-
-
-
-
-
12
-
±
6
1345
110
0.8
3
1.7
200
µW
µW
dB
nm
nm
nm/°C
nS
V
µA
Minimum
Maximum Units
Electrical Pin Out
SLO-
2
1
3
PIN 1 – NO CONNECTION
PIN 2 – CATHODE (-ve)
PIN 3 – ANODE (+ve)
3
2
LST0X00 Pinouts
488

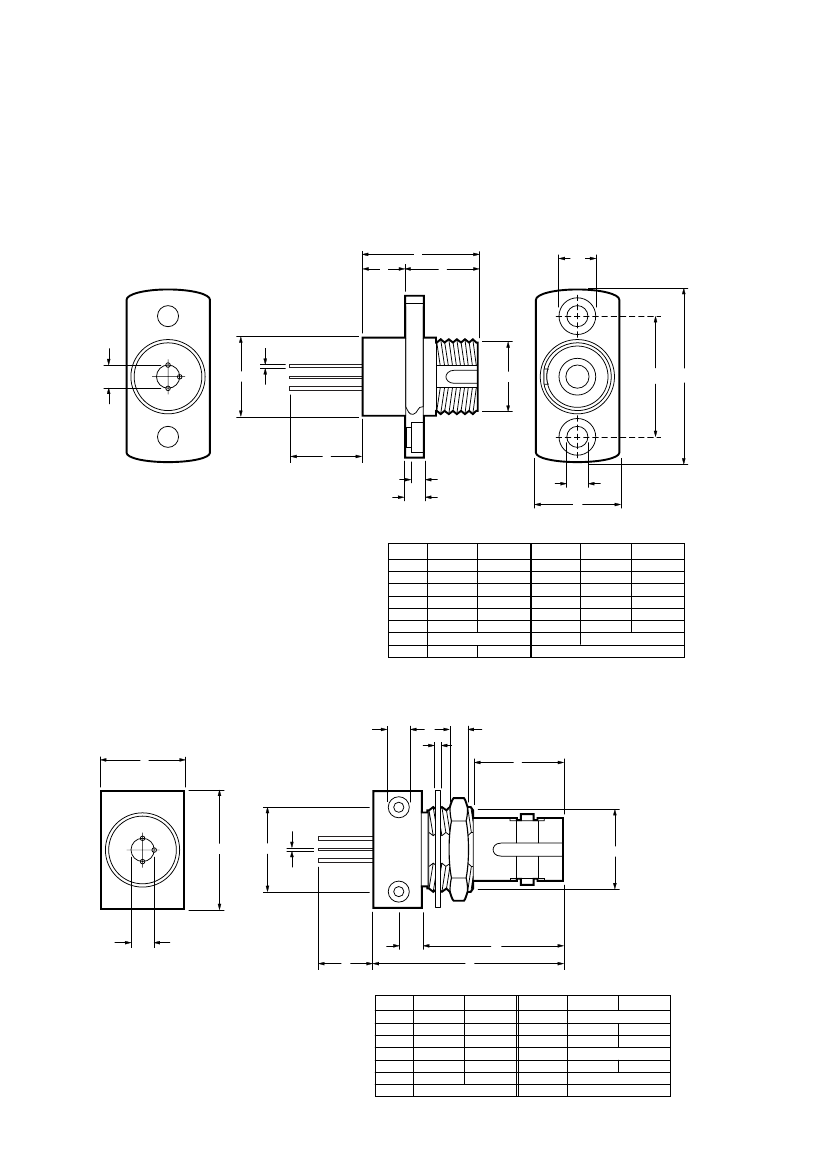

Mechanical Outline Options
LST0X00-FC-A
TOP VIEW
C
REAR VIEW
N
P
FRONT VIEW
∅K
∅Q
∅D
∅F
∅G
H
A
E
L
M
∅J
B
DIM.
A
B
C
∅D
E
∅F
∅G
H
MIN.
MAX.
19.50
–
9.50
–
13.0
–
9.0
–
–
12.0
0.47
0.41
M8 x 0.75
13.55
13.35
DIM.
∅J
∅K
L
M
N
P
∅Q
MIN.
MAX.
2.32
2.08
4.20
–
1.70
–
2.20
–
4.80
–
8.20
–
2.54 NOM.
ALL DIMENSIONS IN MILLIMETERS
LST0X00-ST-F
TOP VIEW
LST0X00-FC-A Mech Dimen
REAR VIEW
E
∅H
R
C
Q
D
F
∅K
∅G
∅N
J
B
A
P
DIM.
A
B
C
D
E
F
∅G
MIN.
MAX.
–
21.0
1.8
2.2
9.6
9.8
–
12.9
9.3
9.7
9.43
9.63
3/8-32 UNEF-2A
DIM.
∅H
J
∅K
∅N
P
Q
R
MIN.
MAX.
2-56 UNC-2B
12.0
–
0.41
0.47
2.54 NOM.
14.9
15.3
2.54 NOM.
0.50 NOM.
ALL DIMENSIONS IN MILLIMETERS
LST0X00-ST-F Mech Dimen
489
Ordering Information
LST0X00 - XX - X
Flange Type:
A = 2 Hole Panel Mount
F = 2 Hole PCB Mount, Threaded
Connector Type:
FC = FC
ST
®
= ST
Fiber Type:
4 = Single mode
5 = Multimode
Preferred Options:
LST0400-FC-A
LST0400-ST-F
LST0500-FC-A
LST0500-ST-F
Additional options are available to meet your specific needs.
Please contact your local representative for details.
ST
®
is a Registered Trademark of AT&T
490
