PD-2.300 rev. B 04/99
30CTQ...
30CTQ...S
30CTQ...-1
SCHOTTKY RECTIFIER
30 Amp
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 20 Apk, T
J
= 125°C
(per leg)
range
50 / 60
1000
0.56
V
A
V
Description/Features
Units
A
This center tap Schottky rrectifier has been optimized for very
low forward voltage drop, with moderate leakage. The
proprietary barrier technology allows for reliable operation up to
150° C junction temperature. Typical applications are in
switching power supplies, converters, free-wheeling diodes,
and reverse battery protection.
150° C T
J
operation
Center tap configuration
Very low forward voltage drop
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Values
30
- 55 to 150
°C

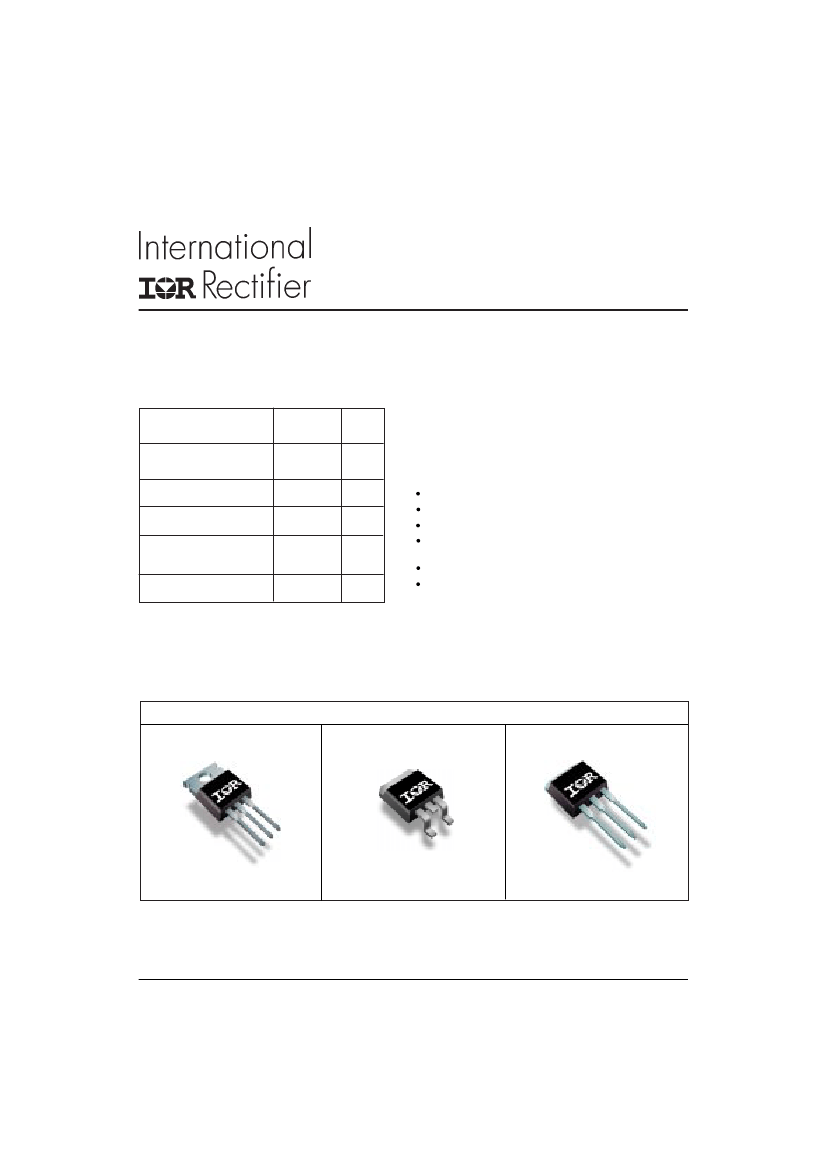

Case Styles
30CTQ...
30CTQ...S
30CTQ...-1
TO-220
D
2
PAK
TO-262
www.irf.com
1
30CTQ..., 30CTQ...S, 30CTQ...-1
PD-2.300 rev. B 04/99
Voltage Ratings
Parameters
V
R
Max. DC Reverse Voltage (V)
50
60
V
RWM
Max. Working Peak Reverse Voltage (V)
30CTQ050
30CTQ050S
30CTQ050-1
30CTQ060
30CTQ060S
30CTQ060-1
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward
Current
I
FSM
E
AS
I
AR
* See Fig. 5
(Per Leg)
(Per Device)
Values
15
30
1000
260
13
1.50
Units
A
Conditions
50% duty cycle @ T
C
= 105°C, rectangular wave form
5µs Sine or 3µs Rect. pulse
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated V
RRM
applied
T
J
= 25 °C, I
AS
= 1.50 Amps, L = 11.5 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg) * See Fig. 7
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
A
mJ
A
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg) * See Fig. 1
(1)
Values
0.62
0.82
0.56
0.71
0.80
45
0.39
8.47
720
8.0
10,000
Units
V
V
V
V
mA
mA
V
mΩ
Conditions
@ 15A
@ 30A
@ 15A
@ 30A
T
J
= 25 °C
T
J
= 125 °C
T
J
= T
J
max.
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
Max. Reverse Leakage Current
(Per Leg) * See Fig. 2
(1)
V
F(TO)
Threshold Voltage
r
t
C
T
L
S
Forward Slope Resistance
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
pF
nH
V/ µs
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25°C
Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
(1) Pulse Width < 300µs, Duty Cycle <2%
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
Values
-55 to 150
-55 to 150
3.25
1.63
0.50
2 (0.07)
Min.
Max.
6 (5)
12 (10)
Units
°C
°C
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case (Per Leg)
R
thJC
Max. Thermal Resistance Junction
to Case (Per Package)
R
thCS
Typical Thermal Resistance, Case
to Heatsink
wt
T
Approximate Weight
Mounting Torque
°C/W DC operation
°C/W DC operation
°C/W Mounting surface , smooth and greased
(only for TO-220)
g (oz.)
Kg-cm
(Ibf-in)
2
www.irf.com
30CTQ..., 30CTQ...S, 30CTQ...-1
PD-2.300 rev. B 04/99
1000
1000
100
10
100°C
1
0.1
0.01
0.001
0
10
20
30
40
50
60
Reverse Voltage - V
R
(V)
75°C
50°C
25°C
T
J
= 150°C
125°C
T
J
= 150°C
Instantaneous Forward Current - I
F
(A)
100
T
J
= 125°C
T
J
= 25°C
Reverse Current - I
R
(mA)
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
1000
(pF)
T
10
Junction Capacitance - C
T = 25°C
J
1
0
0.4
0.8
1.2
1.6
2
Forward Voltage Drop - V
FM
(V)
100
0
10
20
30
40
50
60
Reverse Voltage - V
R
(V)

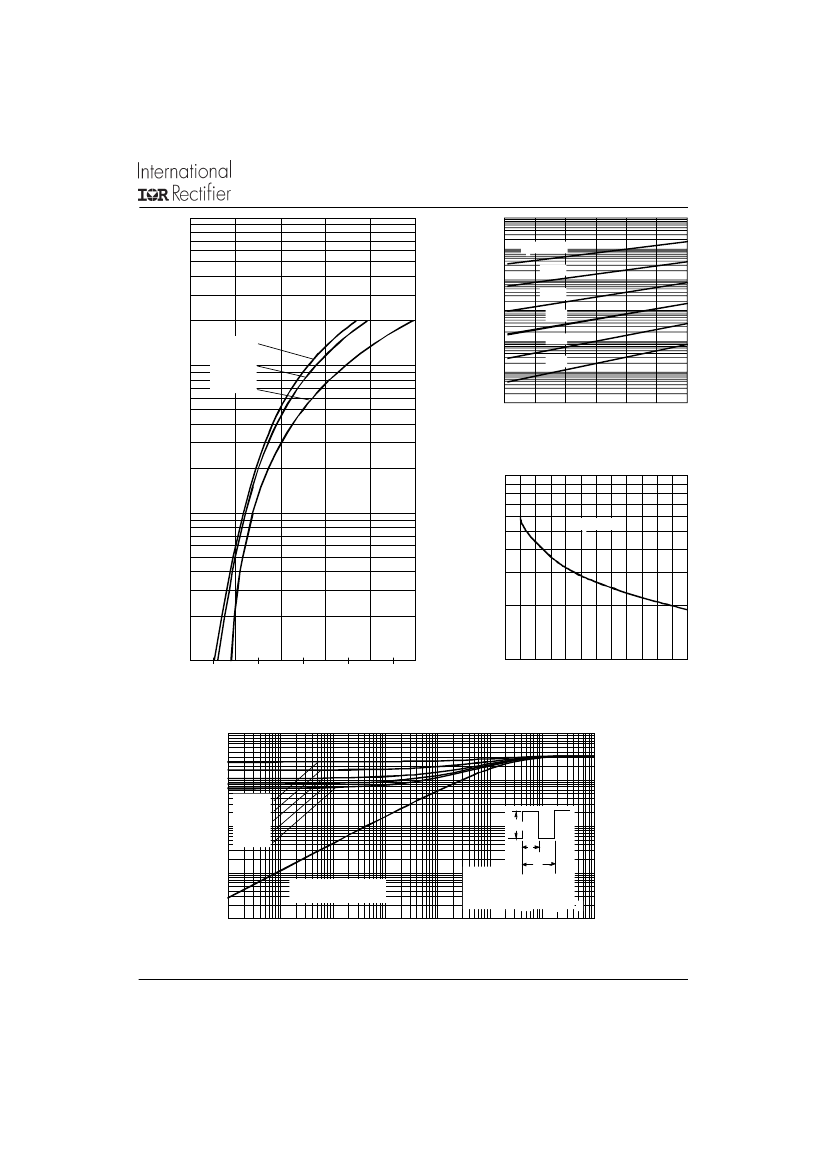

Fig. 1 - Max. Forward Voltage Drop Characteristics
(PerLeg)
10
Thermal Impedance Z
thJC
(°C/W)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
1
D=
D=
D=
D=
D=
0.75
0.50
0.33
0.25
0.20
Notes:
Single Pulse
(Thermal Resistance)
0.001
0.00001
0.1
P
DM
0.01
t1
t2
1. Duty factor D = t 1/ t 2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.1
1
10
100
0.0001
0. 001
0. 01
t 1 , Rectangular Pulse Duration (Seconds)
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics (Per Leg)
www.irf.com
3
30CTQ..., 30CTQ...S, 30CTQ...-1
PD-2.300 rev. B 04/99
160
Allowable Case Temperature - (°C)
150
140
130
DC
120
110
100
90
80
70
60
0
5
10
15
20
25
Average Forward Current - I
F(AV)
(A)
see note (2)
Square wave (D = 0.50)
80% Rated V
R
applied
14
Average Power Loss - (Watts)
12
10
8
RMS Limit
6
4
2
0
0
5
10
15
20
25
Average Forward Current - I
F(AV)
(A)
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
DC

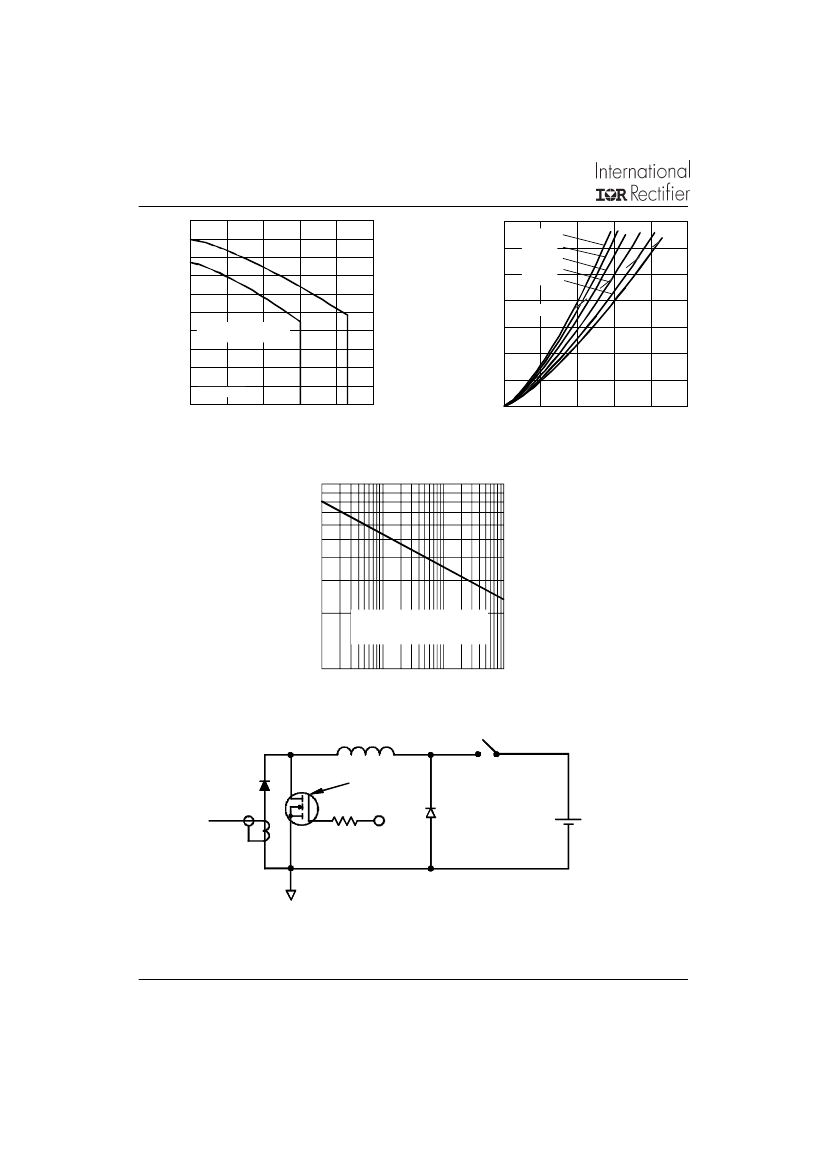

Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
1000
FSM
Fig. 6 - Forward Power Loss Characteristics
(PerLeg)
Non-Repetitive Surge Current - I
(A)
At Any Rated Load Condition
And With Rated V
RRM
Applied
Following Surge
100
10
100
1000
10000
Square Wave Pulse Duration - t p (microsec)
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-SPEED
SWITCH
FREE-WHEEL
DIODE
40HFL40S02
Vd = 25 Volt
DUT
IRFP460
Rg = 25 ohm
+
CURRENT
MONITOR
Fig. 8 - Unclamped Inductive Test Circuit
(2)
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward Power Loss = I
F(AV)
x V
FM
@ (I
F(AV)
/
D) (see Fig. 6);
Pd
REV
= Inverse Power Loss = V
R1
x I
R
(1 - D); I
R
@ V
R1
= 10 V
4
www.irf.com
30CTQ..., 30CTQ...S, 30CTQ...-1
PD-2.300 rev. B 04/99
Ordering Information Table
Device Code
30
1
1
2
3
4
5
6
-
-
-
-
-
-
C
2
T
3
Q
4
060
5
-1
6
Essential Part Number
C = Common Cathode
T = TO-220
Q = Schottky Q Series
Voltage Rating
1 = TO-262
S = D
2
Pak
050 = 50V
060 = 60V
Outline Table
10.54 (0.41)
MAX.
3.78 (0.15)
DIA.
3.54 (0.14)
15.24 (0.60)
14.84 (0.58)
1 2 3
14.09 (0.55)
13.47 (0.53)
3.96 (0.16)
3.55 (0.14)
2.04 (0.080) MAX.
1.40 (0.05)
1.15 (0.04)
0.94 (0.04)
0.69 (0.03)
1
2
3
1.32 (0.05)
1.22 (0.05)
6.48 (0.25)
6.23 (0.24)
2°
2.92 (0.11)
2.54 (0.10)
TERM 2
0.10 (0.004)
2.89 (0.11)
2.64 (0.10)
BASE
COMMON
CATHODE
2
1 2 3
4.57 (0.18)
4.32 (0.17)
0.61 (0.02) MAX.
ANODE COMMON ANODE
CATHODE
1
2
Conform to JEDEC outline TO-220AB
Dimensions in millimeters and (inches)
5.08 (0.20) REF.
www.irf.com
5
