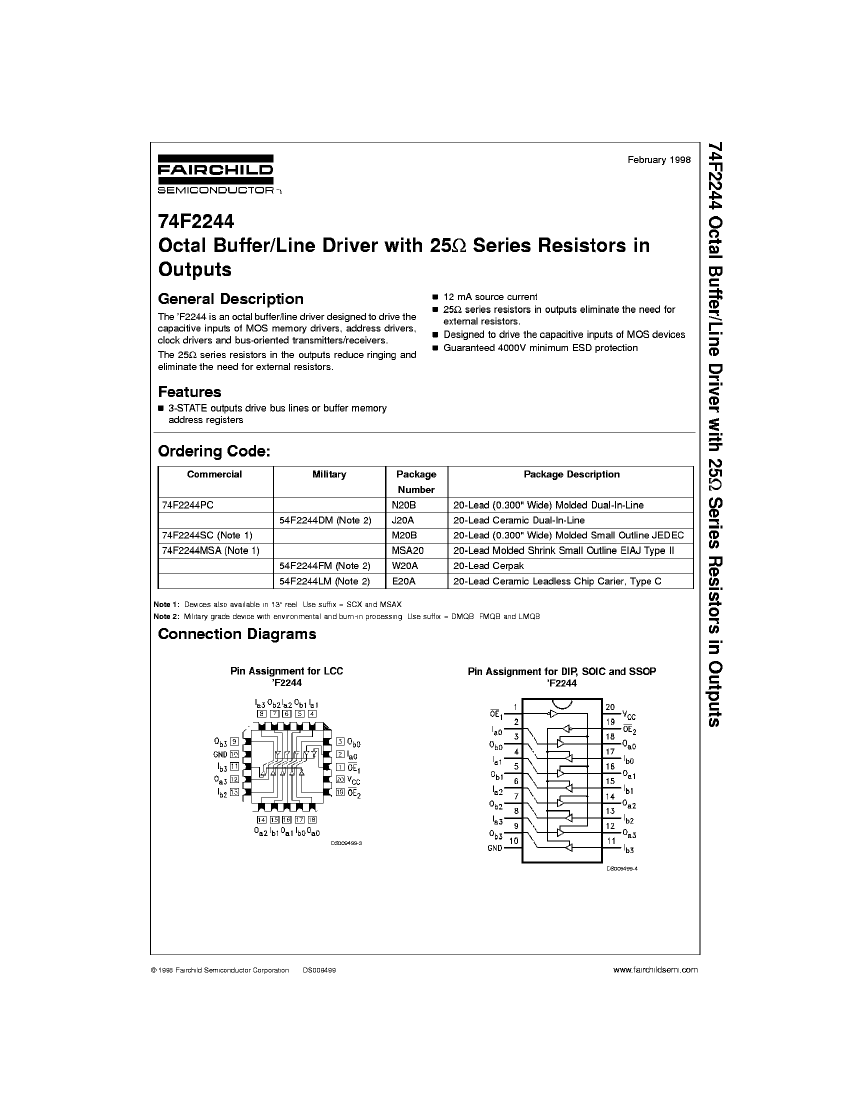

Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

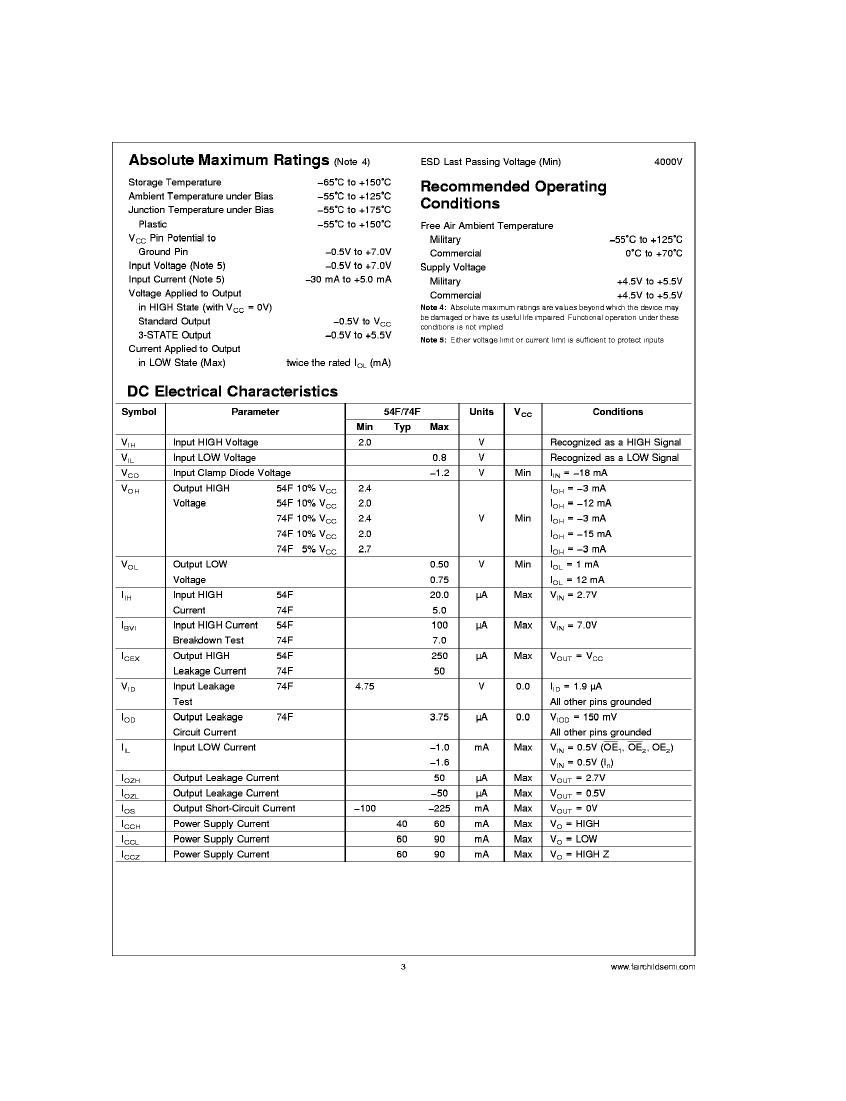

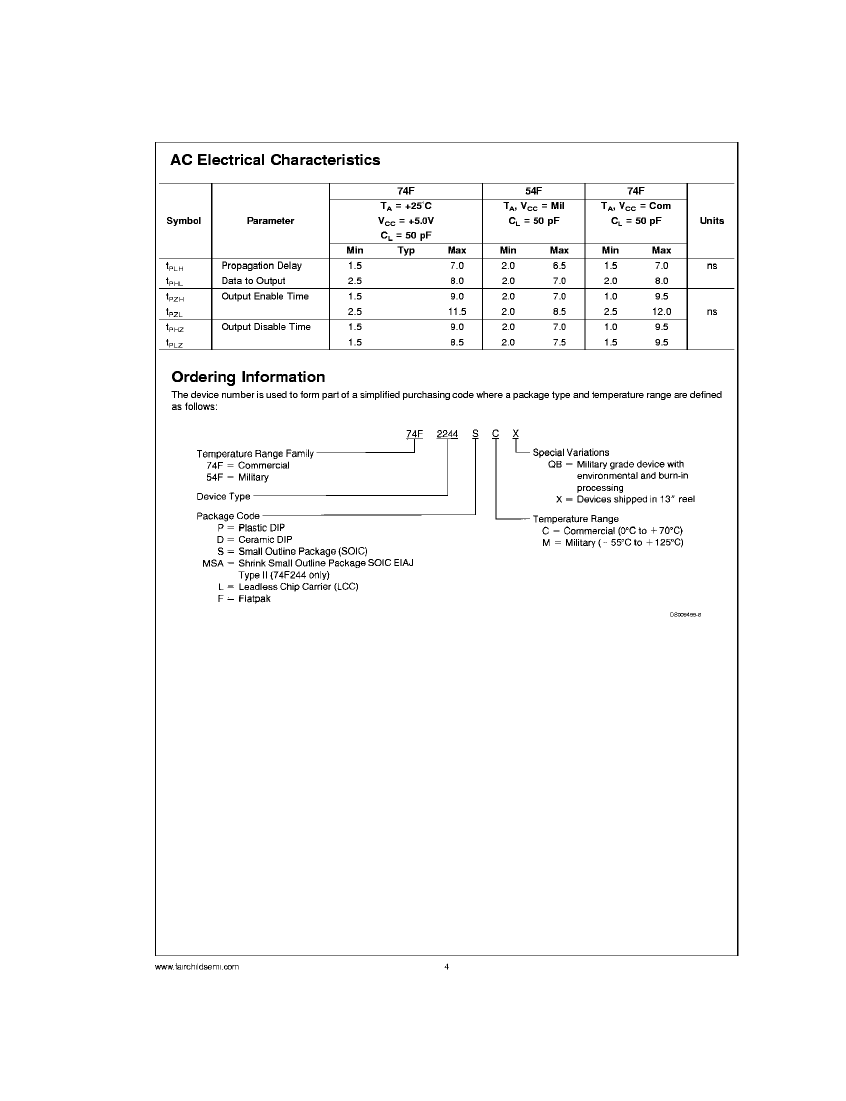

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | compliant |
| Control type | ENABLE LOW |
| series | F/FAST |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.012 A |
| Number of digits | 4 |
| Number of functions | 2 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE WITH SERIES RESISTOR |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Maximum supply current (ICC) | 90 mA |
| Prop。Delay @ Nom-Sup | 7 ns |
| propagation delay (tpd) | 7 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 54F2244LM | ERJ1GNYO102V | 54F2244FMQB | 54F2244DM | 54F2244LMQB | CCN-7900-07-2911-B-A | |
|---|---|---|---|---|---|---|
| Description | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | THICK FILM CHIP RESISTORS | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDFP20, CERPACK-20 | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDIP20, CERAMIC, DIP-20 | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | Array/Network Resistor, Bussed, Tantalum Nitride/nickel Chrome, 0.1W, 2910ohm, 0.1% +/-Tol, -25,25ppm/Cel, 3535, |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | incompatible | - |
| Parts packaging code | QLCC | - | DFP | DIP | QLCC | - |
| package instruction | QCCN, LCC20,.35SQ | - | DFP, FL20,.3 | DIP, DIP20,.3 | QCCN, LCC20,.35SQ | - |
| Contacts | 20 | - | 20 | 20 | 20 | - |
| Reach Compliance Code | compliant | - | compliant | compliant | compliant | compliant |
| Control type | ENABLE LOW | - | ENABLE LOW | ENABLE LOW | ENABLE LOW | - |
| series | F/FAST | - | F/FAST | F/FAST | F/FAST | - |
| JESD-30 code | S-CQCC-N20 | - | R-GDFP-F20 | R-GDIP-T20 | S-CQCC-N20 | - |
| JESD-609 code | e0 | - | e0 | e0 | e0 | - |
| Logic integrated circuit type | BUS DRIVER | - | BUS DRIVER | BUS DRIVER | BUS DRIVER | - |
| MaximumI(ol) | 0.012 A | - | 0.012 A | 0.012 A | 0.012 A | - |
| Number of digits | 4 | - | 4 | 4 | 4 | - |
| Number of functions | 2 | - | 2 | 2 | 2 | - |
| Number of ports | 2 | - | 2 | 2 | 2 | - |
| Number of terminals | 20 | - | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | - | 125 °C | 125 °C | 125 °C | 150 °C |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE WITH SERIES RESISTOR | - | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR | - |
| Output polarity | TRUE | - | TRUE | TRUE | TRUE | - |
| Package body material | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | - |
| encapsulated code | QCCN | - | DFP | DIP | QCCN | - |
| Encapsulate equivalent code | LCC20,.35SQ | - | FL20,.3 | DIP20,.3 | LCC20,.35SQ | - |
| Package shape | SQUARE | - | RECTANGULAR | RECTANGULAR | SQUARE | - |
| Package form | CHIP CARRIER | - | FLATPACK | IN-LINE | CHIP CARRIER | SMT |
| power supply | 5 V | - | 5 V | 5 V | 5 V | - |
| Maximum supply current (ICC) | 90 mA | - | 90 mA | 90 mA | 90 mA | - |
| Prop。Delay @ Nom-Sup | 7 ns | - | 7 ns | 7 ns | 7 ns | - |
| propagation delay (tpd) | 7 ns | - | 7 ns | 7 ns | 7 ns | - |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | - |
| Maximum seat height | 1.905 mm | - | 2.286 mm | 5.08 mm | 1.905 mm | - |
| Maximum supply voltage (Vsup) | 5.5 V | - | 5.5 V | 5.5 V | 5.5 V | - |
| Minimum supply voltage (Vsup) | 4.5 V | - | 4.5 V | 4.5 V | 4.5 V | - |
| Nominal supply voltage (Vsup) | 5 V | - | 5 V | 5 V | 5 V | - |
| surface mount | YES | - | YES | NO | YES | - |
| technology | TTL | - | TTL | TTL | TTL | TANTALUM NITRIDE/NICKEL CHROME |
| Temperature level | MILITARY | - | MILITARY | MILITARY | MILITARY | - |
| Terminal surface | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal form | NO LEAD | - | FLAT | THROUGH-HOLE | NO LEAD | - |
| Terminal pitch | 1.27 mm | - | 1.27 mm | 2.54 mm | 1.27 mm | - |
| Terminal location | QUAD | - | DUAL | DUAL | QUAD | - |
| width | 8.89 mm | - | 6.731 mm | 7.62 mm | 8.89 mm | - |
| Base Number Matches | 1 | - | 1 | 1 | 1 | - |
