AA8622AP
Dual Video Amplifier
AA8622AP is a dual video amplifier with 6db gain, 75Ω output buffer and SAG
correction. The 75Ω buffer is capable of driving two circuits. The SAG could
reduce the output coupling capacitor. The power saving circuit provides the
power saving function. The IC is available in 8-pin TSSOP package .
FEATURES
Composite video driver with 6dB gain
Dual channels video amplifier
Output short circuit protection function
SAG correction function
A load sufficient for driving two circuits
Low operating current, 25mA typical
Internal voltage clamp circuit
8-pin TSSOP package

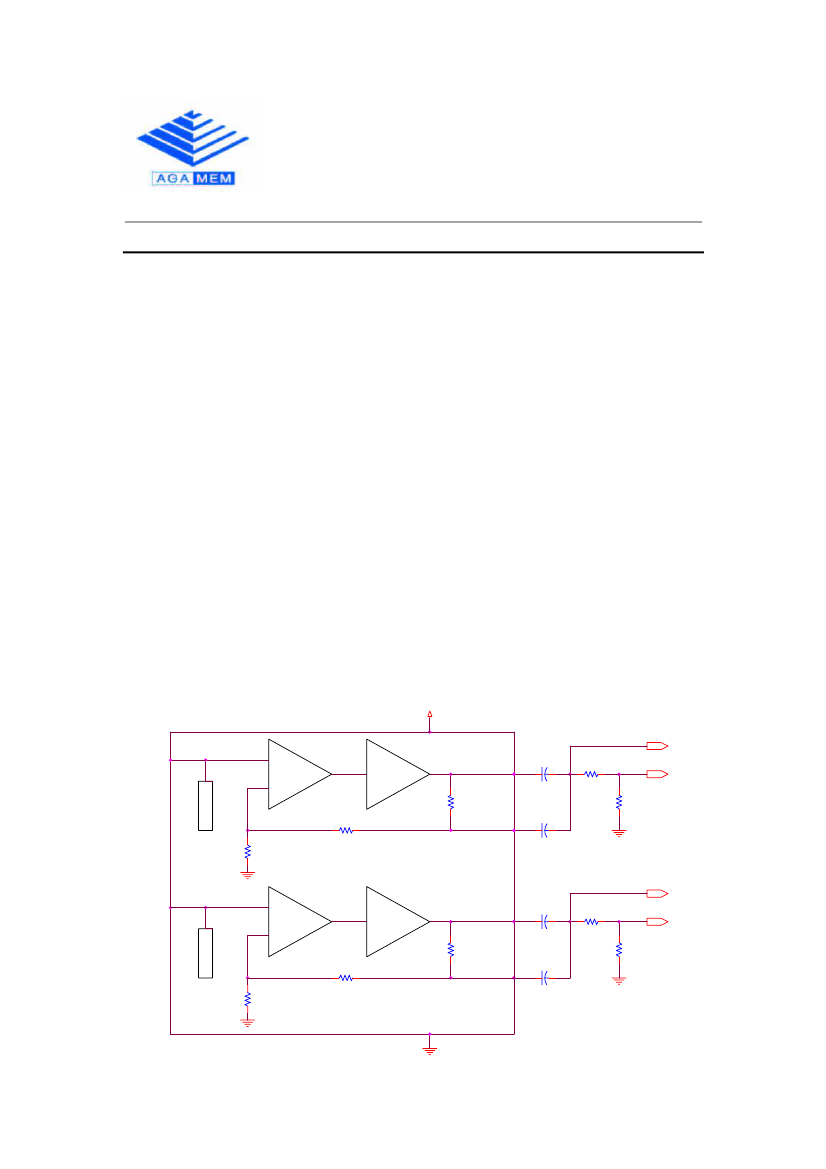

AA8622AP BLOCK DIAGRAM
Vcc
1.
2.
3.
4.
5.
6.
7.
8.
APPLICATION
VCR
Video Camera
TV
Video Player
Vin2
8
CLAMP
7
6dB
Amp
75Ω
Driver
Vout2
750Ω
5
100uF
75Ω
Vout2
(6dB)
Vout2
75Ω
2.2K
Vsag2
6
22uF
2.0KΩ
Vin1
1
CLAMP
6dB
Amp
75Ω
Driver
Vout1
750Ω
4
100uF
75Ω
Vout1
(6dB)
Vout1
75Ω
2.2KΩ
Vsag1
3
22uF
2.0KΩ
2
1
2005/7/5
Agamem Electronics Inc.
PRELIMINARY
PIN DESCRIPTION
Symbol
Vin1
GND
Vsag1
Vout1
Vout2
Vsag2
VCC
Vin2
Pin No Type
1
2
3
4
5
6
7
8
I
-
O
O
O
O
-
I
Ground
AA8622AP
Dual Video Amplifier
Function
Channel1 input terminal of 1V composite signal
Channel 1 SAG correction output
Channel 1 output
Channel 2 output
Channel 2 SAG correction output
5V power supply
Channel 2 input terminal of 1V composite signal
ABSOLUTE MAXIMUM RATING
Ta = 25
℃
Parameter
Supply Voltage
Operating
Ambient
Temperature
Storage
Temperature
Symbol
Vcc
Ta
Ts
Rating
MIN TYP
-0.3
-25
-40
5
MAX
7
75
125
UNIT
V
℃
℃
CONDITION
NOTE :
Stress above those listed under “Absolute Maximum Rating” may cause
permanent damage to the device. This is a stress rating only and functional
operation of the device at these or any other conditions above those
indicated in the operational section of this specification is not implied.
Exposure to absolute maximum rating conditions for the extended periods of
time may affect device reliability.
2
2005/7/5
Agamem Electronics Inc.
PRELIMINARY
ELECTRICAL CHARACTERISTICS
AA8622AP
Dual Video Amplifier
Ta = 25℃ , Vcc = 5V
Parameter
Supply Current
Voltage Gain
Frequency
Characteristic
Clamp Voltage
Output DC level
SAG-Terminal
Gain
Differential Gain
Differential Phase
Crosstalk
Symbol
Icc
Gv
Min
Typ
25
Max
30
6.5
1
2.3
1.4
Unit Condition
mA No input Signal
Input Signal Freq =
dB 4.43MHz, 1V
P-P
,
measure V
O1
Input Signal Freq =
dB 7MHz/1MHz, 1V
P-P
,
measure V
O1
V
V
dB
5.5
-1
1.9
1.0
6
-
2.1
1.2
45
1
1
-70
G
F
G
SAG
DG
DP
CT
35
3
3
V
IN
= 1V
P-P,
refer
staircase signal
V
IN
= 1V
P-P,
refer
deg
staircase signal
V IN=1V 4.43M
dB
Sinewave
%
3
2005/7/5
Agamem Electronics Inc.
PRELIMINARY

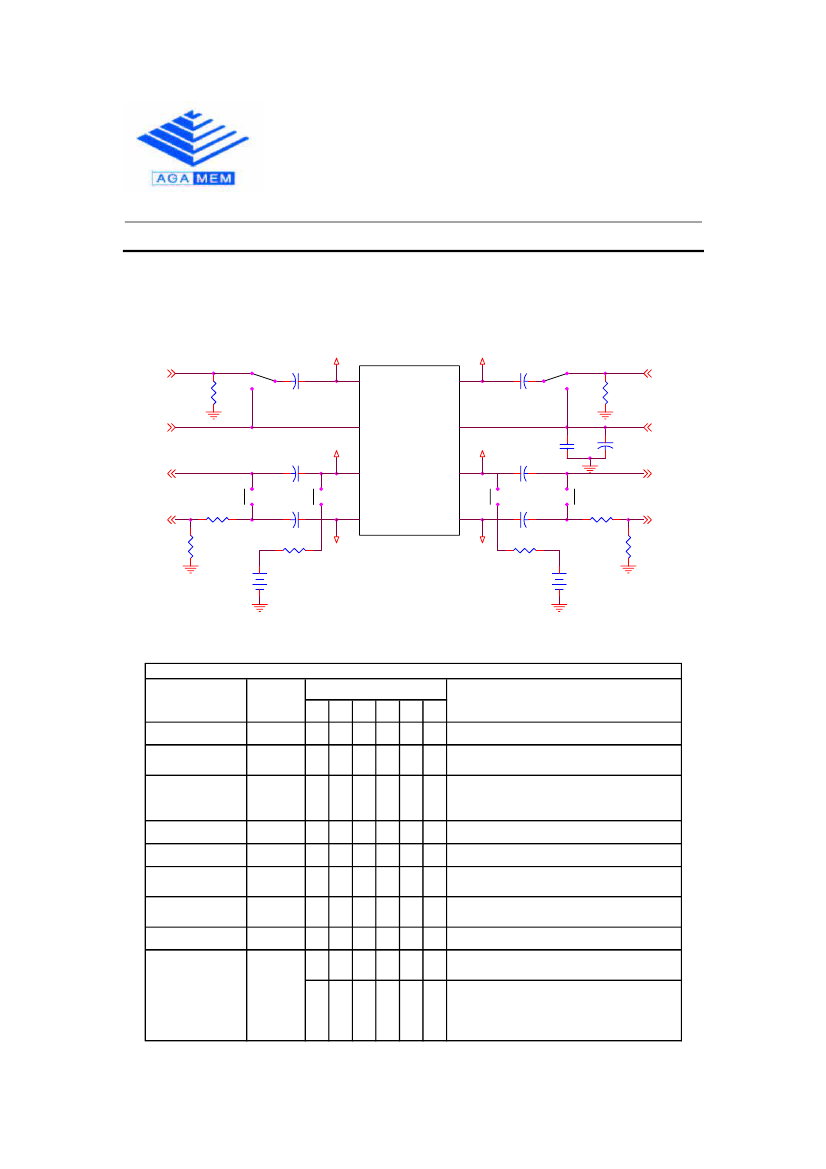

MEASUREMENT CIRCUIT
AA8622AP
Dual Video Amplifier
Tp1
Vin1
75Ω
S1
H
4.7uF
Tp2
1
4.7uF
H
S2
75Ω
Vin1
Vin2
Vin2
Gnd
Tp5
22uF
2
Gnd
Vcc
Tp6
1000pF
22uF
100uF
Vcc
Vout1
(6dB)
S3
75Ω
100uF
S5
3
Vsag1
Vsag2
S6
100uF
S4
75Ω
Vout2
(6dB)
Vout3
4
Tp3
Vout1
Vout2
Tp4
400Ω
1
Vout4
75Ω
75Ω
1
400Ω
0.6V
2
2
0.6V
TEST METHODES
SWITCH CONDITIONS
PARAMETER
SYMBOL
S1
Supply Current
Voltage Gain
lcc
Gv
H
H
S2
H
H
ON
ON
S3
S4
S5
S6
7PIN Sink Current
Vout1 / Vin. Vout2 / Vin2 at Vin1(Vin2)=1MHz, 1Vpp,
Sinewave
Gv1M Voltage Gain at Vin1(Vin2)=1MHz, 1Vpp
Gv10M Voltage Gain at Vin1(Vin2)=7MHz, 1Vpp
Gf=Gv10M-Gv1M
Measuring Vout3 at Vin1=Staircase Signal
Measuring Vout3 at Vin1=Staircase Signal
Vout2 / Vout1 at Vin1=4.43MHz 1Vpp Sinewave
Vout1 / Vin2 at Vin2=4.43MHz 1Vpp Sinewave
Gv1=Vout1 / Vin1, Gv2=Vout2/Vin2 Gch=Gv1-Gv2
Measuring at TP1 (TP2)
TP3(TP4) Voltage; V01A(V02A), TP5(TP6) voltage.
Vso1A(Vso2A)
ON
ON
TP3(TP4) Voltage; V01A(V02A), TP5(TP6) voltage.
Vso1B(Vso2B)
Gsag=20log[(V01B-V01A) / (Vso1A-Vso1B)]
Gsag=20log[(V02B-V02A) / (Vso2A-Vso2B)]
CONDITIONS
Frequency Characteristic
Gf
H
H
ON
ON
Differential Gain
Differential Phase
Crosstalk
Gain Oftest
Input Clamp Voltage
SAG Terminal Gain
DG
DP
CT
Gch
Vcl
Gsag
H
H
H
H
H
H
H
H
H
L
H
H
H
H
ON
ON
ON
ON
ON
ON
ON
ON
4
2005/7/5
Agamem Electronics Inc.
PRELIMINARY

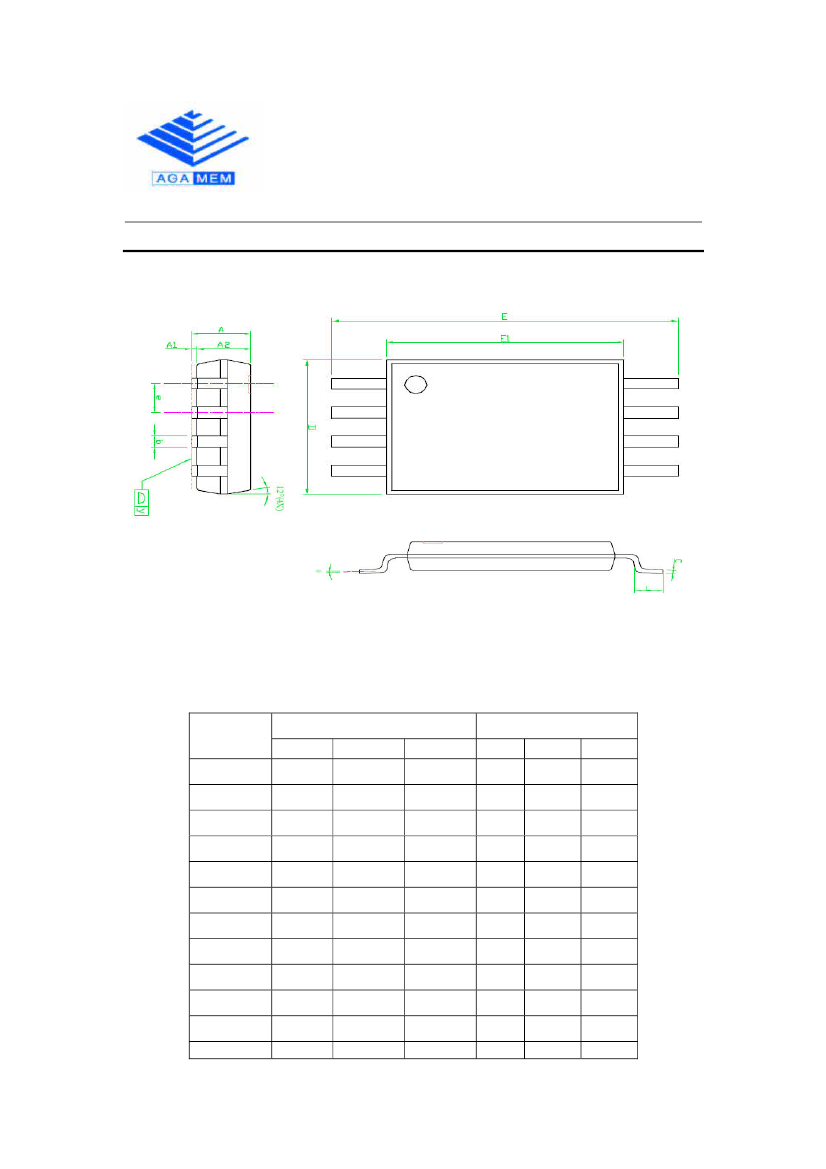

TSSOP 8L PACKAGE DIMENSION
AA8622AP
Dual Video Amplifier
NOTES:
1.
Package body sizes exclude mold flash protrusions or gate burrs
2.
Tolerance
±
0.1
㎜
(4 mil) unless otherwise specified
3.
Coplanarity:0.1
㎜
4.
Controlling dimension is millimeter converted inch dimensions are not necessarily exact
5.
Followed from jedec mo-153
SYMBOLS
A
A1
A2
b
C
D
E
E1
e
L
y
θ
DIMENSIONS IN MILLIMETERS DIMENSIONS IN INCHES
MIN
---
0.05
0.80
0.19
0.09
2.90
6.20
4.30
---
0.45
---
0°
NOM
---
---
1.00
---
---
3.00
6.40
4.40
0.65
0.60
---
---
MAX
1.20
0.15
1.05
0.30
0.20
3.10
6.60
4.50
---
0.75
0.10
8°
MIN
---
0.002
0.031
0.007
0.004
0.114
0.244
0.169
---
0.018
---
0°
NOM
---
---
0.039
---
---
0.118
0.252
0.173
0.026
0.024
---
---
MAX
0.048
0.006
0.041
0.012
0.008
0.122
0.260
0.177
---
0.030
0.004
8°
5
2005/7/5
