51374-3072 datasheet, PDF - EEWORLD Datasheet

51374-3072: DescriptionCard Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, LEAD FREE; CategoryThe connector The connector; File Size332KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

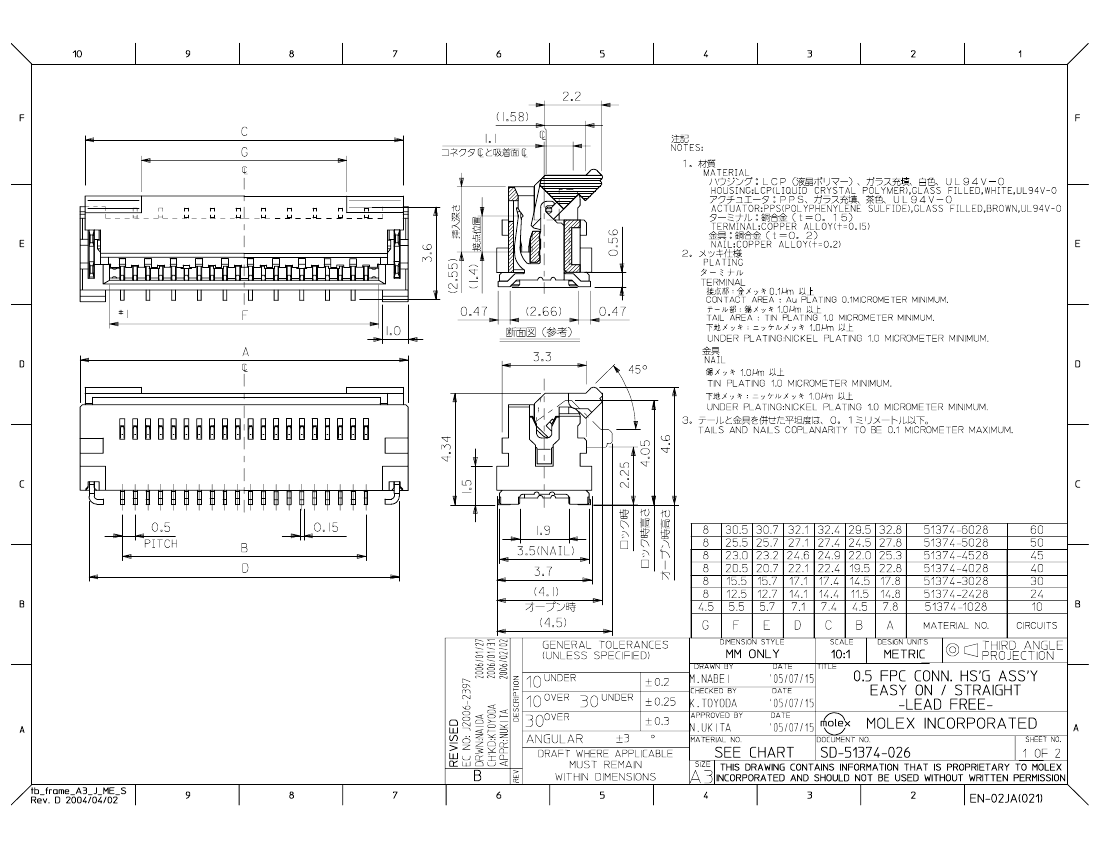

51374-3072 Overview

Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99

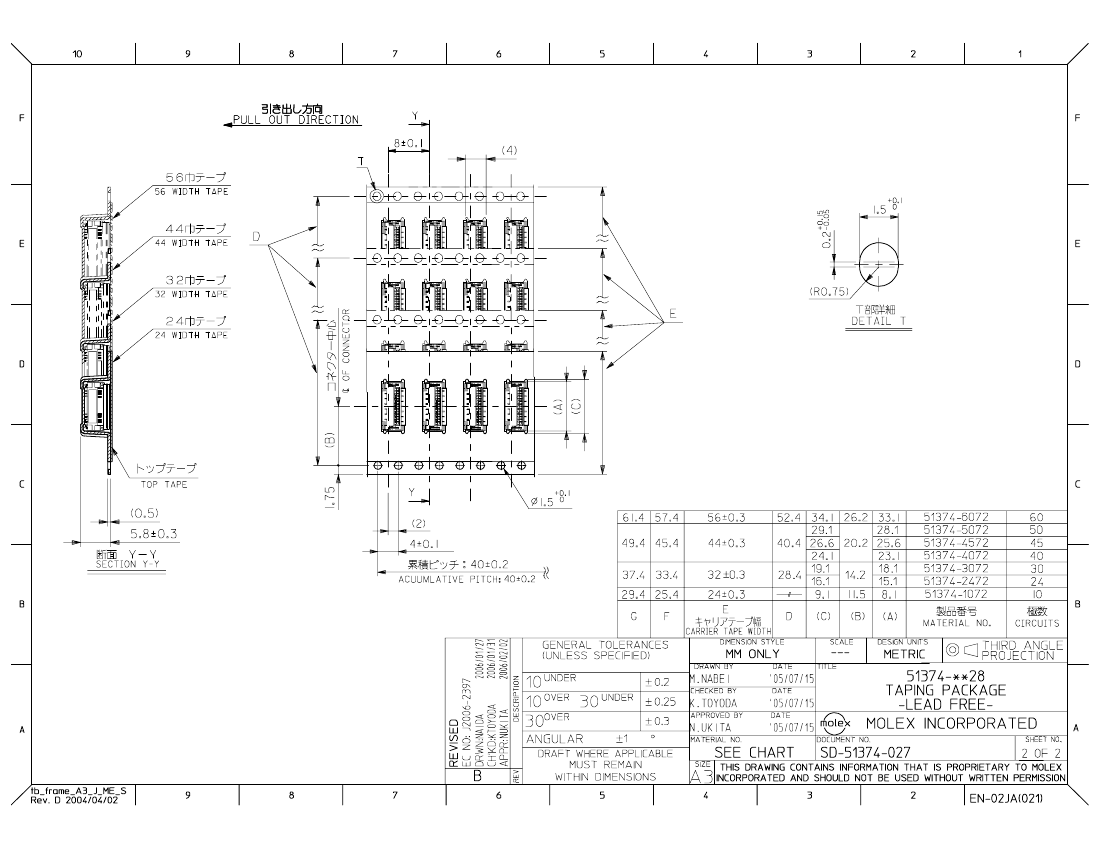

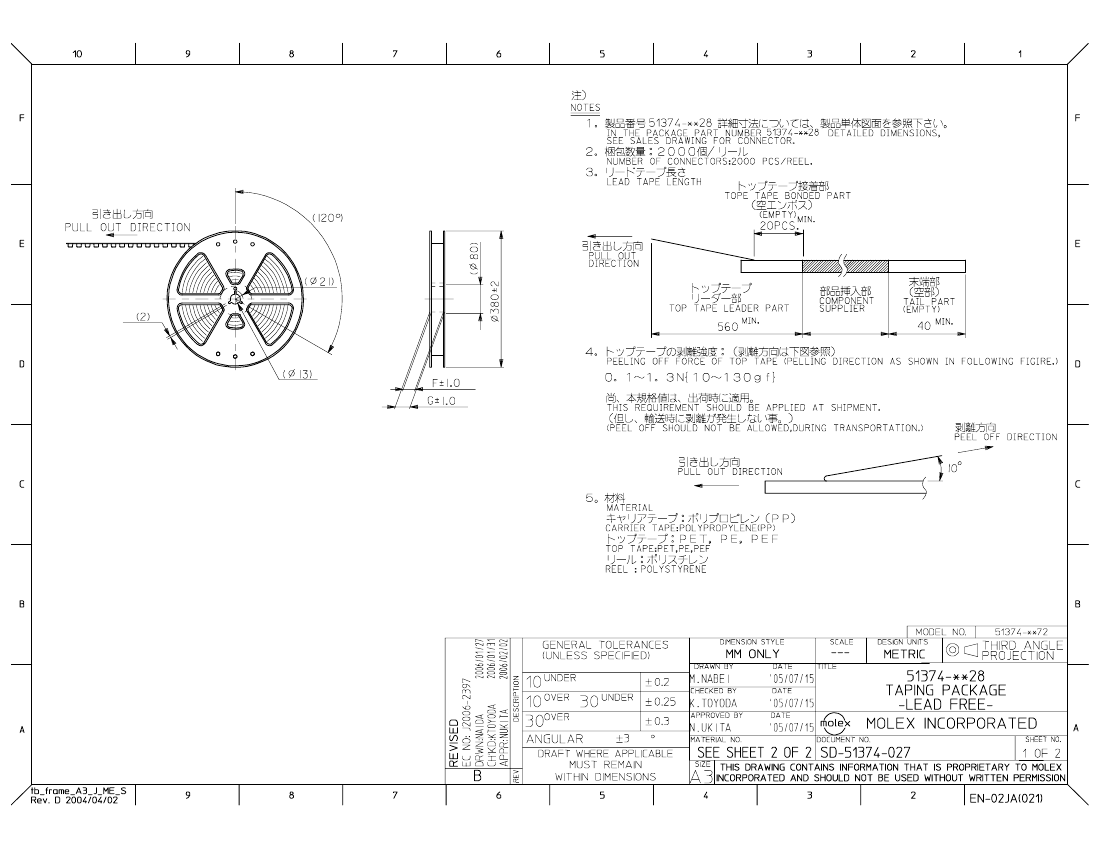

Other features	ROHS COMPLIANT,TAPE PACKAGING
Board mount options	FITTING NAIL
body width	0.177 inch
subject depth	0.181 inch
body length	0.701 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE

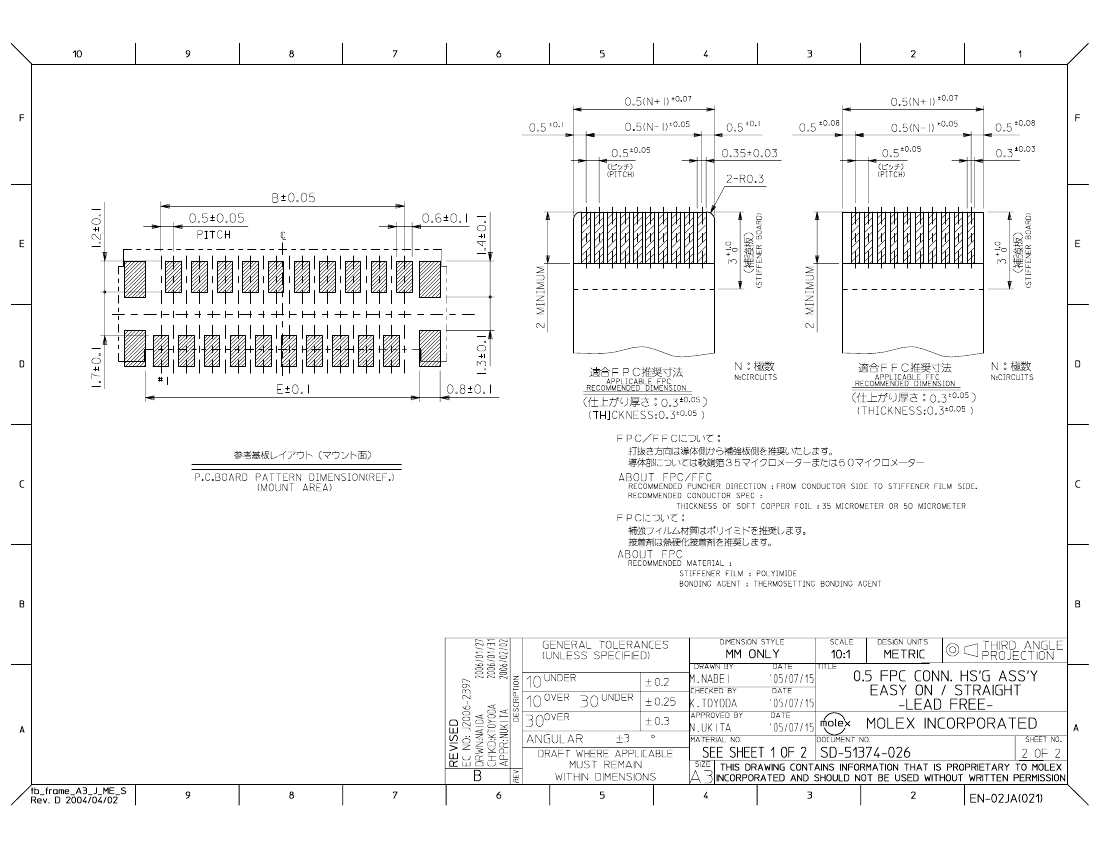

PCB contact pattern	STAGGERED
PCB contact row spacing	2.6924 mm
Plating thickness	4u inch
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1
