PIC32MX370F512L-120I/PF datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PIC32MX370F512L-120I/PF

Preview

PIC32MX370F512L-120I/PF: DescriptionRISC MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size5MB，360 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric View All

PIC32MX370F512L-120I/PF Overview

RISC MICROCONTROLLER

PIC32MX370F512L-120I/PF Parametric

Parameter Name	Attribute value
Maker	Microchip
package instruction	TQFP-100
Reach Compliance Code	compliant
Has ADC	YES
Other features	AEC-Q100 REVH (GRADE 2 -40 CEL TO +105 CEL) PLANNED
Address bus width
bit size	32
maximum clock frequency	80 MHz
DAC channel	NO
DMA channel	YES
External data bus width
JESD-30 code	S-PQFP-G100
length	14 mm
Number of I/O lines	85
Number of terminals	100
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TFQFP
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE, FINE PITCH
RAM (bytes)	131072
rom(word)	536576
ROM programmability	FLASH
Filter level	TS 16949
Maximum seat height	1.2 mm
speed	100 MHz
Maximum supply voltage	3.6 V
Minimum supply voltage	2.3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

PIC32MX330/350/370/430/450/470

32-bit Microcontrollers (up to 512 KB Flash and 128 KB SRAM)

with Audio/Graphics/Touch (HMI), USB, and Advanced Analog

Operating Conditions: 2.3V to 3.6V

• -40ºC to +105ºC (DC to 80 MHz)

• -40ºC to +85ºC (DC to 100 MHz)

• 0ºC to +70ºC (DC to 120 MHz)

Timers/Output Compare/Input Capture

• Five General Purpose Timers:

- Five 16-bit and up to two 32-bit Timers/Counters

• Five Output Compare (OC) modules

• Five Input Capture (IC) modules

• Peripheral Pin Select (PPS) to allow function remap

• Real-Time Clock and Calendar (RTCC) module

Core: 120 MHz/150 DMIPS MIPS32

M4K

• MIPS16e

mode for up to 40% smaller code size

• Code-efficient (C and Assembly) architecture

• Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply

Communication Interfaces

• USB 2.0-compliant Full-speed OTG controller

• Up to five UART modules (20 Mbps):

- LIN 1.2 protocols and IrDA

support

• Two 4-wire SPI modules (25 Mbps)

• Two I

C modules (up to 1 Mbaud) with SMBus support

• PPS to allow function remap

• Parallel Master Port (PMP)

Clock Management

•

0.9% internal oscillator

Programmable PLLs and oscillator clock sources

Fail-Safe Clock Monitor (FSCM)

Independent Watchdog Timer

Fast wake-up and start-up

Power Management

• Low-power management modes (Sleep and Idle)

• Integrated Power-on Reset, Brown-out Reset, and High

Voltage Detect

• 0.5 mA/MHz dynamic current (typical)

• 50

μA

current (typical)

Direct Memory Access (DMA)

• Four channels of hardware DMA with automatic data

size detection

• 32-bit Programmable Cyclic Redundancy Check (CRC)

• Two additional channels dedicated to USB

Audio/Graphics/Touch HMI Features

•

External graphics interface with up to 34 PMP pins

Audio data communication: I

S, LJ, RJ, USB

Audio data control interface: SPI and I

Audio data master clock:

- Generation of fractional clock frequencies

- Can be synchronized with USB clock

- Can be tuned in run-time

• Charge Time Measurement Unit (CTMU):

- Supports mTouch™ capacitive touch sensing

- Provides high-resolution time measurement (1 ns)

Input/Output

• 15 mA or 12 mA source/sink for standard V

and

up to 22 mA for non-standard V

OH1

• 5V-tolerant pins

• Selectable open drain, pull-ups, and pull-downs

• External interrupts on all I/O pins

Qualification and Class B Support

• AEC-Q100 REVG (Grade 2 -40ºC to +105ºC) planned

• Class B Safety Library, IEC 60730

Debugger Development Support

•

In-circuit and in-application programming

4-wire MIPS

Enhanced JTAG interface

Unlimited program and six complex data breakpoints

IEEE 1149.2-compatible (JTAG) boundary scan

Advanced Analog Features

• ADC Module:

- 10-bit 1 Msps rate with one Sample and Hold (S&H)

- Up to 28 analog inputs

- Can operate during Sleep mode

• Flexible and independent ADC trigger sources

• On-chip temperature measurement capability

• Comparators:

- Two dual-input Comparator modules

- Programmable references with 32 voltage points

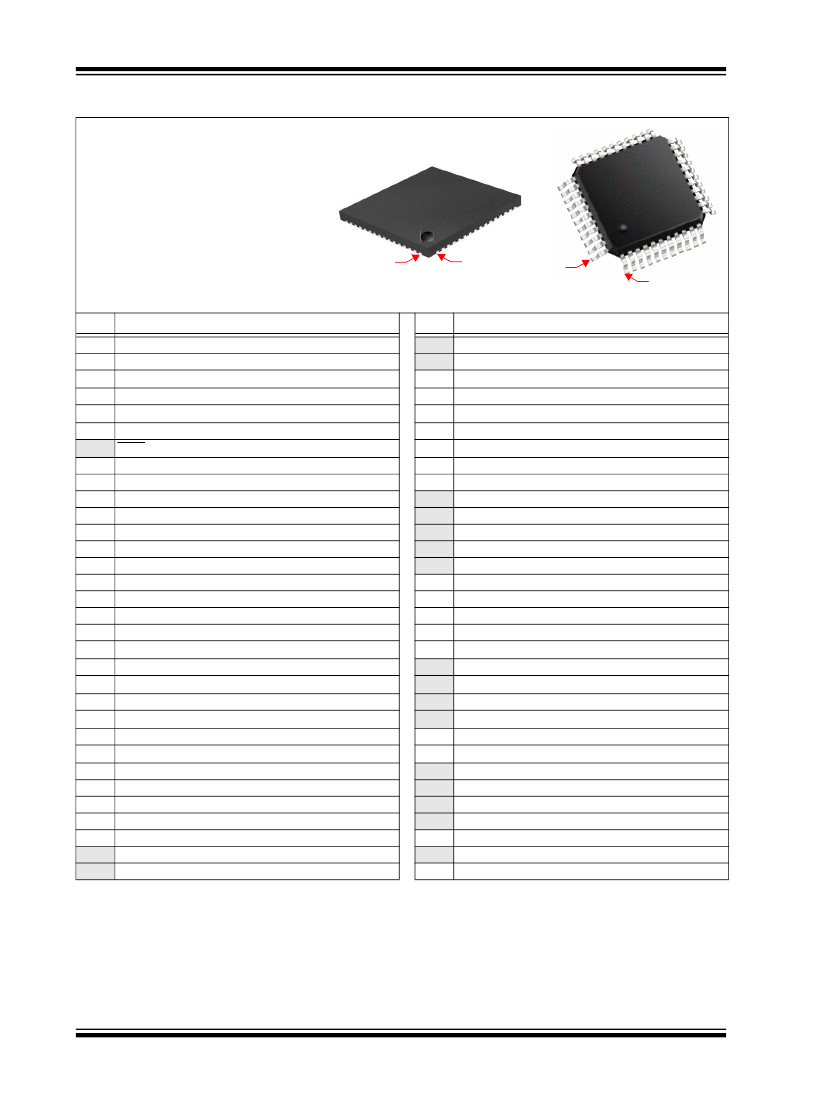

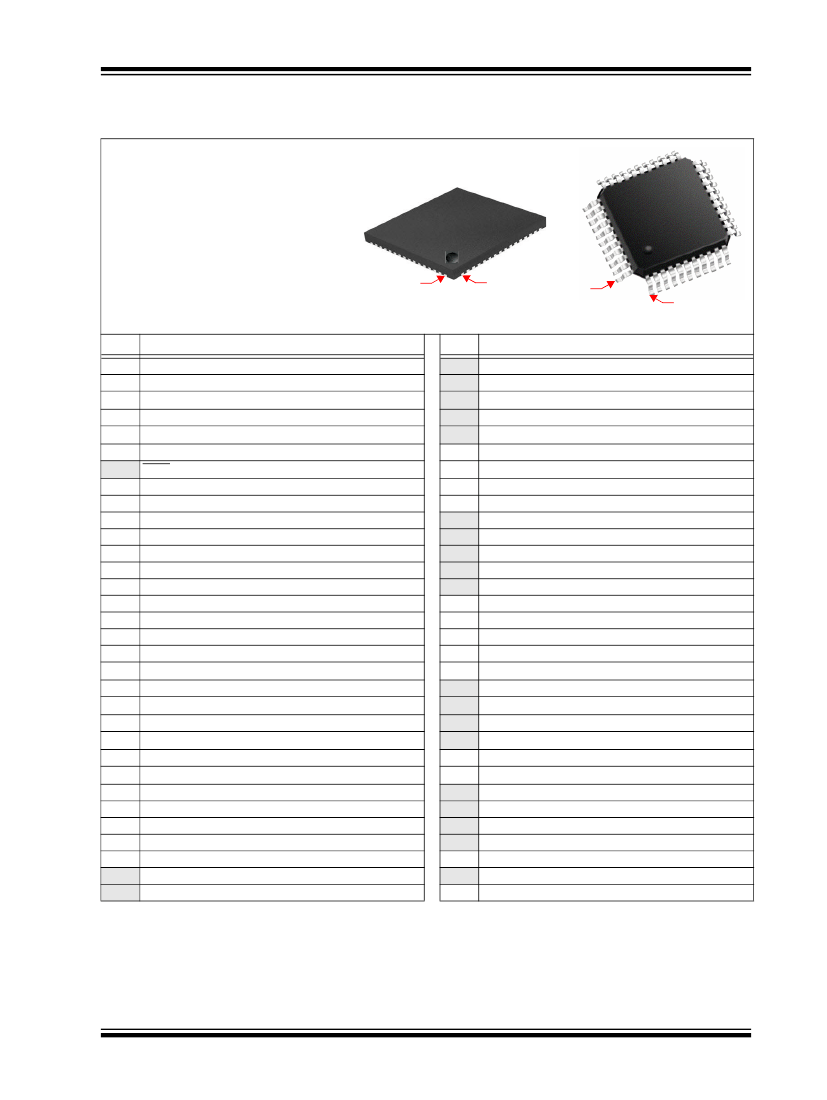

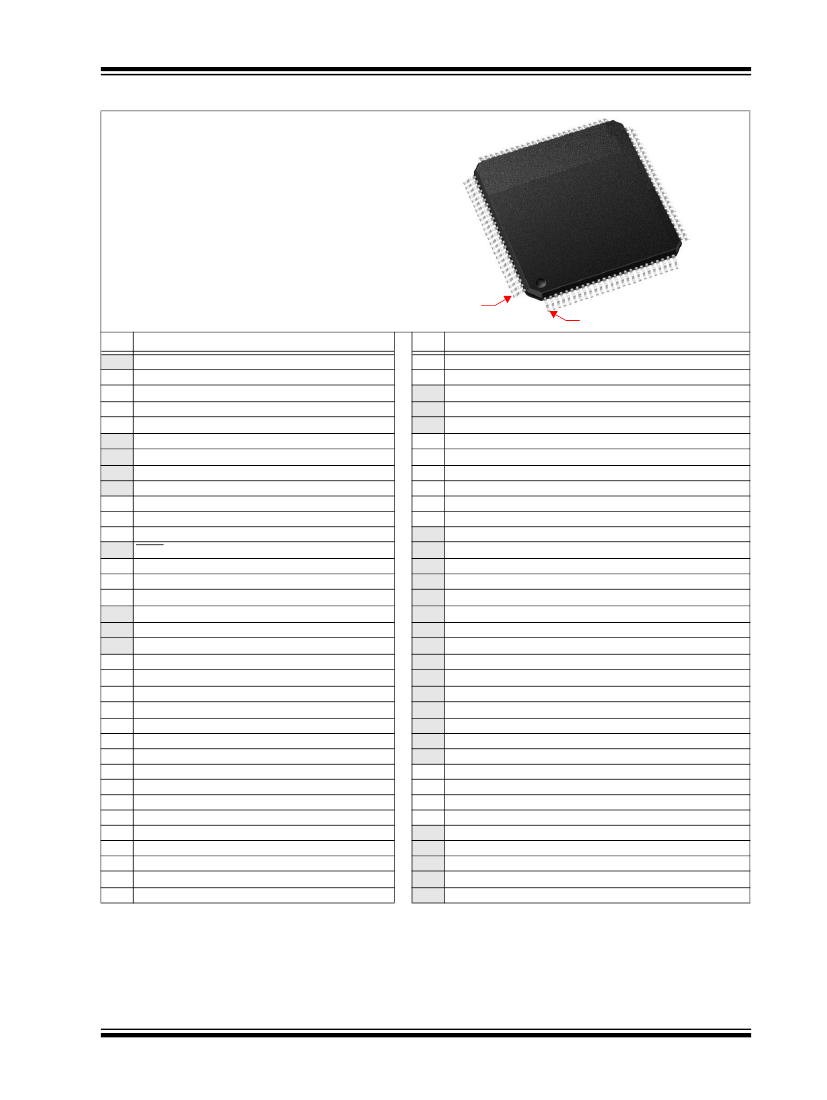

Packages

Type

QFN

TQFP

100

0.40

12x12x1

100

0.50

14x14x1

VTLA

124

0.50

9x9x0.9

Pin Count

I/O Pins (up to)

Contact/Lead Pitch

0.50

Dimensions

9x9x0.9

10x10x1

Note:

All dimensions are in millimeters (mm) unless specified.



2012-2015 Microchip Technology Inc.

DS60001185E-page 1
