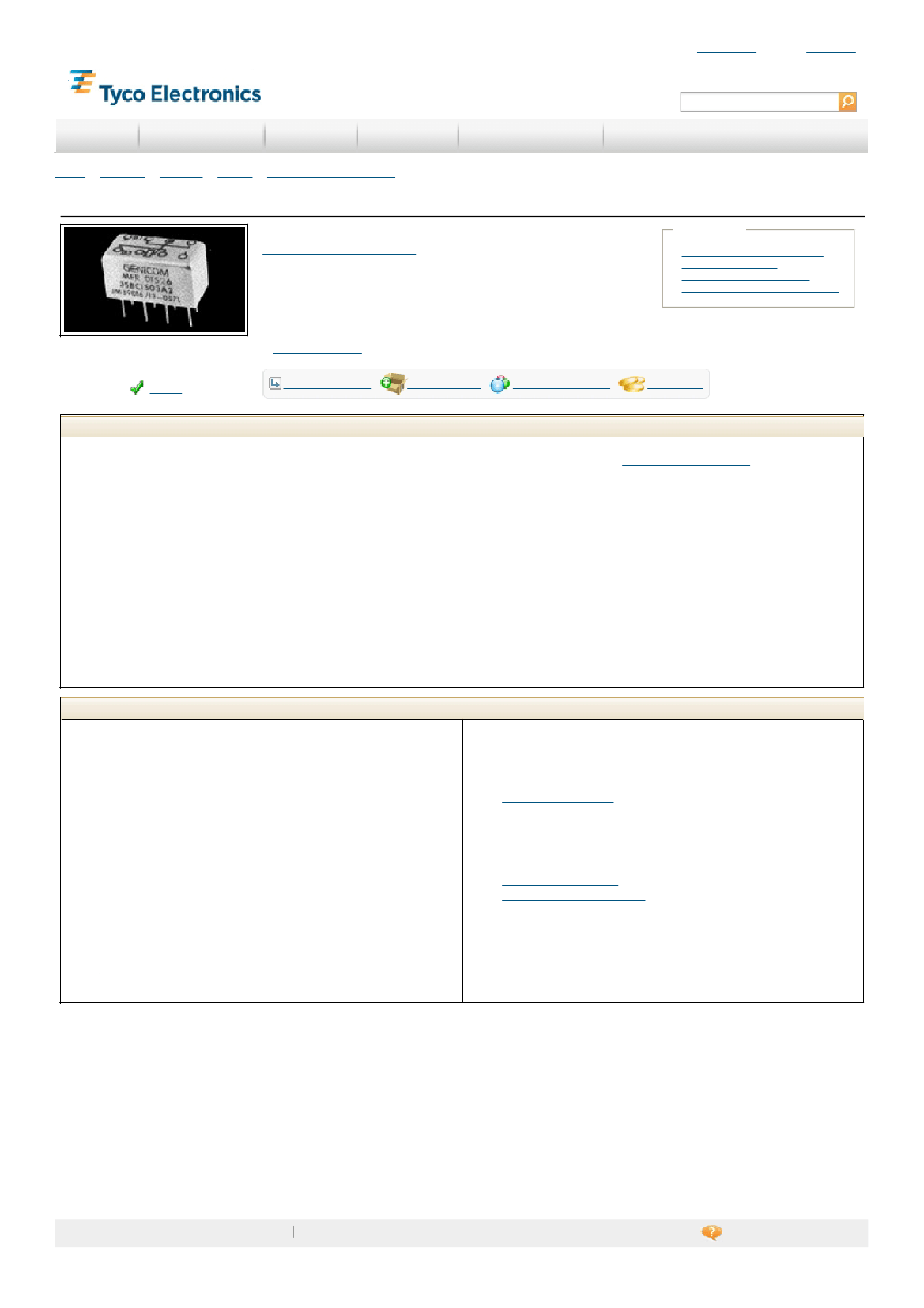

3SBC5134A1 Product Details
Military/Aerospace High Performance Relays
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
3SBC5134A1
(9-1617347-4)
T E I nternal N umber: 9 - 1 6 1 7 3 4 7 - 4
Product Highlights:
l
3SBC 1/5-Size Relay Series
l
Input Voltage = 5 VDC
l
C ontact Arrangement = 2 Form C , DPDT, 2 C /O
l
C ontact C urrent Rating = 2 Amps.
l
Non Polarized, Monostable C oil Magnetic System
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Termination Type = PC Pins
Electrical Characteristics:
l
Input Voltage (VDC ) = 5
l
C ontact C urrent Rating (Amps.) = 2
l
C oil Polarity Protection Diode = Without
l
Transistor Driver = Without
l
C oil Resistance (?) = 44
l
MOSFET Driver = Without
l
C oil Power Measurement = Milliwatts
l
C oil Power, Nominal (mW) = 568
l
Actuating System = DC
l
Shock = 100G's, 11ms
l
Vibration = 30G's, 10 to 3000Hz
Body Related Features:
l
Series
= 3SBC 1/5-Size Relay
Contact Related Features:
l
Mounting Options = C hassis Mount
l
Enclosure = Hermetically Sealed
Configuration Related Features:
l
C ontact Arrangement
= 2 Form C , DPDT, 2 C /O
l
C oil Magnetic System = Non Polarized, Monostable
l
C oil Suppression Diode = Without
Industry Standards:
l
Government/Industry Qualification = No
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Not suitable for lead free processing
Conditions for Usage:
l
Temperature Range (?C ) = -65 – +125
Other:
l
Brand = C II
