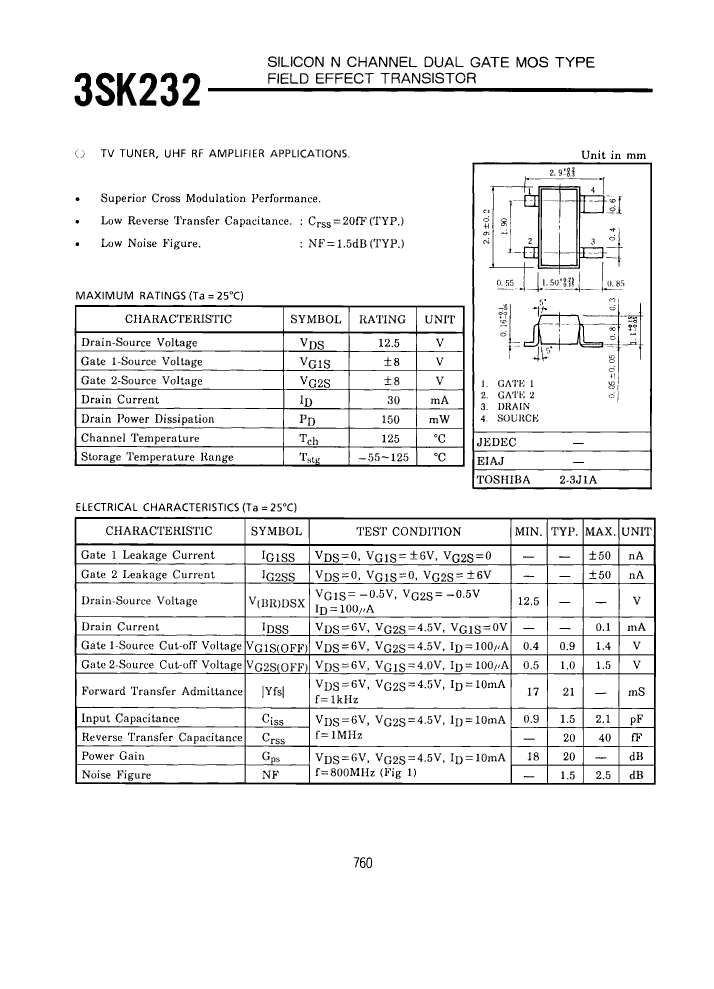

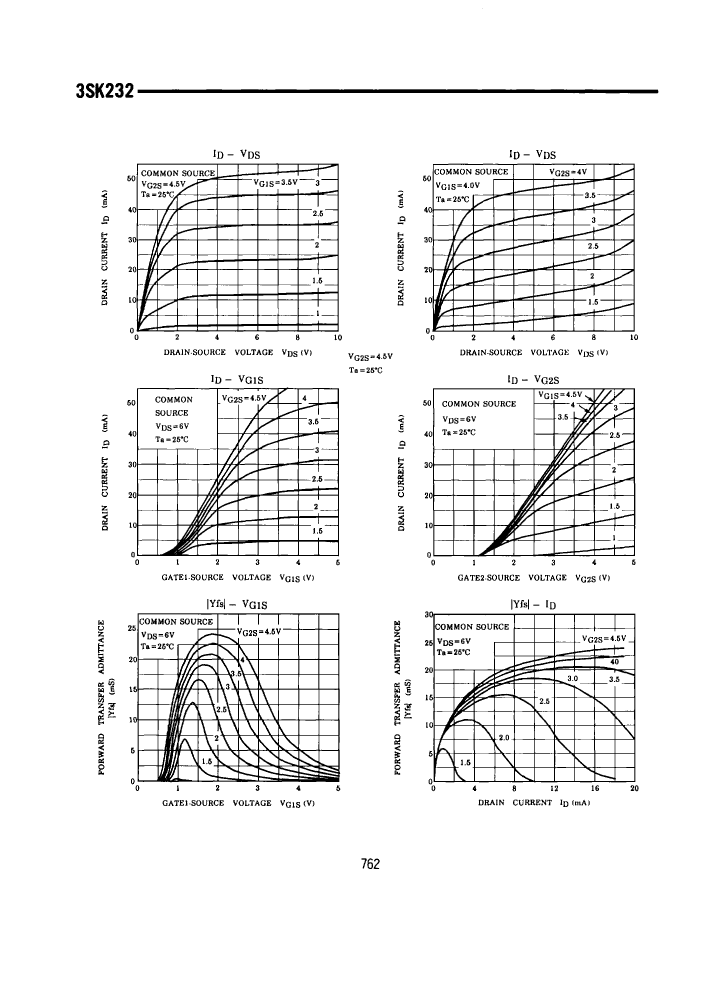

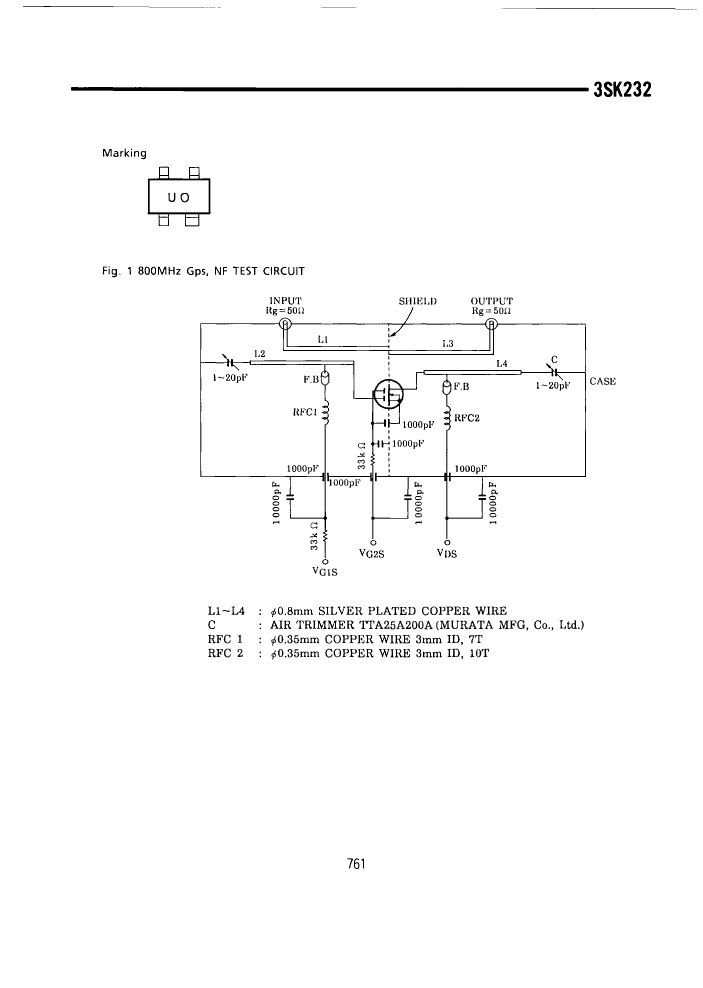

3SK232TE85L: DescriptionTRANSISTOR UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size79KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

3SK232TE85L Overview

TRANSISTOR UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	SOURCE
Configuration	SINGLE
Minimum drain-source breakdown voltage	12.5 V
Maximum drain current (ID)	0.03 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.04 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, DEPLETION MODE
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	18 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

	3SK232TE85L	3SK232TE85R
Description	TRANSISTOR UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal	TRANSISTOR UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Shell connection	SOURCE	SOURCE
Configuration	SINGLE	SINGLE
Minimum drain-source breakdown voltage	12.5 V	12.5 V
Maximum drain current (ID)	0.03 A	0.03 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.04 pF	0.04 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Number of components	1	1
Number of terminals	4	4
Operating mode	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE
Maximum operating temperature	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	18 dB	18 dB
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
