8K2011-TL2-F3 datasheet, PDF - EEWORLD Datasheet

8K2011-TL2-F3: DescriptionToggle Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Toggle Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size362KB，2 Pages; ManufacturerFujisoku Corporation

Download Datasheet Parametric Compare View All

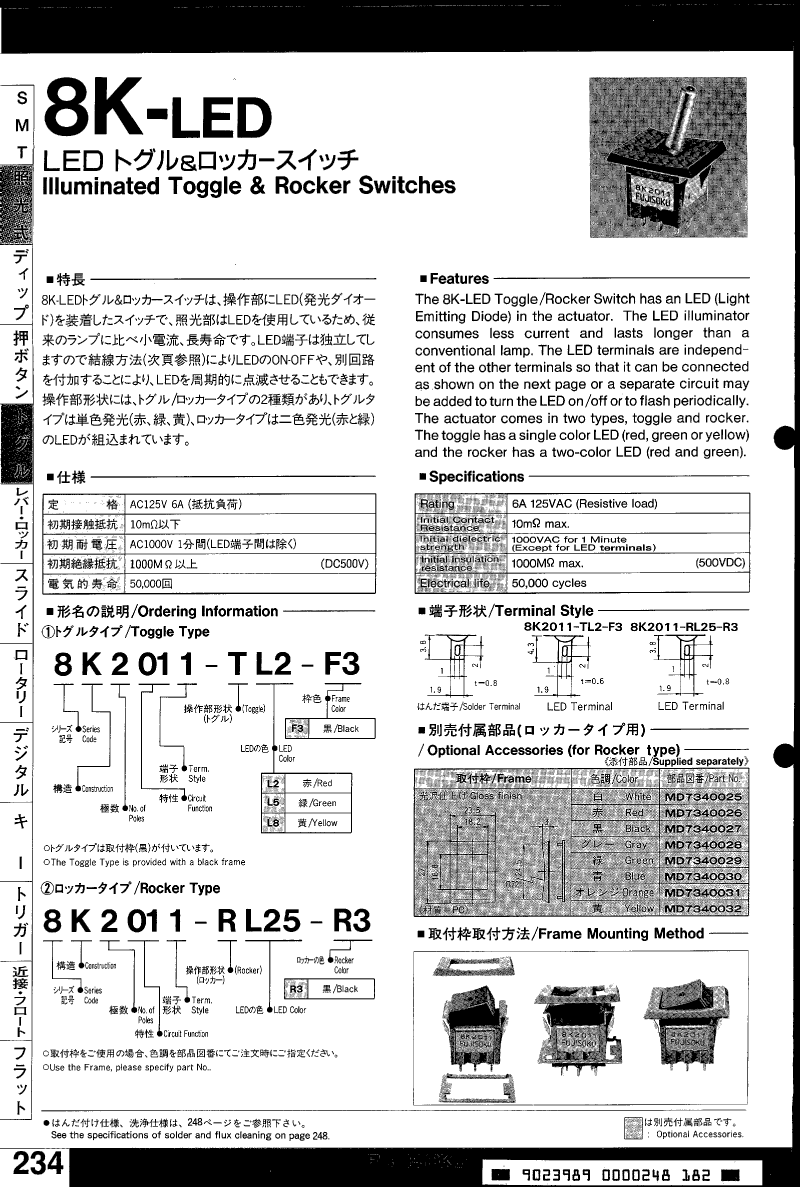

8K2011-TL2-F3 Overview

Toggle Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Toggle Actuator, Panel Mount,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Actuator angle	34 deg
Actuator length	0.846 inch
Actuator type	TOGGLE
Other features	RED LED
body width	17.5006 mm
Body color	BLACK
Body length or diameter	18.796 mm
Nozzle length
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Contact function	ON-ON
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1000VAC V
Electrical life	50000 Cycle(s)
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8K
Installation features	PANEL MOUNT
Solderability	HAND
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SOLDER LUG
Washability	SOLVENT
Base Number Matches	1

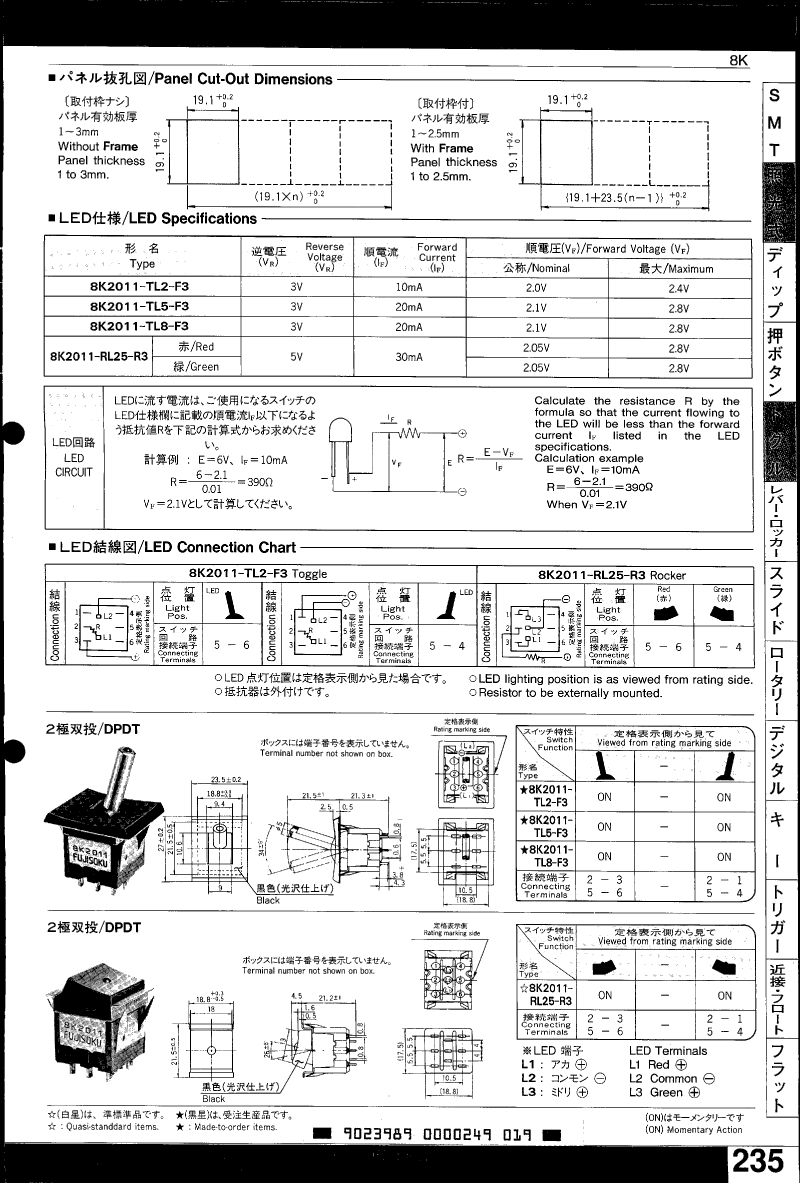

	8K2011-TL2-F3	8K2011-RL25-R3
Description	Toggle Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Toggle Actuator, Panel Mount,	Rocker Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount,
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Actuator angle	34 deg	26 deg
Actuator length	0.846 inch	0.197 inch
Actuator type	TOGGLE	ROCKER
Other features	RED LED	RED & GREEN LED
body width	17.5006 mm	17.5006 mm
Body length or diameter	18.796 mm	18.796 mm
Contact (AC) maximum rated R load	6A@125VAC	6A@125VAC
Maximum contact current (AC)	6 A	6 A
Contact function	ON-ON	ON-ON
Contact resistance	0.01 mΩ	0.01 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V	125 V
Dielectric withstand voltage	1000VAC V	1000VAC V
Electrical life	50000 Cycle(s)	50000 Cycle(s)
Insulation resistance	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	8K	8K
Installation features	PANEL MOUNT	PANEL MOUNT
Solderability	HAND	HAND
surface mount	NO	NO
Switch action	HORIZONTAL	HORIZONTAL
switch function	DPDT	DPDT
Switch type	TOGGLE SWITCH	ROCKER SWITCH
Termination type	SOLDER LUG	SOLDER LUG
Washability	SOLVENT	SOLVENT
Base Number Matches	1	1
