BI3U-M12-RP6X-0.2-RS4T Overview

Inductive Sensor,

BI3U-M12-RP6X-0.2-RS4T Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Base Number Matches	1

Preview

Download Datasheet

View All

BI3U-M12-RP6X-0.2-RS4T

Inductive sensor

Features

■

M12 × 1 threaded barrel

■

Chrome-plated brass

■

Factor 1 for all metals

■

Protection class IP68

■

Resistant to magnetic fields

■

Extended temperature range

■

High switching frequency

■

DC 3-wire, 10…30 VDC

■

NO contact, PNP output

■

Pigtail with male end M12 x 1

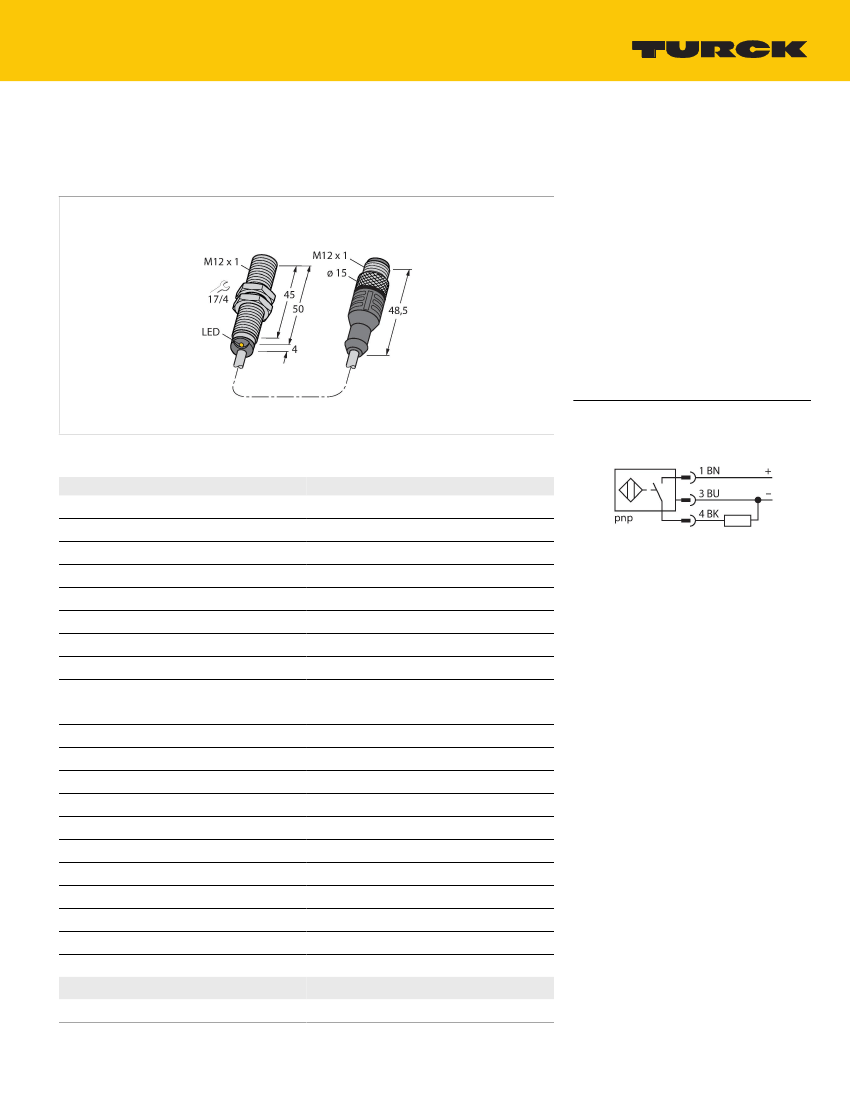

Wiring diagram

Technical data

Type

Ident. no.

Rated switching distance

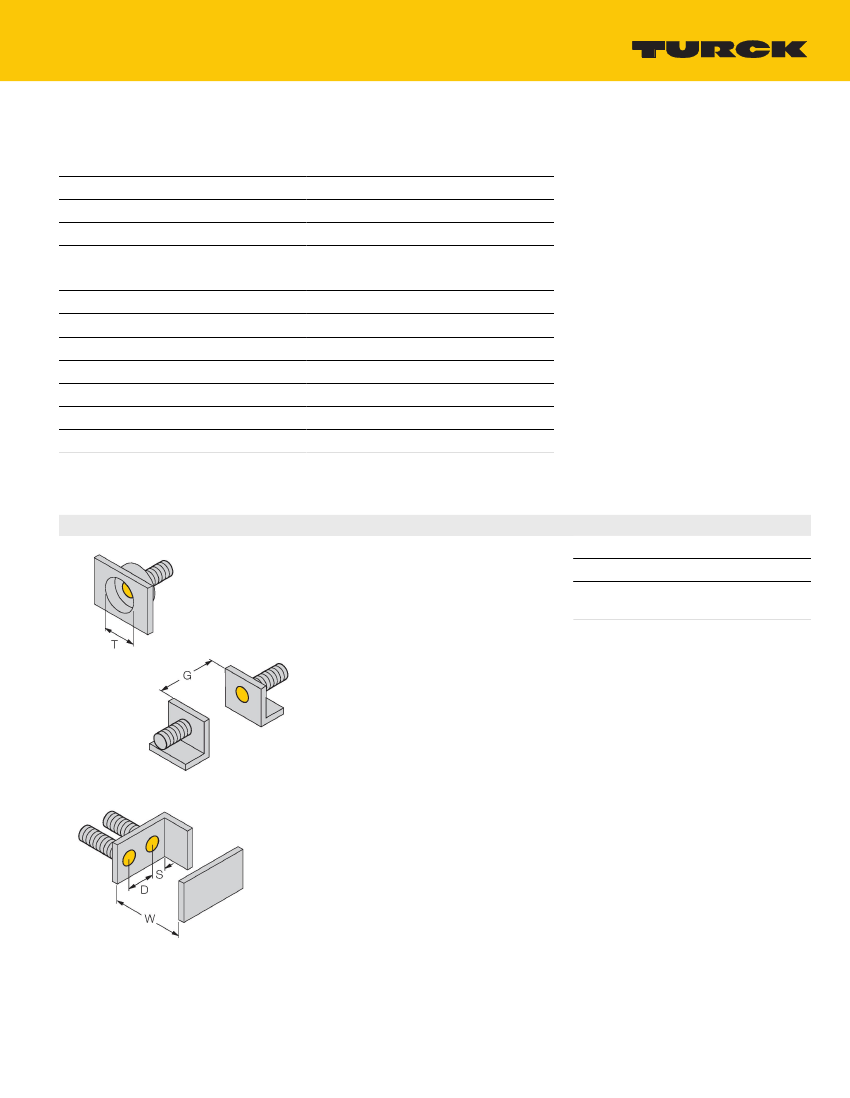

Mounting conditions

Secured operating distance

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at

Wire breakage/Reverse polarity protection

Output function

Insulation class

Switching frequency

Design

Dimensions

BI3U-M12-RP6X-0.2-RS4T

16341020

3 mm

Flush

≤ (0,81 x Sn) mm

≤ 2 % of full scale

≤ ± 10 %

≤ ± 15 %, ≤ ‐25 °C v ≥ +70 °C

3…15 %

-30…+85 °C

10…30 VDC

≤ 10 % U

ss

≤ 200 mA

≤ 15 mA

≤ 0.1 mA

≤ 0.5 kV

yes / Cyclic

≤ 1.8 V

yes / Complete

3-wire, NO contact, PNP

÷

2 kHz

Threaded barrel,M12 × 1

54 mm

Functional principle

Inductive sensors detect metal objects contactless

and wear-free.

uprox®

Factor 1 sensors have

significant advantages due to their patented

ferrite-coreless multicoil system. They detect all

metals at the same large switching distance and

are resistant to magnetic fields.

BI3U-M12-RP6X-0.2-RS4T| 11/19/2019 16-17 | technical changes reserved

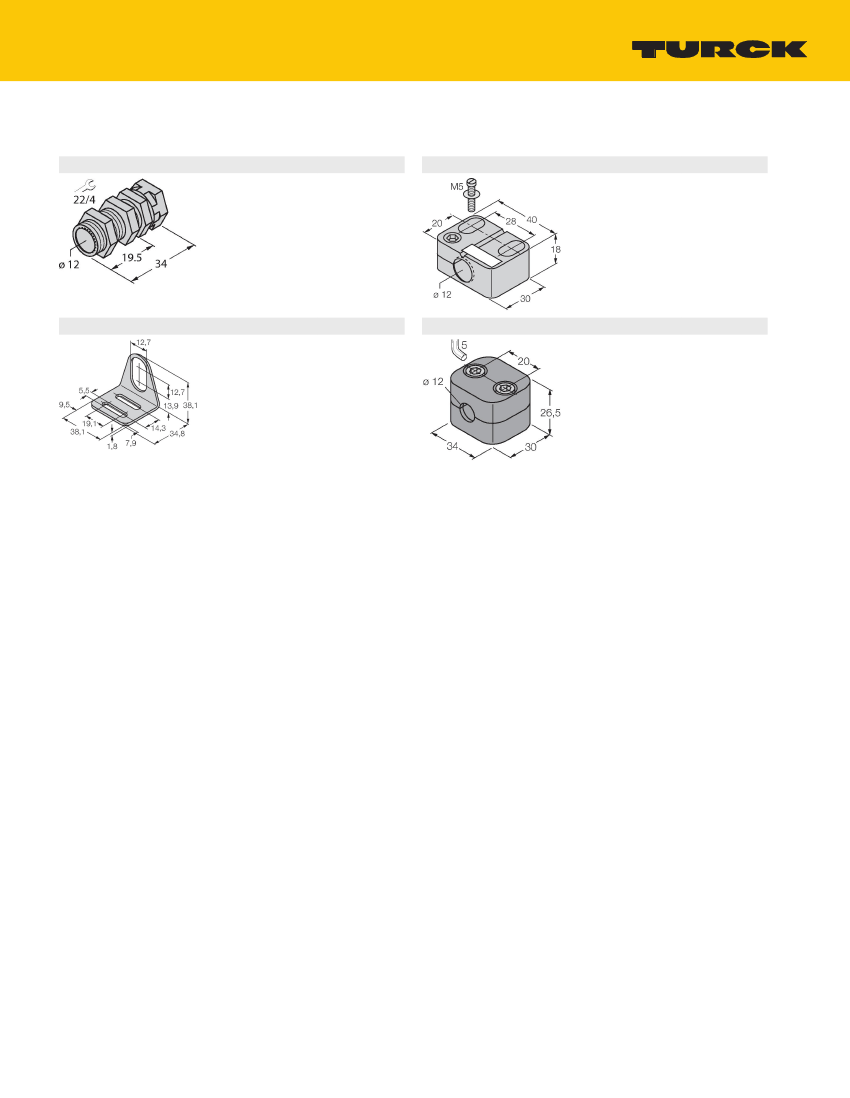

1|3
