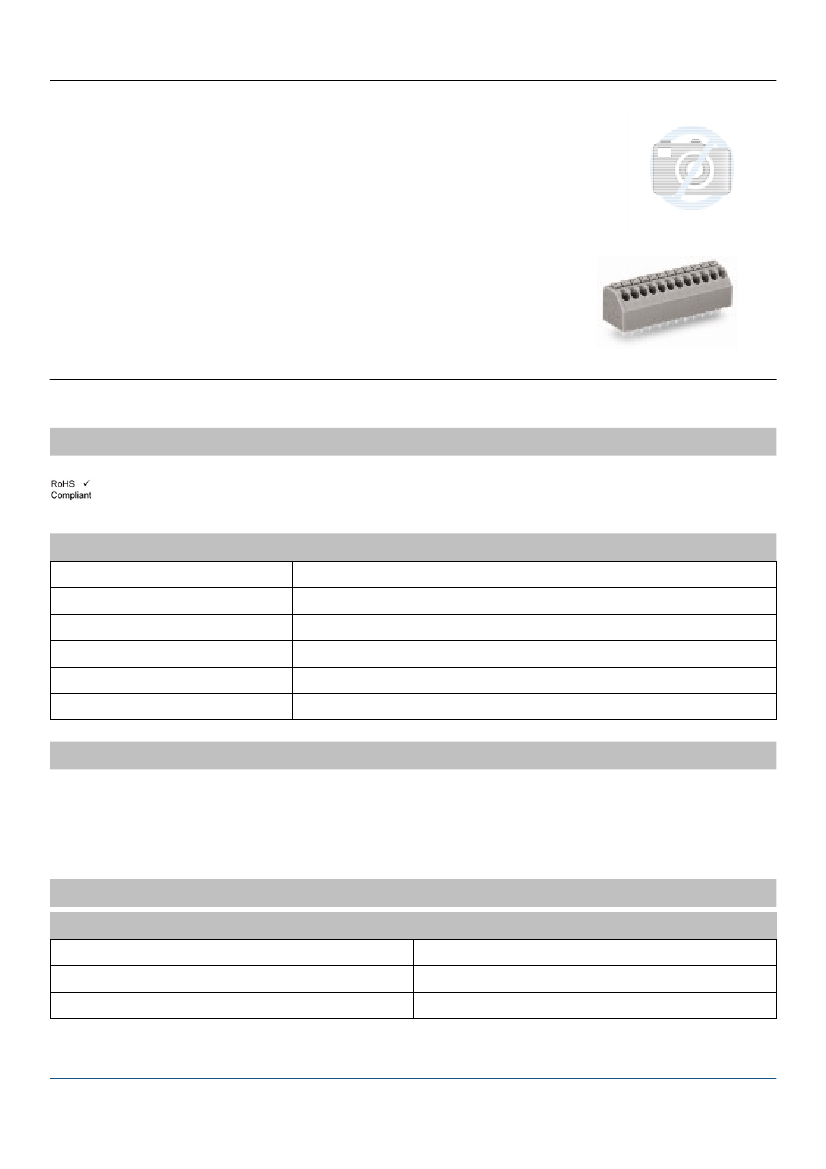

Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 4-pole; Push-in CAGE CLAMP®
- Item No.: 250-104
.
PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 4-
pole; Push-in CAGE CLAMP®
Item No.: 250-104
.
PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 4-pole; Push-in CAGE CLAMP®
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
250-104
4044918647151
1
75
Item description:Compact terminal strips with push-buttonsSimple, push-in terminations of solid and ferruled
conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides
easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon request
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
4
3.5 mm (0.138 in)
4
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 4-pole; Push-in CAGE CLAMP®
- Item No.: 250-104
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
4
gray
IEC/EN 60664-1
160 [V]
2.5 [kV]
2
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
8 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
Push-in CAGE CLAMP®
1
Operating lever
0.2 … 1.5 mm² / 24 … 16 AWG
0.2 … 1.5 mm² / 24 … 16 AWG
0.25 … 1 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 1 mm² / …
Strip length
Conductor entry angle to the PCB [°]
Solder pin arrangement
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact plating
Fire load [MJ]
8.5 … 9.5 mm / 0.33 … 0.37 Inch
45 [°]
in line
3.6 [mm]
1(+ 0.1) [mm]
I
Polyamide 66 (PA 66)
V0
-60 … 105 °C
Copper alloy
tin-plated
0.046 [MJ]
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 4-pole; Push-in CAGE CLAMP®
- Item No.: 250-104
Technical data
Weight [g]
Width
Height
Height from the surface
Depth
2.005 [g]
15.5 mm / 0.61 Inch
16.7 mm / 0.657 Inch
13.1 mm / 0.516 Inch
12 mm / 0.472 Inch
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 4-pole; Push-in CAGE CLAMP®
- Item No.: 250-104

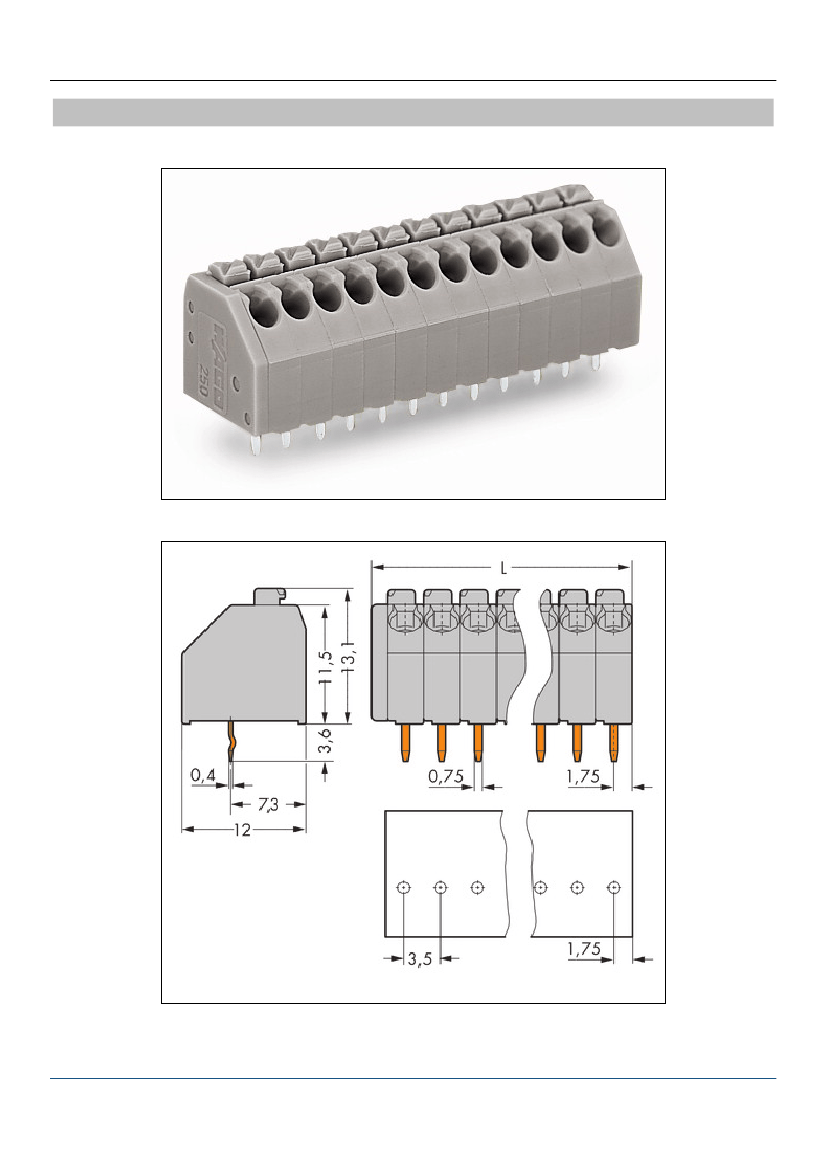

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
4
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 4-pole; Push-in CAGE CLAMP®
- Item No.: 250-104
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
5
