BYW29-200-HE3/45 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BYW29-200-HE3/45

BYW29-200-HE3/45: DescriptionDIODE 8 A, 200 V, SILICON, RECTIFIER DIODE, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size128KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BYW29-200-HE3/45 Overview

DIODE 8 A, 200 V, SILICON, RECTIFIER DIODE, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode

BYW29-200-HE3/45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-220AC
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	3
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

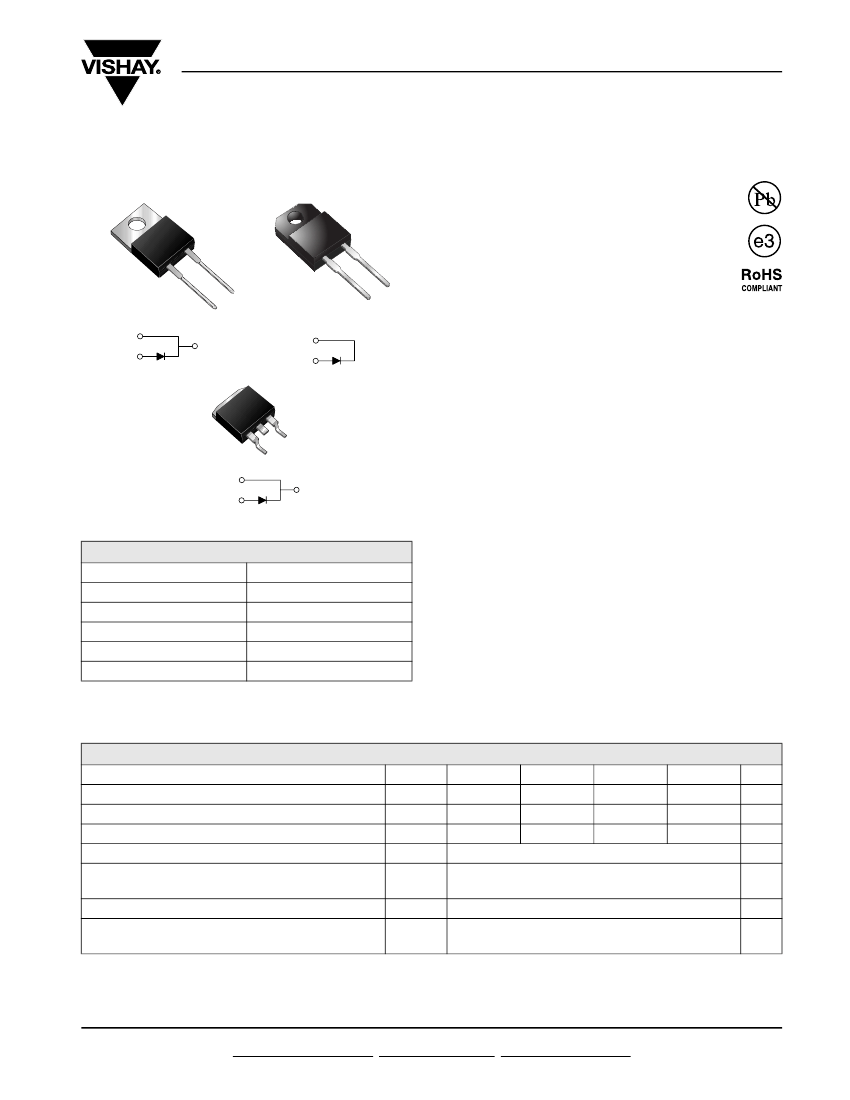

BYW(F,B)29-50 thru BYW(F,B)29-200

Vishay General Semiconductor

Ultrafast Rectifier

TO-220AC

ITO-220AC

BYW29 Series

PIN 1

PIN 2

BYWF29 Series

PIN 1

CASE

PIN 2

TO-263AB

FEATURES

• Glass passivated chip junction

• Ultrafast recovery time

• Low switching losses, high efficiency

• Low forward voltage drop

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AC and

ITO-220AC package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode

power supplies, inverters, freewheeling diodes,

dc-to-dc converters, and other power switching

application.

MECHANICAL DATA

Case:

TO-220AC, ITO-220AC, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class

1A whisker test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

BYWB29 Series

PIN 1

PIN 2

HEATSINK

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

8.0 A

50 V to 200 V

100 A

25 ns

0.8 V

150 °C

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 105 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Operating and storage temperature range

Isolation voltage (ITO-220AC only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

, T

STG

BYW29-50

BYW29-100

100

8.0

100

- 65 to + 150

1500

BYW29-150

150

105

150

BYW29-200

200

140

200

UNIT

°C

Document Number: 88560

Revision: 07-Nov-07
