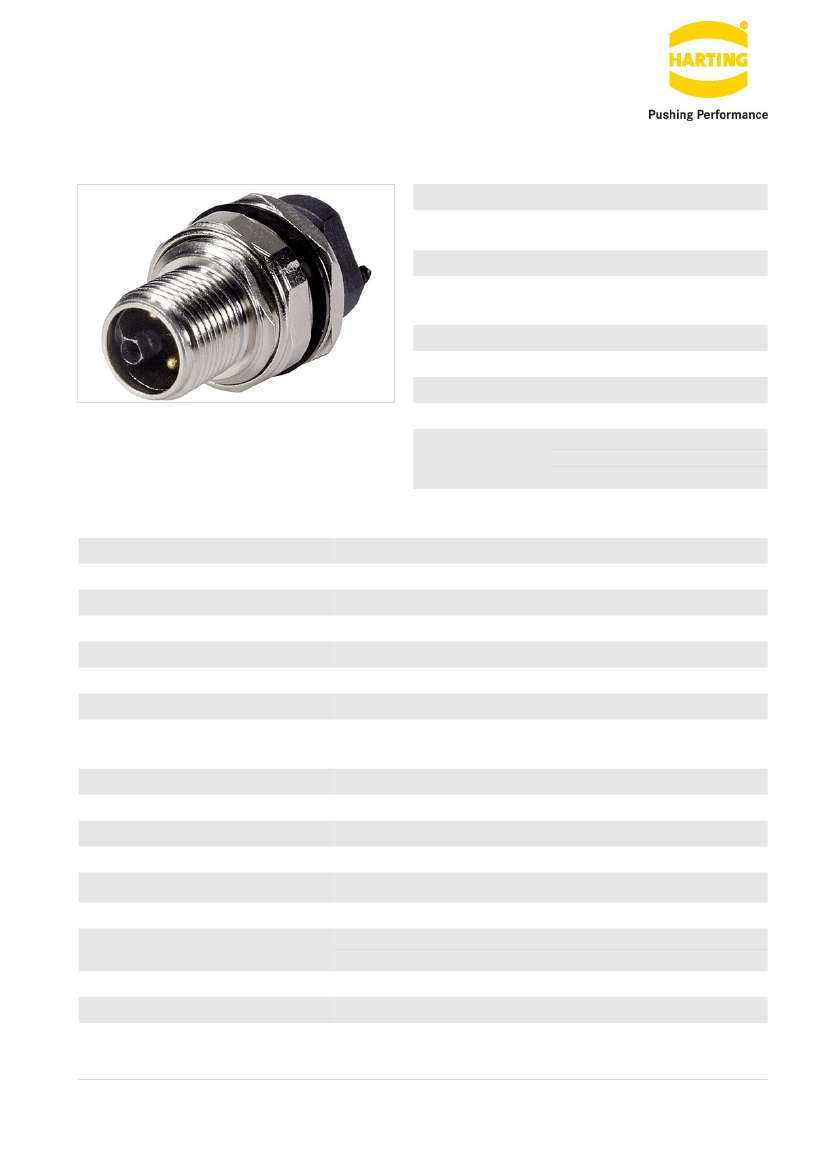

Product data sheet
21 03 396 1533
PCB r. hous. & insert back M. 1pc w/o FE
PCB r. hous. & insert back M. 1pc w/o FE
Part number
Specification
HARTING eCatalogue
21 03 396 1533
PCB r. hous. & insert back M. 1pc w/o
FE
https://b2b.harting.com/21033961533
Identification
Category
Series
Identification
Element
Specification
Connector
Circular connectors M12
M12 Power
PCB adapter
Straight
incl. housing
for rear mounting
Version
Termination method
Gender
Locking type
Shielding
Number of contacts
Coding
Pack contents
Reflow soldering termination (THR)
Male
Screw locking
Shielded
4
L-coding
Packaging unit: 1 piece in a cardboard box
Technical characteristics
Rated current
Rated voltage
Rated impulse voltage
Pollution degree
Insulation resistance
Contact resistance
Ambient temperature
Mating cycles
Overvoltage category
16 A
63 V
1.5 kV
3
≥10
8
Ω
≤10 mΩ
-40 ... +85 °C
-5 ... +50 °C During connection
≥100
III
Page 1 / 2 | Creation date 2019-03-15 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany
Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
Product data sheet
21 03 396 1533
PCB r. hous. & insert back M. 1pc w/o FE
Technical characteristics
Isolation group
I (600 ≤ CTI)
Material properties
Material (insert)
Colour (insert)
Material (contacts)
Surface (contacts)
Material (hood/housing)
PA
Black
Copper alloy
Gold plated
Zinc die-cast
Commercial data
Packaging size
Net weight
Country of origin
European customs tariff number
eCl@ss
1
31 g
Romania
85366990
27440402 PCB connector
