5-796634-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 5-796634-4

5-796634-4: DescriptionSTRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size899KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-796634-4 Overview

STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

5-796634-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: IEC 998-1/998-2-1, PA 6-6, 94V-0, POLARIZED
Fastening method	SCREW
Manufacturer's serial number	796634
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	4
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

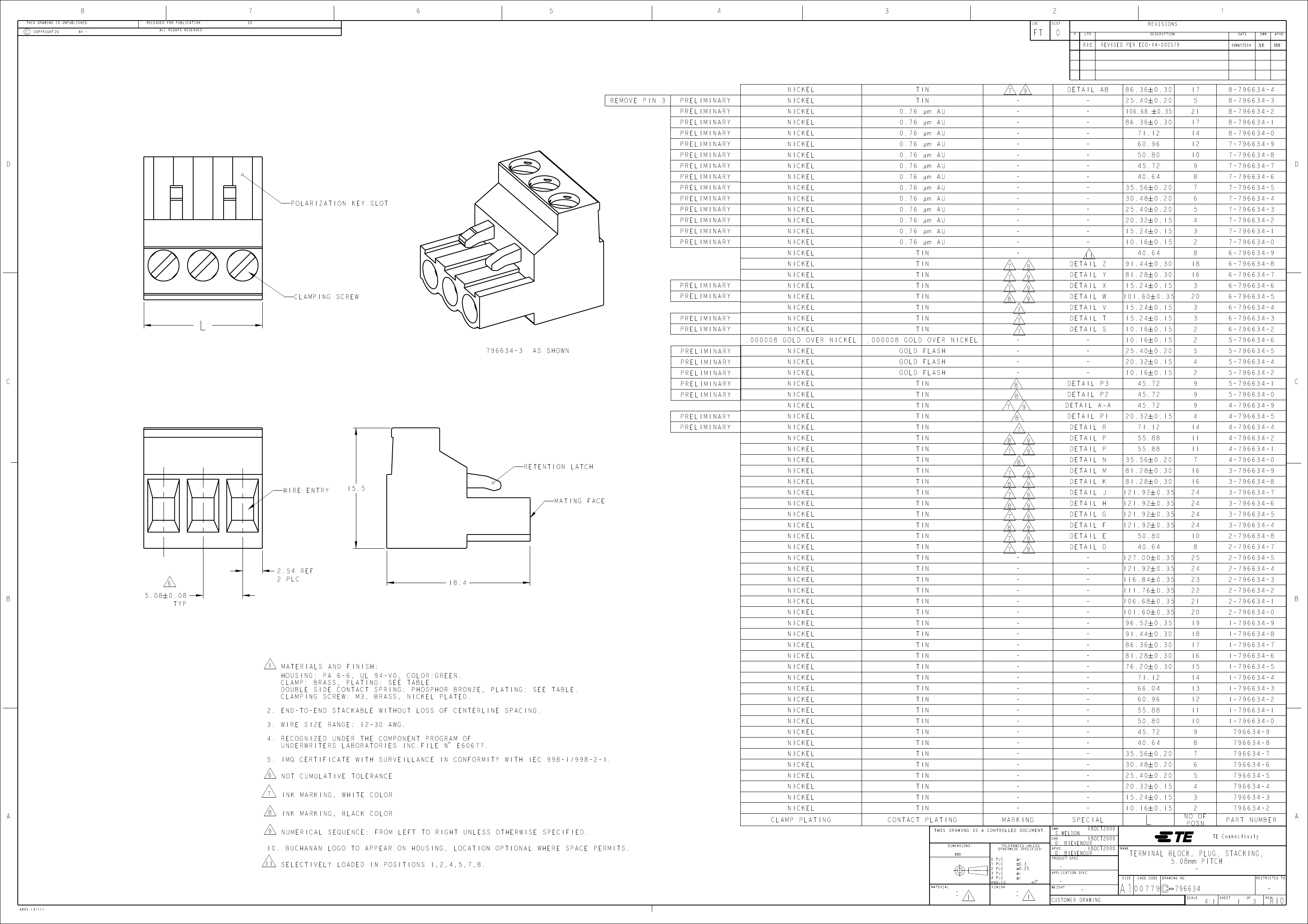

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

R10

REVISED PER ECO-14-000579

10MAY2014

NICKEL

REMOVE PIN 3

PRELIMINARY

POLARIZATION KEY SLOT

PRELIMINARY

NICKEL

PRELIMINARY

CLAMPING SCREW

PRELIMINARY

796634

-3

AS SHOWN

PRELIMINARY

NICKEL

.000008 GOLD OVER NICKEL

NICKEL

RETENTION LATCH

WIRE ENTRY

15.5

MATING FACE

NICKEL

2.54 REF

2 PLC

NICKEL

18.4

NICKEL

TIN

0.76 µm AU

TIN

.000008 GOLD OVER NICKEL

GOLD FLASH

TIN

CONTACT PLATING

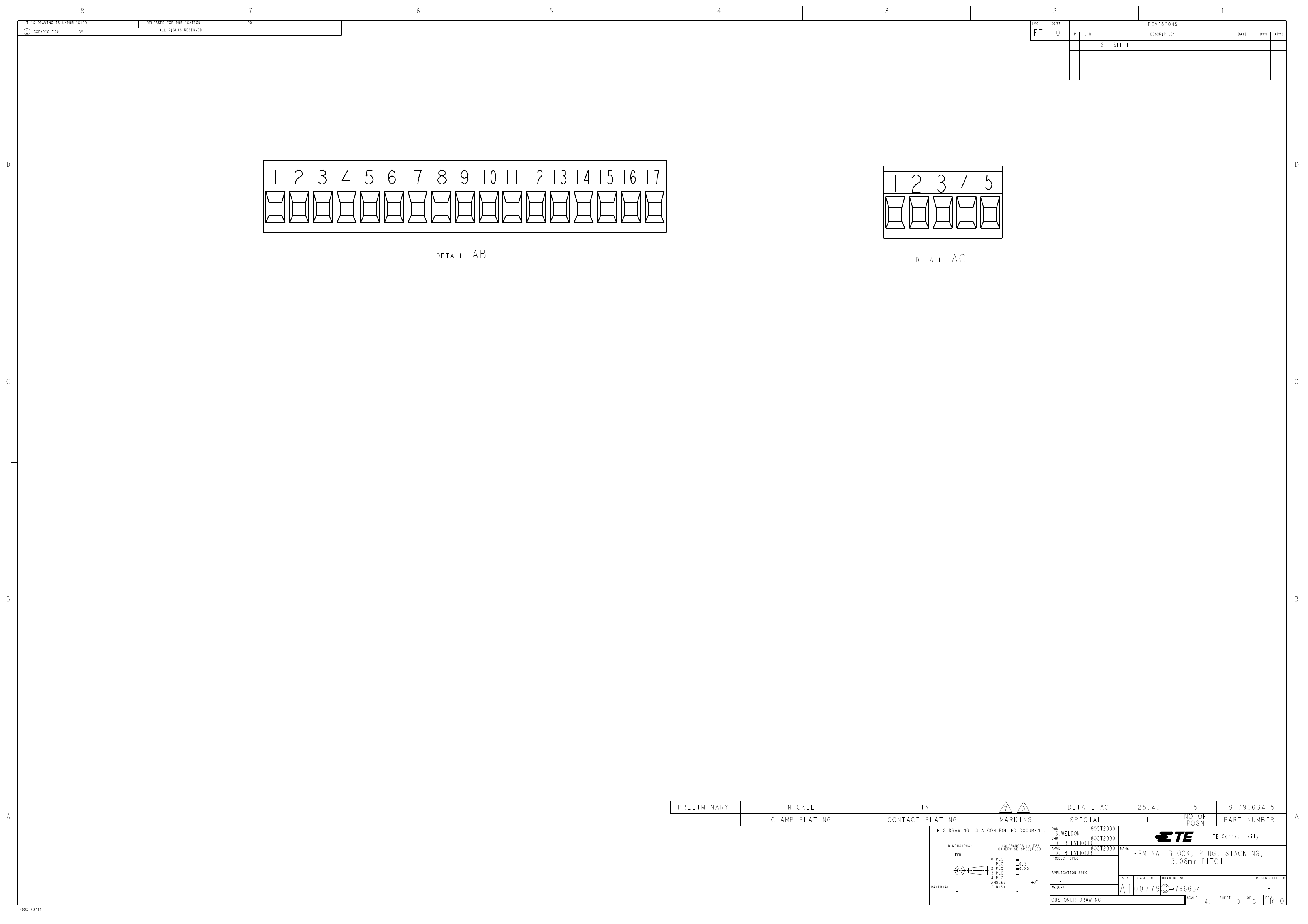

DETAIL AB

DETAIL Z

86.36 # 0.30

25.40 # 0.20

106.68 # 0.35

86.36 # 0.30

71.12

60.96

50.80

45.72

40.64

35.56 # 0.20

30.48 # 0.20

25.40 # 0.20

20.32 # 0.15

15.24 # 0.15

10.16 # 0.15

40.64

91.44 # 0.30

81.28 # 0.30

15.24 # 0.15

101.60 # 0.35

15.24 # 0.15

10.16 # 0.15

25.40 # 0.20

20.32 # 0.15

10.16 # 0.15

45.72

20.32 # 0.15

71.12

55.88

35.56 # 0.20

81.28 # 0.30

121.92 # 0.35

50.80

40.64

127.00 # 0.35

121.92 # 0.35

116.84 # 0.35

111.76 # 0.35

106.68 # 0.35

101.60 # 0.35

96.52 # 0.35

91.44 # 0.30

86.36 # 0.30

81.28 # 0.30

76.20 # 0.30

71.12

66.04

60.96

55.88

50.80

45.72

40.64

35.56 # 0.20

30.48 # 0.20

25.40 # 0.20

20.32 # 0.15

15.24 # 0.15

10.16 # 0.15

NO OF

POSN

8-796634-4

8-796634-3

8-796634-2

8-796634-1

8-796634-0

7-796634-9

7-796634-8

7-796634-7

7-796634-6

7-796634-5

7-796634-4

7-796634-3

7-796634-2

7-796634-1

7-796634-0

6- 796634 -9

6- 796634 -8

6- 796634 -7

6- 796634 -6

6- 796634 -5

6- 796634 -4

6- 796634 -3

6- 796634 -2

5- 796634 -6

5- 796634 -5

5- 796634 -4

5- 796634 -2

5- 796634 -1

5- 796634 -0

4- 796634 -9

4- 796634 -5

4- 796634 -4

4- 796634 -2

4- 796634 -1

4- 796634 -0

3- 796634 -9

3- 796634 -8

3- 796634 -7

3- 796634 -6

3- 796634 -5

3- 796634 -4

2- 796634 -8

2- 796634 -7

2- 796634 -5

2- 796634 -4

2- 796634 -3

2- 796634 -2

2- 796634 -1

2- 796634 -0

1- 796634 -9

1- 796634 -8

1- 796634 -7

1- 796634 -6

1- 796634 -5

1- 796634 -4

1- 796634 -3

1- 796634 -2

1- 796634 -1

1- 796634 -0

796634 -9

796634 -8

796634 -7

796634 -6

796634 -5

796634 -4

796634 -3

796634 -2

PART NUMBER

TE Connectivity

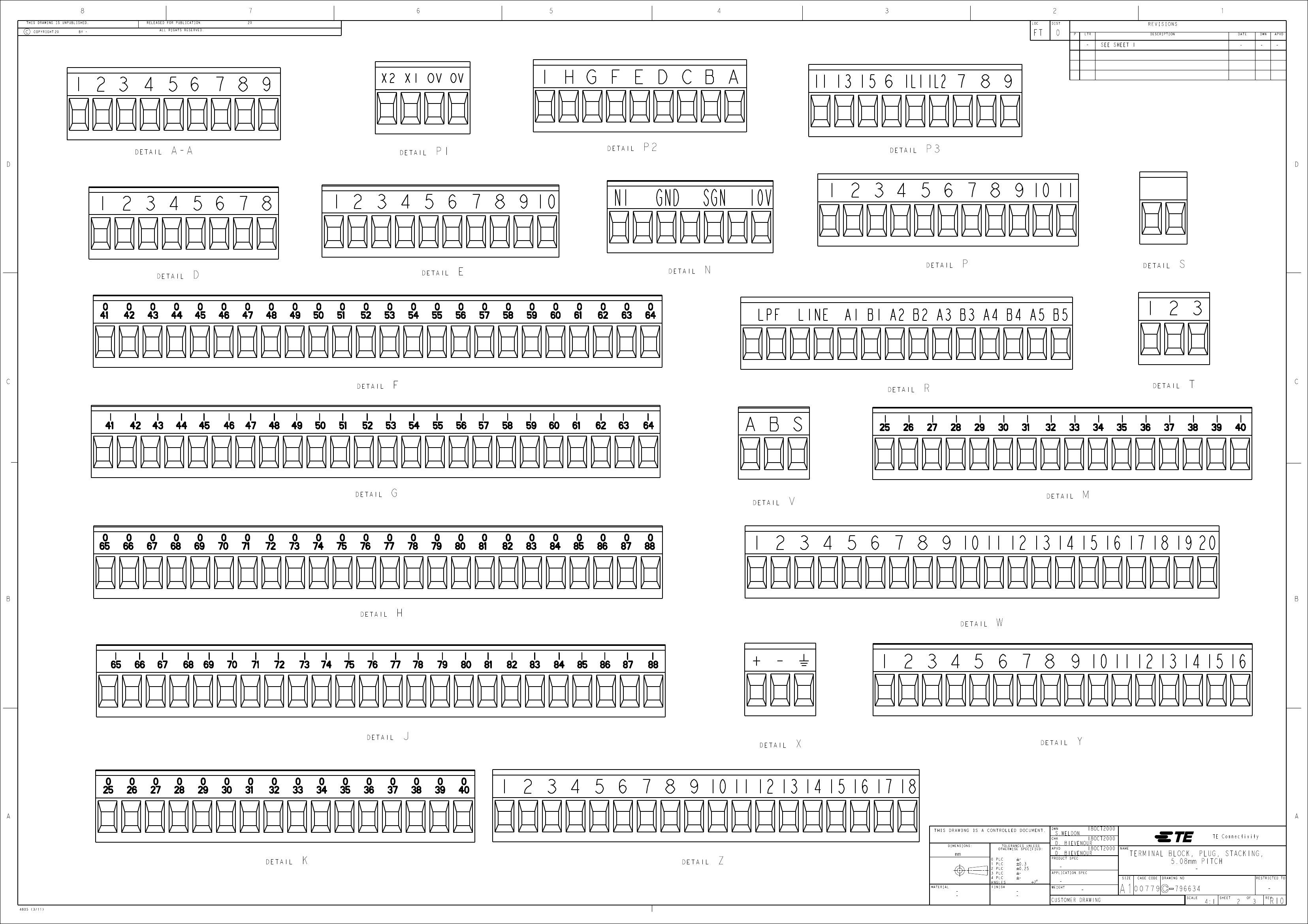

DETAIL Y

DETAIL X

DETAIL W

DETAIL V

DETAIL T

DETAIL S

DETAIL P3

DETAIL P2

DETAIL A-A

DETAIL P1

DETAIL R

DETAIL P

DETAIL N

DETAIL M

DETAIL K

DETAIL J

DETAIL H

DETAIL G

DETAIL F

DETAIL E

DETAIL D

SPECIAL

DWN

CHK

5.08

0.08

TYP

NICKEL

MATERIALS AND FINISH:

HOUSING: PA 6-6, UL 94-V0, COLOR:GREEN.

CLAMP: BRASS, PLATING: SEE TABLE.

DOUBLE SIDE CONTACT SPRING: PHOSPHOR BRONZE, PLATING: SEE TABLE.

CLAMPING SCREW: M3, BRASS, NICKEL PLATED.

NICKEL

CLAMP PLATING

2. END-TO-END STACKABLE WITHOUT LOSS OF CENTERLINE SPACING.

3. WIRE SIZE RANGE: 12-30 AWG.

4. RECOGNIZED UNDER THE COMPONENT PROGRAM OF

UNDERWRITERS LABORATORIES INC.FILE N $ E60677.

5. IMQ CERTIFICATE WITH SURVEILLANCE IN CONFORMITY WITH IEC 998-1/998-2-1.

NOT CUMULATIVE TOLERANCE

INK MARKING, WHITE COLOR

INK MARKING, BLACK COLOR

NUMERICAL SEQUENCE: FROM LEFT TO RIGHT UNLESS OTHERWISE SPECIFIED.

MARKING

S.WELDON

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

18OCT2000

NAME

10. BUCHANAN LOGO TO APPEAR ON HOUSING, LOCATION OPTIONAL WHERE SPACE PERMITS.

APVD

D. BIEVENOUR

SELECTIVELY LOADED IN POSITIONS 1,2,4,5,7,8.

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.25

PRODUCT SPEC

APPLICATION SPEC

2 $

WEIGHT

CUSTOMER DRAWING

00779

SIZE

TERMINAL BLOCK, PLUG, STACKING,

5.08mm PITCH

CAGE CODE

DRAWING NO

RESTRICTED TO

796634

SCALE

4805 (3/11)

4:1

SHEET

REV

R10

5-796634-4 Related Products

	5-796634-4	5-796634-2	5-796634-5
Description	STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
Is it Rohs certified?	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARDS: IEC 998-1/998-2-1, PA 6-6, 94V-0, POLARIZED	STANDARDS: IEC 998-1/998-2-1, PA 6-6, 94V-0, POLARIZED	STANDARDS: IEC 998-1/998-2-1, PA 6-6, 94V-0, POLARIZED
Fastening method	SCREW	SCREW	SCREW
Manufacturer's serial number	796634	796634	796634
Installation type	CABLE	CABLE	CABLE
Number of layers	1	1	1
Rows	1	1	1
Number of channels	4	2	5
safety certificate	UL	UL	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK
Wire gauge	12 AWG	12 AWG	12 AWG
Base Number Matches	1	1	1
