FHP-20-02-TM-S-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> FHP-20-02-TM-S-K

FHP-20-02-TM-S-K: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Locking, Black Insulator, Socket,; CategoryThe connector The connector; File Size185KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FHP-20-02-TM-S-K Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Locking, Black Insulator, Socket,

FHP-20-02-TM-S-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
body width	0.2 inch
subject depth	0.368 inch
body length	3.12 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact arrangement	S0P20
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	15.568 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Terminal pitch	3.96 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Evacuation force-minimum value	14.6784 N
Base Number Matches	1

Preview

Download Datasheet

View All

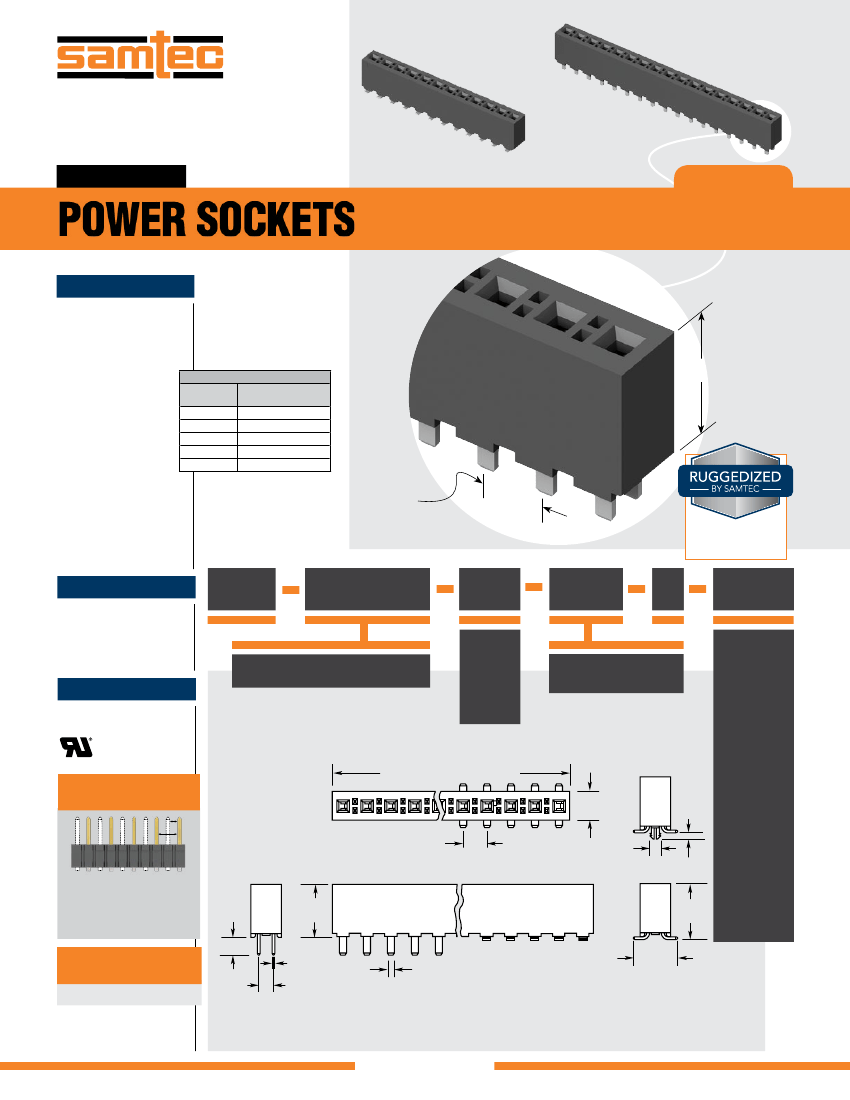

F-219 (Rev 19SEP19)

FHP–17–01–T–S

FHP–12–02–T–S

(3.96 mm) .156"

FHP SERIES

POWER SOCKETS

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?FHP

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Sn over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C

Voltage Rating:

600 VAC/845 VDC

Insertion Depth:

(3.57 mm) .140" to

(8.76 mm) .345" or

pass-through from top

Wiping Distance:

(0.38 mm) .015"

Standard Creepage:

(1.74 mm) .069" (without -LC)

(0.89 mm) .035" (with -LC)

Standard Clearance:

(1.39 mm) .055" (without -LC)

(0.59 mm) .023" (with -LC)

RoHS Compliant:

Yes

Mates with:

FWJ, HFWJ, JW

Surface Mount

Through-hole

PINS

FHP/HFWJ

CURRENT RATING

(PER CONTACT)

13.1 A

11.2 A

10.3 A

9.2 A

6.7 A

(8.89 mm)

.350"

(3.96 mm)

.156"

pitch

• Three-finger

Power Eye contact

• Locking clip option

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.15 mm) .006" max*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

FHP

NO. OF PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

OTHER

OPTION

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

02 thru 24

= Through-

hole

–01

–02

= Surface

Mount

= Matte Tin

(1.19)

.047

–T

= Locking Clip

(Manual

placement

required)

(–02 lead

style only)

–LC

(1.01)

.040

CREEPAGE

AND CLEARANCE

No. of Positions x (3.96) .156

(5.08)

.200

(3.96)

.156

(1.42)

.056

(0.94)

.037

= (6.50 mm)

.256" DIA

Polyimide

film Pick &

Place Pad

(2-4 positions

require –TR)

(–02 lead

style only)

–K

–LC

Selectively loading

contacts achieves customer

specific creepage and

clearance requirements.

Contact asp@samtec.com

(2.59)

.102

(8.89)

.350

(9.35)

.368

= Tape & Reel

Packaging

(Available on

positions 2-18)

–02 lead

style only

–TR

ALSO AVAILABLE

(MOQ Required)

• Alignment pins

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(0.46)

.018

(2.46)

.097

–01

(1.14)

.045

(7.11)

.280

–02

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
