54AC86DM datasheet, PDF - EEWORLD Datasheet

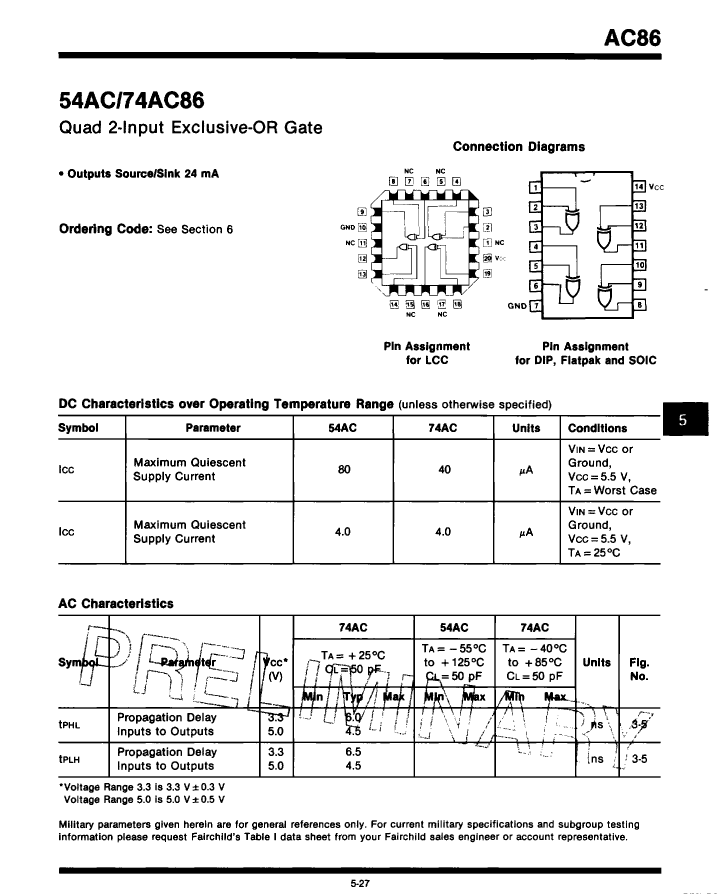

54AC86DM: DescriptionXOR Gate, AC Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size36KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

54AC86DM Overview

XOR Gate, AC Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
series	AC
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.43 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
MaximumI(ol)	0.012 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	14 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
