8753H/BQA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 8753H/BQA

8753H/BQA: DescriptionMicrocontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size175KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

8753H/BQA Overview

Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40

8753H/BQA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.3875 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	8192
ROM programmability	UVPROM
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.588 mm
speed	12 MHz
Maximum slew rate	275 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

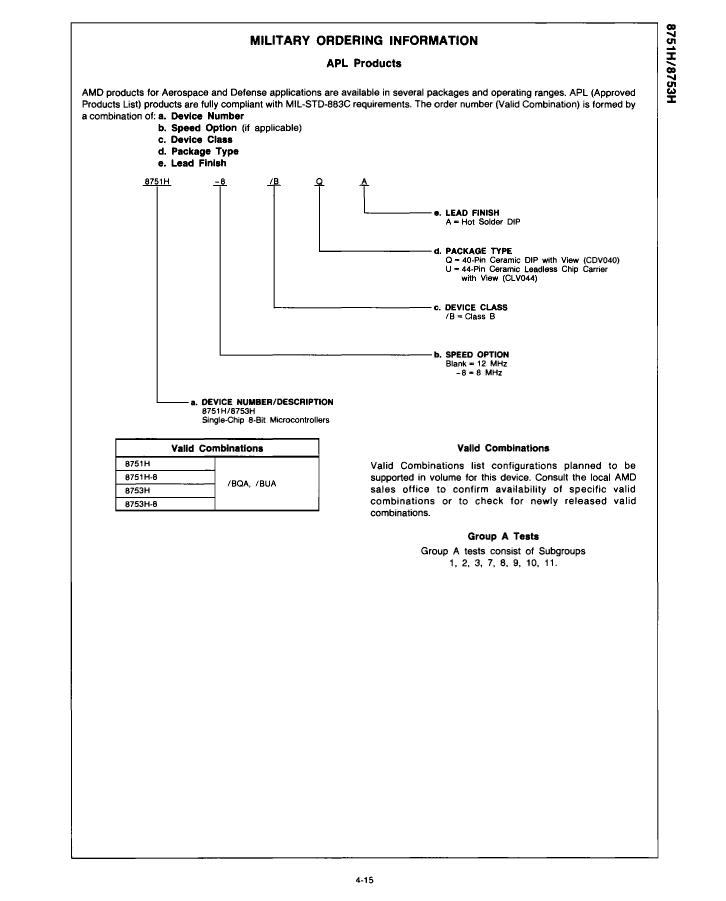

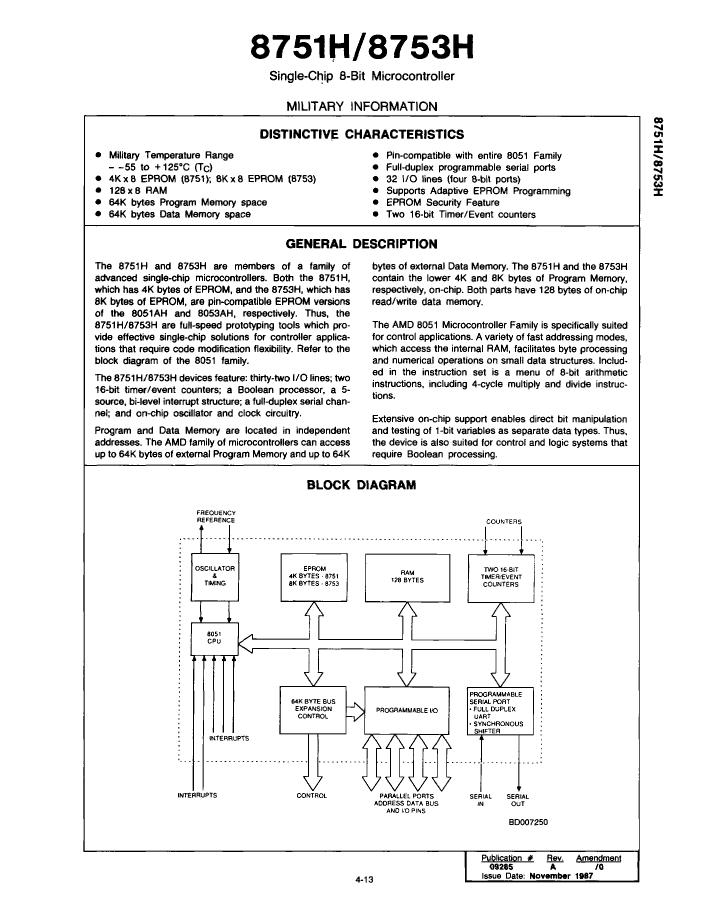

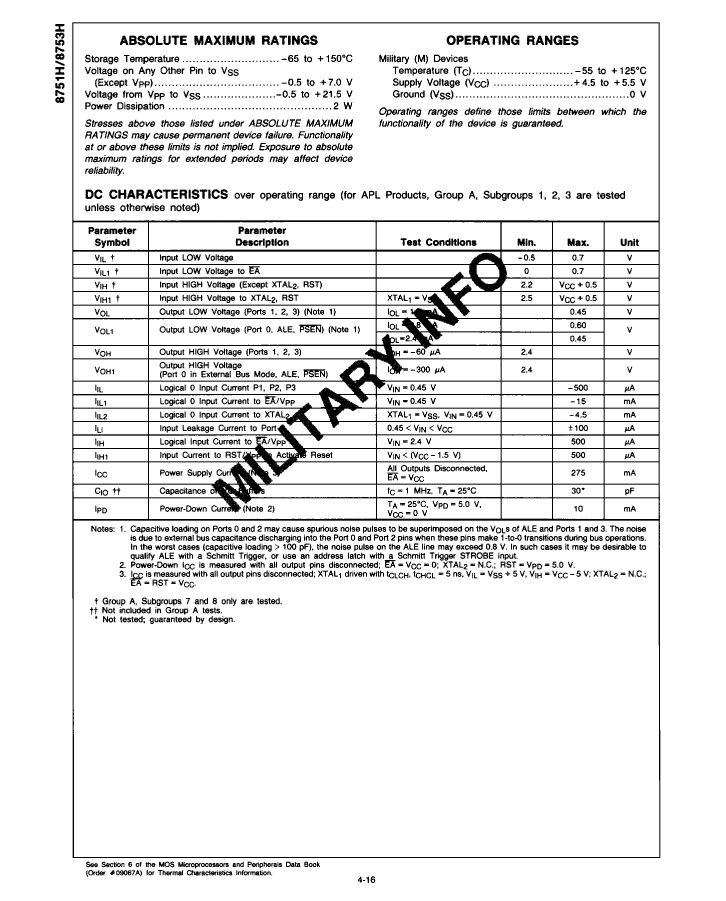

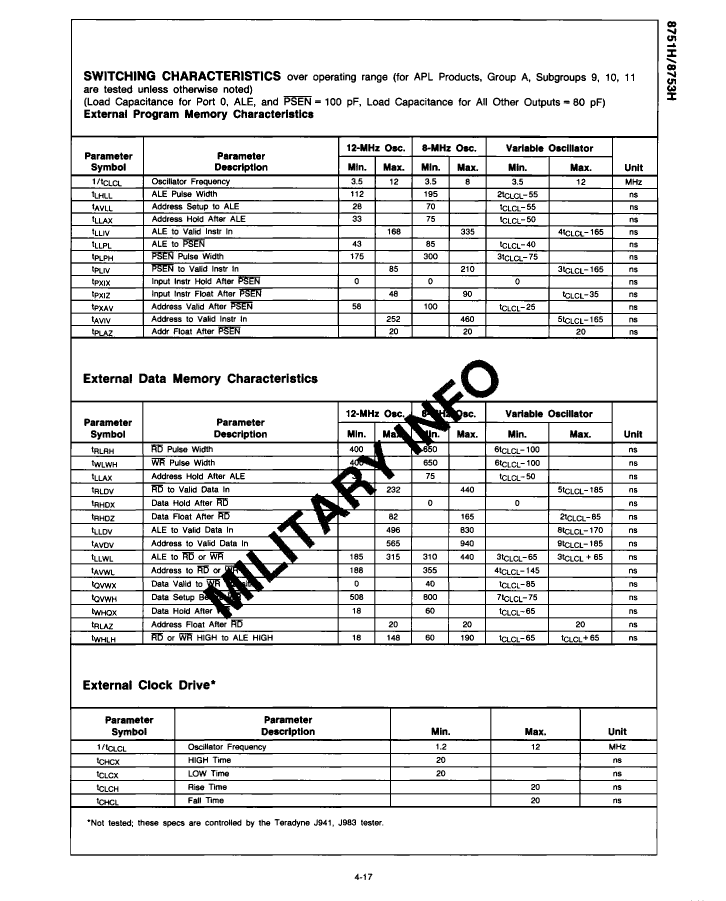

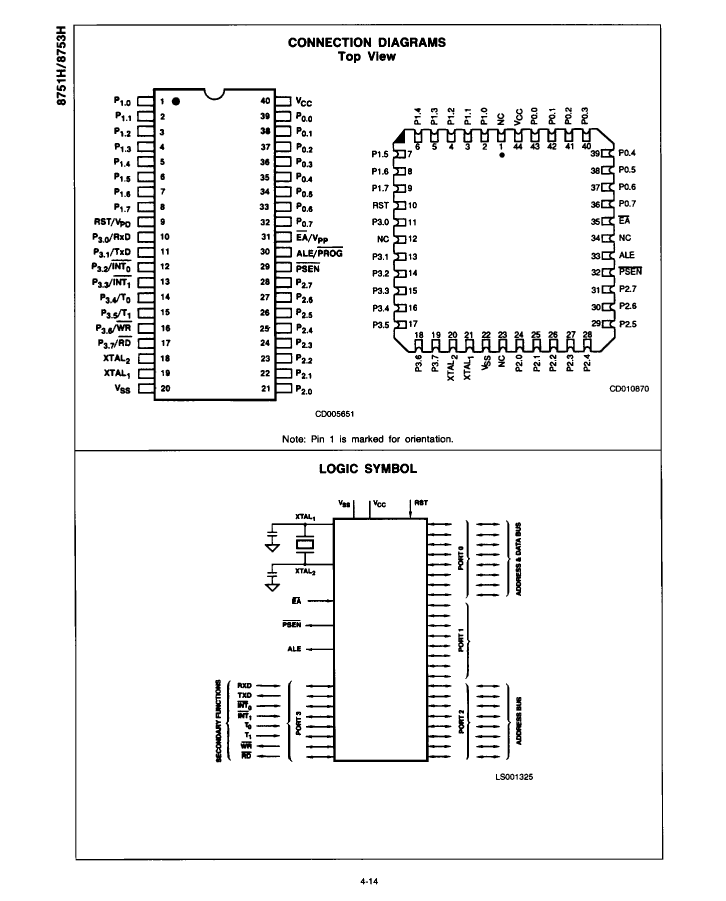

Preview

Download Datasheet

View All

8753H/BQA Related Products

	8753H/BQA	8751H-8/BQA	8751H-8/BUA	8753H-8/BUA	8751H/BQA	8753H-8/BQA	8751H/BUA	8753H/BUA
Description	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 8MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 8MHz, CMOS, CQCC44, CERAMIC, LCC-44	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 8MHz, CMOS, CQCC44, CERAMIC, LCC-44	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 8MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CQCC44, CERAMIC, LCC-44	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CQCC44, CERAMIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	LCC	LCC	DIP	DIP	LCC	LCC
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	QCCN, LCC44,.65SQ	CERAMIC, LCC-44	DIP, DIP40,.6	DIP, DIP40,.6	QCCN, LCC44,.65SQ	CERAMIC, LCC-44
Contacts	40	40	44	44	40	40	44	44
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051	8051	8051	8051
maximum clock frequency	12 MHz	8 MHz	8 MHz	8 MHz	12 MHz	8 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-GDIP-T40	R-GDIP-T40	S-CQCC-N44	S-CQCC-N44	R-GDIP-T40	R-GDIP-T40	S-CQCC-N44	S-CQCC-N44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	52.3875 mm	52.3875 mm	16.51 mm	16.51 mm	52.3875 mm	52.3875 mm	16.51 mm	16.51 mm
Number of I/O lines	32	32	32	32	32	32	32	32
Number of terminals	40	40	44	44	40	40	44	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	QCCN	QCCN	DIP	DIP	QCCN	QCCN
Encapsulate equivalent code	DIP40,.6	DIP40,.6	LCC44,.65SQ	LCC44,.65SQ	DIP40,.6	DIP40,.6	LCC44,.65SQ	LCC44,.65SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128	128	128	128	128	128
rom(word)	8192	4096	4096	8192	4096	8192	4096	8192
ROM programmability	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.588 mm	5.588 mm	3.556 mm	3.556 mm	5.588 mm	5.588 mm	3.556 mm	3.556 mm
speed	12 MHz	8 MHz	8 MHz	8 MHz	12 MHz	8 MHz	12 MHz	12 MHz
Maximum slew rate	275 mA	275 mA	275 mA	275 mA	275 mA	275 mA	275 mA	275 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	16.51 mm	16.51 mm	15.24 mm	15.24 mm	16.51 mm	16.51 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1	1	1	1	1
Maker	AMD	-	-	AMD	AMD	AMD	AMD	AMD
