5-829217-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-829217-9

5-829217-9: DescriptionEDGE CONNECTOR,CABLE MNT,18 CONTACTS,2,IDC TERMINAL; CategoryThe connector The connector; File Size419KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-829217-9 Overview

EDGE CONNECTOR,CABLE MNT,18 CONTACTS,2,IDC TERMINAL

5-829217-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE PACKAGING
Board mount options	EDGE MOUNT
body width	0.571 inch
subject depth	0.63 inch
body length	1.764 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	3500VAC V
maximum insertion force	8.0064 N
Minimum insulation diameter	0.079 inch
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	829217
Plug contact pitch	0.197 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	79u inch
Rated current (signal)	6 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	18
Maximum wire diameter	18 AWG
Minimum wire diameter	20 AWG
Evacuation force-minimum value	3.9198 N
Base Number Matches	1

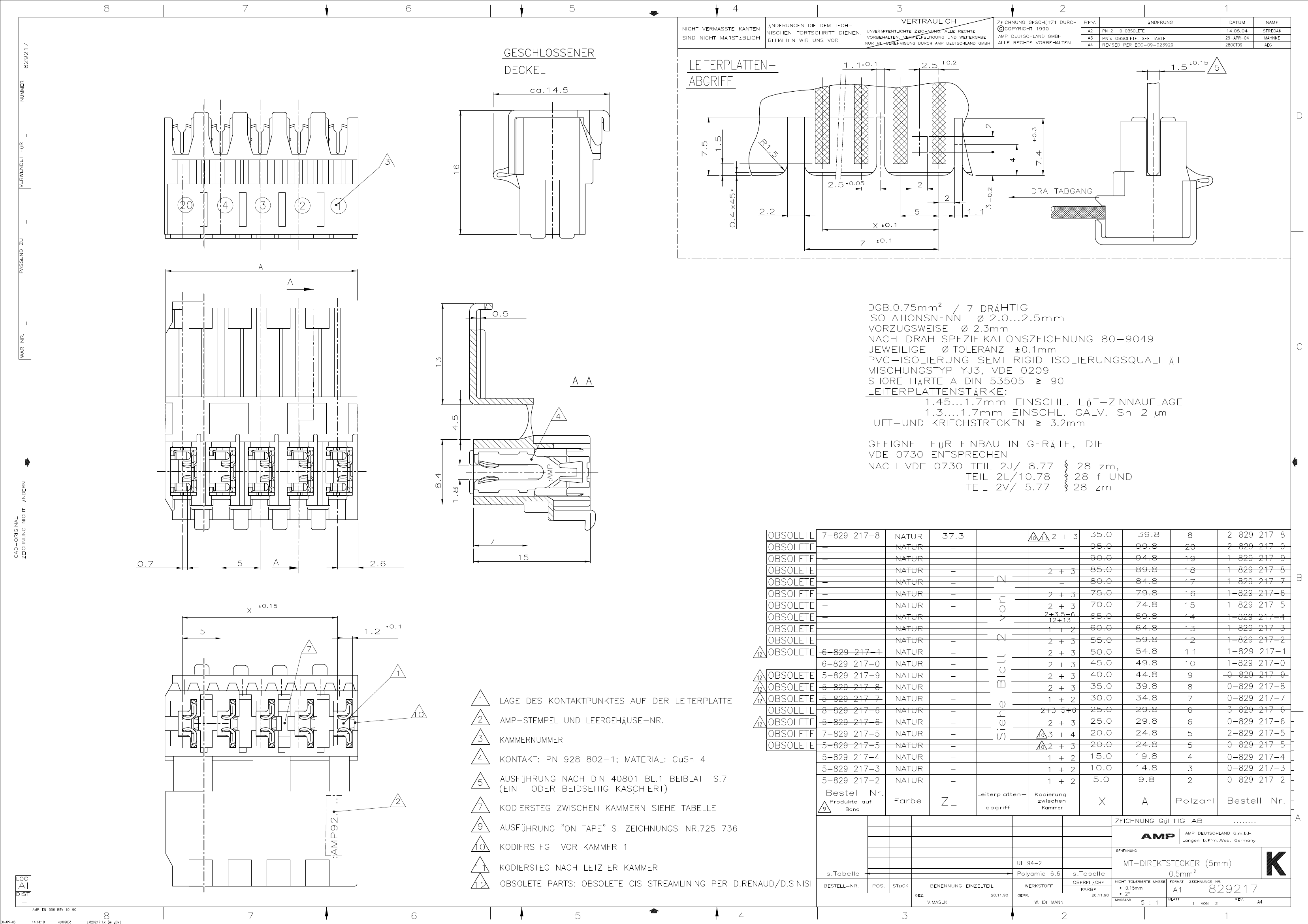

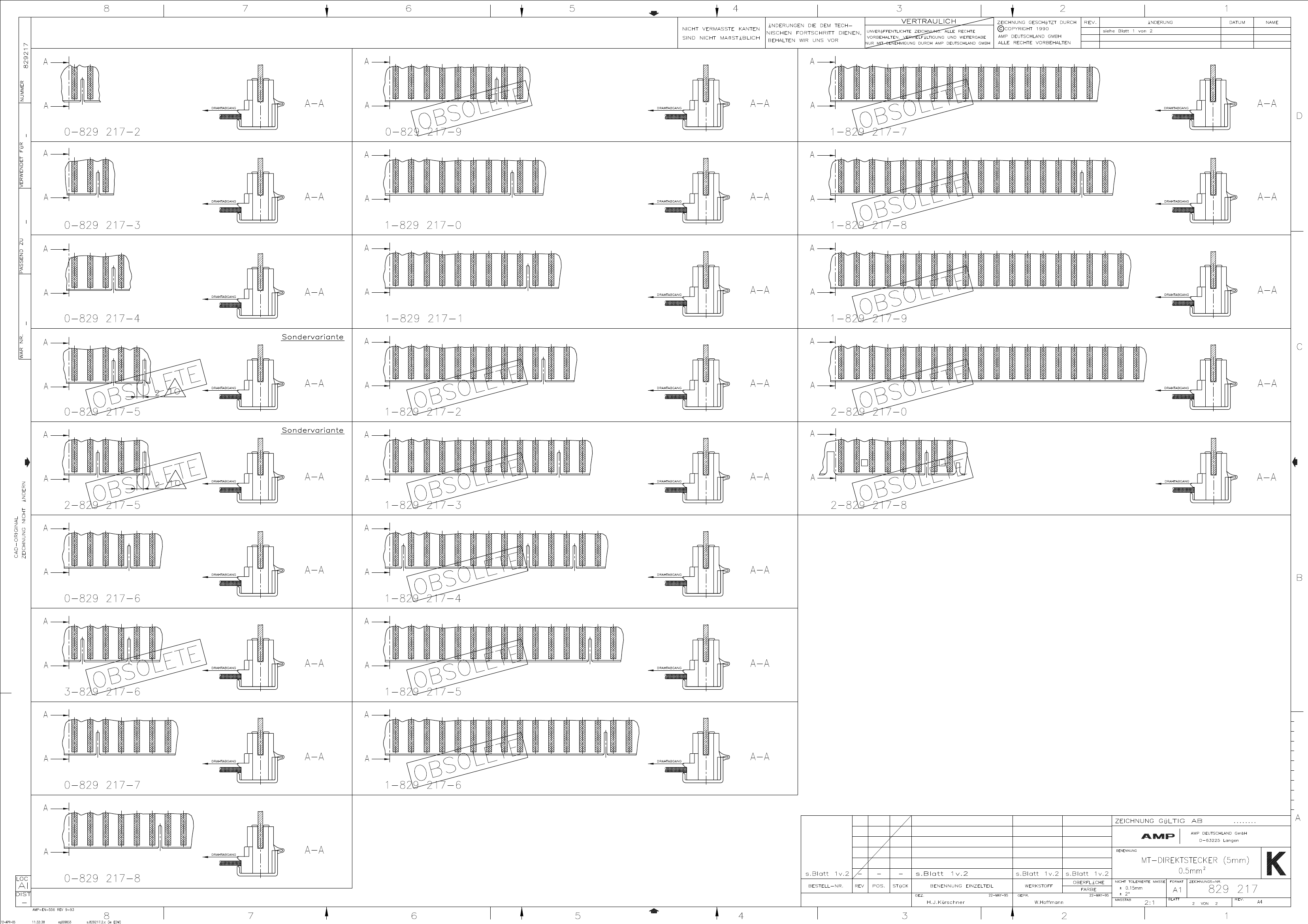

Preview

Download Datasheet

View All
